10/100 Multi Mode Fiber Copper Fast Ethernet Media Converter ST 2 km - TAA
Convert and extend a 10/100 Mbps Ethernet connection up to 2 km over Multi Mode ST fiber
Product ID: MCM110ST2
..
Warranty Information
Warranty
2 Years
Connector(s)
Local Unit Connectors
1 - Fiber Optic ST Duplex
1 - RJ-45
Environmental
Operating Temperature
0°C to 50°C (32°F to 122°F)
Storage Temperature
-10°C to 70°C (14°F to 158°F)
Humidity
10~90% RH
Hardware
PoE
No
WDM
No
Industry Standards
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-FX
IEEE 802.3u 100BASE-TX

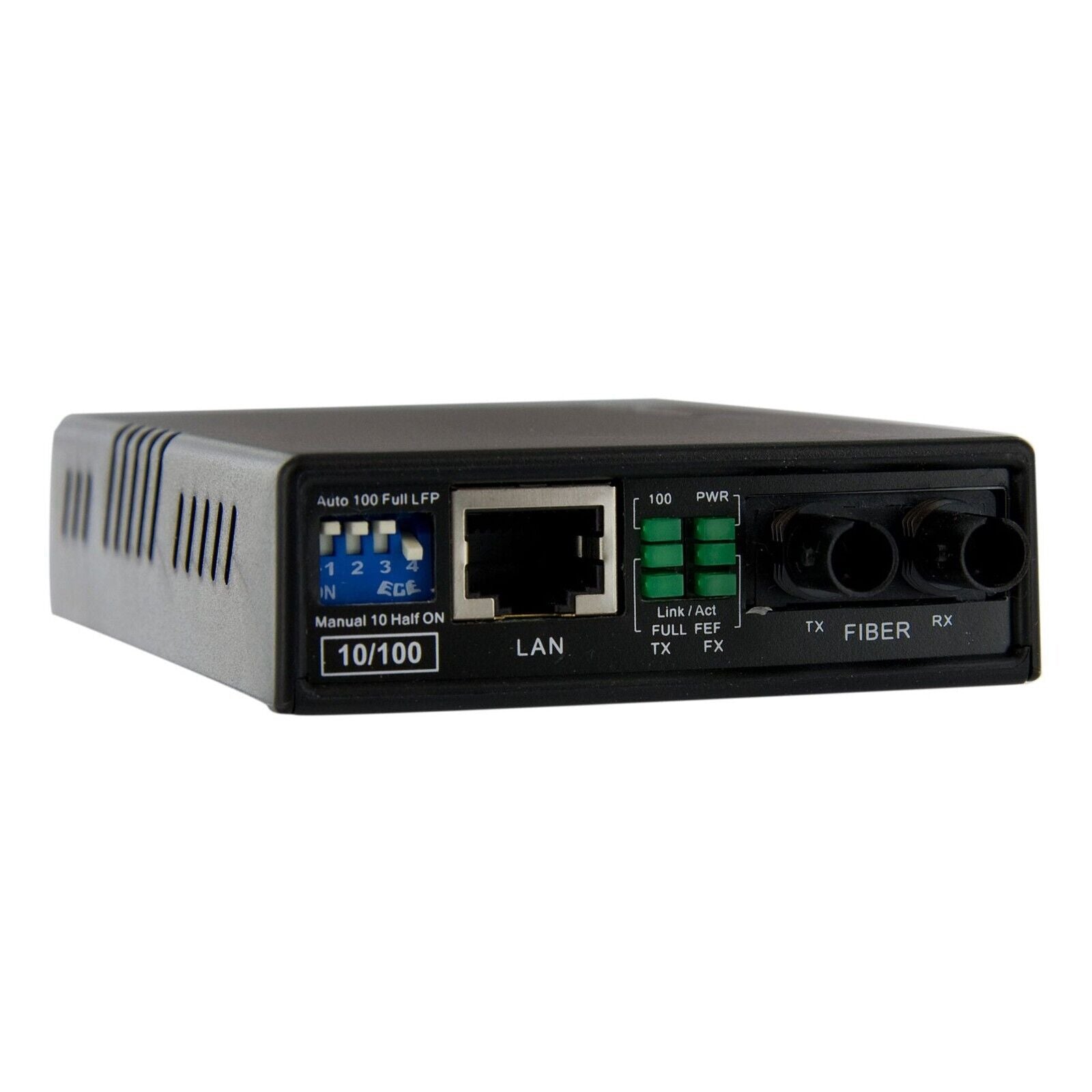

Indicators
LED Indicators
1 - Ethernet Link & Activity (ON - Fiber Link ok, Blinking - Activity on Fiber Link)
1 - Full ( Full duplex / Half duplex)
1 - FEF [Far End Fault](On - Fault Detected, Off - No Fault
1 - Fiber Link & Activity (On - Fiber Link ok, Blinking - Activity on Fiber Link)
1 - Speed (10 or 100 Mbps)
1 - Power
Packaging Information
Package Height
2.5 in [6.4 cm]
Package Length
6.9 in [17.4 cm]
Shipping (Package) Weight
9.6 oz [272.0 g]
Package Width
5.7 in [14.6 cm]
Package Quantity
1
Performance
Maximum Data Transfer Rate
10/100Mbps
Max Transfer Distance
2 km (1.2 mi)
Type
Multi Mode
Wavelength
1310nm
Fiber Operating Mode
Half/Full-Duplex
Optical Power
-14 ~ -20 dBm
Sensitivity
-31 dBm
Power Budget
11 dB
MTBF
65,000 Hours
Physical Characteristics
Weight of Product
2.9 oz [82 g]
Color
Black
Material
Plastic
Product Length
3.7 in [95 mm]
Product Width
3.0 in [7.5 cm]
Product Height
0.8 in [2 cm]
Power
Power Source
AC Adapter Included
Input Voltage
100 - 240 AC
Output Voltage
12V DC
Output Current
1A
Center Tip Polarity
Positive
Plug Type
M
Power Consumption (In Watts)
2.4

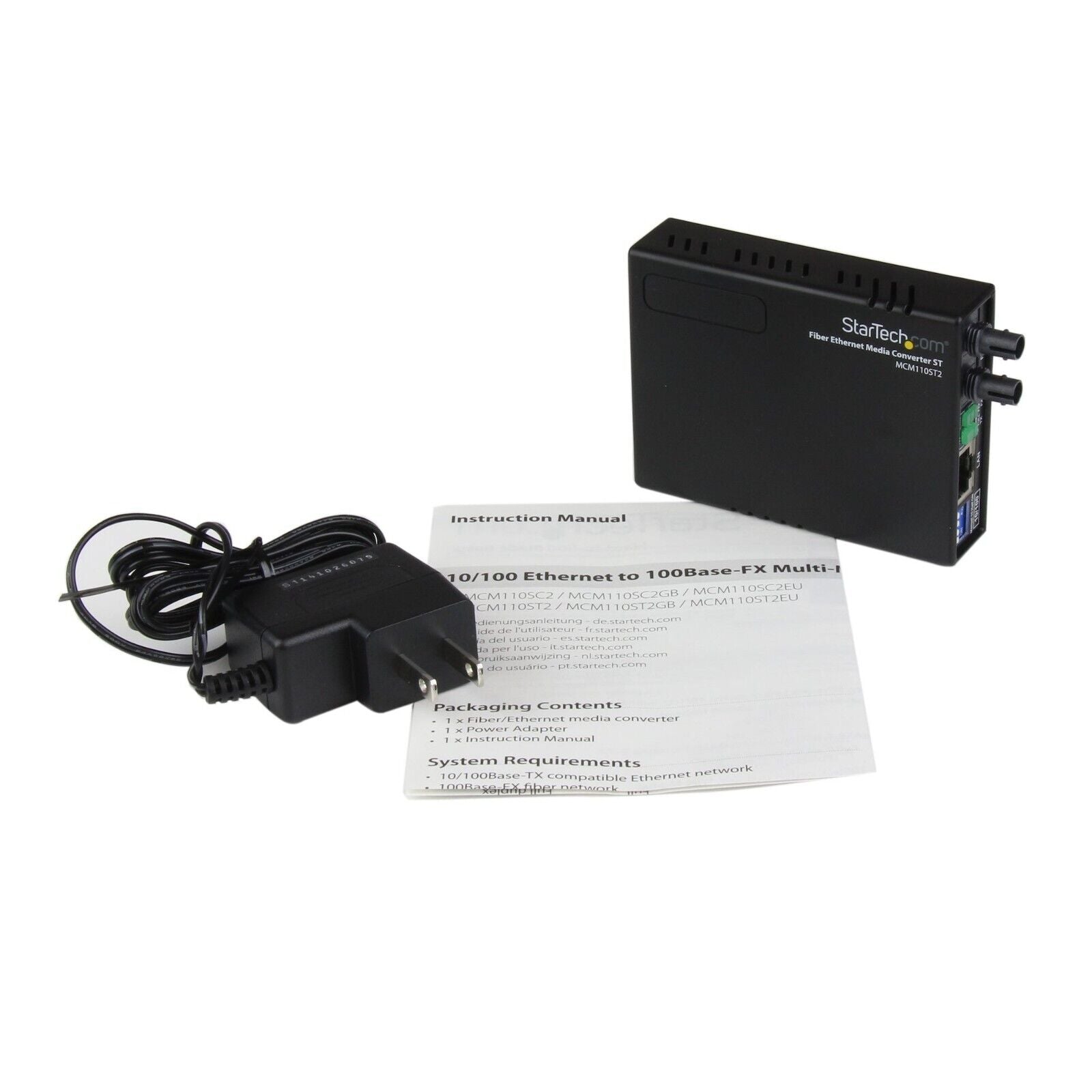

What's in the Box
Included in Package
1 - Media Converter
1 - Power Adapter
1 - Instruction Manual
