Warranty

2 Years

Max Distance

10 km (6.2 mi)

Local Unit Connectors

1 - RJ-45

Remote Unit Connectors

1 - Fiber Optic SC Duplex

Operating Temperature

0°C to 50°C (32°F to 122°F)

Storage Temperature

-10°C to 70°C (14°F to 158°F)

Humidity

5 ~ 90% RH

PoE

No

WDM

No

Industry Standards

IEEE 802.3u 100BASE-LX

IEEE 802.3ab 1000BASE-T

IEEE 802.3z 1000BASE-LX

IEEE 802.3 10BASE-T

Industry Standards

IEEE 802.3x full-duplex flow control

IEEE 802.1q VLAN pass through

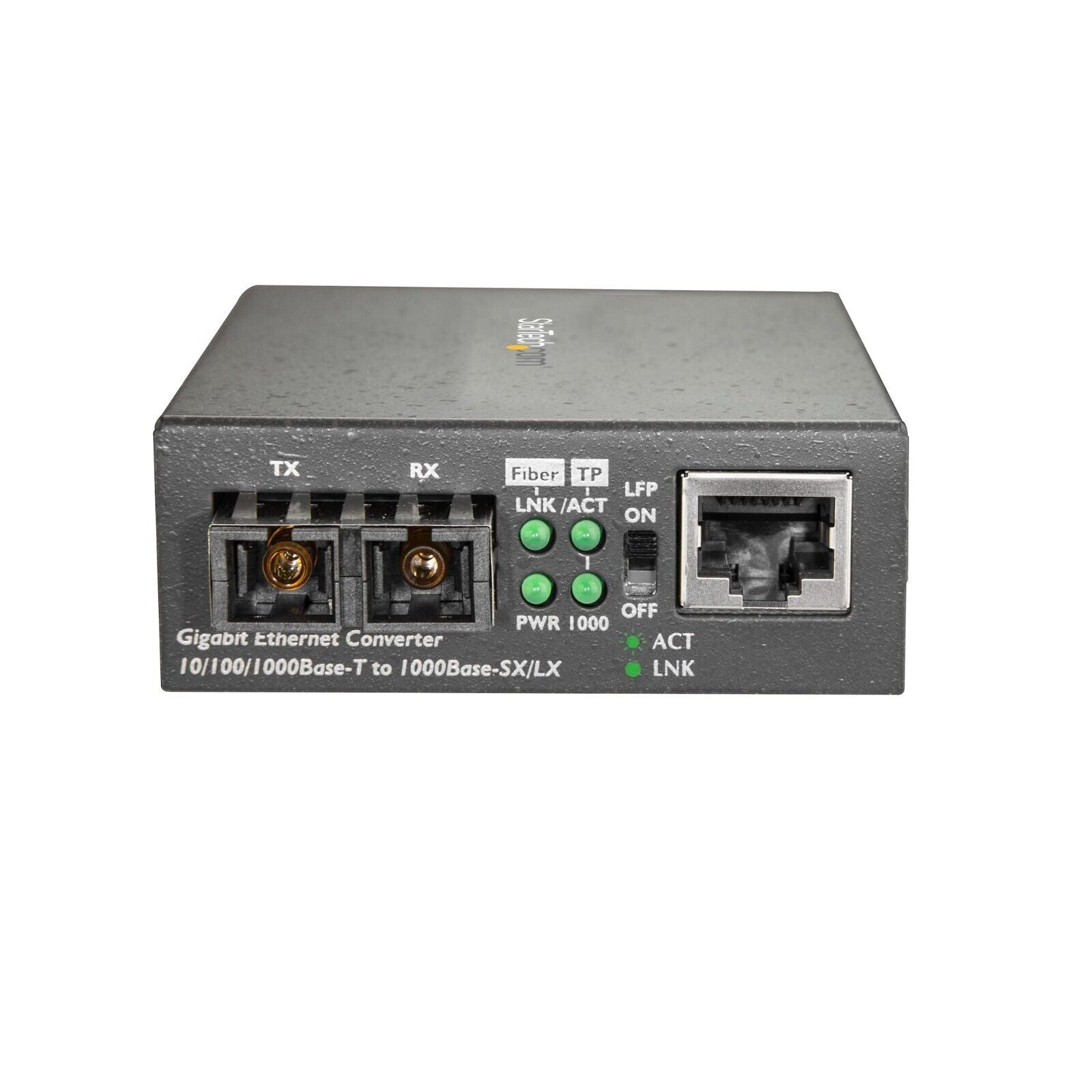

LED Indicators

1 - 1000 Link: ON - Valid Gigabit Link

1 - Power

1 - FX Link/Activity

1 - TP Link/Activity

Shipping (Package) Weight

15.1 oz [428.0 g]

Package Quantity

1

Package Length

8.9 in [22.6 cm]

Package Width

4.7 in [12.0 cm]

Package Height

2.8 in [7.0 cm]

Maximum Data Transfer Rate

1000 Mbps (1 Gbps)

Max Transfer Distance

10 km (6.2 mi)

Type

Single Mode

Wavelength

1310nm

Fiber Operating Mode

Full-Duplex

Auto MDIX

Yes

Jumbo Frame Support

9K max.

Switching Architecture

Store-and-Forward

General Specifications

Supports a maximum distance of 10 km over SM duplex fiber optic cable (SC connection), and 100m over copper (RJ45 connection)
Data Transfer Rate Copper: 10/100/1000 Mbps
Data Transfer Rate Fiber: 1000 Mbps
ESD Surge Protection: 1KV. Contact discharge - 4KV. Air discharge - 8KV

MTBF

> 50,000 hours at 25°C

Color

Black

Material

Steel

Product Length

2.8 in [70 mm]

Product Width

4.1 in [10.5 cm]

Product Height

1.0 in [2.6 cm]

Weight of Product

6.9 oz [196 g]

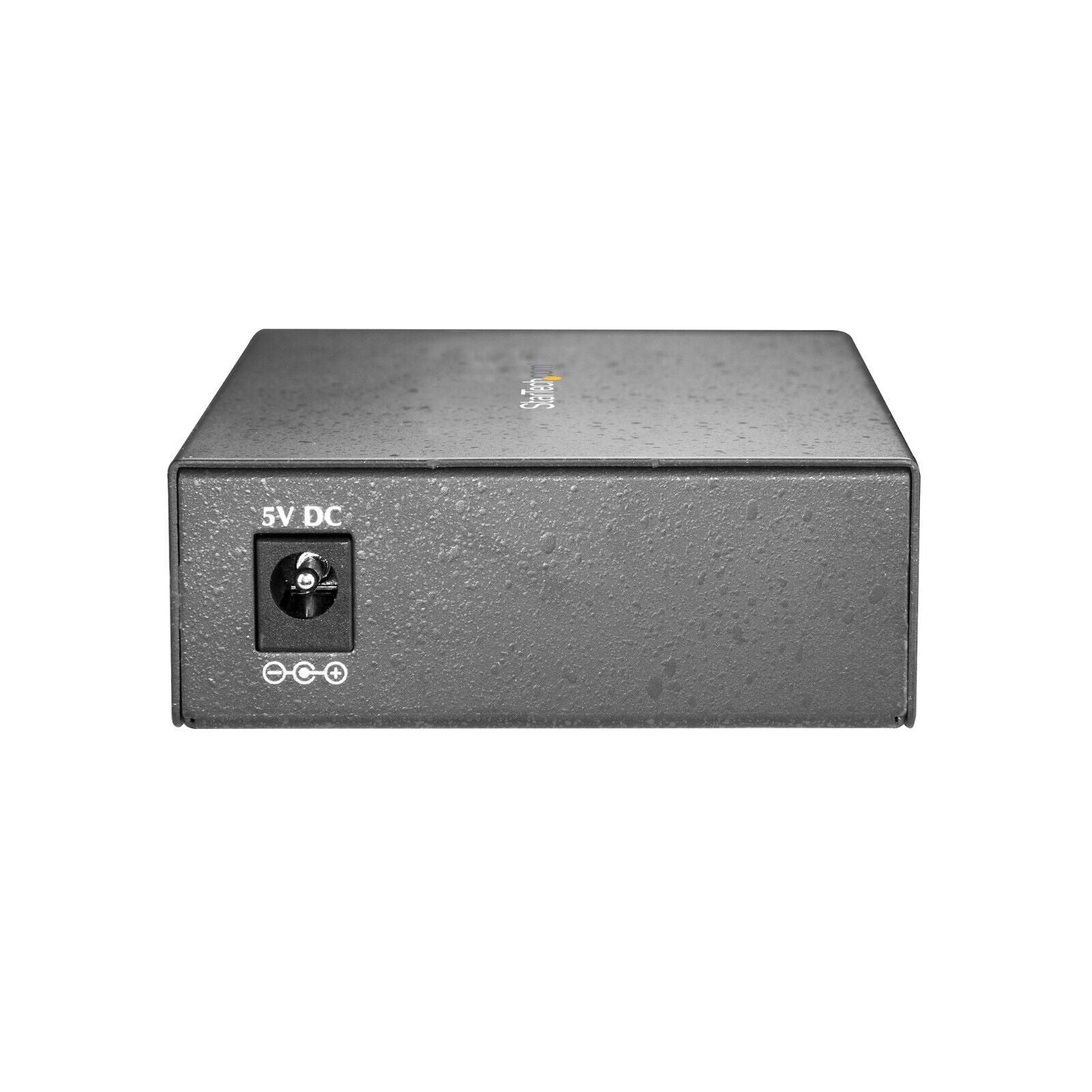

Power Source

AC Adapter Included

Input Voltage

100 - 240 AC

Input Current

0.4 A

Output Voltage

5 DC

Output Current

2 A

Center Tip Polarity

Positive

Plug Type

N

Power Consumption (In Watts)

10

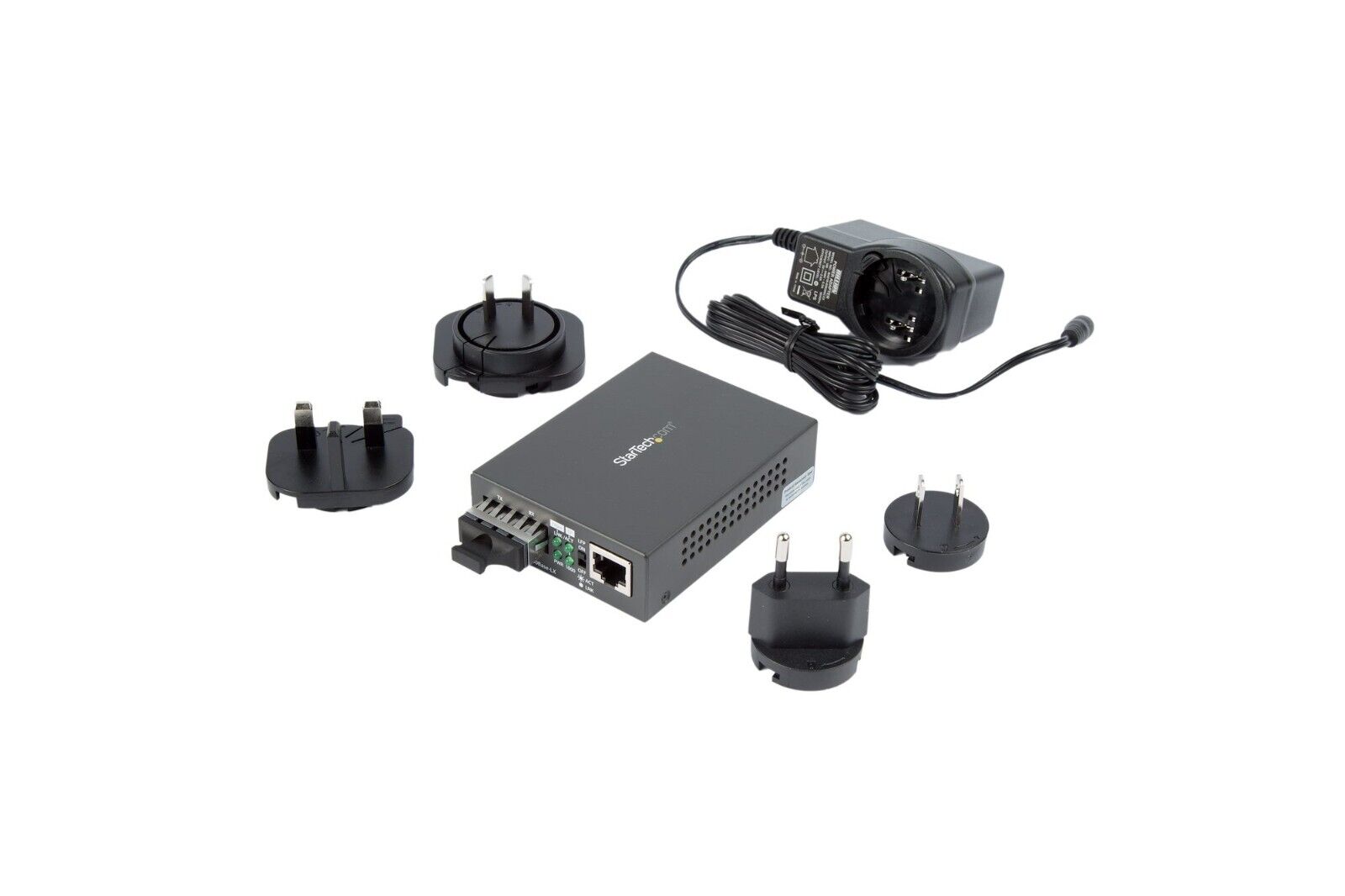

Included in Package

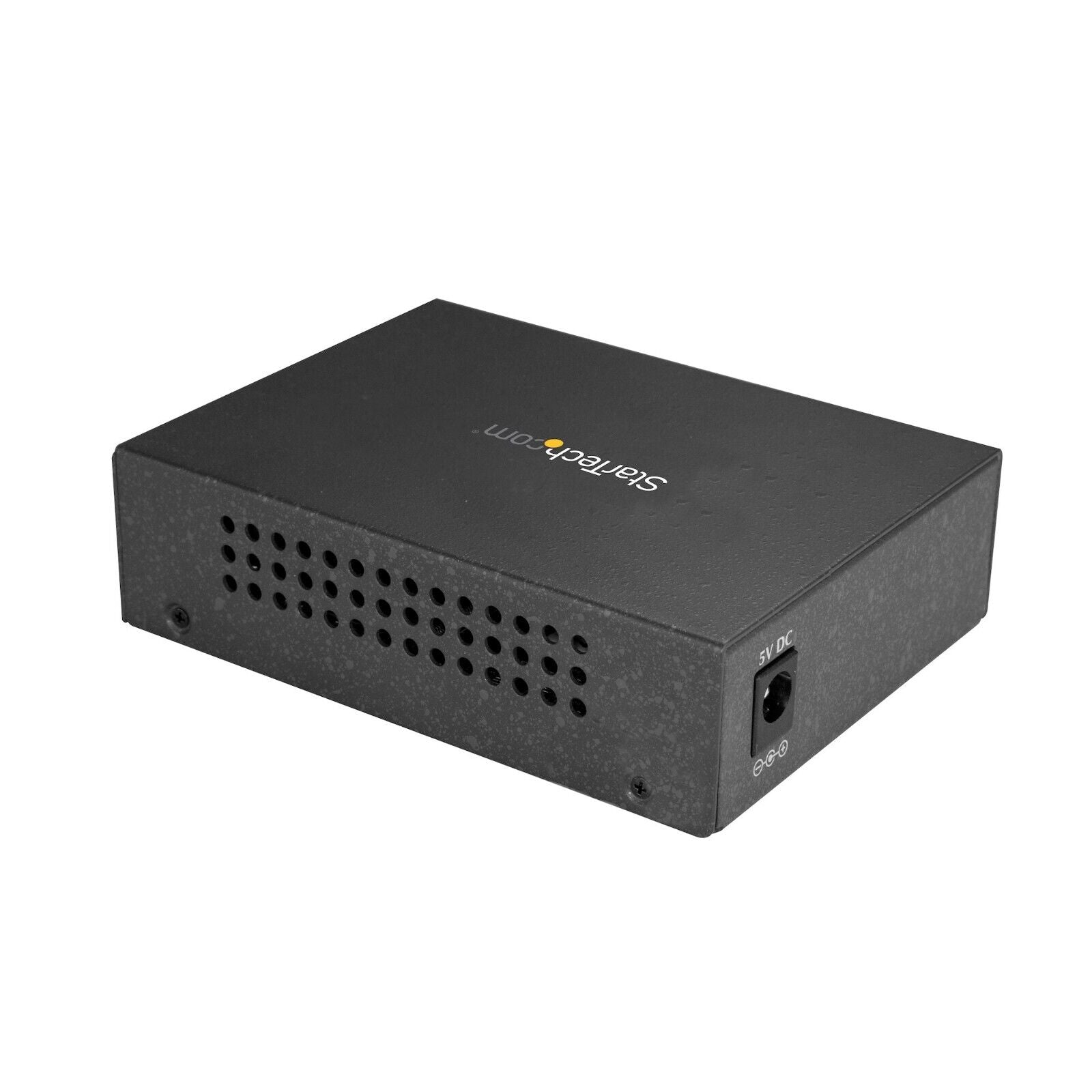

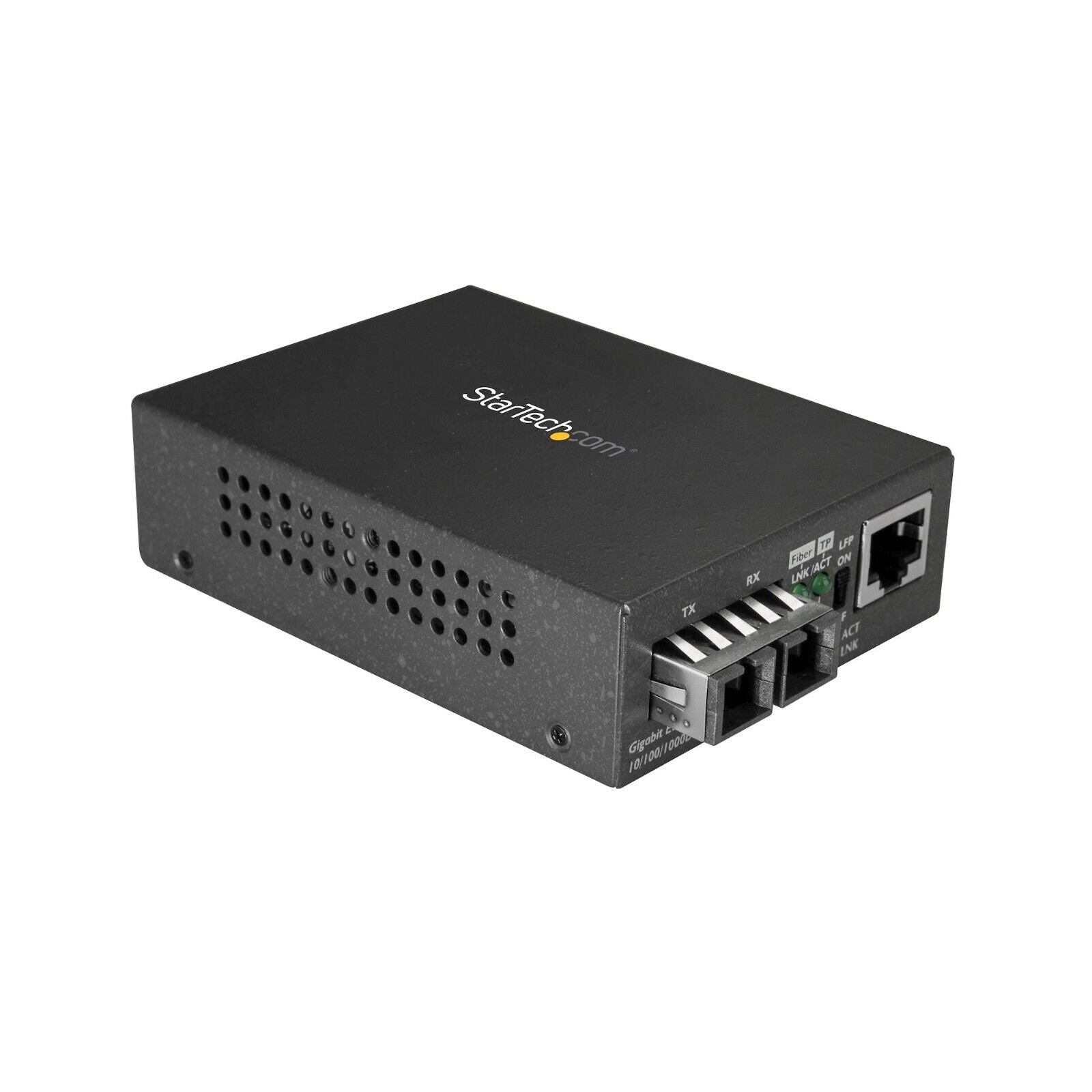

1 - media converter

1 - universal power adapter (NA/JP, UK, EU, ANZ)

1 - quick-start guide
