StarTech SMDOS2SCSC1M 3Ft SC/SC OS2 Single Mode Fiber Optic LSZH Jumper Cable
%20SC%20to%20SC%20(UPC)%20OS2%20Single%20Mode%20Duplex%20Fiber%20Optic%20Cable,%209/125%C2%B5m,%2040G/100G...){kind=link}
Regular price
$30.12 USD
Sale price
$30.12 USD
Regular price
$16.99 USD
Description
Couldn't load pickup availability
StarTech SMDOS2SCSC1M 3Ft SC/SC OS2 Single Mode Fiber Optic LSZH Jumper Cable
Current product
Current
Vendor:
Startech
StarTech SMDOS2SCSC1M 3Ft SC/SC OS2 Single Mode Fiber Optic LSZH Jumper Cable
Regular price
$30.12 USD
Sale price
$30.12 USD
Regular price
$16.99 USD
Options
Descriptions

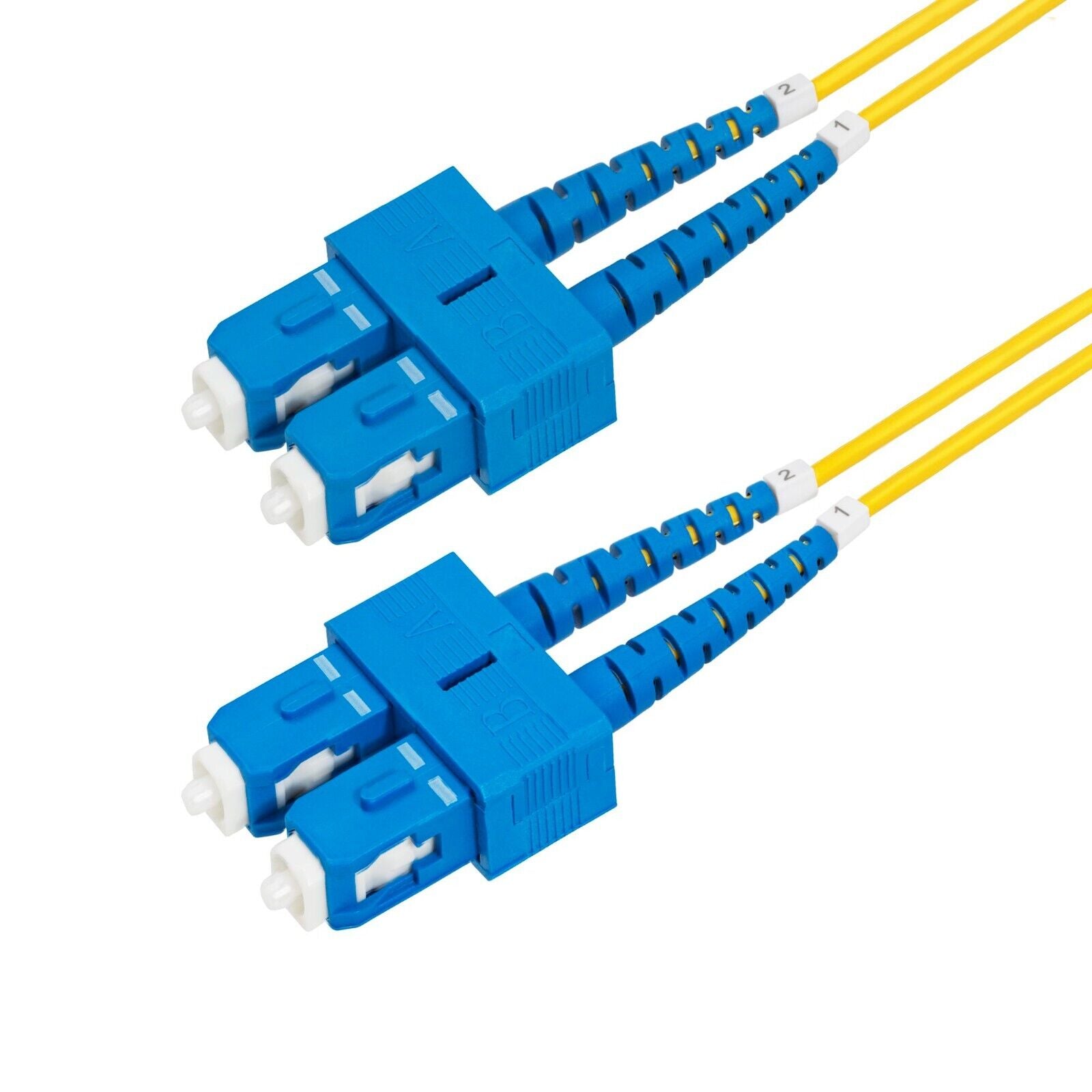

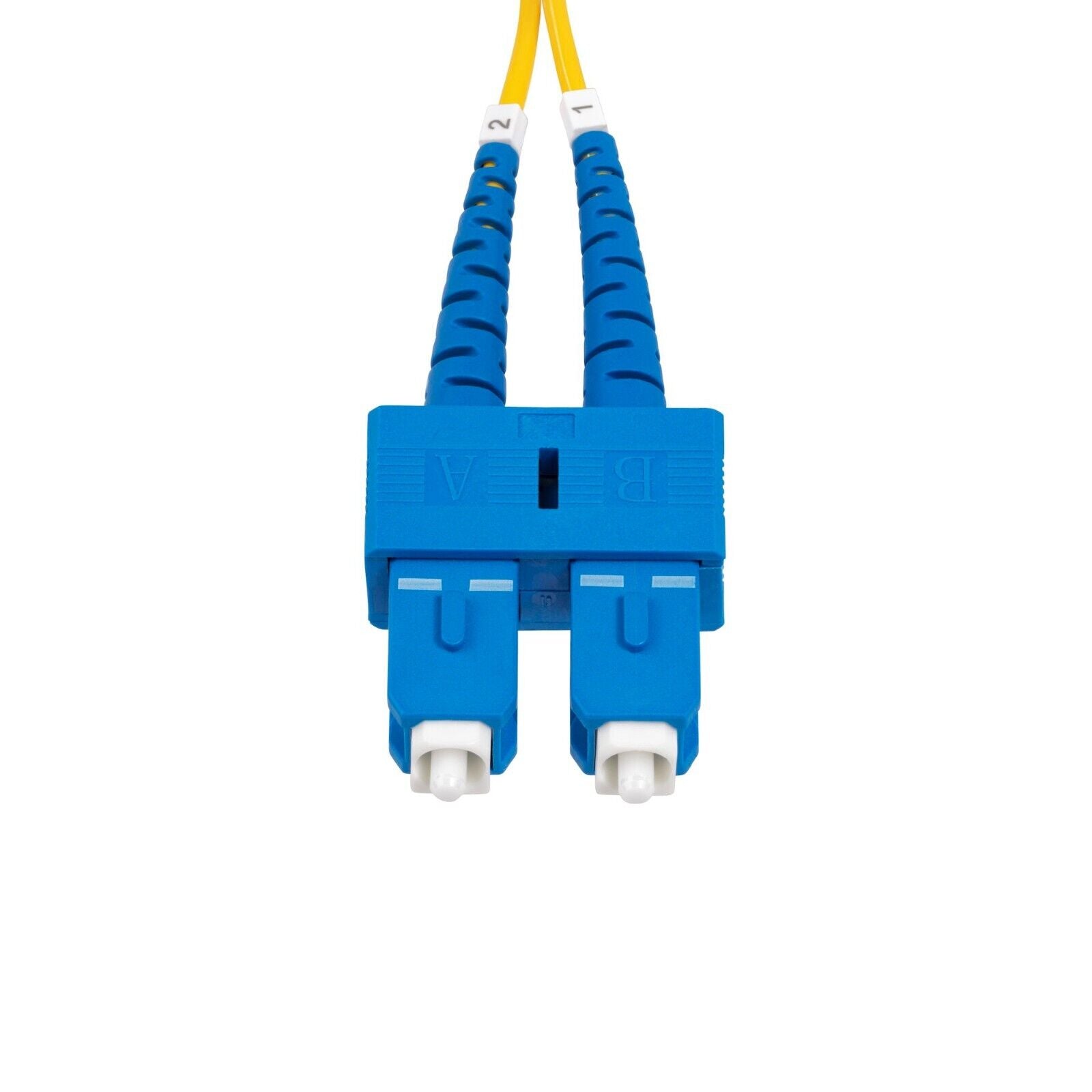

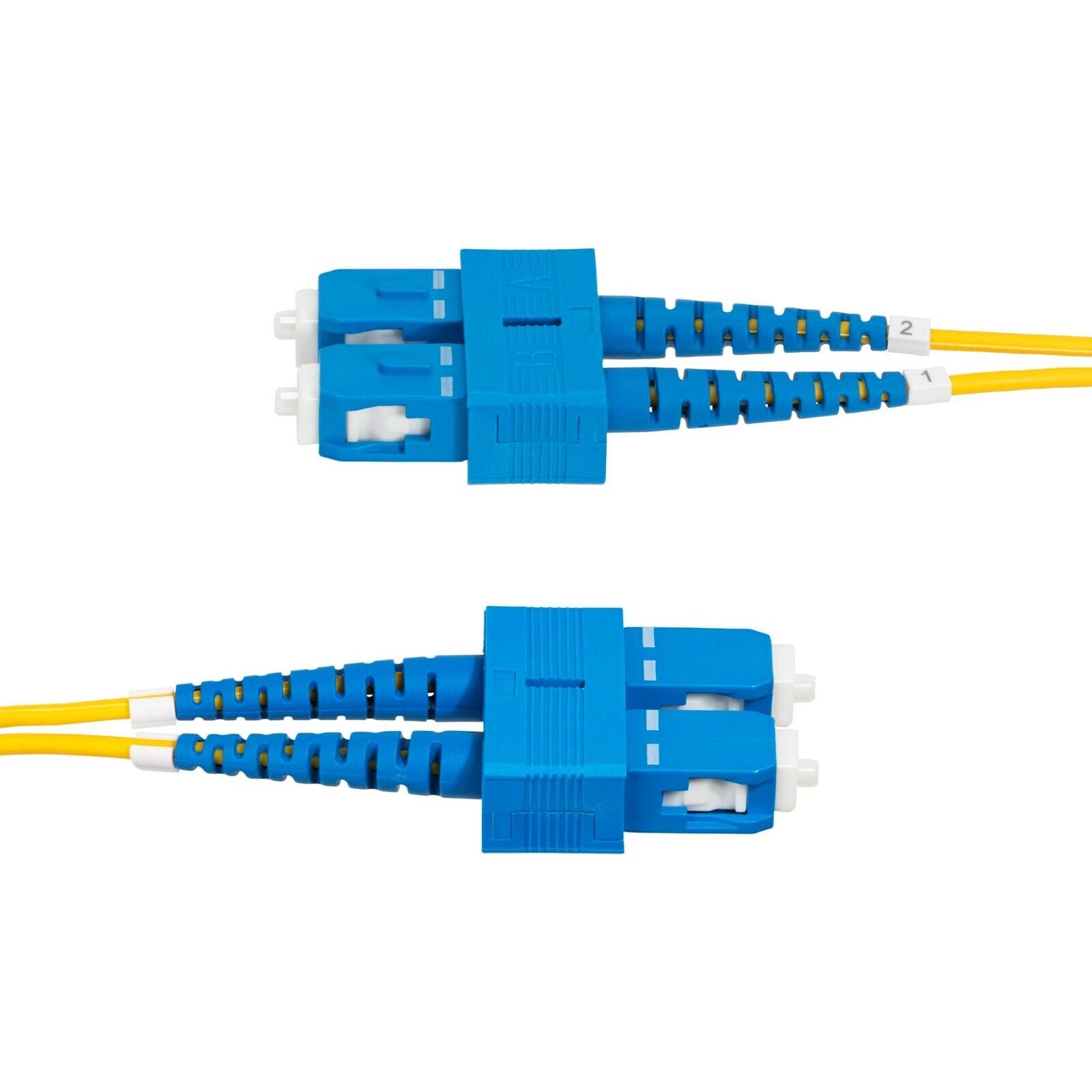

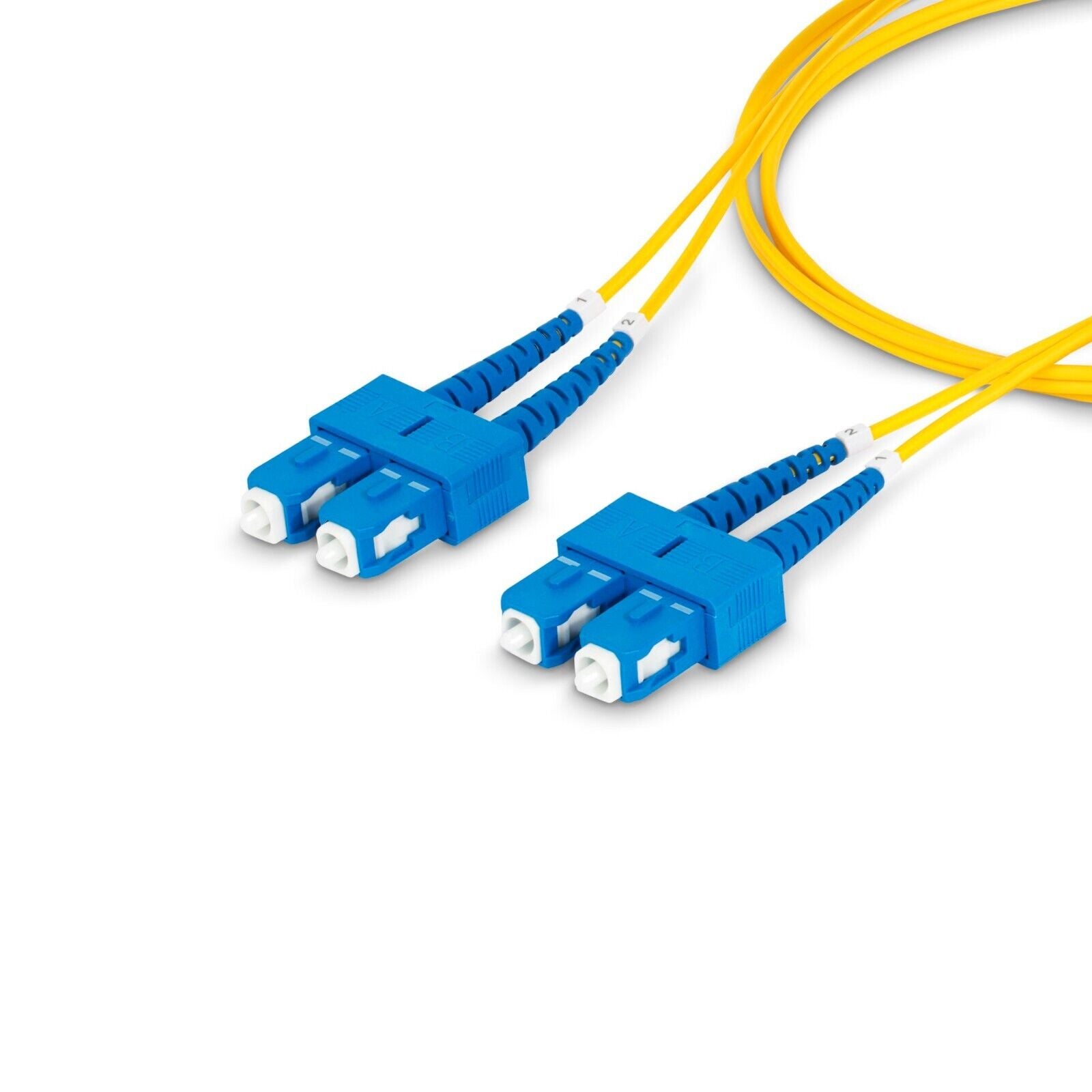

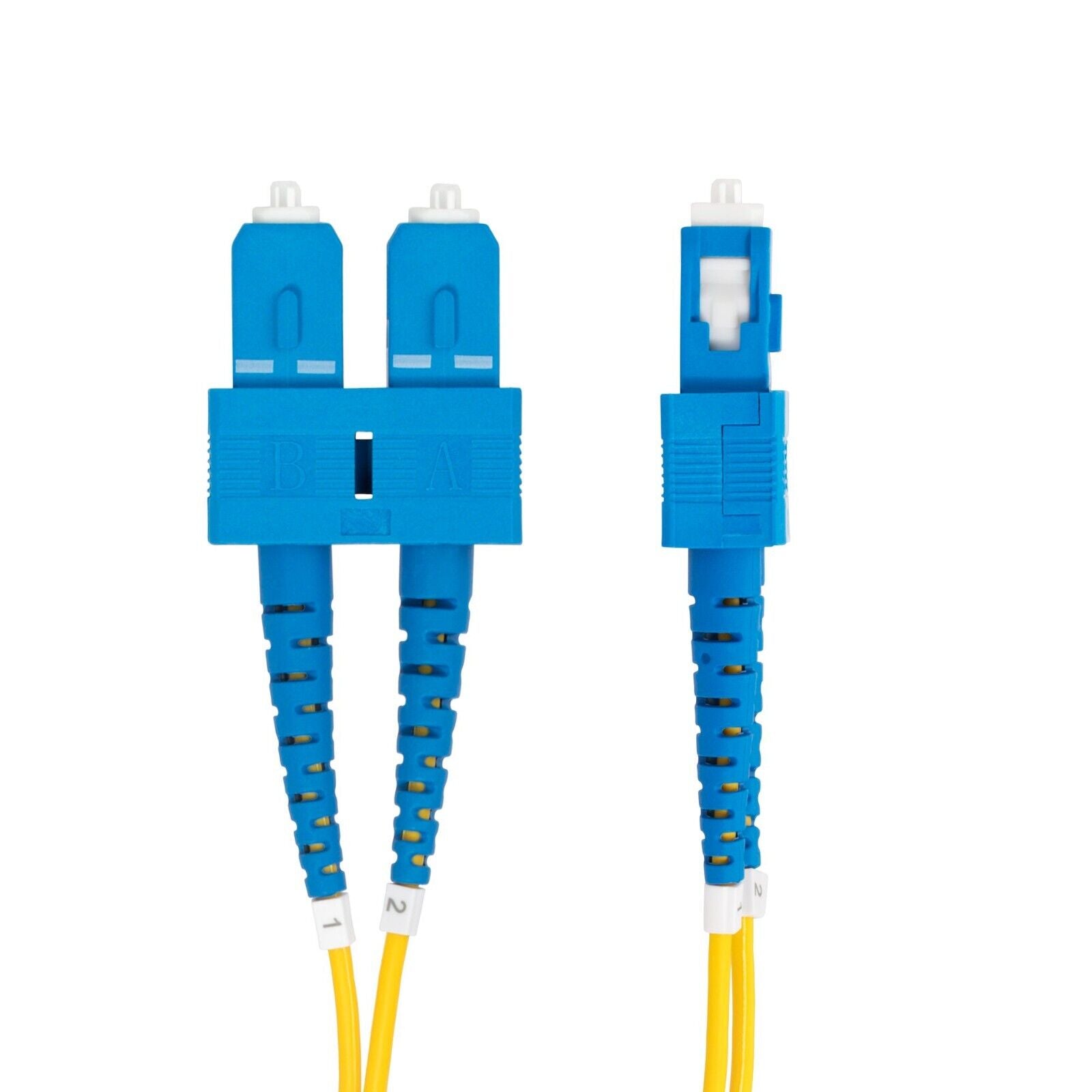

1m (3.3ft) SC to SC (UPC) OS2 Single Mode Duplex Fiber Optic Cable, 9/125µm, 40G/100G Zipcord, Bend Insensitive, Low Insertion Loss - LSZH Fiber Jumper Cord
Enhance the performance capabilities of CWDM applications over an OS2 fiber network
Product ID: SMDOS2SCSC1M
..
OS2 SC to SC Single Mode Duplex Fiber Optic Patch cable facilitates connectivity across 40G/100G networks. It supports Coarse Wavelength Division Multiplexing (CWDM) across an extended wavelength range of 1260-1625nm, improving channel isolation for optimal signal strength over long distances.
Connector(s)
Connector A
1 - Fiber Optic SC Duplex
Connector B
1 - Fiber Optic SC Duplex
Environmental
Operating Temperature
-20°C - 60°C (-4°F - 140°F)
Storage Temperature
-20°C - 60°C (-4°F - 140°F)
Humidity
40% - 70%
Hardware
Cable Jacket Material
Low Smoke Zero Halogen
Fiber Size
9/125
Packaging Information
Package Height
0.1 in [2.9 mm]
Package Length
8.7 in [22.0 cm]
Shipping (Package) Weight
1.2 oz [34.0 g]
Package Width
7.9 in [20.0 cm]
Performance
Maximum Data Transfer Rate
100Gbps
Cable Rating
1Gbps / 10Gbps / 40Gbps / 100Gbps
Fiber Classification
OS2
Type
Single Mode
Wavelength
1260nm to 1625nm
General Specifications
Insertion Loss: ≤ 0.3dB
Return Loss: ≥ 55dB
Return Loss: ≥ 55dB
Physical Characteristics
Color
Yellow
Product Height
0.4 in [1.0 cm]
Product Length
3.3 ft [1.0 m]
Weight of Product
0.0 oz [0.0 g]
Product Width
1.0 in [2.5 cm]
Connector Style
Straight
Material
Polypropylene (PP)
Cable Length
3.3 ft [1 m]
Cable OD
0.1 in [2 mm]
Website Filters
Fire Rating
LSZH Rated (Low Smoke Zero Halogen)
What's in the Box
Included in Package
1 - Single Mode Fiber Cable - SC to SC
1 - Test Report
