StarTech SMLCSC-OS2-2M 6Ft LC/SC OS2 Single Mode Duplex Fiber LSZH Jumper Cable
%20LC%20to%20SC%20(UPC)%20OS2%20Single%20Mode%20Duplex%20Fiber%20Optic%20Cable,%209/125%C2%B5m,%20100G,...){kind=link}
Regular price
$29.60 USD
Sale price
$29.60 USD
Regular price
$16.99 USD
Description
Couldn't load pickup availability
StarTech SMLCSC-OS2-2M 6Ft LC/SC OS2 Single Mode Duplex Fiber LSZH Jumper Cable
Current product
Current
Vendor:
Startech
StarTech SMLCSC-OS2-2M 6Ft LC/SC OS2 Single Mode Duplex Fiber LSZH Jumper Cable
Regular price
$29.60 USD
Sale price
$29.60 USD
Regular price
$16.99 USD
Options
Descriptions

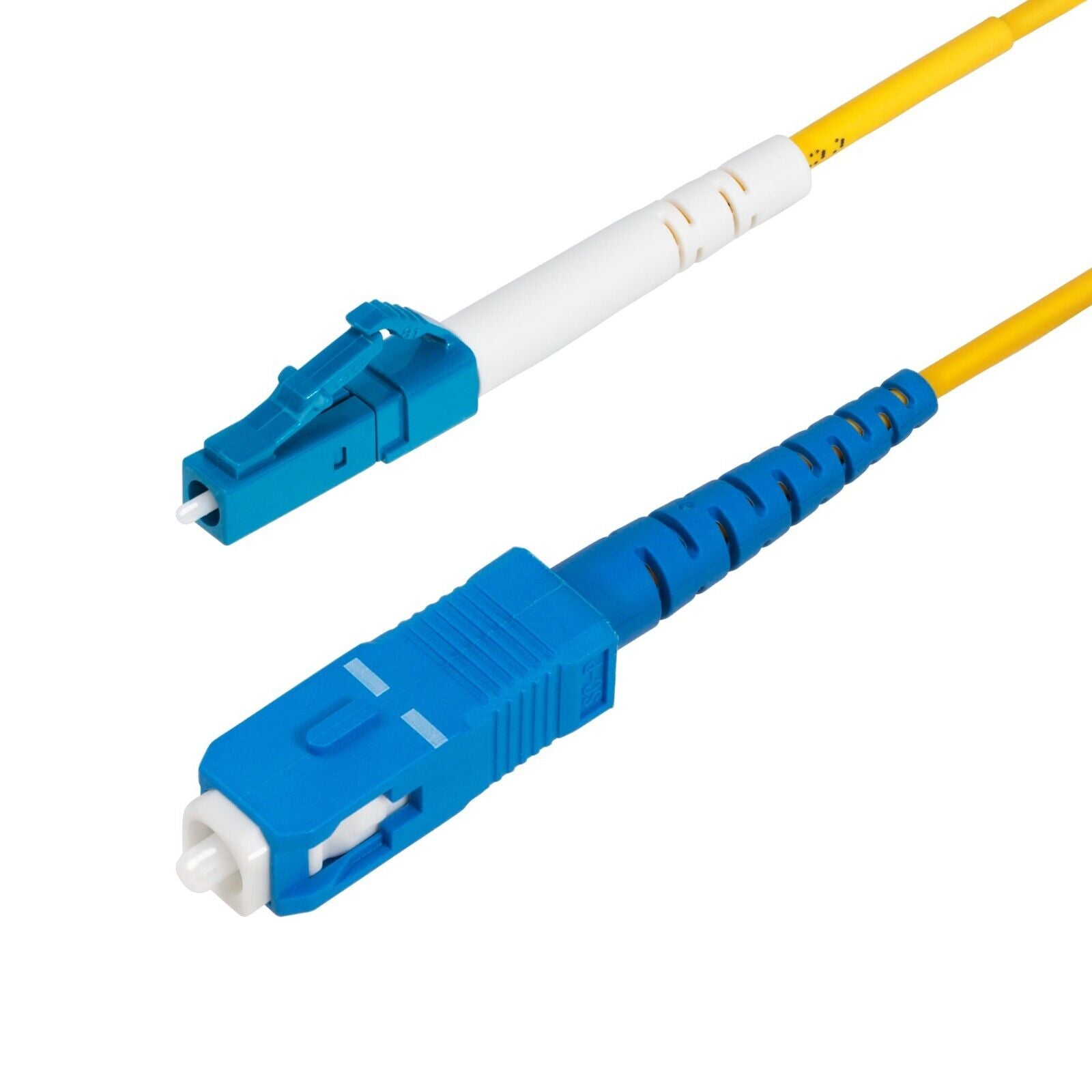

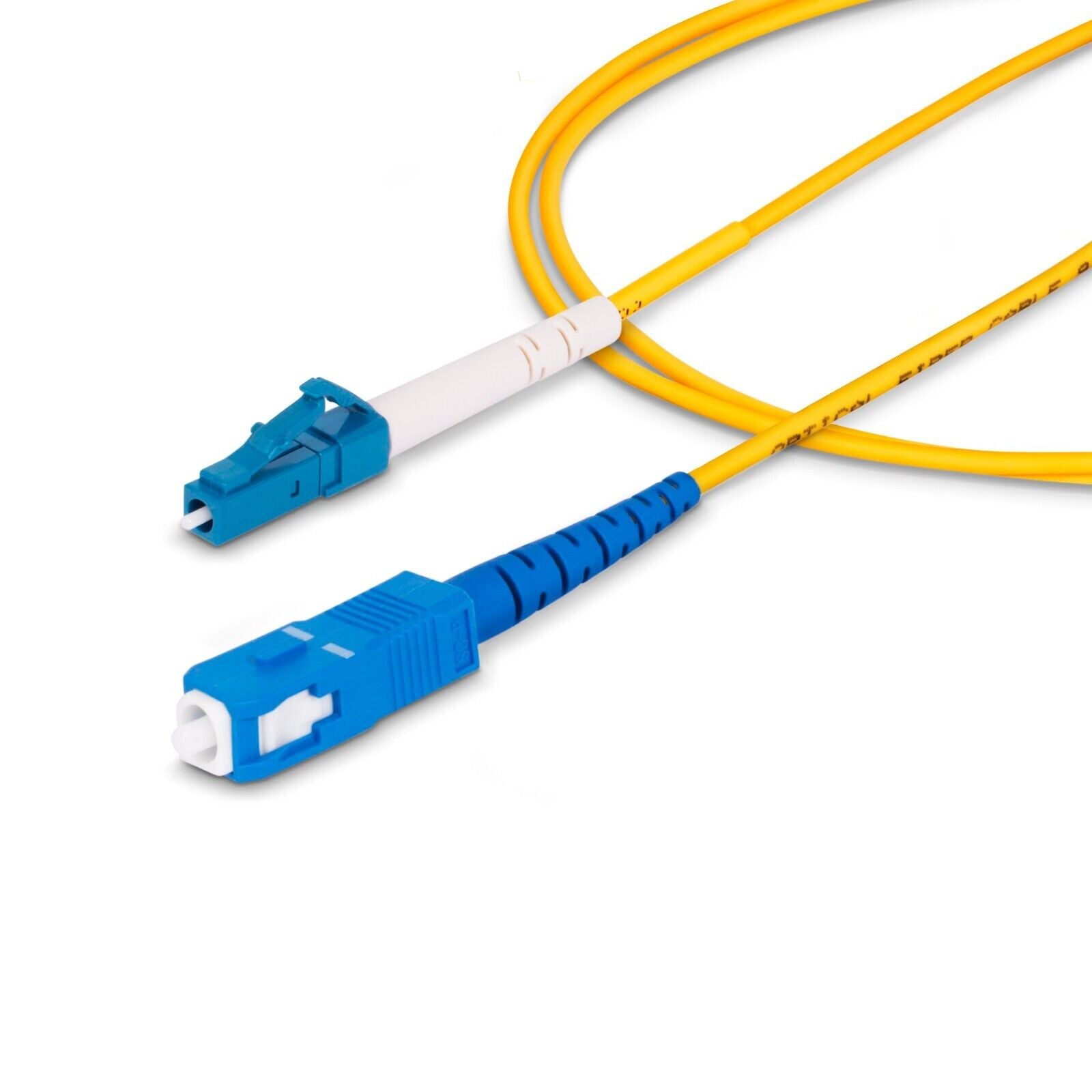

2m (6.6ft) LC to SC (UPC) OS2 Single Mode Duplex Fiber Optic Cable, 9/125µm, 100G, Bend Insensitive, Low Insertion Loss - LSZH Fiber Jumper Cord
Enhance the performance capabilities of CWDM applications over an OS2 fiber network
Product ID: SMLCSC-OS2-2M
..
OS2 LC to SC Single Mode Duplex Fiber Optic Patch cable facilitates connectivity across 100G networks. It supports Coarse Wavelength Division Multiplexing (CWDM) across an extended wavelength range of 1260-1625nm, improving channel isolation for optimal signal strength over long distances.
Specifications
Warranty Information
Warranty
Lifetime
Connector(s)
Connector A

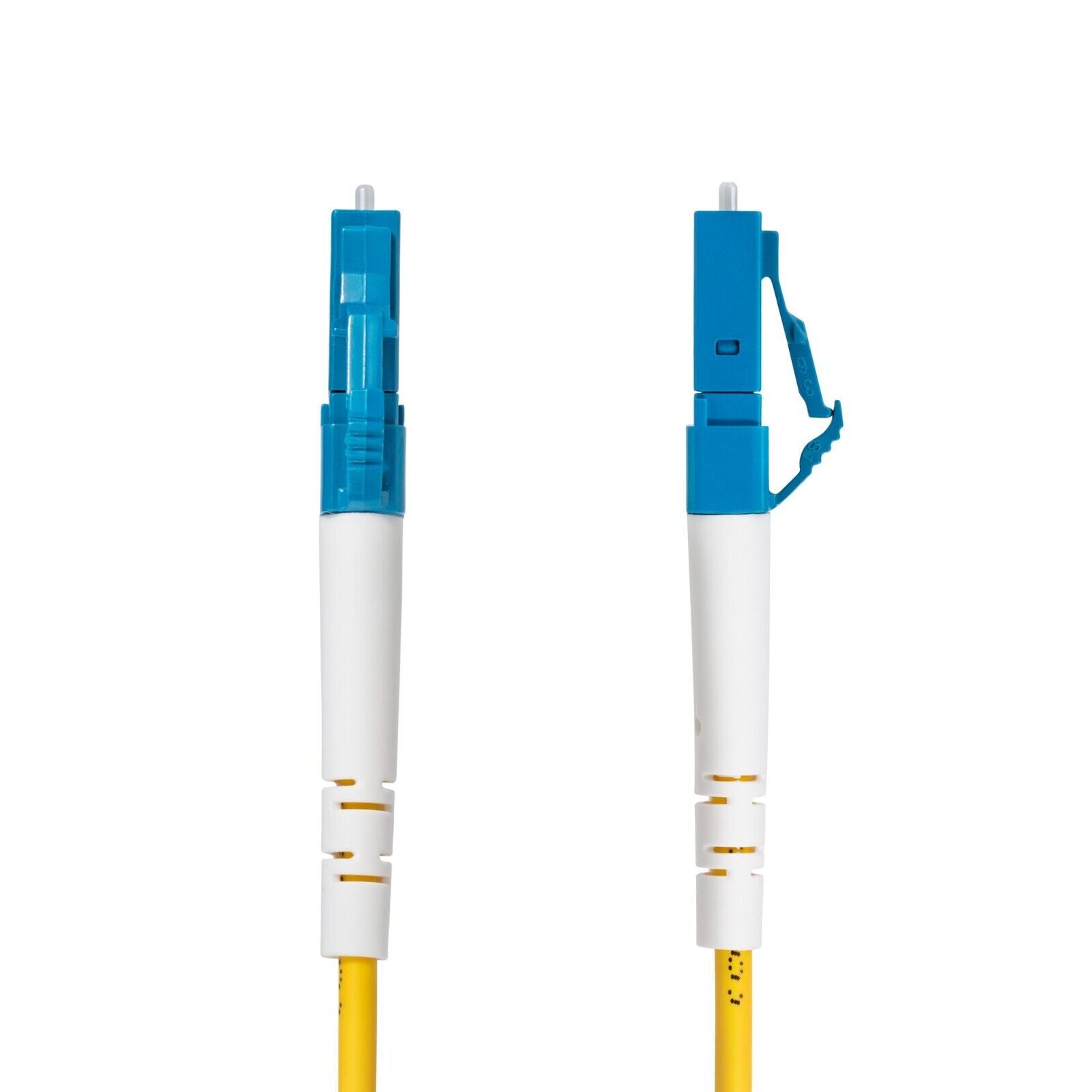

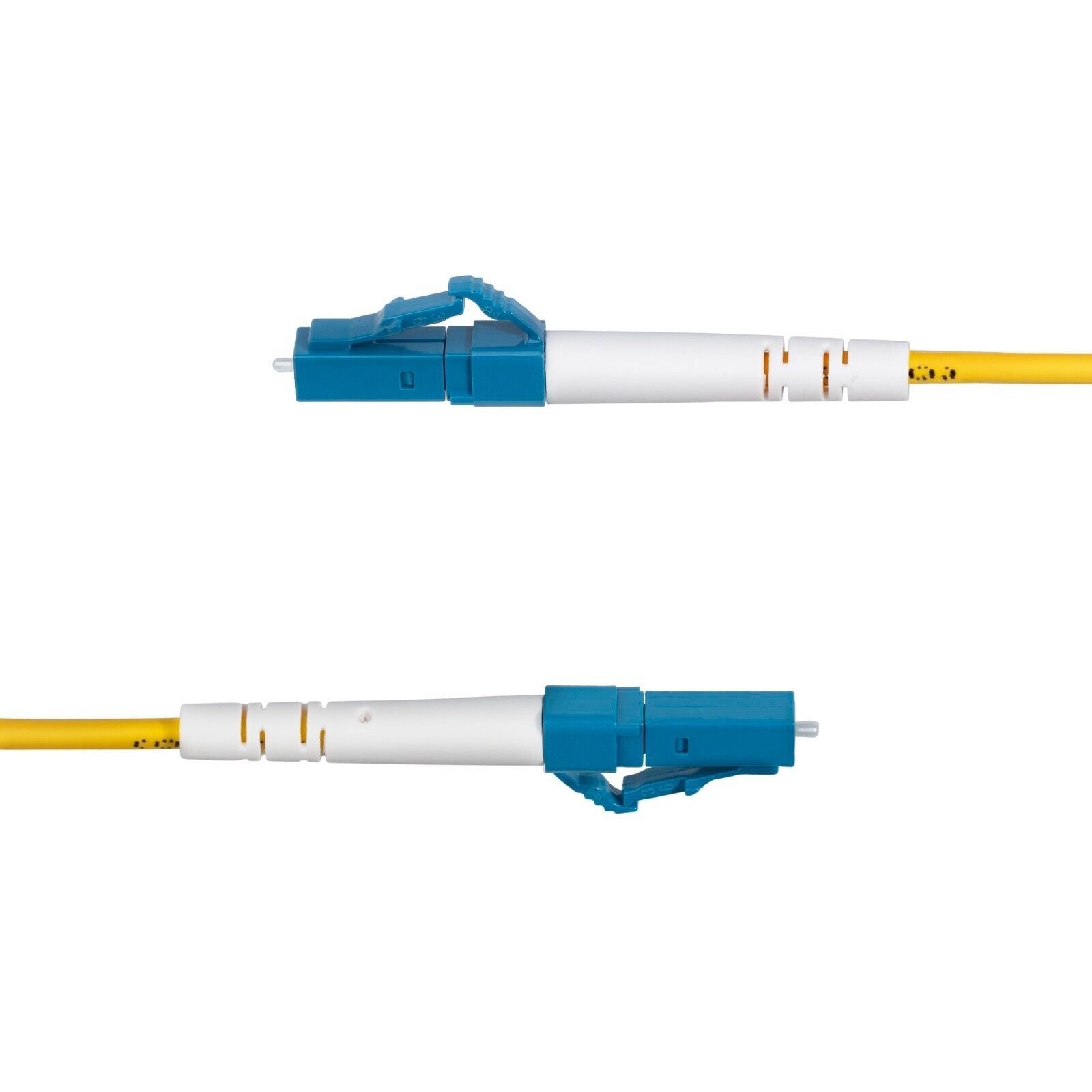

1 - Fiber Optic LC Duplex
Connector B

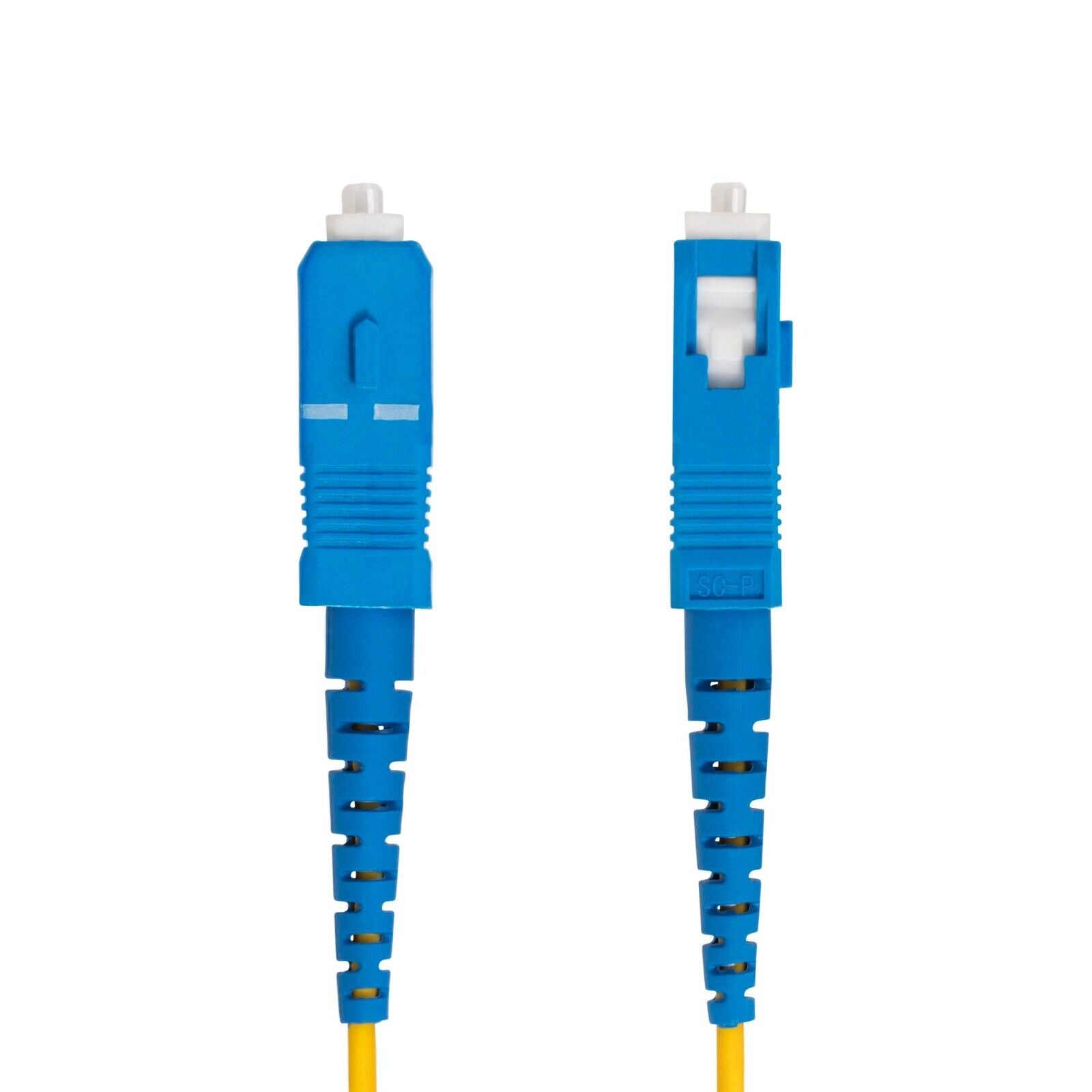

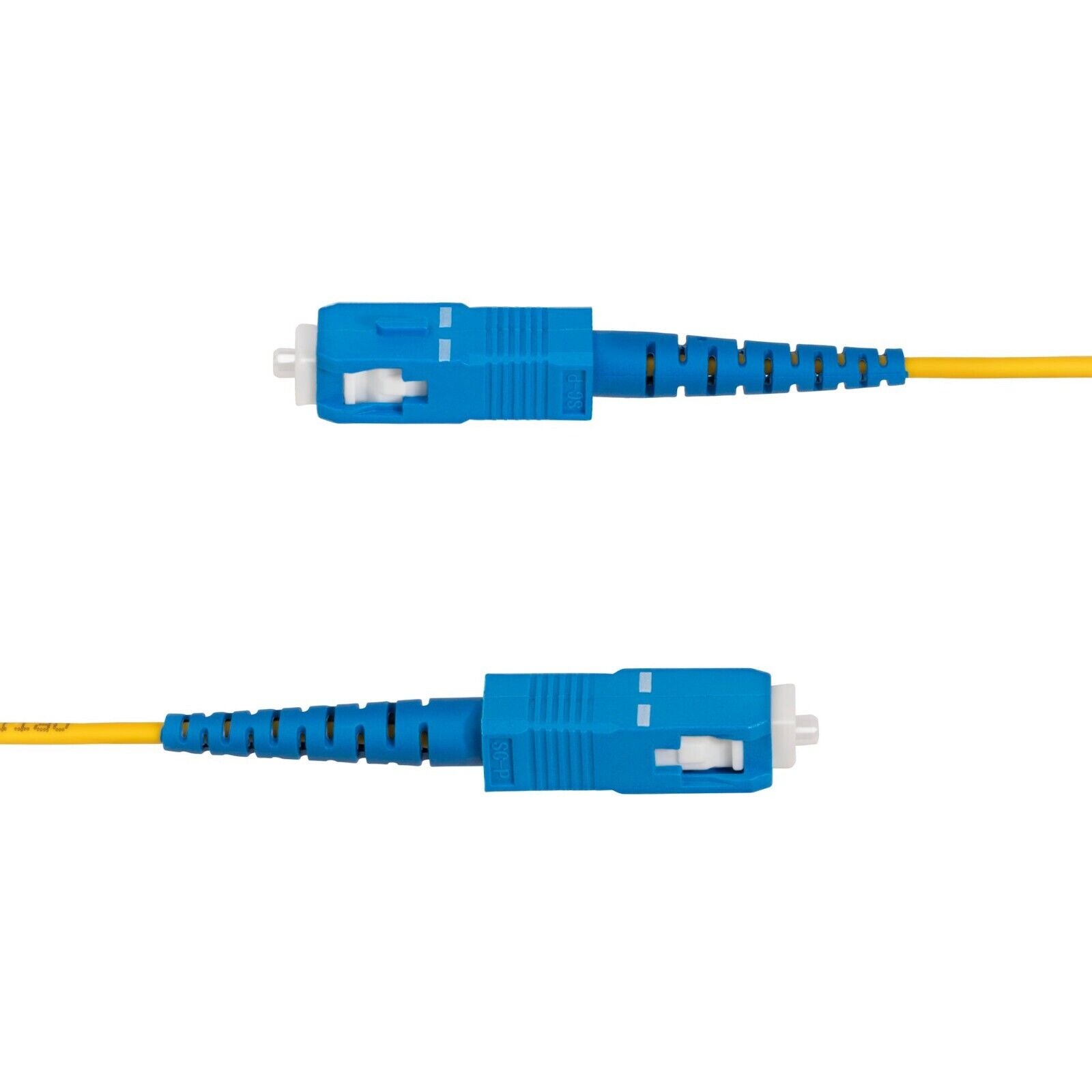

1 - Fiber Optic SC Duplex
Environmental
Operating Temperature
-20°C - 60°C (-4°F - 140°F)
Storage Temperature
-20°C - 60°C (-4°F - 140°F)
Humidity
40% - 70%
Hardware
Active or Passive Adapter
Passive
Cable Jacket Material
Low Smoke Zero Halogen
Fiber Size
9/125
Packaging Information
Package Height
0.4 in [1.0 cm]
Package Length
8.7 in [22.0 cm]
Shipping (Package) Weight
1.3 oz [36.0 g]
Package Width
7.9 in [20.0 cm]
Performance
Maximum Data Transfer Rate
100Gbps
Cable Rating
10Gbps / 40Gbps / 100Gbps
Fiber Classification
OS2
Type
Single Mode
Wavelength
1260nm to 1625nm
General Specifications
Insertion Loss: ≤ 0.3dB
Return Loss: ≥ 55dB
Return Loss: ≥ 55dB
Physical Characteristics
Color
Yellow
Product Height
0.4 in [1.0 cm]
Product Length
6.6 ft [2.0 m]
Weight of Product
0.9 oz [26.0 g]
Product Width
1.0 in [2.5 cm]
Connector Style
Straight
Material
Polypropylene (PP)
Cable Length
6.6 ft [2 m]
Cable OD
0.1 in [2 mm]
Website Filters
Fire Rating
LSZH Rated (Low Smoke Zero Halogen)
What's in the Box
Included in Package
1 - 2m OS2 Single Mode Fiber Optic Cable - LC to SC
1 - Test Report
