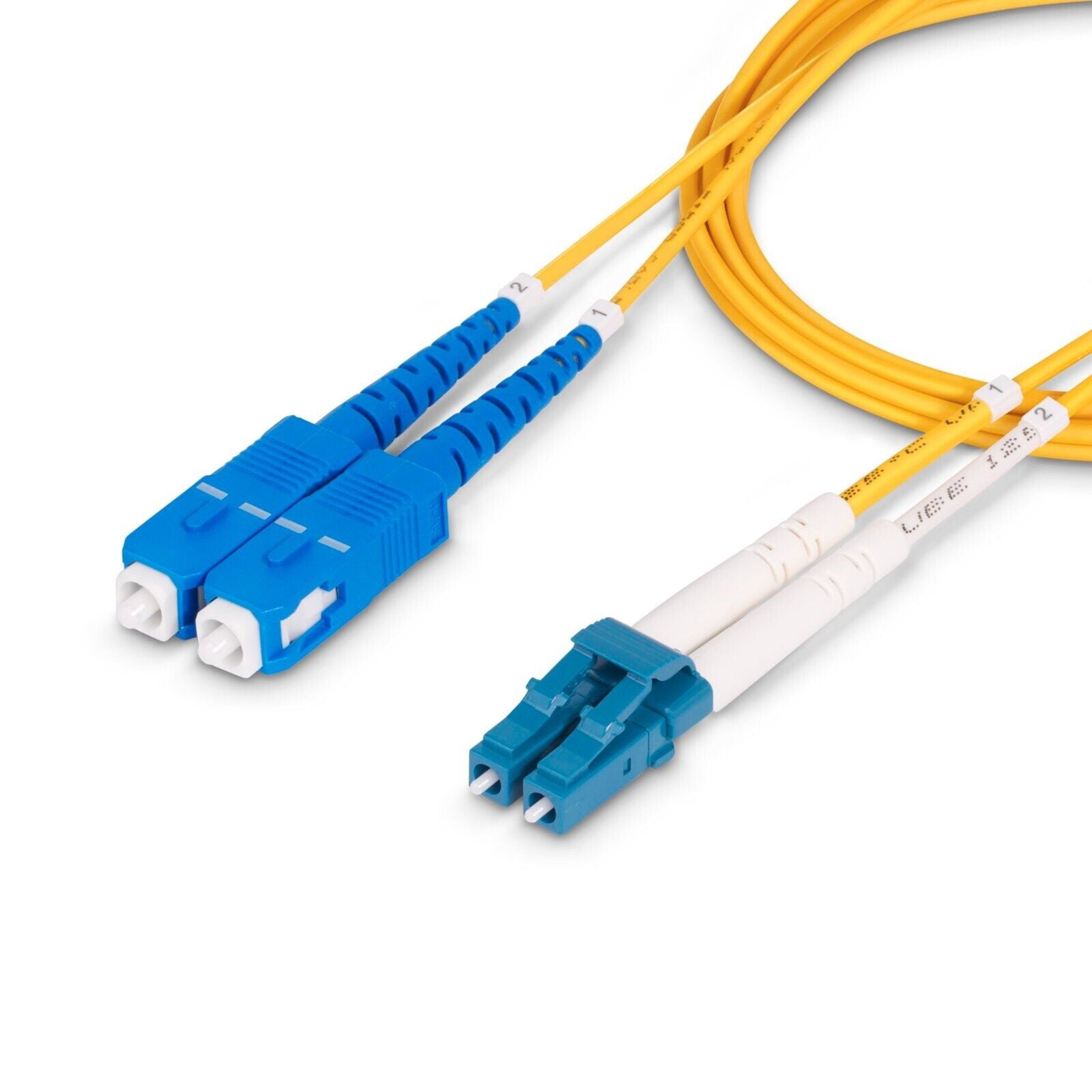

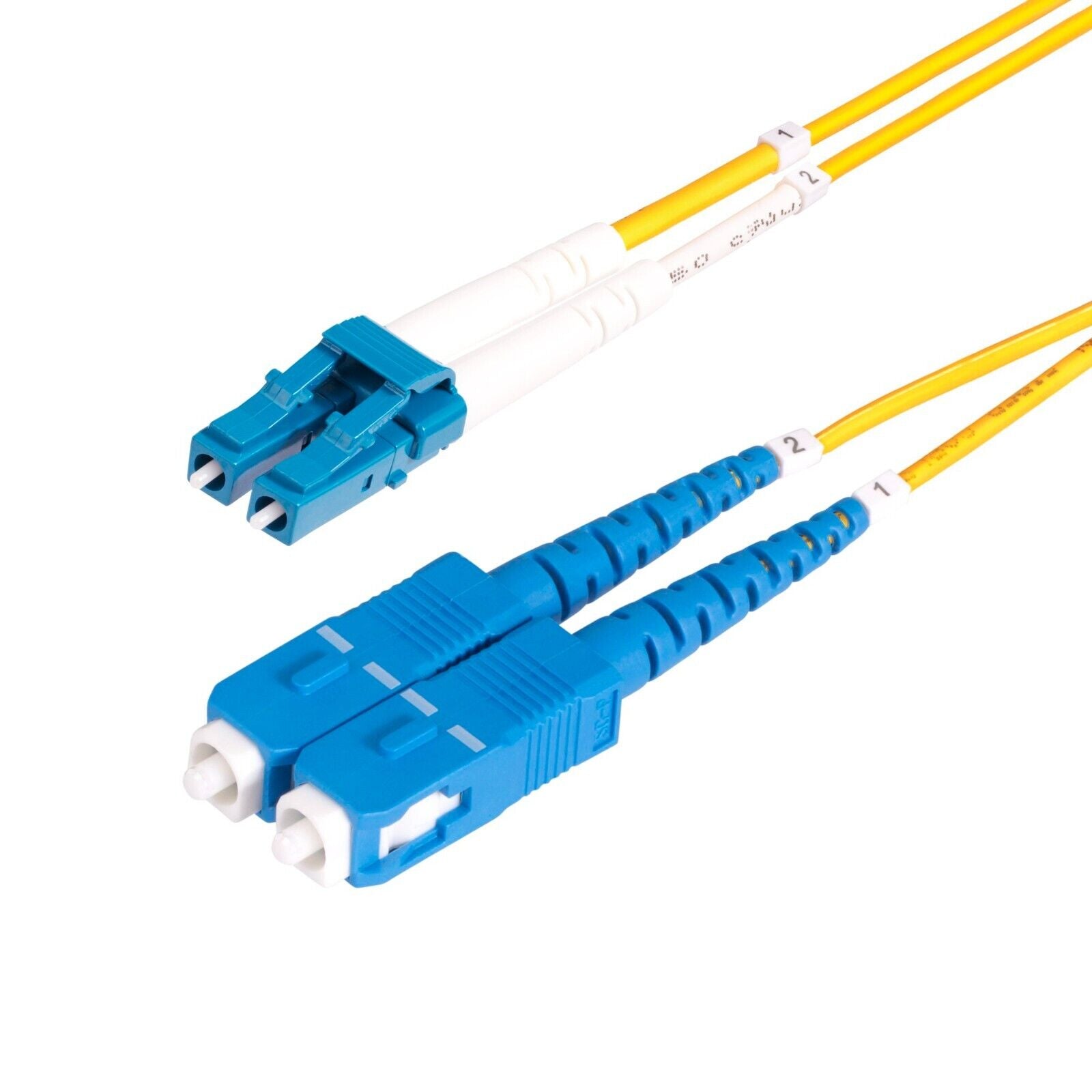

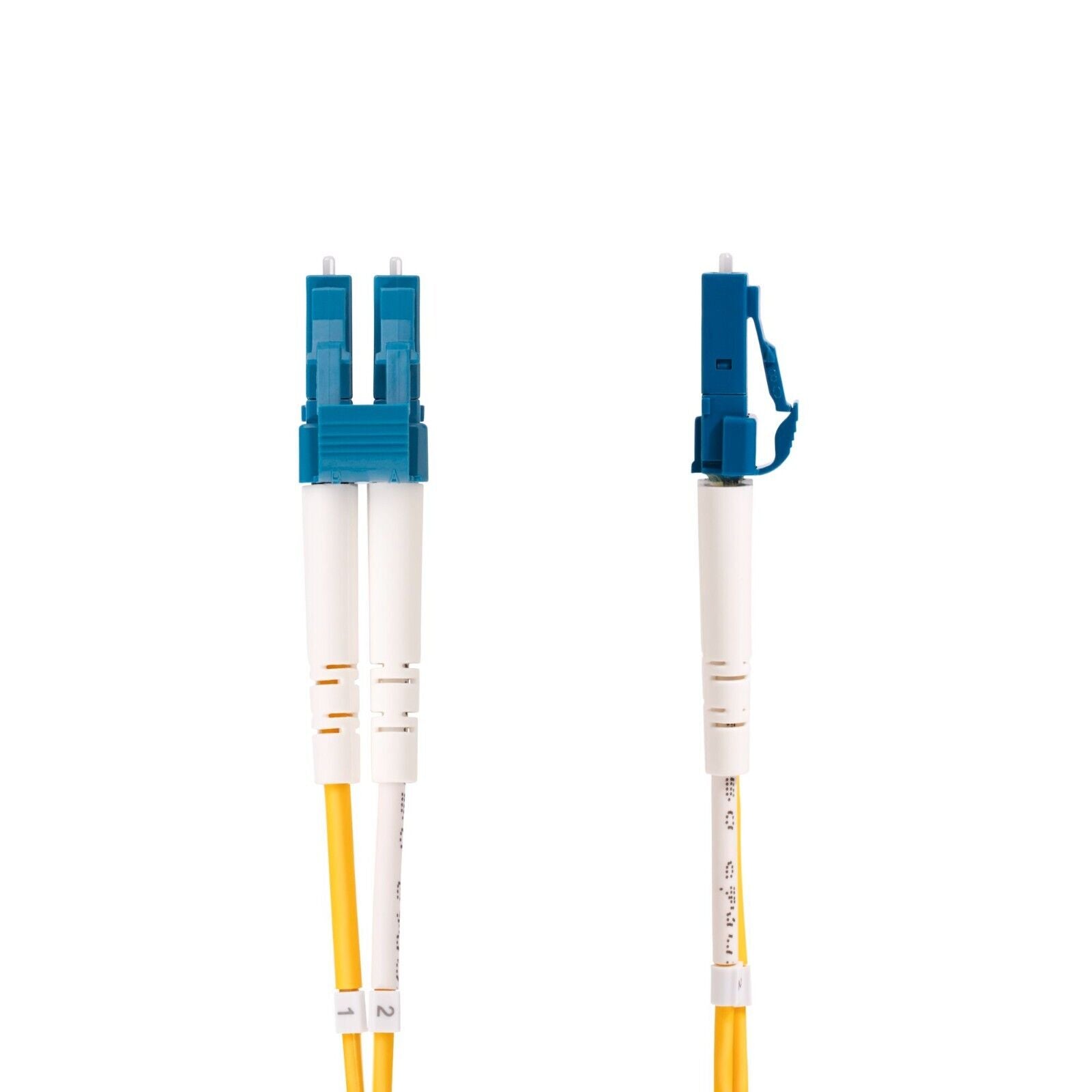

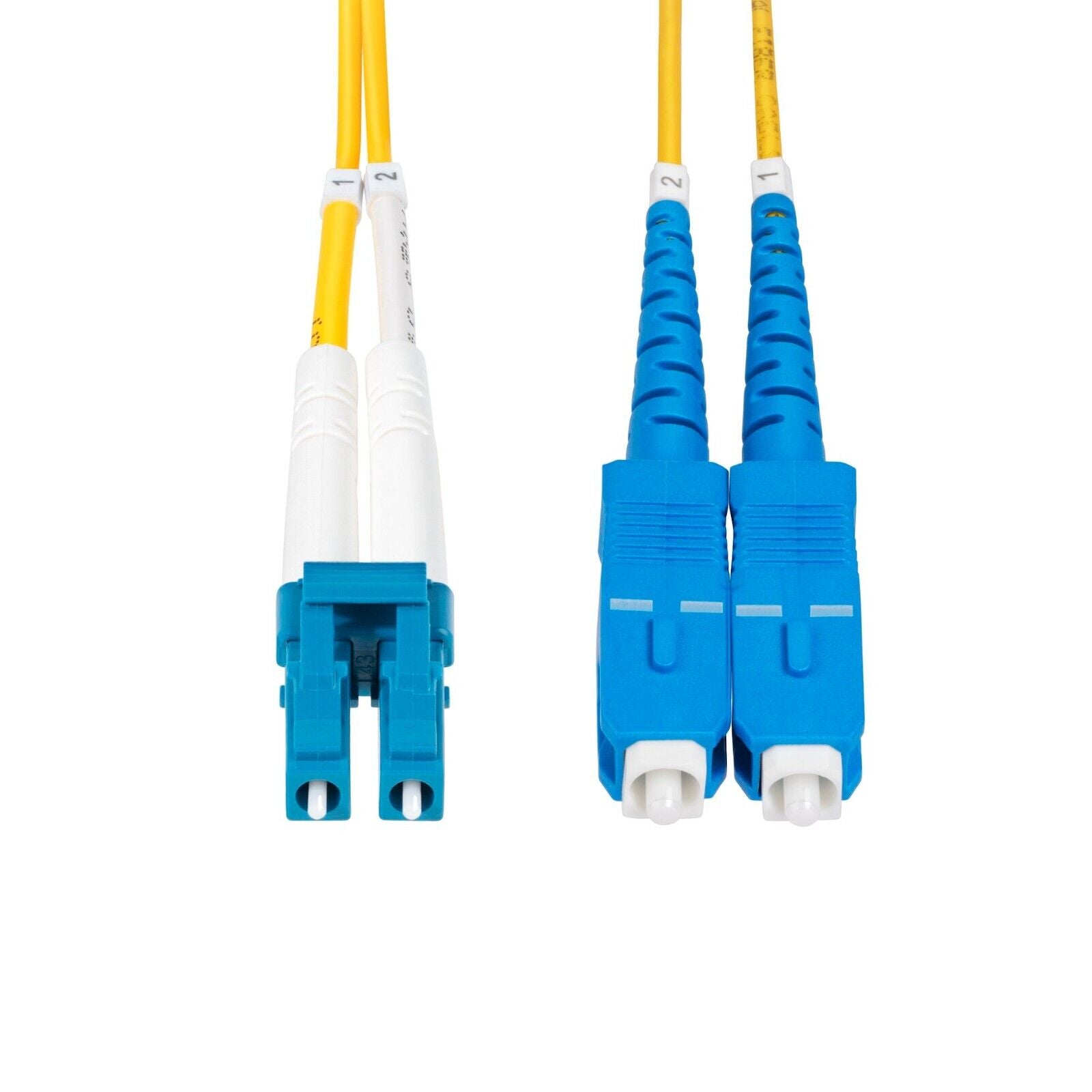

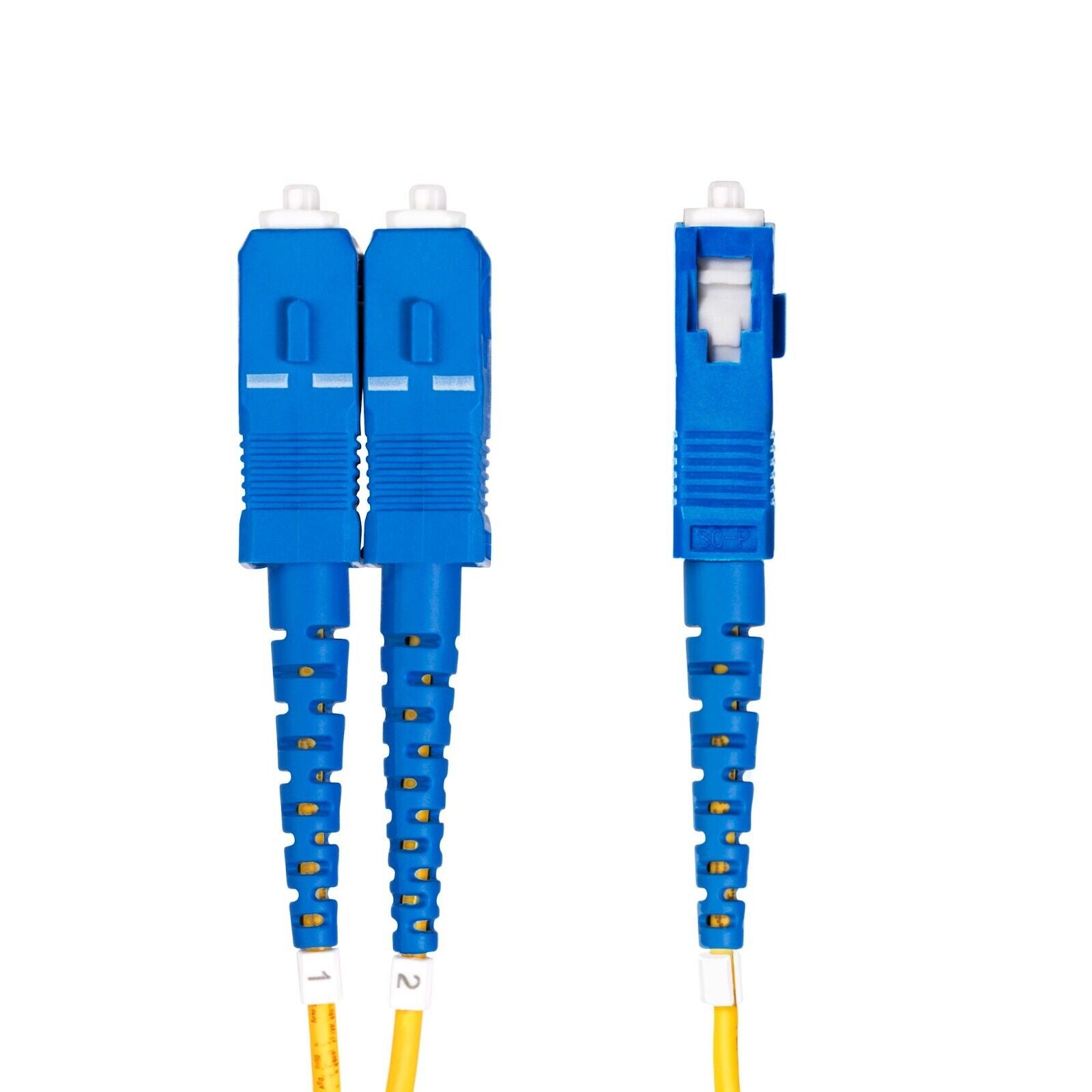

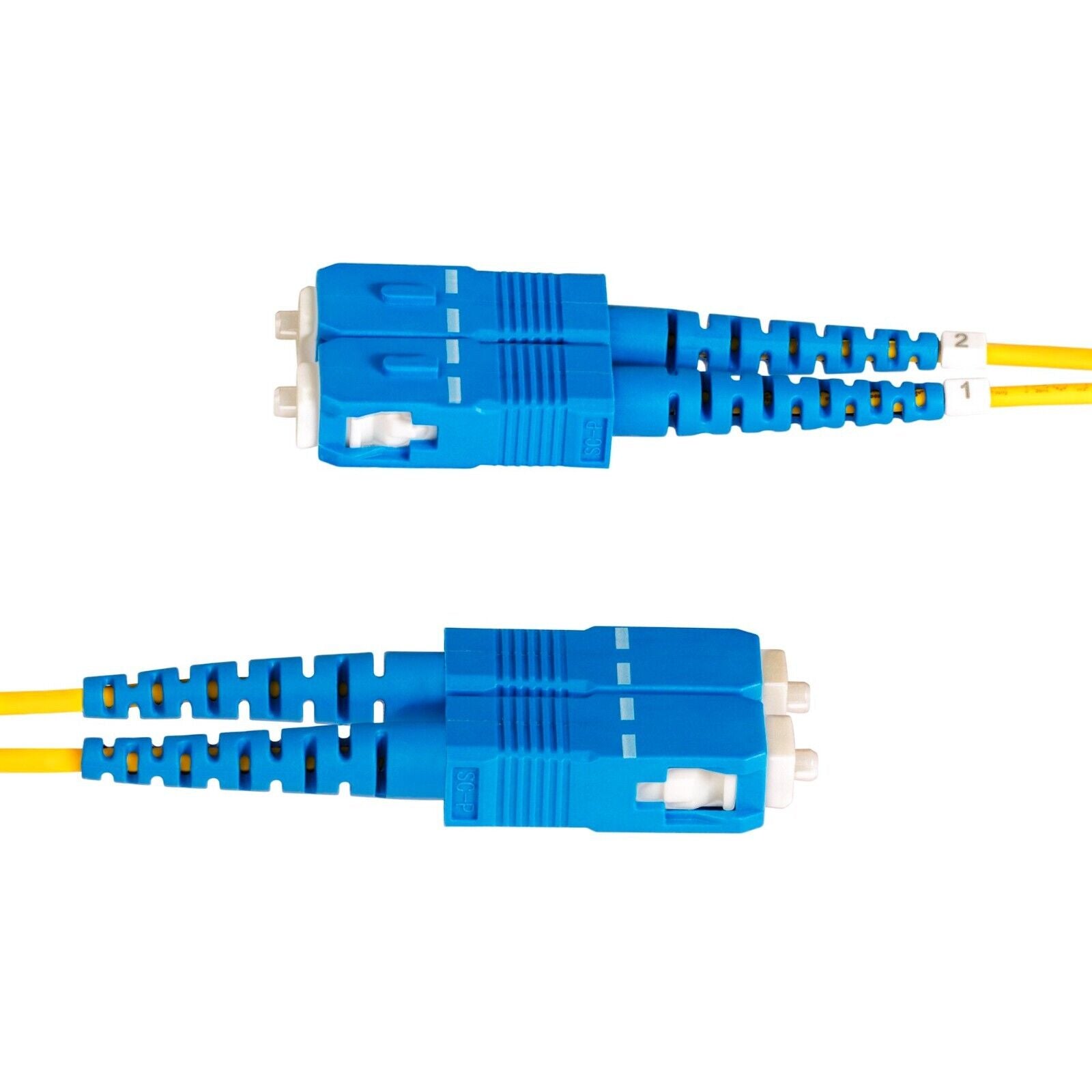

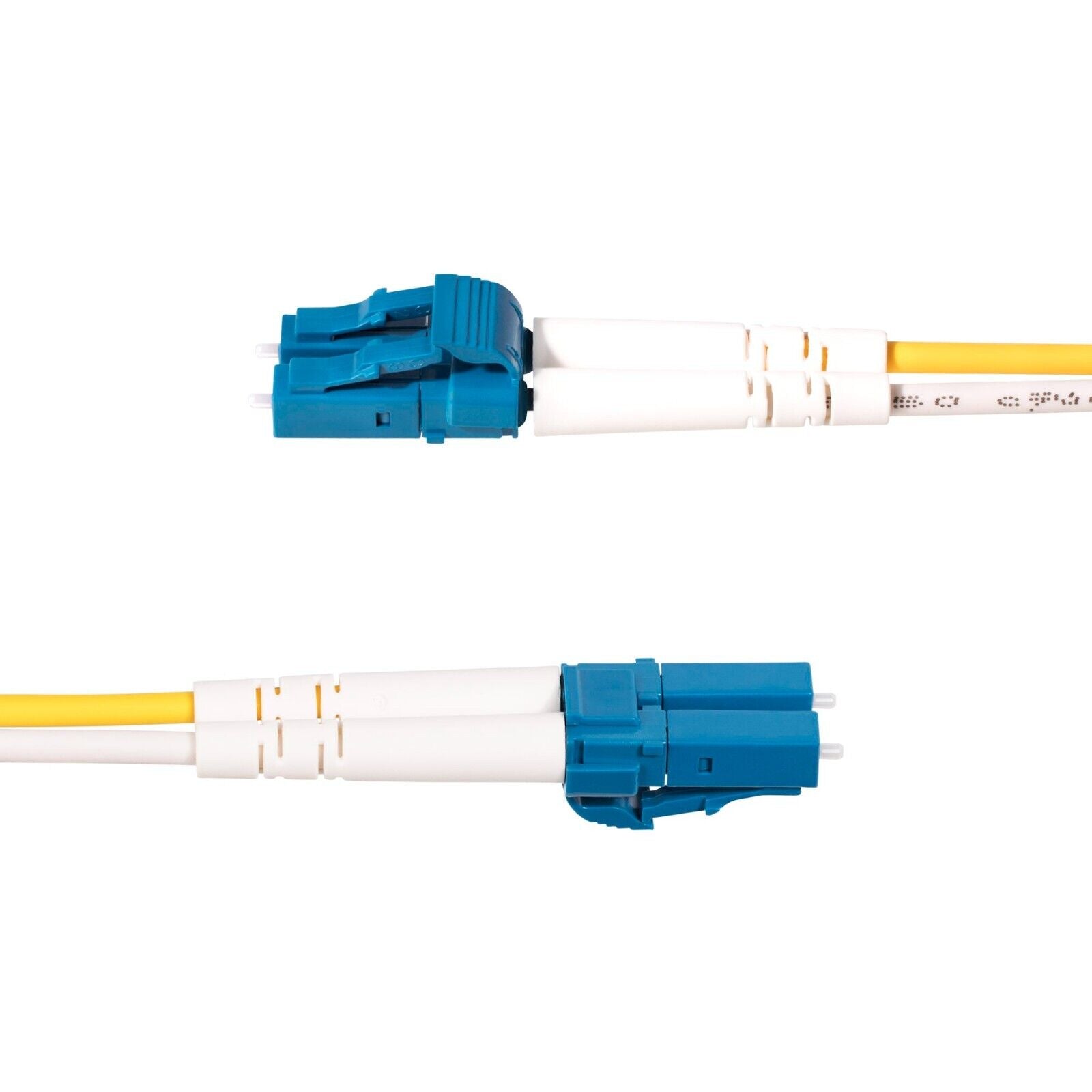

StarTech SMLCSC-OS2-3M 9Ft LC/SC OS2 Single Mode Duplex Fiber LSZH Jumper Cable

Name: StarTech SMLCSC-OS2-3M 9Ft LC/SC OS2 Single Mode Duplex Fiber LSZH Jumper Cable
Brand: Startech
SKU: INGaSTA JP9971 - SMLCSC-OS2-3M
Price: 33.44 USD
Availability: InStock

$33.44 USD

Shipping calculated at checkout.

In stock: 2

Description

3m (9.8ft) LC to SC (UPC) OS2 Single Mode Duplex Fiber Optic Cable, 9/125µm, 100G, Bend Insensitive, Low Insertion Loss - LSZH Fiber Jumper Cord

Enhance the performance capabilities of CWDM applications over an OS2 fiber network

Product ID: SMLCSC-OS2-3M

OS2 LC to SC Single Mode Duplex Fiber Optic Patch cable facilitates connectivity across 100G networks. It supports Coarse Wavelength Division Multiplexing (CWDM) across an extended wavelength range of 1260-1625nm, improving channel isolation for optimal signal strength over long distances.

Specifications

Warranty Information

Warranty

Lifetime

Connector(s)

Connector A

1 - Fiber Optic LC Duplex

Connector B

1 - Fiber Optic SC Duplex

Environmental

Operating Temperature

-20°C - 60°C (-4°F - 140°F)

Storage Temperature

-20°C - 60°C (-4°F - 140°F)

Humidity

40% - 70%

Hardware

Active or Passive Adapter

Passive

Cable Jacket Material

Low Smoke Zero Halogen

Fiber Size

9/125

Packaging Information

Package Height

0.1 in [3.6 mm]

Package Length

8.7 in [22.0 cm]

Shipping (Package) Weight

1.5 oz [42.0 g]

Package Width

7.9 in [20.0 cm]

Performance

Maximum Data Transfer Rate

100Gbps

Cable Rating

10Gbps / 40Gbps / 100Gbps

Fiber Classification

OS2

Type

Single Mode

Wavelength

1260nm to 1625nm

General Specifications

Insertion Loss: ≤ 0.3dB
Return Loss: ≥ 55dB

Physical Characteristics

Color

Yellow

Product Height

0.4 in [1.0 cm]

Product Length

11.8 in [30.0 cm]

Weight of Product

1.1 oz [32.0 g]

Product Width

1.0 in [2.5 cm]

Connector Style

Straight

Material

Polypropylene (PP)

Cable Length

9.8 ft [3 m]

Cable OD

0.1 in [2 mm]

Website Filters

Fire Rating

LSZH Rated (Low Smoke Zero Halogen)

What's in the Box

Included in Package

1 - 3m OS2 Single Mode Fiber Optic Cable - LC to SC

1 - Test Report
