StarTech SPSMLCLC-OS2-5M 16Ft LC/LC OS2 Single Md Fiber Optic LSZH Jumper Cable
Current product
Current
Vendor:
Startech
StarTech SPSMLCLC-OS2-5M 16Ft LC/LC OS2 Single Md Fiber Optic LSZH Jumper Cable
Regular price
$29.46 USD
Sale price
$29.46 USD
Regular price
$23.99 USD
Options
Descriptions

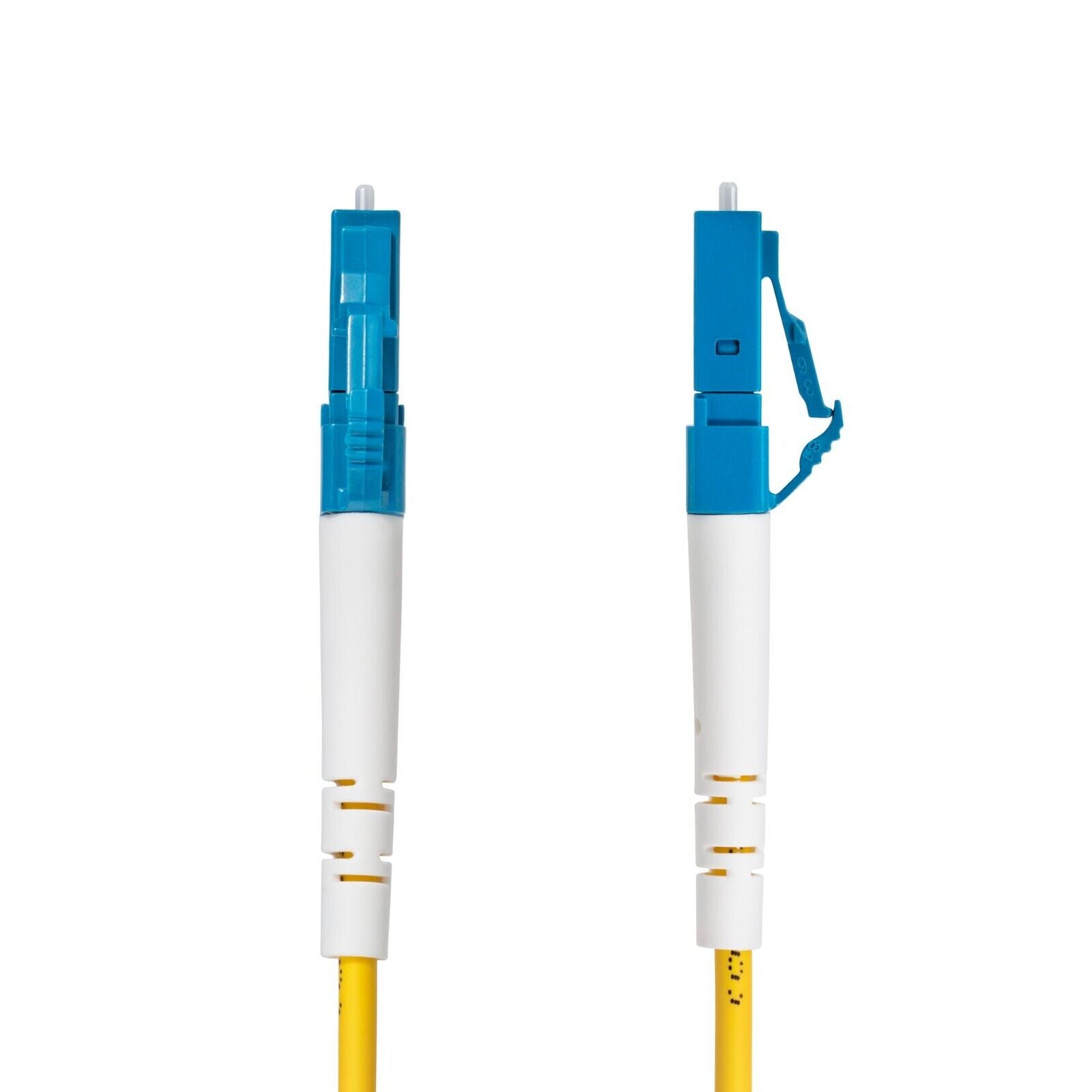

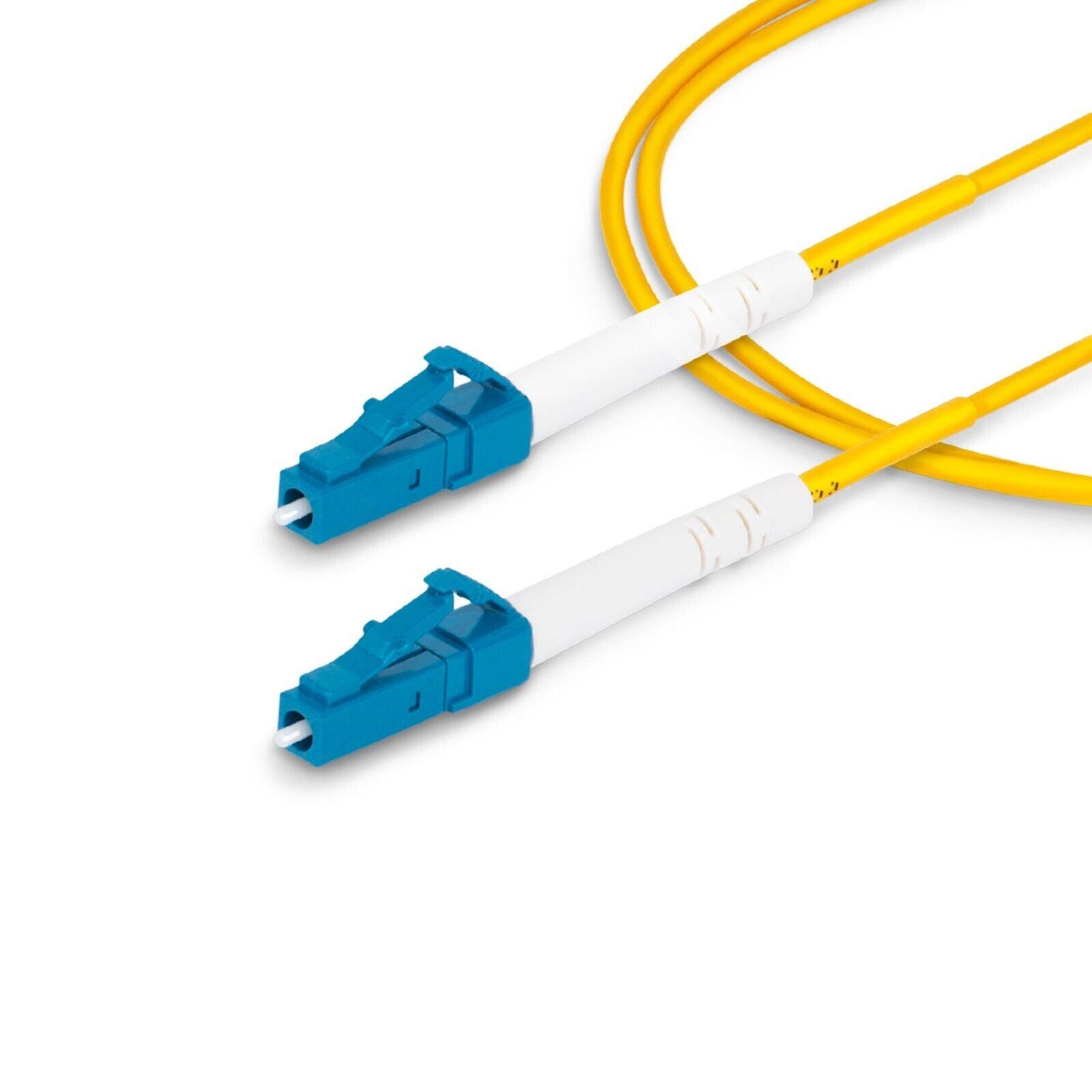

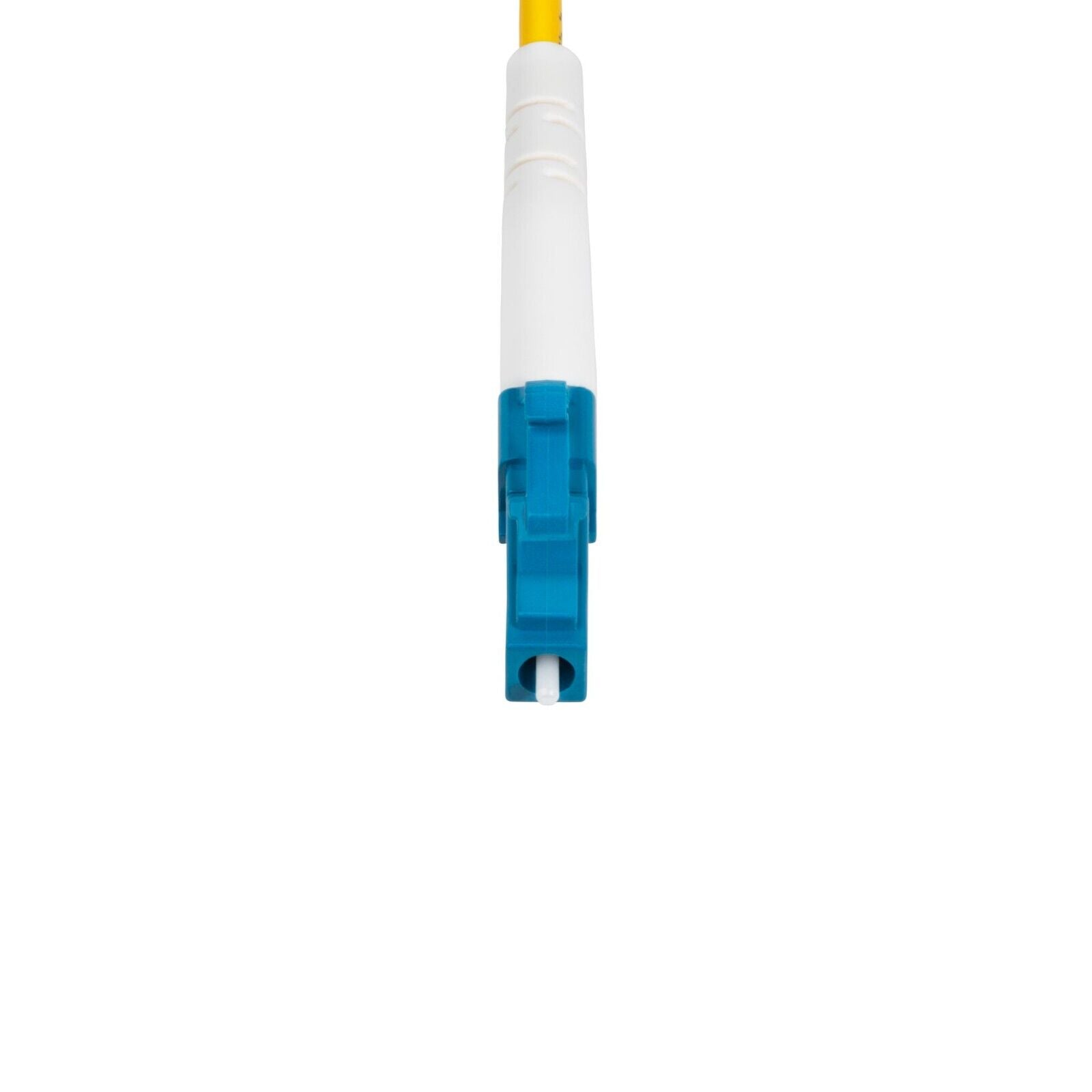

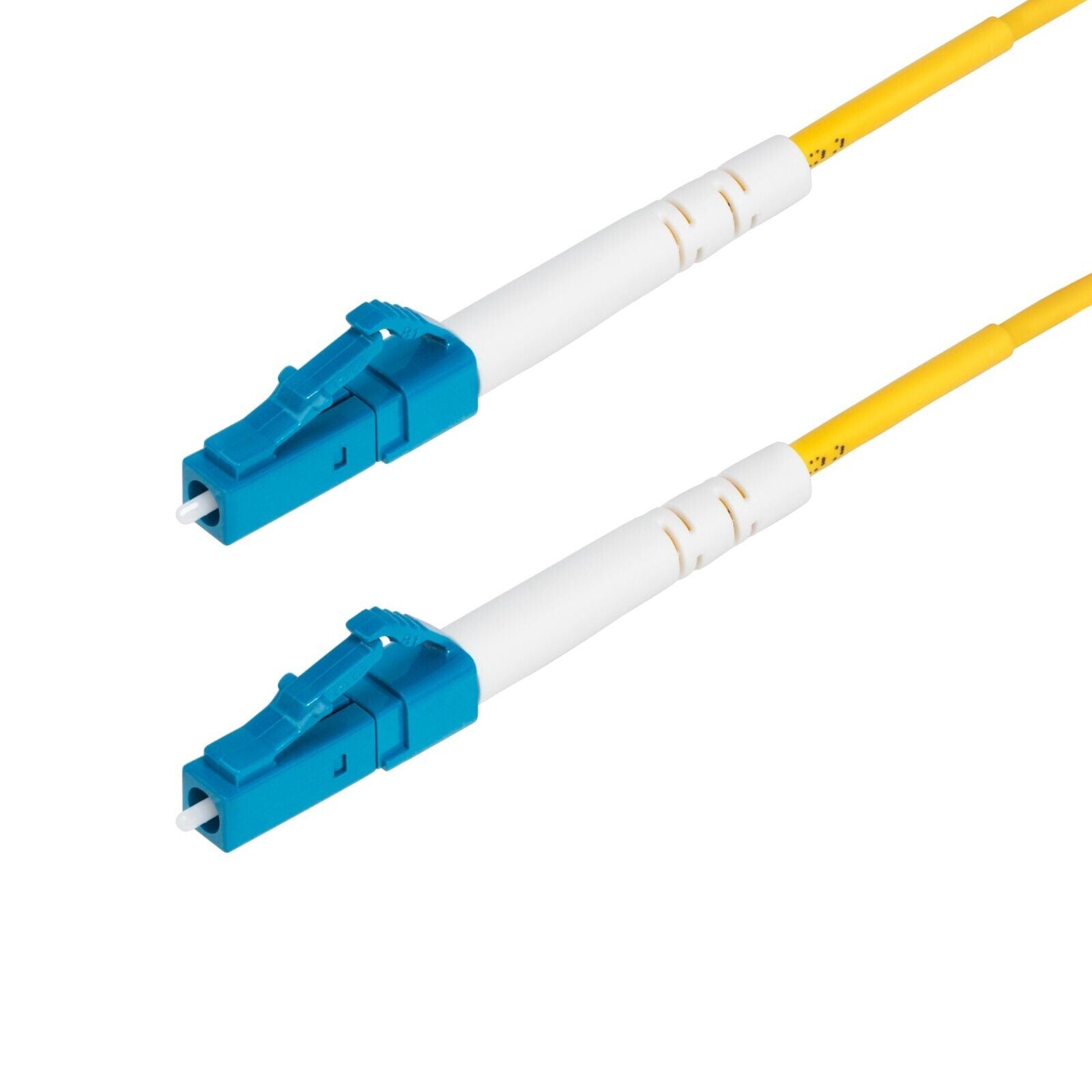

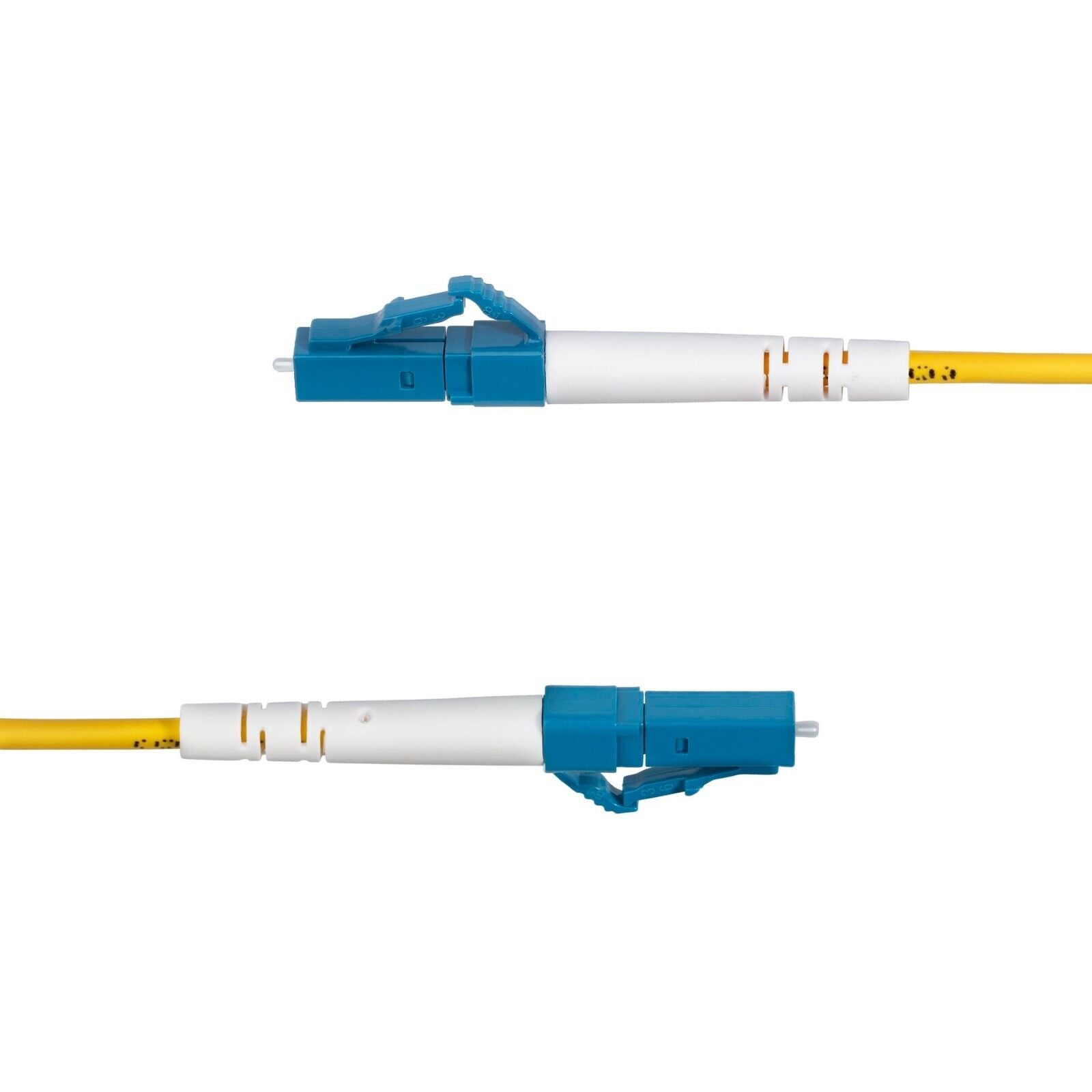

5m (16.4ft) LC to LC (UPC) OS2 Single Mode Simplex Fiber Optic Cable, 9/125µm, 40G/100G, Bend Insensitive, Low Insertion Loss - LSZH Fiber Jumper Cord
Enhance the performance capabilities of CWDM applications over an OS2 fiber network
Product ID: SPSMLCLC-OS2-5M
..
OS2 LC to LC Single Mode Simplex Fiber Optic Patch cable facilitates connectivity across 40G/100G networks. It supports Coarse Wavelength Division Multiplexing (CWDM) across an extended wavelength range of 1260-1625nm, improving channel isolation for optimal signal strength over long distances.
Specifications
Warranty Information
Warranty
Lifetime
Connector(s)
Connector A
1 - Fiber Optic LC Simplex
Connector B
1 - Fiber Optic LC Simplex
Environmental
Operating Temperature
-20°C - 60°C (-4°F - 140°F)
Storage Temperature
-20°C - 60°C (-4°F - 140°F)
Humidity
40% - 70%
Hardware
Active or Passive Adapter
Passive
Cable Jacket Material
Low Smoke Zero Halogen
Fiber Size
9/125
Packaging Information
Package Height
0.1 in [2.3 mm]
Package Length
8.7 in [22.0 cm]
Shipping (Package) Weight
1.1 oz [30.0 g]
Package Width
7.9 in [20.0 cm]
Performance
Maximum Data Transfer Rate
100Gbps
Cable Rating
1Gbps / 10Gbps / 40Gbps / 100Gbps
Fiber Classification
OS2
Type
Single Mode
Wavelength
1260nm to 1625nm
General Specifications
Insertion Loss: ≤ 0.3dB
Return Loss: ≥ 55dB
Return Loss: ≥ 55dB
Physical Characteristics
Color
Yellow
Product Height
0.4 in [0.9 cm]
Product Length
16.4 ft [5.0 m]
Weight of Product
0.0 oz [0.0 g]
Product Width
0.2 in [4.6 mm]
Connector Style
Straight
Material
Polypropylene (PP)
Cable Length
16.4 ft [5 m]
Cable OD
0.1 in [2 mm]
Website Filters
Fire Rating
LSZH Rated (Low Smoke Zero Halogen)
What's in the Box
Included in Package
1 - Single Mode Fiber Cable - LC to LC
1 - Test Report
