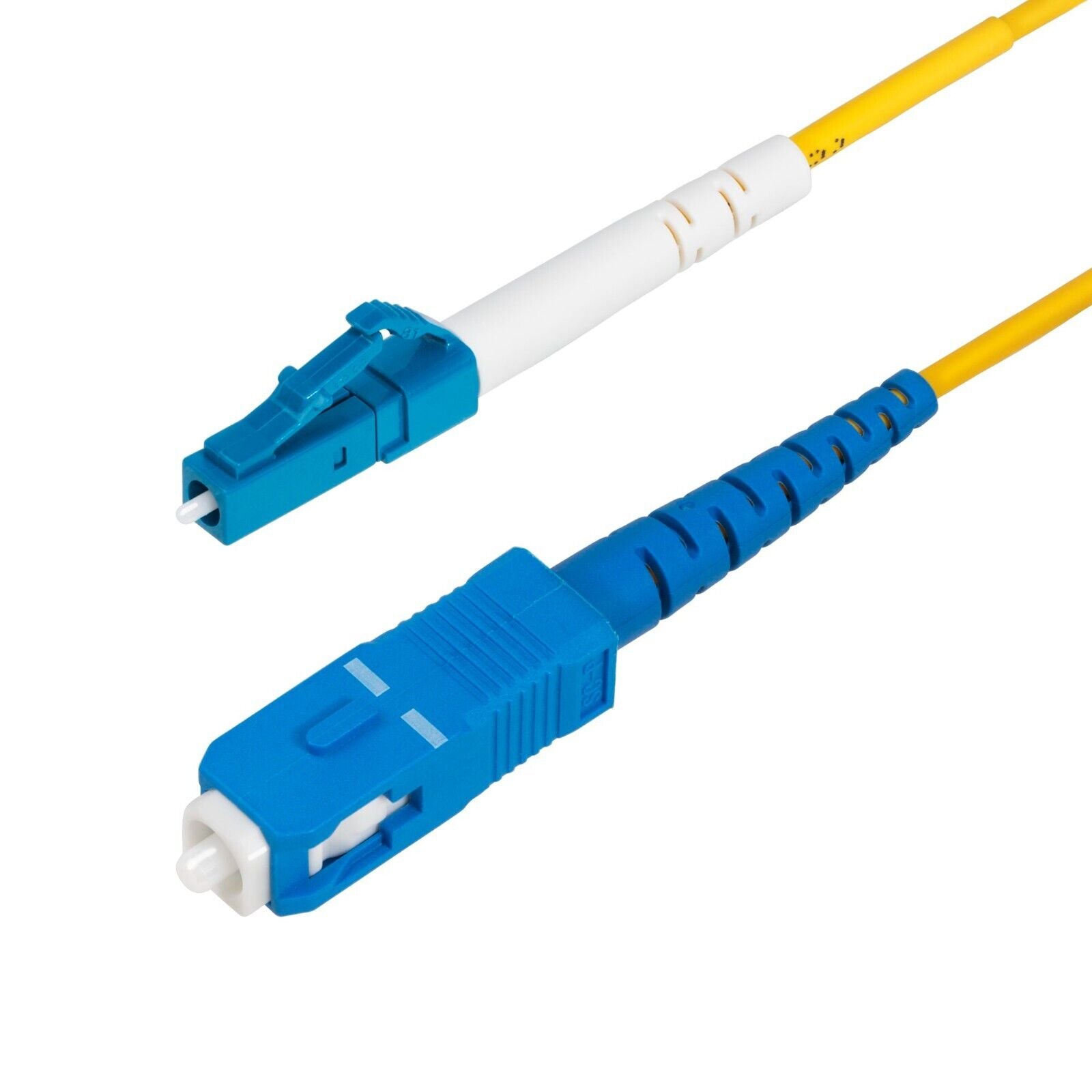

StarTech SPSMLCSC-OS2-2M 6Ft LC/SC OS2 Single Mode Fiber Optic LSZH Jumper Cable

Name: StarTech SPSMLCSC-OS2-2M 6Ft LC/SC OS2 Single Mode Fiber Optic LSZH Jumper Cable
Brand: Startech
SKU: INGaSTA JR2575 - SPSMLCSC-OS2-2M
Price: 26.35 USD
Availability: InStock

$26.35 USD

Shipping calculated at checkout.

In stock: 2

Description

2m (6.6ft) LC to SC (UPC) OS2 Single Mode Simplex Fiber Optic Cable, 9/125µm, 40G/100G, Bend Insensitive, Low Insertion Loss - LSZH Fiber Jumper Cord

Enhance the performance capabilities of CWDM applications over an OS2 fiber network

Product ID: SPSMLCSC-OS2-2M

OS2 LC to SC Single Mode Simplex Fiber Optic Patch cable facilitates connectivity across 40G/100G networks. It supports Coarse Wavelength Division Multiplexing (CWDM) across an extended wavelength range of 1260-1625nm, improving channel isolation for optimal signal strength over long distances.

Specifications

Warranty Information

Warranty

Lifetime

Connector(s)

Connector A

1 - Fiber Optic LC Simplex

Connector B

1 - Fiber Optic SC Simplex

Environmental

Operating Temperature

-20°C - 60°C (-4°F - 140°F)

Storage Temperature

-20°C - 60°C (-4°F - 140°F)

Humidity

40% - 70%

Hardware

Active or Passive Adapter

Passive

Cable Jacket Material

Low Smoke Zero Halogen

Fiber Size

9/125

Packaging Information

Package Height

0.3 in [7.4 mm]

Package Length

7.9 in [20.0 cm]

Shipping (Package) Weight

0.8 oz [24.0 g]

Package Width

8.7 in [22.0 cm]

Performance

Maximum Data Transfer Rate

100Gbps

Cable Rating

1Gbps / 10Gbps / 40Gbps / 100Gbps

Fiber Classification

OS2

Type

Single Mode

Wavelength

1260nm to 1625nm

General Specifications

Insertion Loss: ≤ 0.3dB
Return Loss: ≥ 55dB

Physical Characteristics

Color

Yellow

Product Height

0.4 in [0.9 cm]

Product Length

6.6 ft [2.0 m]

Weight of Product

0.0 oz [0.0 g]

Product Width

0.4 in [8.9 mm]

Connector Style

Straight

Material

Polypropylene (PP)

Cable Length

6.6 ft [2 m]

Cable OD

0.1 in [2 mm]

Website Filters

Fire Rating

LSZH Rated (Low Smoke Zero Halogen)

What's in the Box

Included in Package

1 - Single Mode Fiber Cable - LC to SC

1 - Test Report
