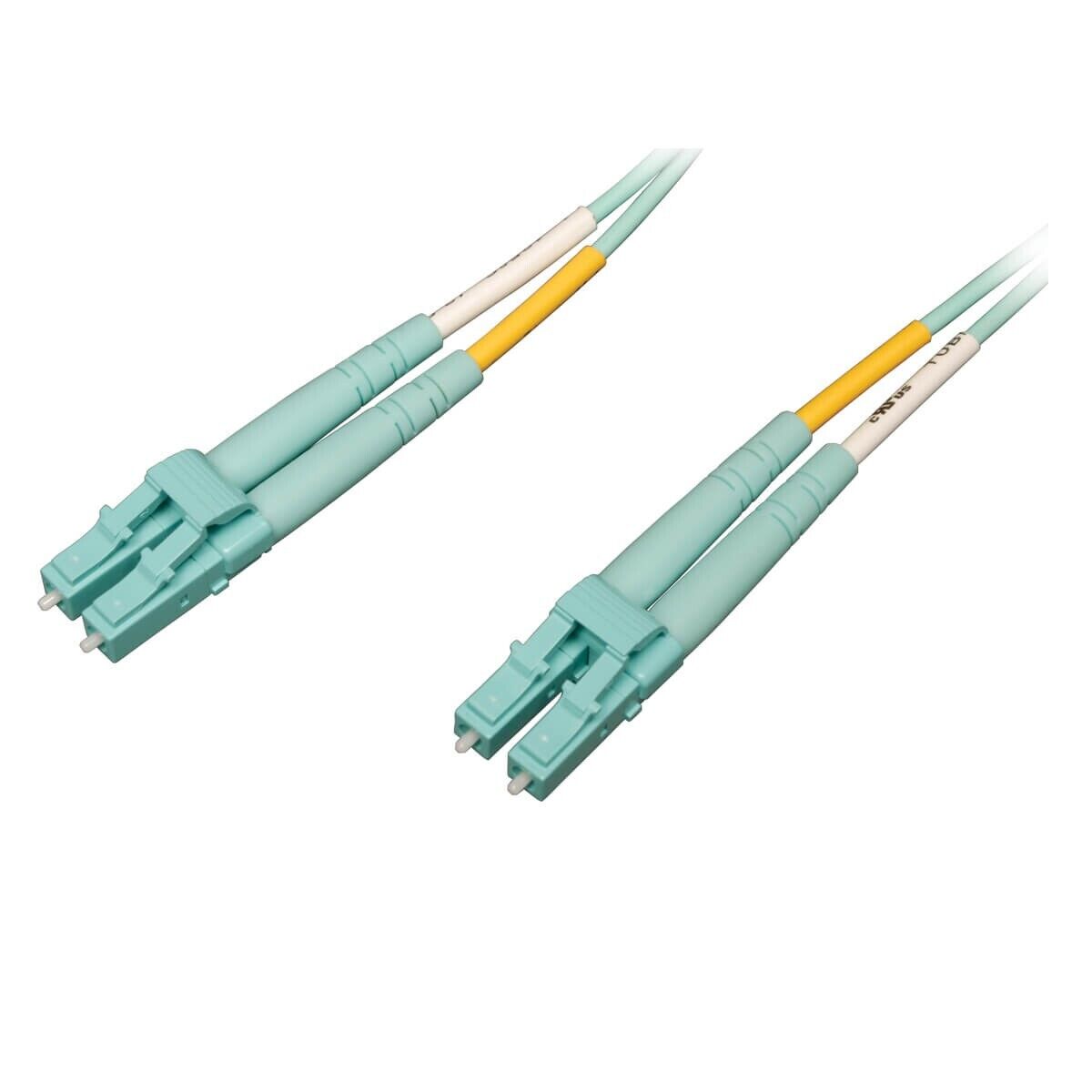

Tripp Lite N820-03M-OM4 3M 10Gb/100Gb Duplex Multimode 50/125 OM4 Fiber Cable LC

Tripp Lite introduces its new OM4 Laser-Optimized Multimode Fiber (LOMMF) "Aqua" cables, for use with 40/100Gb Ethernet applications. These new technology, 50/125um, LC/LC Fiber Optic cables, provide nearly three times the bandwidth over conventional 62.5um multimode fiber, with performance rivaling that of Single mode cable, at a much-reduced cost. LOMMF cable allows 40/100Gb serial transmission over extended distances in the 850nm wavelength window, where low-cost Vertical Cavity Surface Emitting Lasers (VCSELs) enable a cost-effective, high-bandwidth solution. LOMMF is ideally suited for LAN's, SAN's, and high-speed parallel interconnects for head-ends, central offices, and data centers. Tripp Lite warrants this product to be free from defects in material and workmanship for Life.

General Information

• Product Type: Network Cable
• Manufacturer Part Number: N820-03M-OM4
• Manufacturer: Tripp Lite by Eaton
• Product Model: N820-03M-OM4
• Product Name: N820-03M-OM4 Fiber Optic Duplex Patch Cable
• Brand Name: Tripp Lite by Eaton

Technical Information

• Cable Length: 10 ft
• Device Supported: Network Device
• Jacket Type: LSZH
• Cable Characteristic: Patch Cable
• Cable Type: Fiber Optic
• Connector Type on First End: LC Network - Male
• Connector Type on Second End: LC Network - Male
• Core/Cladding Diameter: 50/125 µm
• Fiber Optic Mode: Multi-mode
• Connector on First End Details: 2 x LC Network - Male
• Connector on Second End Details: 2 x LC Network - Male
