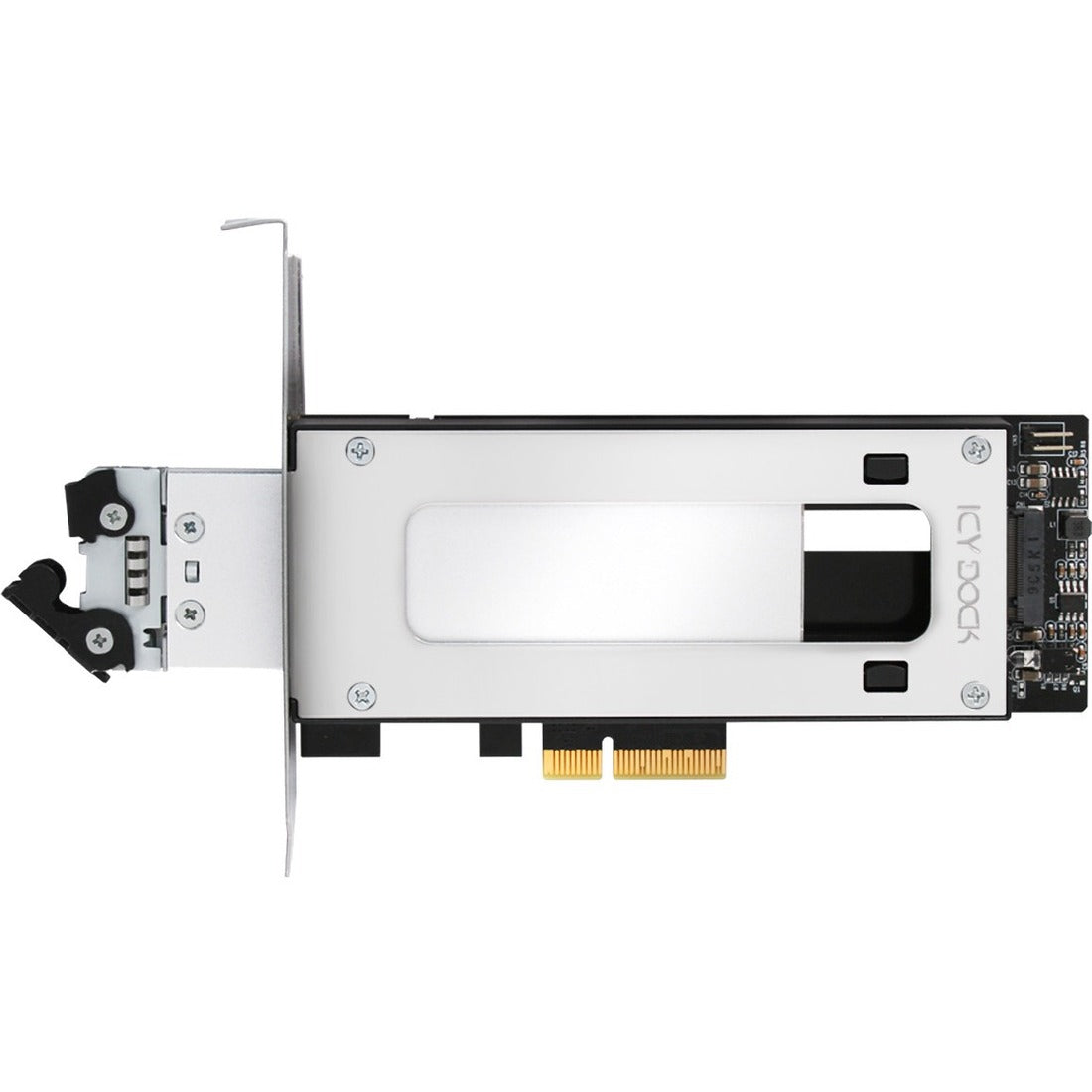

ICY DOCK MB840M2P-B ToughArmor Drive Bay Adapter M.2, PCI Express NVMe

Marketing Information

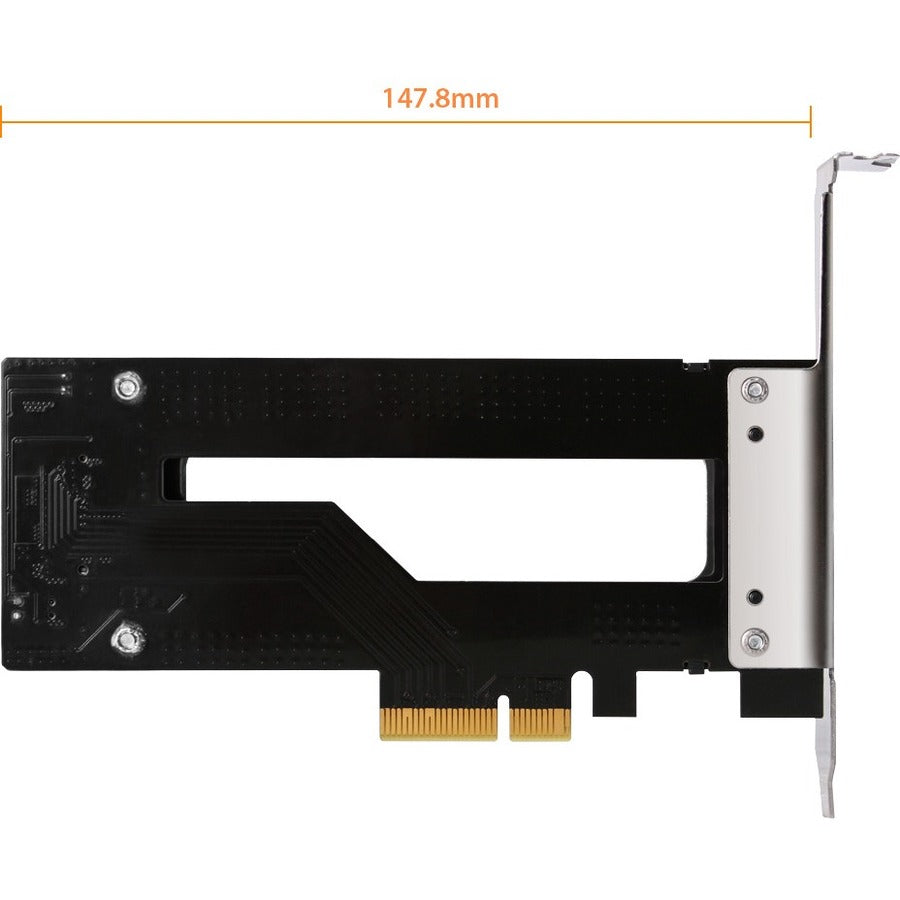

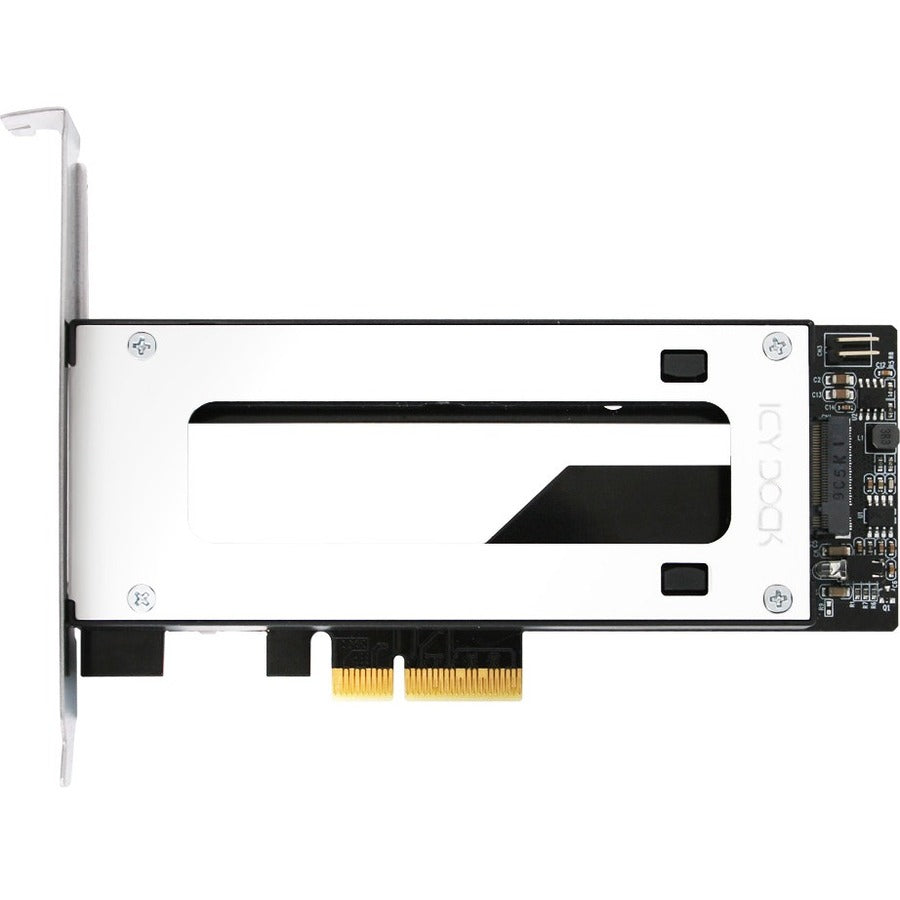

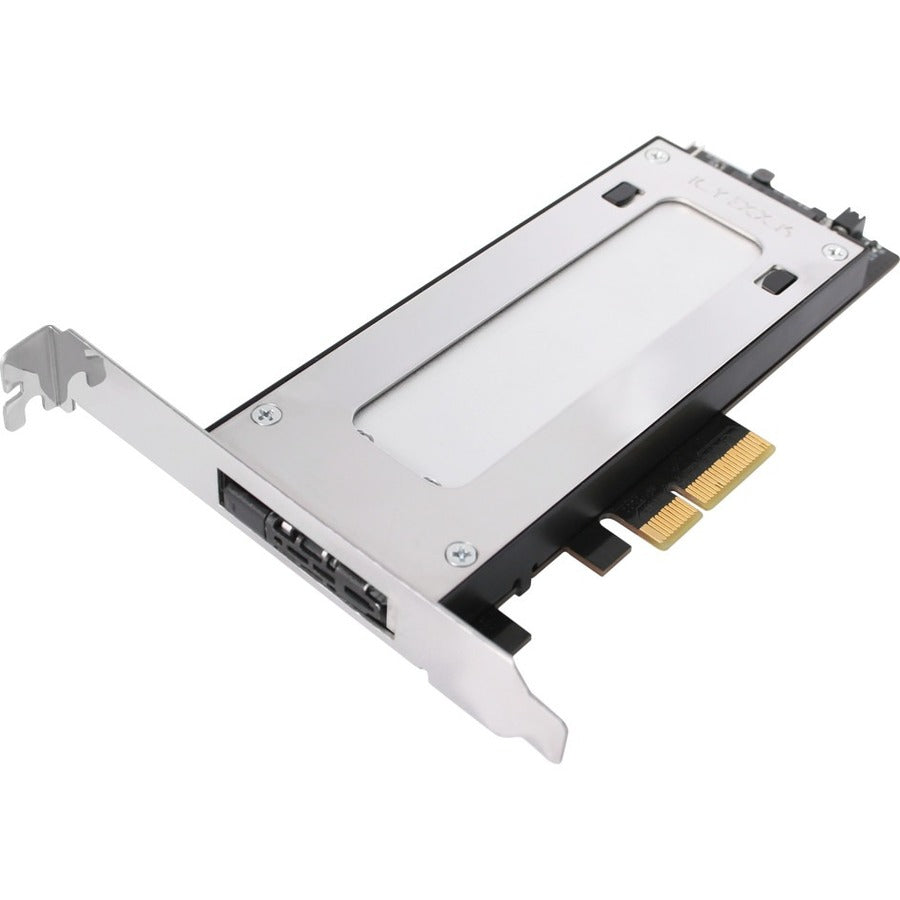

• The ToughArmor MB840M2P-B turns a PCIe 4x, 8x, or 16x expansion slot into a removable M.2 NVMe drive bay, allowing you to swap in M.2 NVMe SSDs without needing to open the computer case.
• Innovative Removable M.2 NVMe SSD Enclosure
• A typical M.2 drive is installed on a motherboard or a riser card and secured by a tiny screw. Additionally, the physical installation process is very troublesome and time-consuming. However, with the MB840M2P-B and it’s removable drive tray design, you can utilize the PCIe expansion slot and makes M.2 NVMe SSD installation and removal a more straightforward and productive process.
• State of the Art Tool-less M.2 Drive Installation
• The whole process takes less than five seconds to complete, saving you the hassle of dealing with tiny easy to loose screws and bringing an efficient and innovative way for M.2 SSD installation.
• The patent-pending M.2 adjustable locker lets you quickly place the M.2 NVMe SSD (2230, 2242, 2260, 2280, 22110) into the drive tray and move the adjustable M.2 locker towards the M.2 NVMe SSD to lock the drive in place.
• Optimal Cooling Efficiency

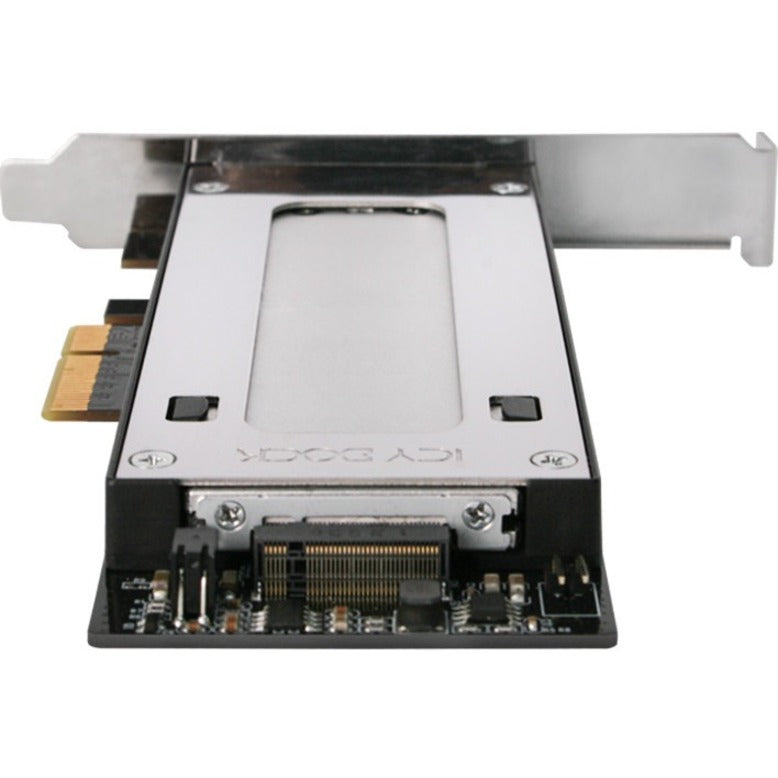

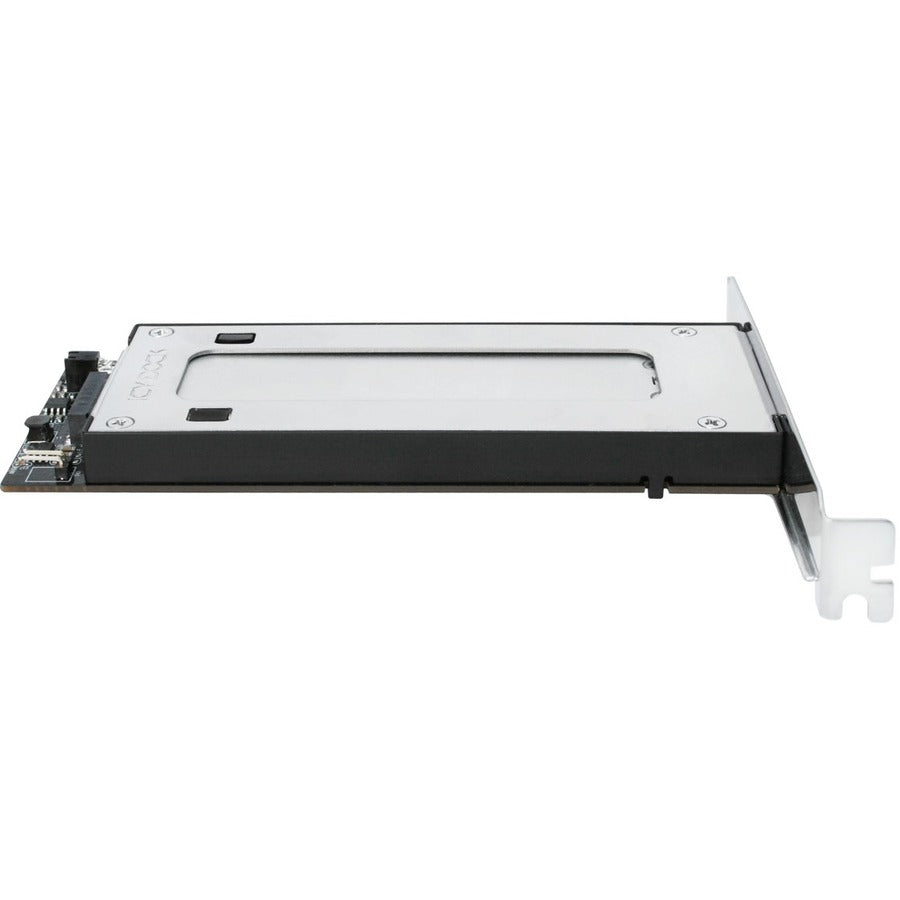

• The specialized slimline tray is made with thick aluminum and acts as heatsink to dissipate heat generated by the M.2 NVMe SSD.
• The included thermal pad filling the gap between the contact surface and transfer heat away from SSD to the larger surface, allowing airflow to move the heat away quickly.
• Support different system heights

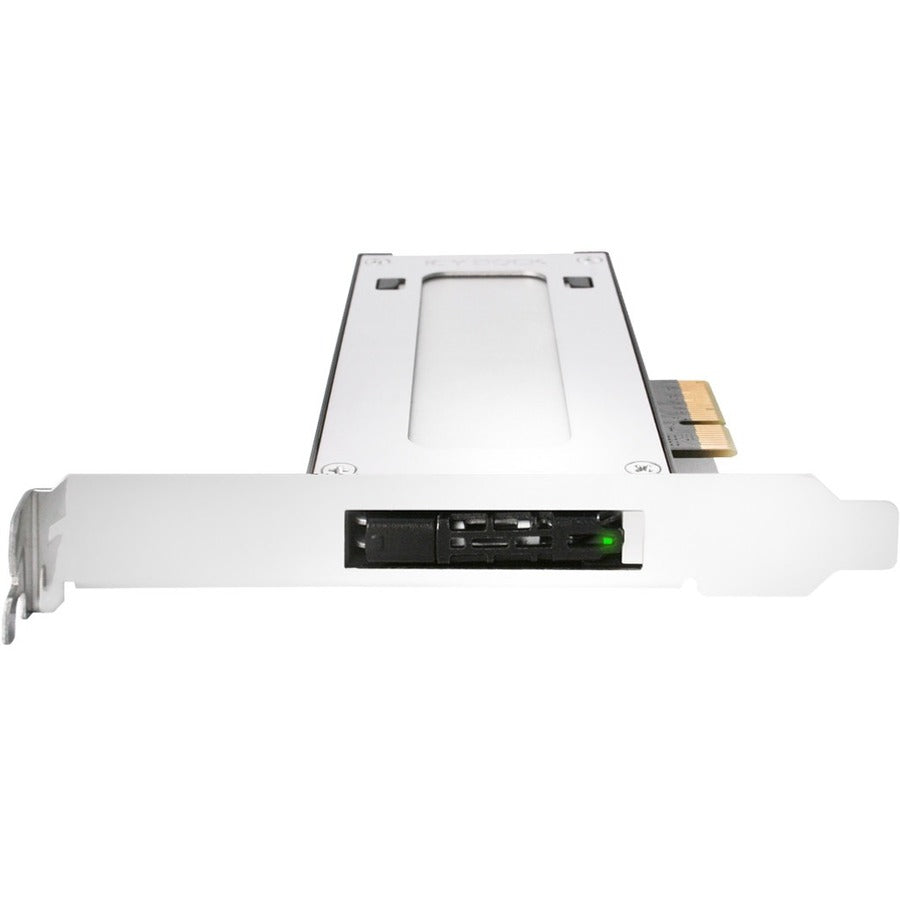

• The PCIe slot bracket of the MB840M2P-B can be swapped between full and half-height for flexible system installation.
• Use the half-height bracket with a low profile system and use the full-height bracket for standard desktop systems, the choice is yours.

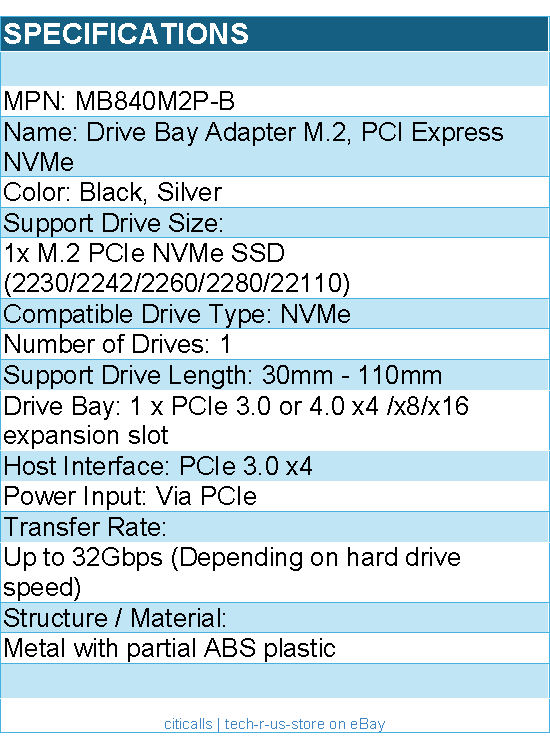

Detail Specifications

• Color: Black and Silver
• Support Drive Size: 1x M.2 PCIe NVMe SSD (2230/2242/2260/2280/22110)
• Compatible Drive Type: NVMe
• Number of Drives: 1
• Support Drive Length : 30mm - 110mm
• Drive Bay: 1 x PCIe 3.0 or 4.0 x4 / x8 / x16 expansion slot
• Host Interface: PCIe 3.0 x4
• Power Input: Via PCIe
• Transfer Rate: Up to 32Gbps (Depending on hard drive speed)
• Support HDD Capacity: No Limitation
• Drive Cooling:
• Metal heat dispersion with passive cooling
• Structure / Material: Metal with partial ABS plastic
• Drive Activity LED Indication:
• Drive power: solid green, HDD access: flashing green
• Package contents: Device, user manual, screw, I/O Faceplate
• SATA Connector Insertion Rate: 5,000
• Humidity: 5%-65% RH
• Opertating Temperature: 0oC to 60oC (32oF to 140oF)
• Storage Temperature: -35oC to 70oC (-31oF to 158oF)
• Compliance: CE, RoHS, REACH
• Warranty Information
• 3 Years from ICY DOCK
