Warranty

2 Years

Drive Connectors

1 - SFF-8482 (29 pin, Data & Power, Internal SAS)

Host Connectors

1 - SATA Data & Power Combo (7+15 pin)

Operating Temperature

0°C to 55°C (32°F to 131°F)

Storage Temperature

-20°C to 55°C (-4°F to 131°F)

Humidity

5% ~ 65%

Interface

SATA

SAS

Front Door Key Lock

No

Number of Drives

1

Drive Size

2.5in & 3.5in

Compatible Drive Types

SAS & SATA

Drive Installation

Removable

Number of 2.5 inch bays

1

Supported Drive Height(s)

7mm

9.5mm

12.5mm

15mm

Fan(s)

No

Shipping (Package) Weight

9.7 oz [274.0 g]

Package Quantity

1

Package Length

6.3 in [16.0 cm]

Package Width

4.5 in [11.4 cm]

Package Height

1.3 in [3.4 cm]

TRIM Support

Yes

4Kn Support

Yes

S.M.A.R.T. Support

Yes

Type and Rate

SATA/SAS 6 Gbps

Hardware Raid Supported

No

Hot Swap Capability

Yes

Color

Silver & Black

Material

Aluminum and Plastic

Product Length

5.7 in [14.6 cm]

Product Width

4.0 in [10.1 cm]

Product Height

1.0 in [2.6 cm]

Weight of Product

7.9 oz [224.0 g]

Input Voltage

5V DC / 12V DC

Output Voltage

5 DC

Note

Although mobile racks can enable a Serial Attached SCSI (SAS) drive to connect using a standard Serial ATA (SATA) connector, the drive controller must be SAS compatible to properly support SAS drives. SAS controllers can work with SAS and SATA drives, but most SAS drives will only work with a SAS controller.

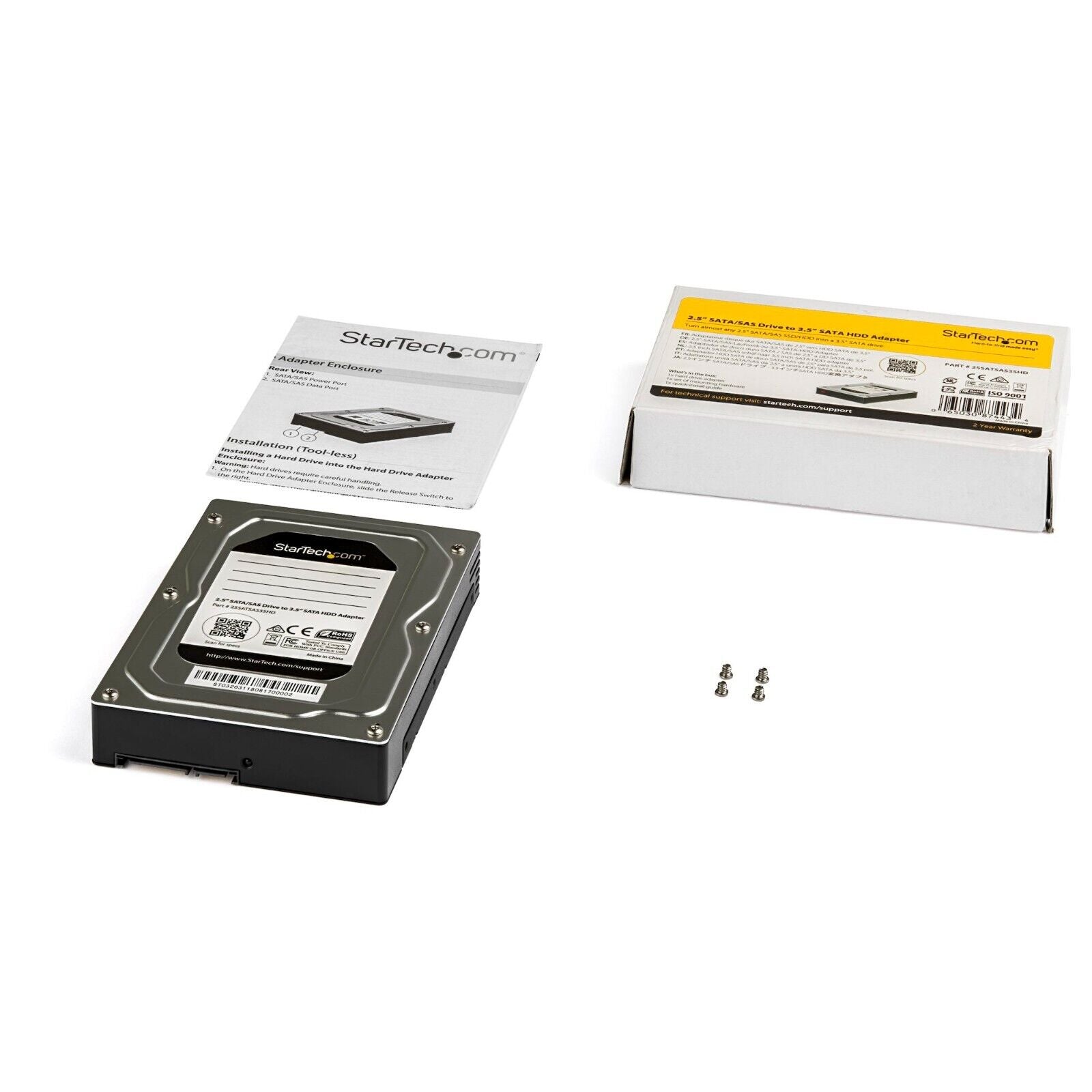

Included in Package

1 - Hard Drive Adapter

1 - Set of Mounting Hardware

1 - Quick-Start Guide
