ICY DOCK MB324SP-B 4Bay 2.5 SAS SATA HDD SSD HS Mobile Rack f Single 5.25Bay

Vendor: Icy dock

SKU:  167288
MPN:  MB324SP-B

Marketing Information

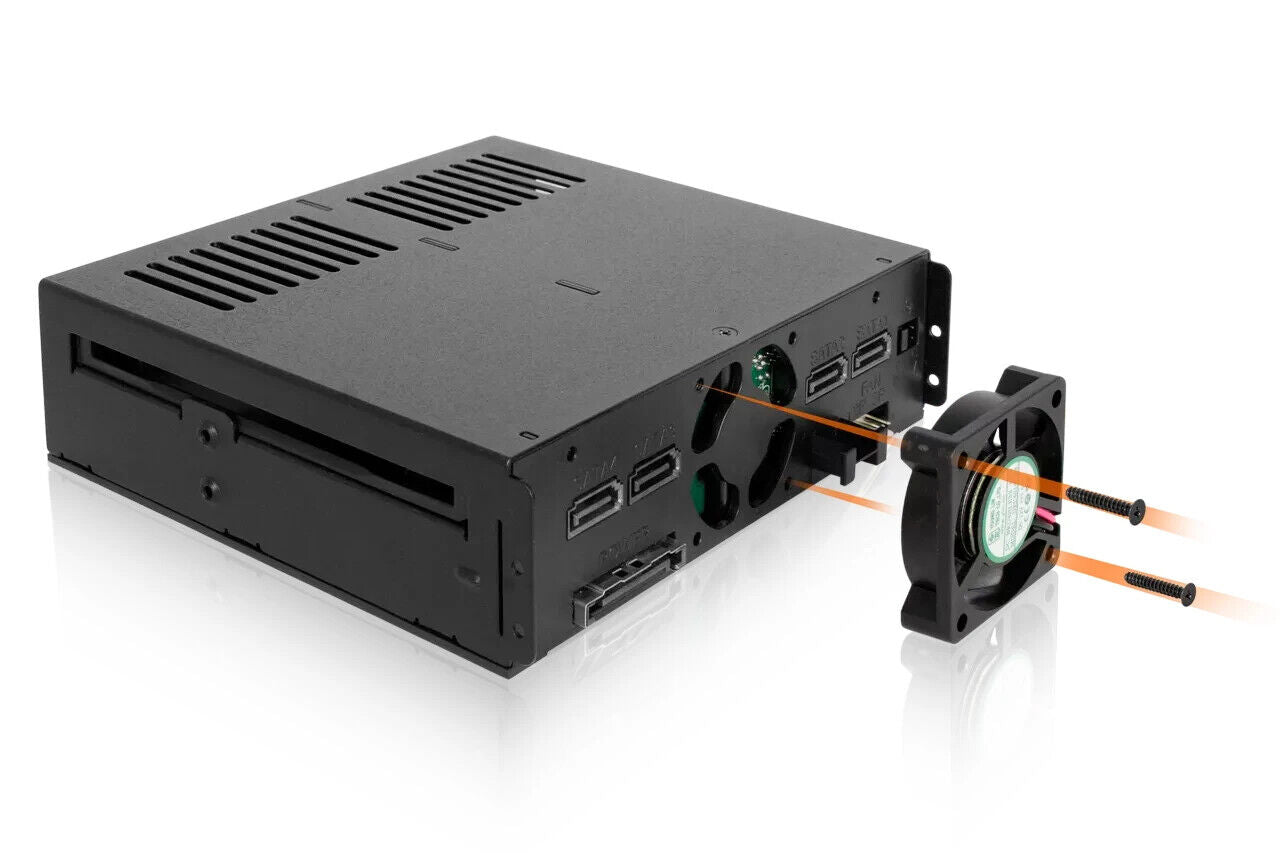

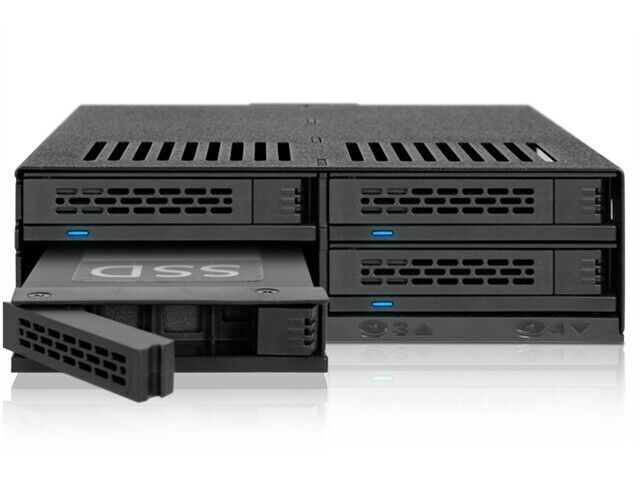

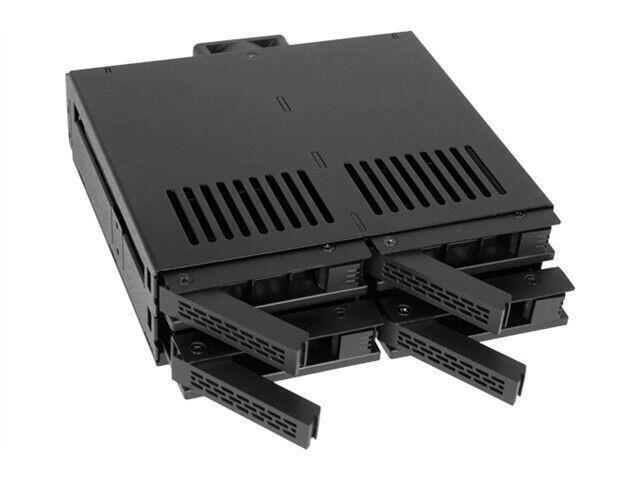

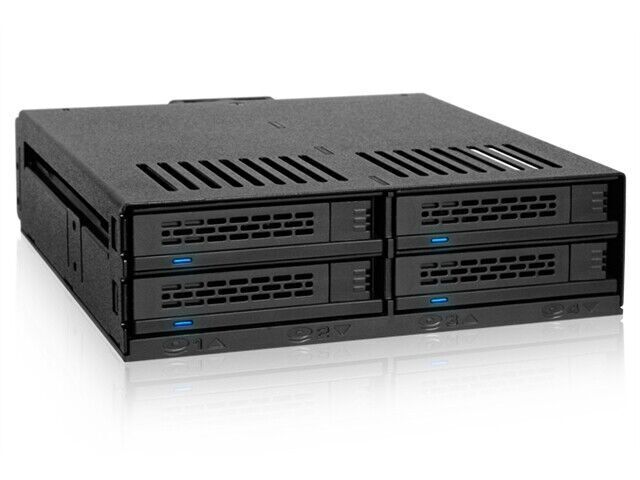

As one of our most exciting releases to date, the ExpressCage MB324SP-B brings to you our highly consumer-friendly enclosure made for anyone that requires affordable storage density. Fit up to 4 x 2.5 SATA/SAS HDD/SSD (7mm-12.5mm) into a single 5.25 bay with the ability to hot swap for easy drive replacement and single channel SAS support (SAS host required). Tool-less drive installation makes installing your drive more simple than ever and optional bottom tray screw holes are provided for extra protection and added stability. With a strategically placed 40mm cooling fan placed behind the unit and all around ventilation, your drives will stay cooler than the Arctic. An adjustable fan speed jumper lets you choose between HIGH, LOW, or AUTO smart cooling so you can set it based on your preference. Power users and system builders alike will enjoy the space saving, tool-less and hot-swap features provided by the ExpressCage MB324SP-B.

Utilize the Standard 5.25 Bay

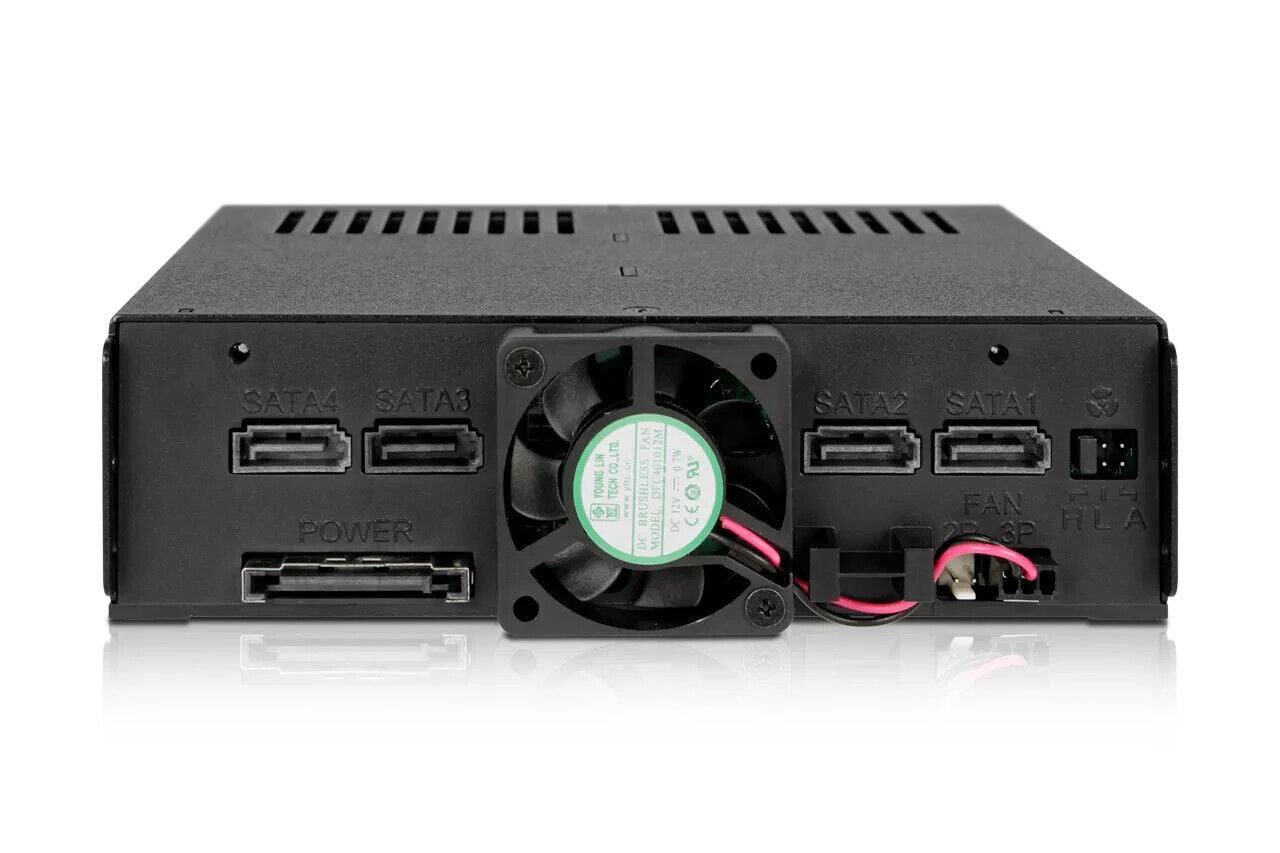

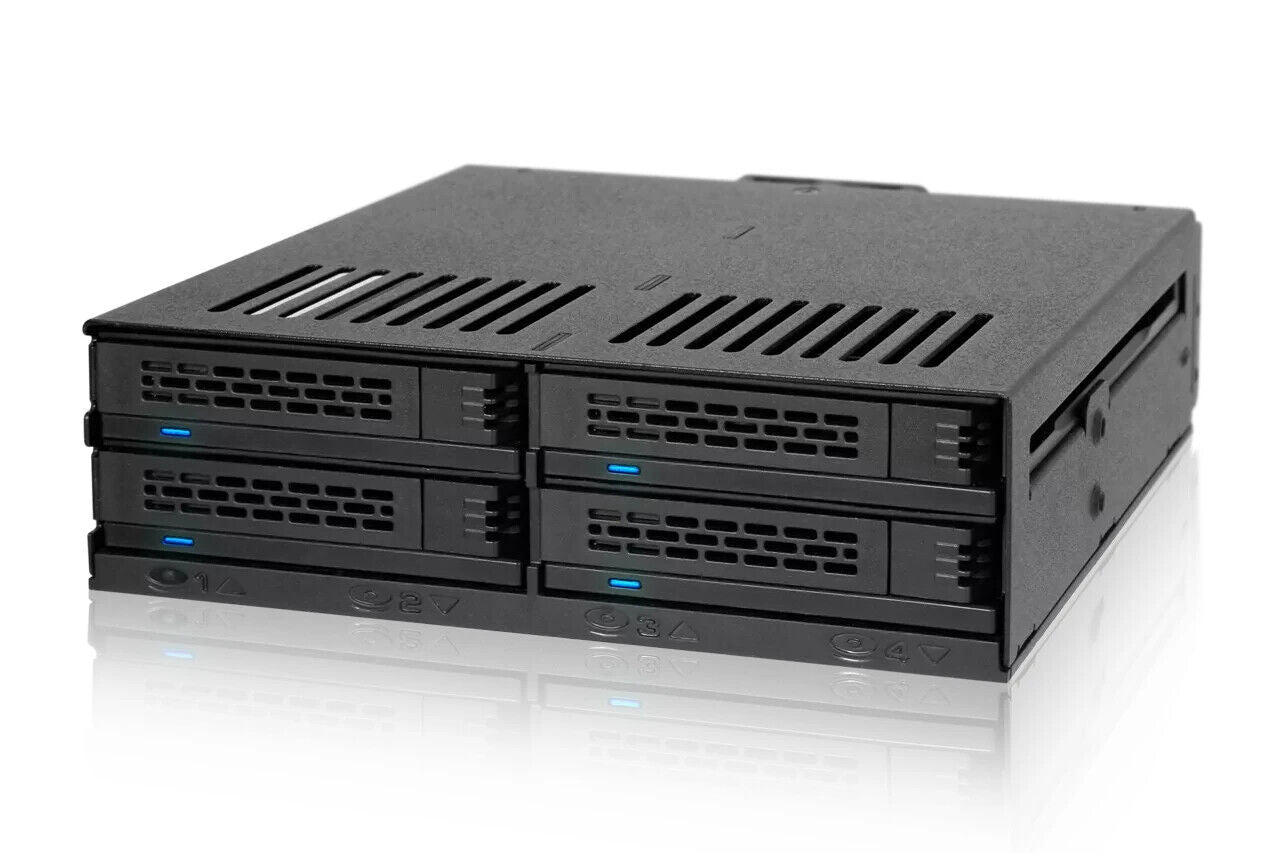

Our ExpressCage series is the latest addition to our lineup of ICY DOCK products and is catered to system builders and power users that require much more from their 5.25 bay. The MB324SP-B utilizes that 5.25 standard bay and converts it into 4 x 2.5 hot-swappable bays with support of 2.5 SATA and SAS HDD/SSD between 7mm to12.5mm in height. Our versatile enclosure supports SATA III 6Gb/s and single channel SAS (Requires SAS Controller Card). Extremely power efficient, the ExpressCage MB324SP-B can power all 4 drives with a single 15pin SATA power connector which can free up cable clutter and simplify your system build. In addition, our active power feature keeps your enclosure powered down until a drive is inserted minimizing energy usage.

Detail Specifications
Model Number :
MB324SP-B
Color :
Black
Host Interface :
4 x 7pin SATA
Drive Fit :
4 x 2.5" SATA or SAS (single channel) HDD/SSD
Compatible Drive Heights :
7mm, 9.5mm 12.5mm
Device Fit :
Single 5.25" half height device bay
Transfer Rate :
Up to 6 Gb/sec. (depending on hard drive speed)
Power Input :
Single 15pin SATA power port
Insert Extract connection Via :
Direct SAS/ SATA hard drive connection
Structure :
Plastic and metal
Drive Cooling :
40mm rear cooling fan
Fan Speed Control :
High / Low / Auto jumper
Power Indicator :
Solid blue LED
HDD Access Indicator :
Blinking blue LED

Warranty Information
3 Years - Direct from the Manufacturer
