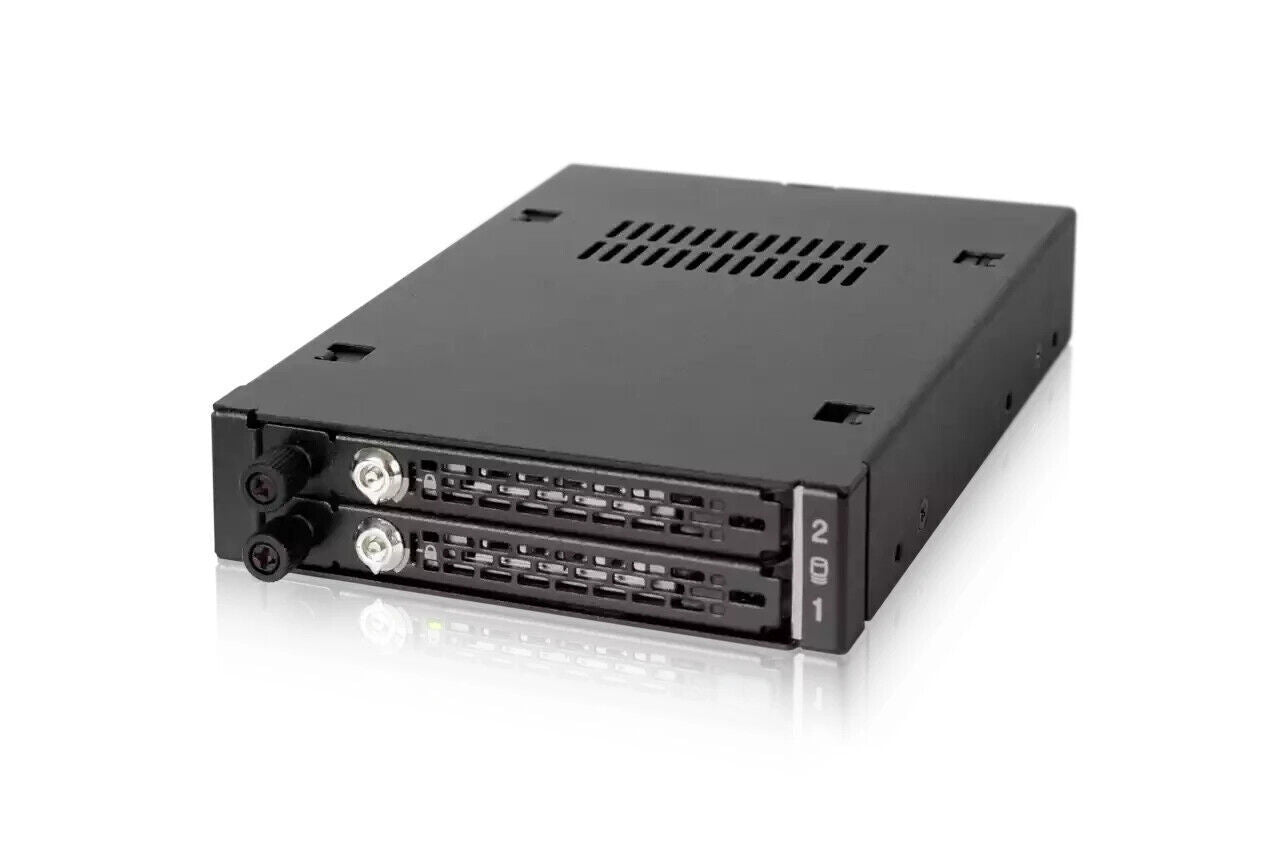

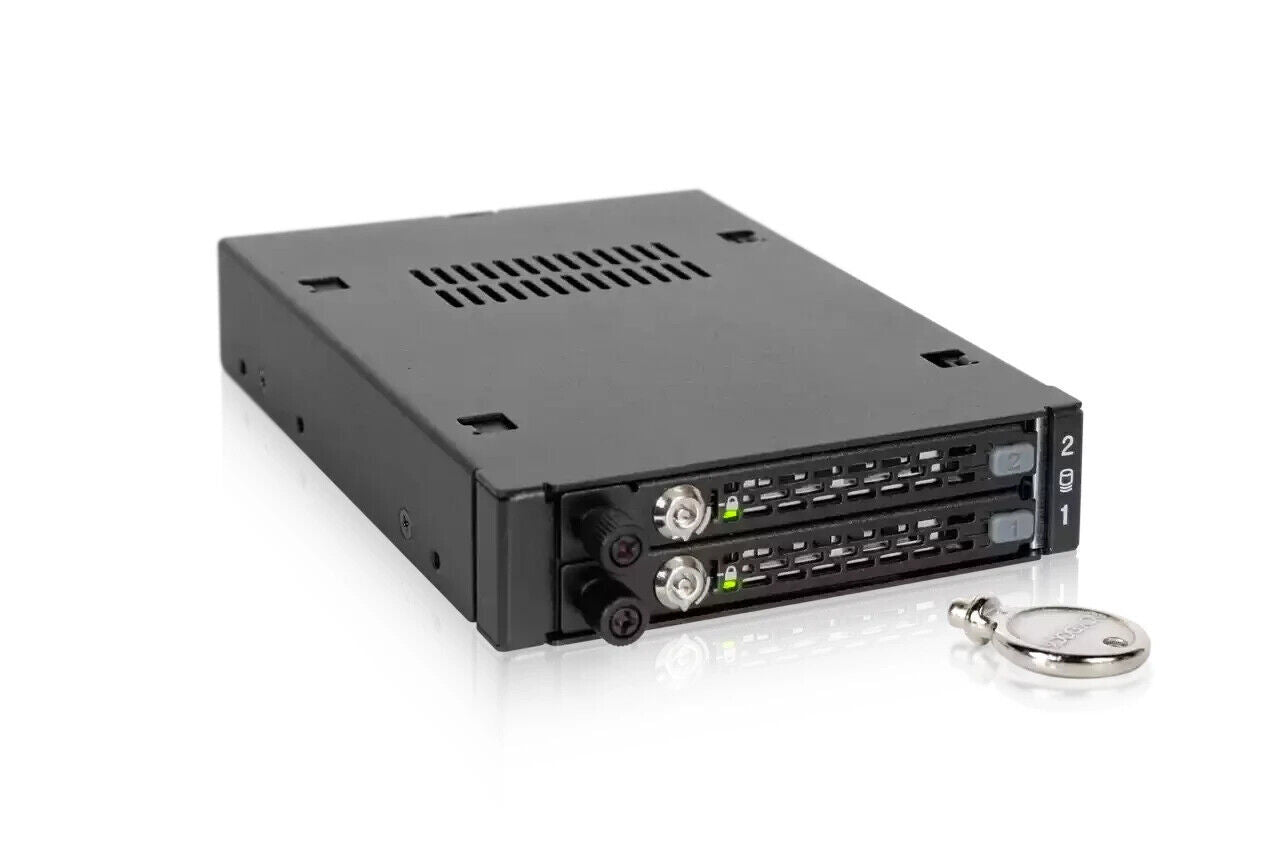

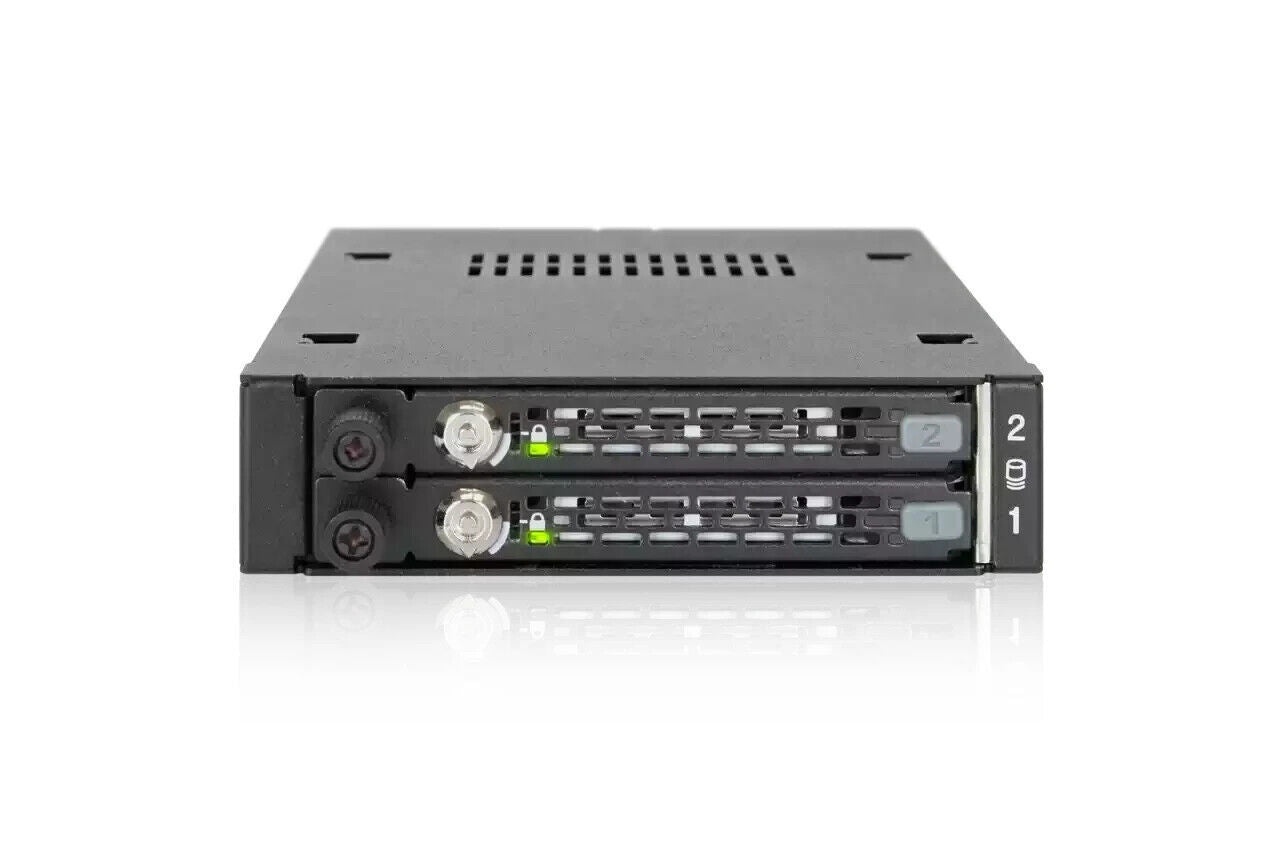

ICY DOCK MB492SKL-B ToughArmor Industrial Full Metal 2x 2.5" SATA SAS HDD SSD

The ICY DOCK ToughArmor EX MB492SKL-B dual bay 2.5” mobile rack is built specifically for industrial small form factor systems that require exceptional drive security. It uses a rugged heavy duty metal construction, which is considered to be compliant with flammability requirements and is capable to withstand the harshest environments. The metal key lock prevents unauthorized access your important drives and the thumb screw lock adds extra protection from impact, and reduces drive tray vibration which increases drive stability during transportation. Our removable drive tray allows interchangeability of data between multiple systems.

The ICY DOCK MB492SKL-B supports both SAS and SATA hard drives/SSDs at 6Gbps and is backwards compatible to 3 Gbps drives and hosts. The MB492SKL-B fits two drives in a single 3.5” front bay making it the perfect storage device for enterprise small form factor applications. It maximizes space in industrial small PCs, surveillance, embedded systems, automation systems, aerospace systems and mobile DVR systems.

• Removable Design with Maximum Protection
• Military-grade Durability
• Low profile design for small form factor applications such as industrial small PCs, surveillance, embedded systems, automation systems, aerospace systems and mobile DVR systems

MAIN FEATURES

• Fits two drives in a single 3.5” front device bay which is perfect for RAID configurations
• Dual Lock Design - Metal key lock (for drive security) and thumb screw lock (for impact/vibration)

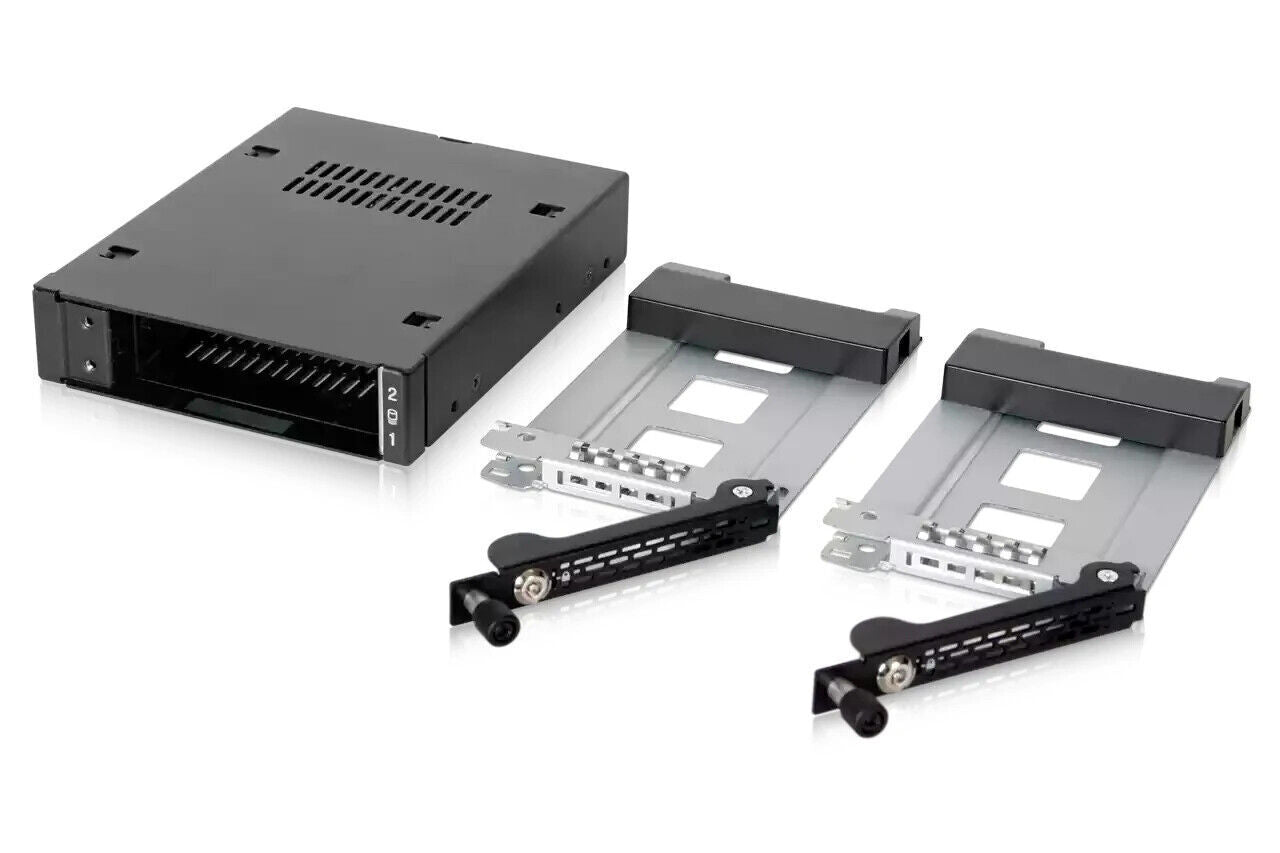

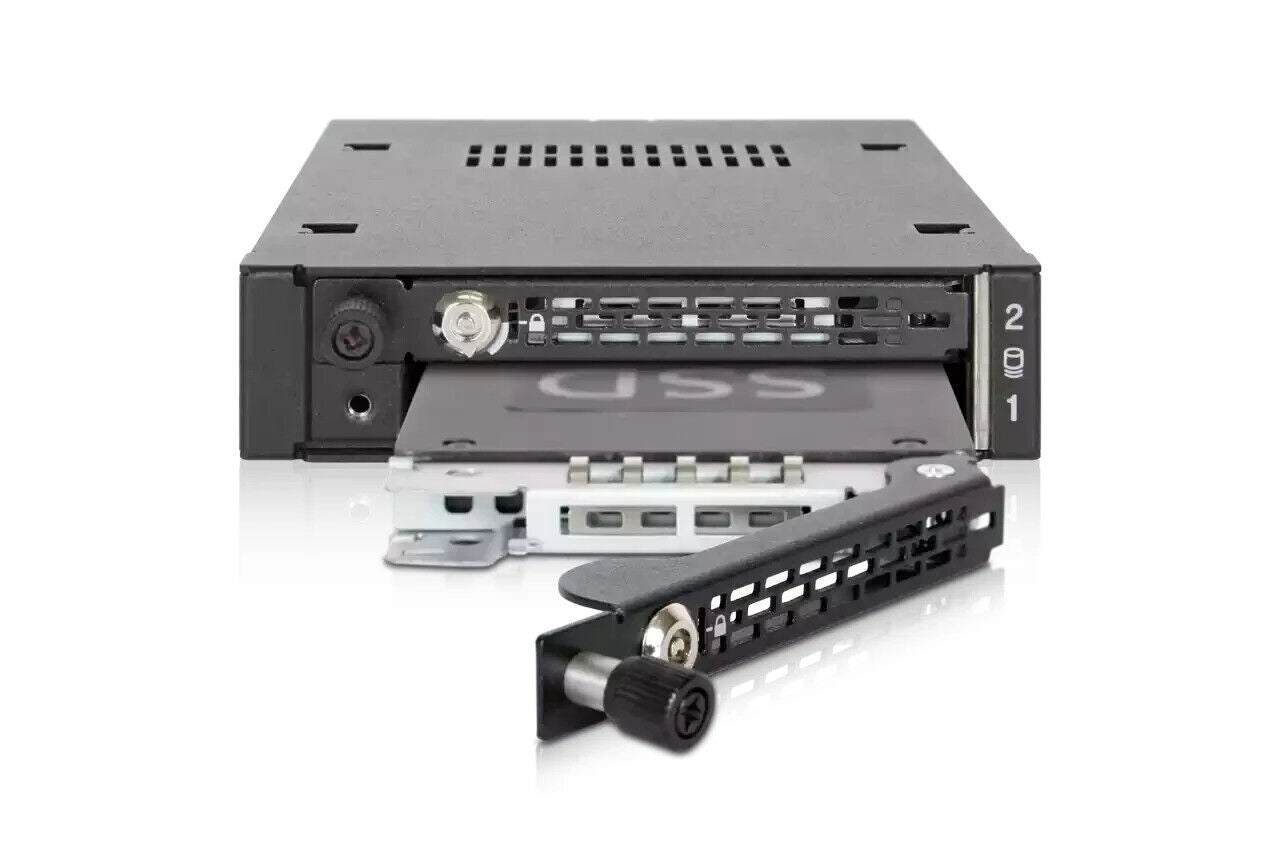

• Removable drive tray design allows easy maintenance and fully supports SATA hot-swap
• Unique drive ID plugs for drive trays are included (#1 - #8)
• Fits 2 x 5mm to 9.5mm height 2.5” SATA HDD or SSD in a external 3.5” drive bay
• Supports SAS or SATA HDD/SSD at 6Gbps and is backwards compatible with SATA 3Gbps drives and hosts (SAS host is required for SAS drives)
• Supports SATA 3.0 6Gbps or SAS 3.0 12Gbps (Single channel)
• Rugged Heavy Duty Full Metal construction, perfect for enterprise applications
• Multi-Flow Technology - provides excellent passive cooling
• Anti-Vibration Technology - creates a safe environment for hard drives or SSDs
• Active Power Technology (APT) - individual led only powers up if there is drive installed in the drive bay
• EMI Grounding - protects hard drives from electrical damage
• Locking latch for both SATA 7 pin data port and SATA 15 pin power port
• Design to meet MIL-STD-810H 516.8 (shock) and 514.8 (vibration) test requirements

SPECIFICATION

• Color: Black
• Host Interface: 2x 7 pin SATA (Support SAS Single Channel)
• Drive Fit: 2x 2.5" SAS/SATA HDD/SSD
• Compatible 2.5 Drive Heights: 7 to 9.5mm
• Device Fit: 3.5 Front Device Bay (Floppy Bay)
• Power Input: Single 15 pin SATA Power Port
• Struture: Full Metal
• Drive Cooling: Metal Heat Dispersion
• Power Indicator: Solid Green LED
• HDD Access Indicator: Flashing Amber LED
• Drive Security: 2 Sement Key Lock + Thumb Screw Lock
• Dimenaions: 101.2 x 25.4 x 138mm

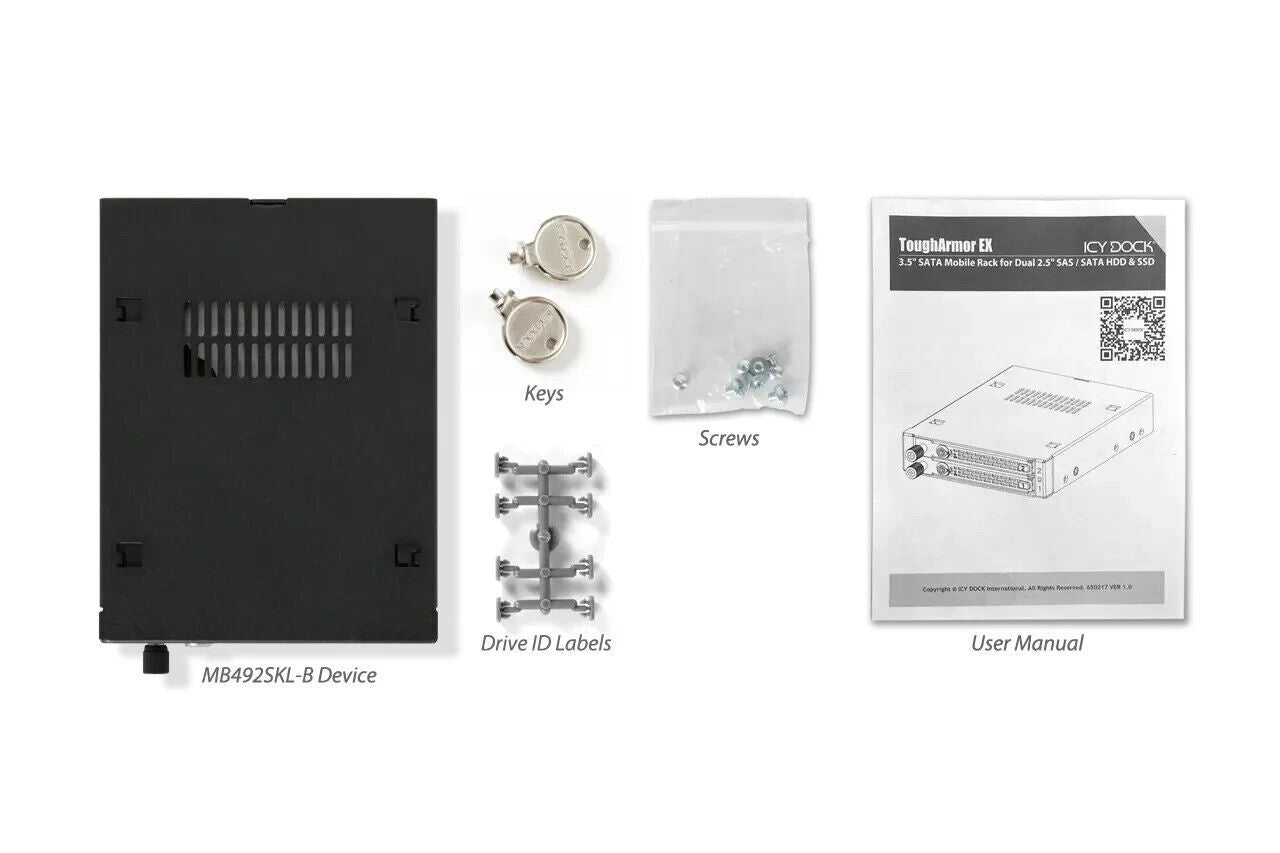

WHAT'S INCLUDED

• MB492SKL-B
• User Guide
• Screws
• Keys Drive ID Plug
