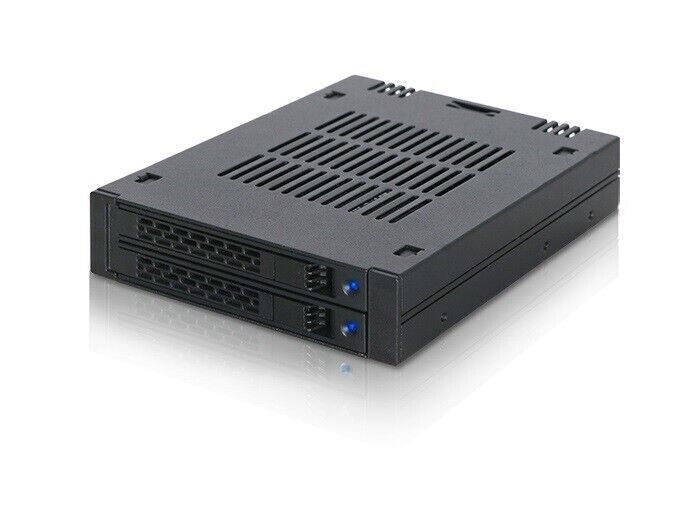

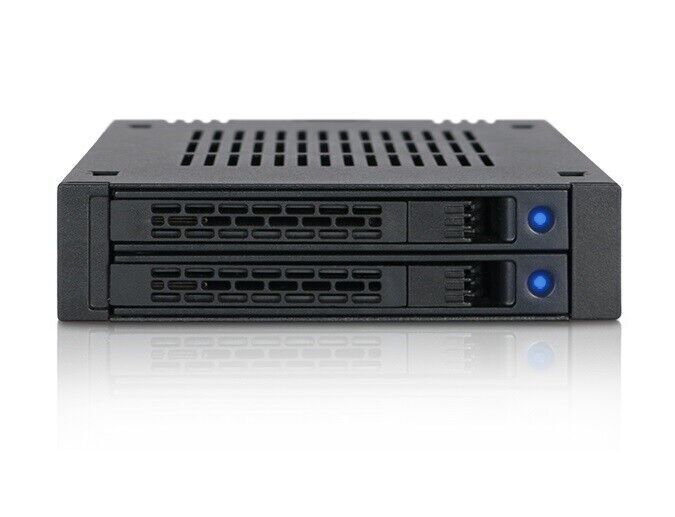

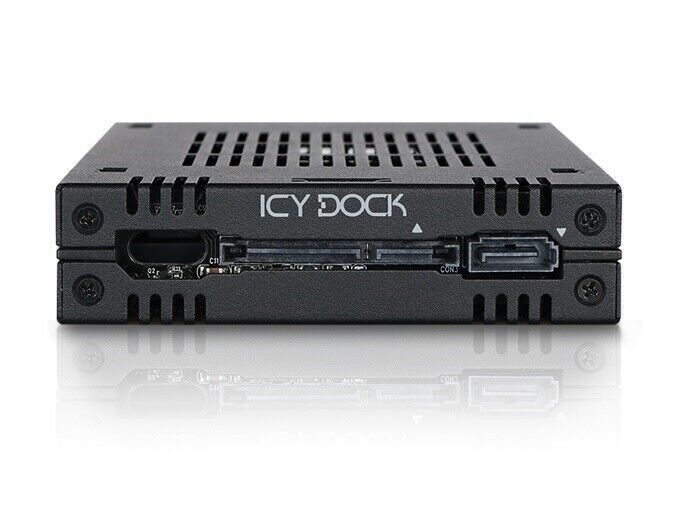

ICY DOCK MB742SP-B ExpressCage 2x2.5SAS SATA HDD SSD f External 3.5Bay

Vendor: Icy dock

SKU: 219867
MPN: MB742SP-B

Marketing Information
The ExpressCage MB742SP-B brings dense 2.5 SSD or HDD storage to the floppy 3.5 bay. With the rising popularity of SFF (Small-Form-Factor) systems due to space-savings and lower power usage, a convenient and protective data storage enclosure is necessary to maintain the critical data stored in the system. The ExpressTray MB742TP-B drive caddy supports tool-less drive installation, and it has been designed to hold your drives securely, with an enhanced tool-less drive gripping mechanism, stabilized drive insertion design, and a strengthened single-piece latch. The new metal chassis has all-around air ventilation to keep your drives running cool all day, even under heavy load.

Space Saver
Utilizing the small space of the external 3.5 drive bay (floppy bay), the MB742SP-B is perfect for applications where space is limited. Small-Form-Factor (SFF) PCs, embedded systems, Box PCs, in-vehicle systems, and home servers can all benefit from this dual 2.5 SAS/SATA drive enclosure. The two drives are also in an ideal position to be used in a RAID setup when combined with a RAID card or software RAID solution. A RAID 1 setup can be used to prevent drive failure, and is excellent for sensitive data, or having a backup of your OS drive. A RAID 0 setup is ideal for applications that require high-speeds, such as in a gaming computer or photo/video editing system. Maximize your speed and security while minimizing your space footprint with MB742SP-B.

Innovative New Tray Caddy Design
The ExpressTray MB742TP-B in the MB742SP-B is designed for applications where drive hot-swap is required, while providing security and durability. Grips on the sides of the caddy hold your drives securely, to keep your sensitive data safe.
The unique built-in screws allow for entirely tool-less drive installation and removal, to allow for quick and easy swapping of drives.

Detail Specifications
Product Name
2 x 2.5" SAS/SATA SSD/HDD Mobile Rack for External 3.5" Bay
Model Number
MB742SP-B
Color
Black
Support Drive Size
2.5" SSD / HDD
Compatible Drive Type
SATA / SAS (SAS host required / Single channel)
Number of Drives
2
Max Drive Height
9.5mm
Drive Bay
1 x external 3.5" drive bay
Host Interface
2 x SATA 7pin
Power Input
1 x 15 pin SATA power connector
Transfer Rate
Up to 6Gbps (Depending on hard drive speed)
Support HDD Capacity
No Limitation
Structure / Material
Metal with partial plastic
Support Hot-Swap
Yes
Drive Activity LED Indication
Drive power: solid blue HDD access: flashing blue
Package contents
1 - Device, 1 - user manual, 10 - screws
SATA Connector Insertion Rate
10,000
Humidity
5%-65% RH
Operating Temperature
0oC to 60oC (32oF to 140oF)
Storage Temperature
-35oC to 70oC (-31oF to 158oF)
Compliance
CE, RoHS, REACH

Warranty Information
3 year - Direct from the Manufacturer
