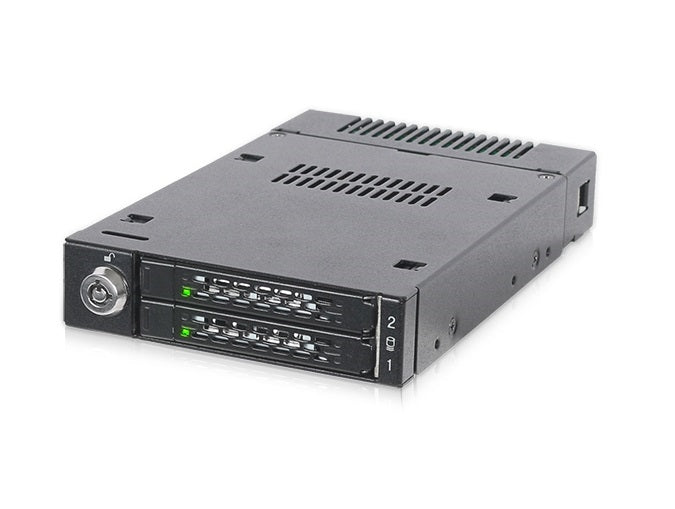

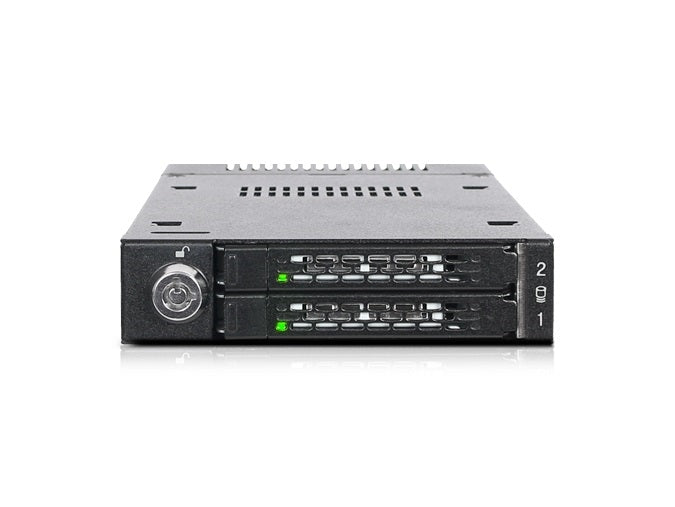

ICY DOCK MB834M2K-B ToughArmor 2x M.2 PCI Express NVMe SSD Mobile Rack

Product Information

• Introducing ToughArmor MB834M2K-B, the world’s first ruggedized M.2 PCIe NVMe SSD tool-less removable rack. Your M.2 NVMe SSD no longer requires to be installed on a motherboard or a riser card with a tiny screw, but it can now be installed and accessed from the front of your computer without any tools! The ToughArmor MB834M2K-B comes with a patent-pending tool-less M.2 drive installation design which will alleviate the pain that many users experience when installing M.2 drives and offer easy drive maintenance and system upgrading. The ToughArmor MB834M2K-B supports blazing-fast PCIe x4 transfer speed up to 32Gb/s via MiniSAS HD (SFF-8643) and accepts all standard M.2 drives lengths from 30mm to 110mm (2230, 2242, 2260, 2280, 22110). In addition, while working together with numbers of ventilation holes around the enclosure, each drive tray is equipped with a high efficiency aluminum heat sink to ensure all the M.2 NVMe SSDs remains within their optimal temperature even when it is under full load.
• Ultimately, your drives will be well protected within this full metal drive enclosure and a barrel key lock to prevent any unauthorized physical access.
• M.2 Drive is No Longer Hidden A typical M.2 drive is installed on a motherboard or a riser card and secured by a tiny screw, and it can be a very troublesome and time-consuming process to install or remove the drive physically. However, with ICY DOCK's ToughArmor MB834M2K-B, M.2 drives are brought into the front of a computer case and makes M.2 NVMe SSD installation and removal a more straightforward and efficient process.

Detail Specifications

• Color: Black
• Support Drive Size: 2 x M.2 PCIe NVMe SSD 2230/2242/2260/2280/22110
• Compatible Drive Type: NVMe M.2
• Number of Drives : 2
• Drive Bay: 1 x external 3.5" device bay

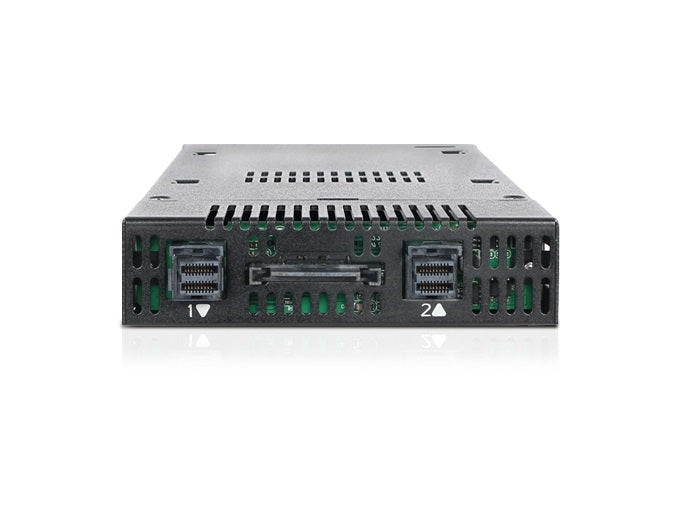

• Host Interface: 2 x miniSAS HD (SFF-8643)
• Power Input: 1 x 15pin SATA power connector
• Transfer Rate: Up to 32Gbps (Depending on hard drive speed)
• Support HDD Capacity: No Limitation
• Drive Cooling: Metal heat dispersion with thermal pad for passive cooling
• Structure / Material: Metal with partial plastic
• Support Hot-Plug: Yes (host must support hot-plug function)
• Drive Security: 2 segment key lock
• Drive Activity LED Indication: Drive power: solid green, HDD access: flashing green
