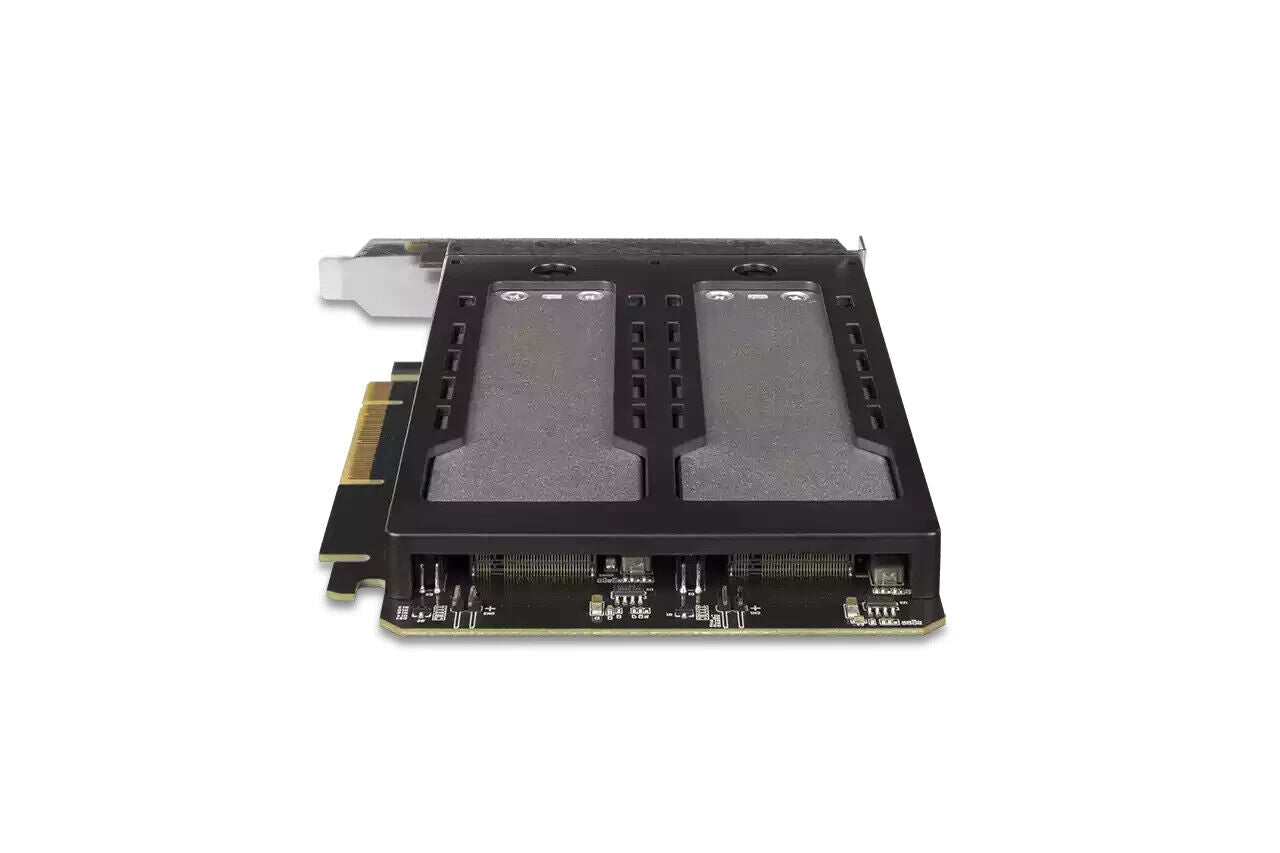

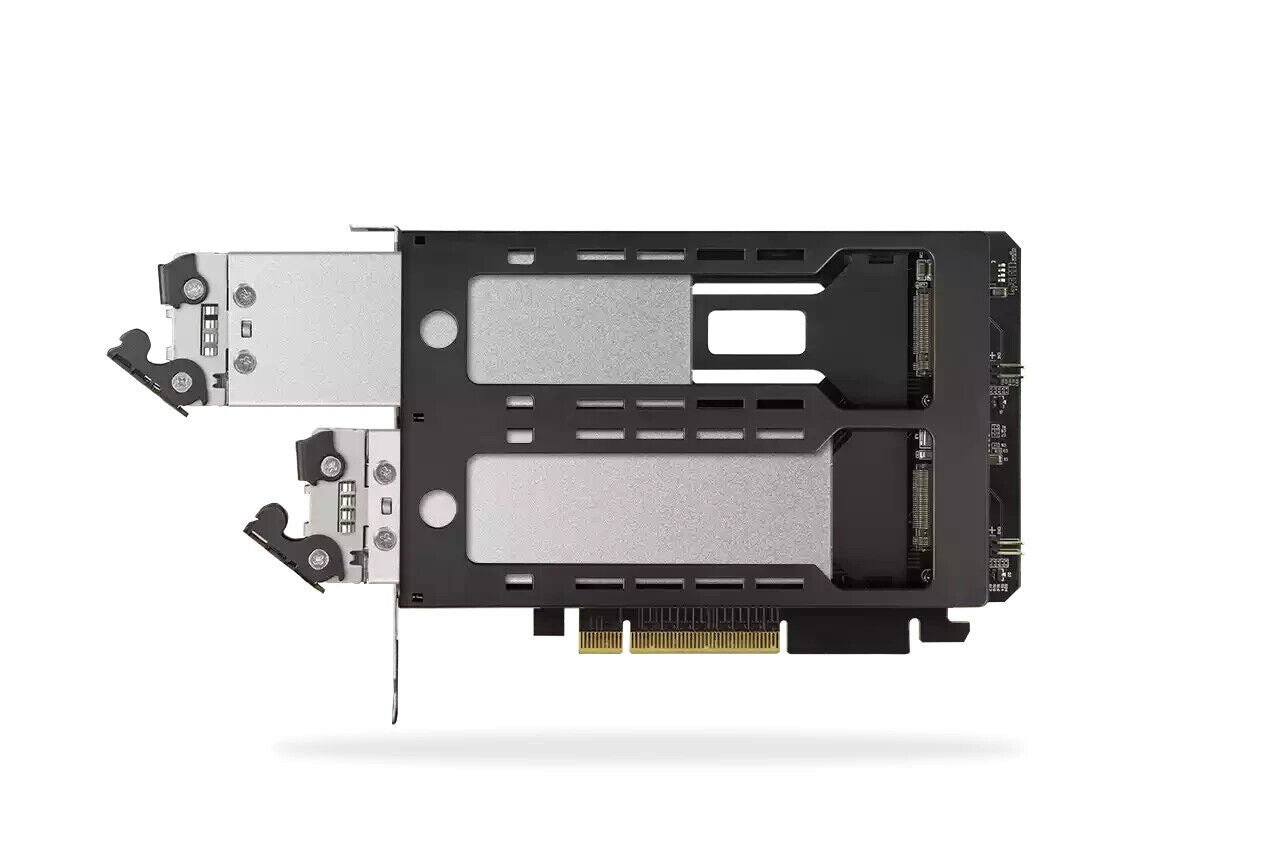

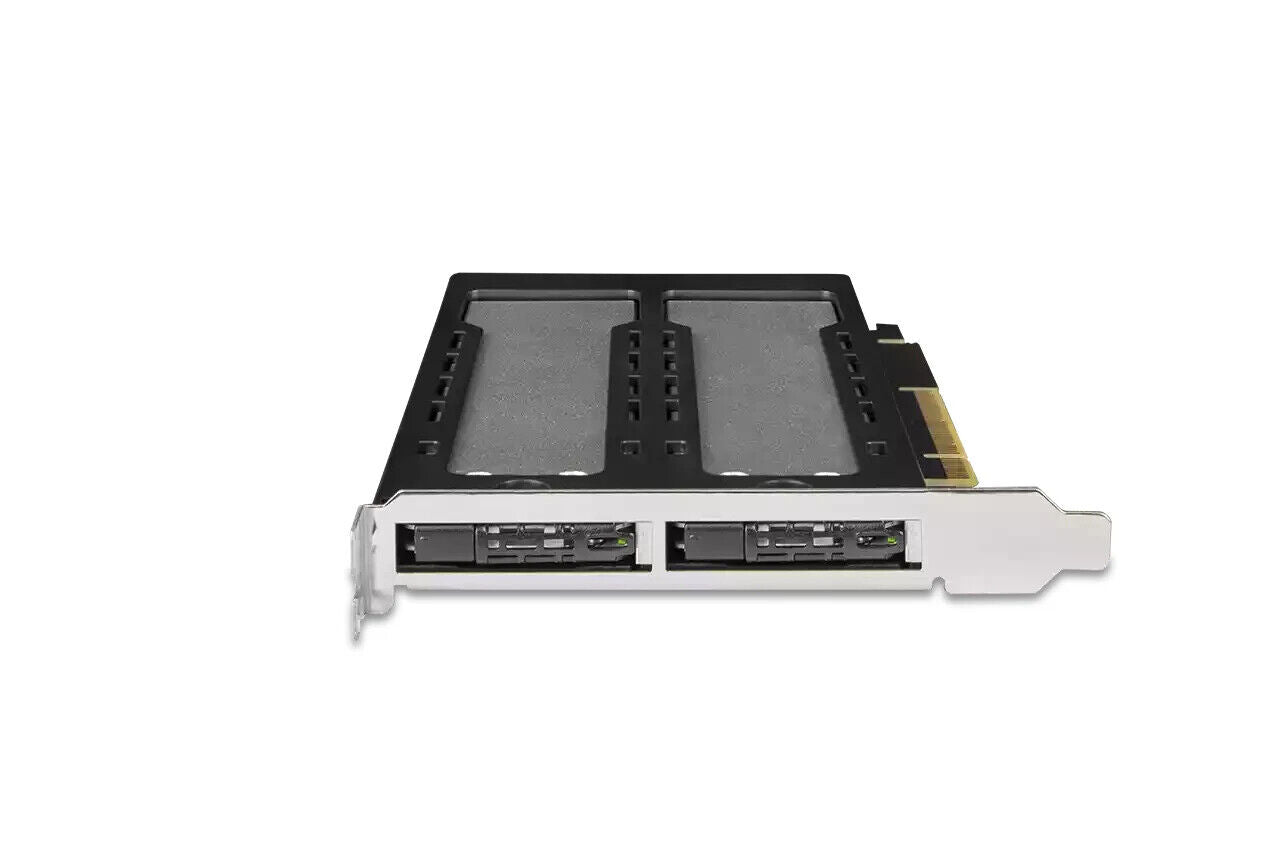

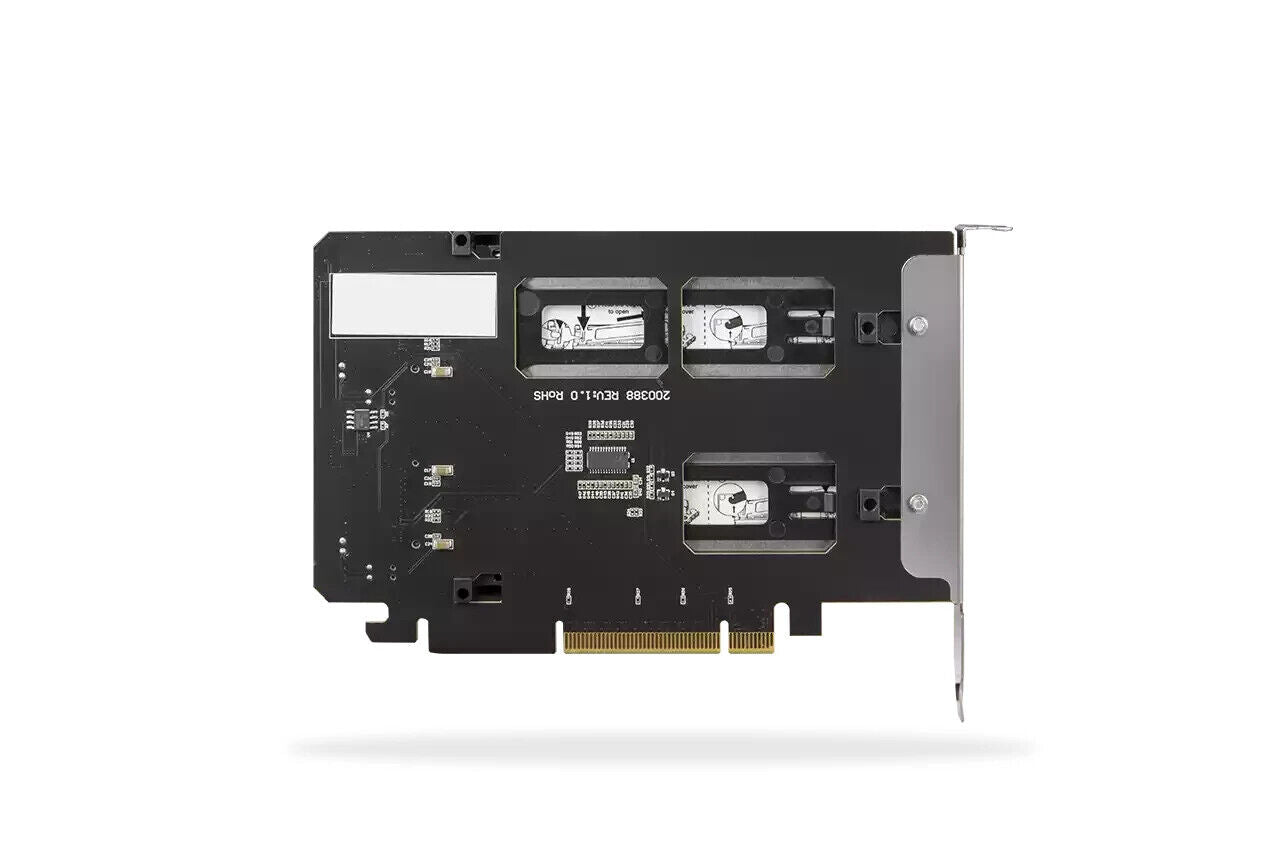

Icy Dock MB842MP-B Removable 2 Bay M.2 NVMe SSD to PCIe 4.0 x8 Slot Enclosure

ExpressSlot Elite MB842MP-B

Removable 2 Bay M.2 NVMe SSD to PCIe 4.0 x8 Mobile Rack Enclosure for PCI Express Slot (PCIe Bifurcation required)

Specification

• Model Number：MB842MP-B
• Color：Black & silver
• Support Drive Size：2 x M.2 PCIe NVMe SSD (2230/2242/2260/2280/22110)
• Compatible Drive Type：M.2 PCIe 3.0/4.0 NVMe SSD
• Number of Drives：2
• Support Drive Length：30mm – 110mm
• Drive Bay：1 x PCIe 3.0 or 4.0 x16 expansion slot (motherboard required PCIe x16 slots bifurcated into x4/x4/x4/x4)
• Host Interface：PCIe 4.0 x8
• Power Input：Via PCIe
• Transfer Rate：Up to 64Gbps (depending on drive speed)
• Support SSD Capacity：No limitation
• Drive Cooling：Metal heat dispersion with passive cooling
• Structure / Material：Metal with partial ABS plastic
• Product Dimension (L x W x H) ：171 x 120.8 x 21.6 mm
• Product Net Weight：232.5g
• Package Gross Weight：336.8g
• Drive Activity LED Indication：Drive power: solid green; Drive access: flashing green
• Package Contents：Device, user manual, screw, thermal pads
•  Connector Insertion Rate：5,000
• Humidity：5%~65% RH
• Operating Temperature：0°C to 60°C (32°F to 140°F)
• Storage Temperature：-35°C to 70°C (-31°F to 158°F)
• Compliance：CE, RoHS, REACH
• Warranty：5 years limited warranty from Icy Dock
