Icy Dock MB994IPO-3SB Drive Bay Adapter Serial ATA, Serial Attached SCSI (SAS)

*- Serial ATA Host Interface Internal - Matte Black - 3 x Total Bay - 1 x 5.25" Bay - 2 x 2.5" Bay

General Information

Brand Name Icy Dock

Manufacturer Part Number MB994IPO-3SB

Manufacturer Icy Dock

Product Model MB994IPO-3SB

Product Name MB994IPO-3SB 2x 2.5" SATA/SAS HDD/SSD + Slim ODD 5.25" Backplane

Product Series MB994

Product Type Drive Bay Adapter

Marketing Information:

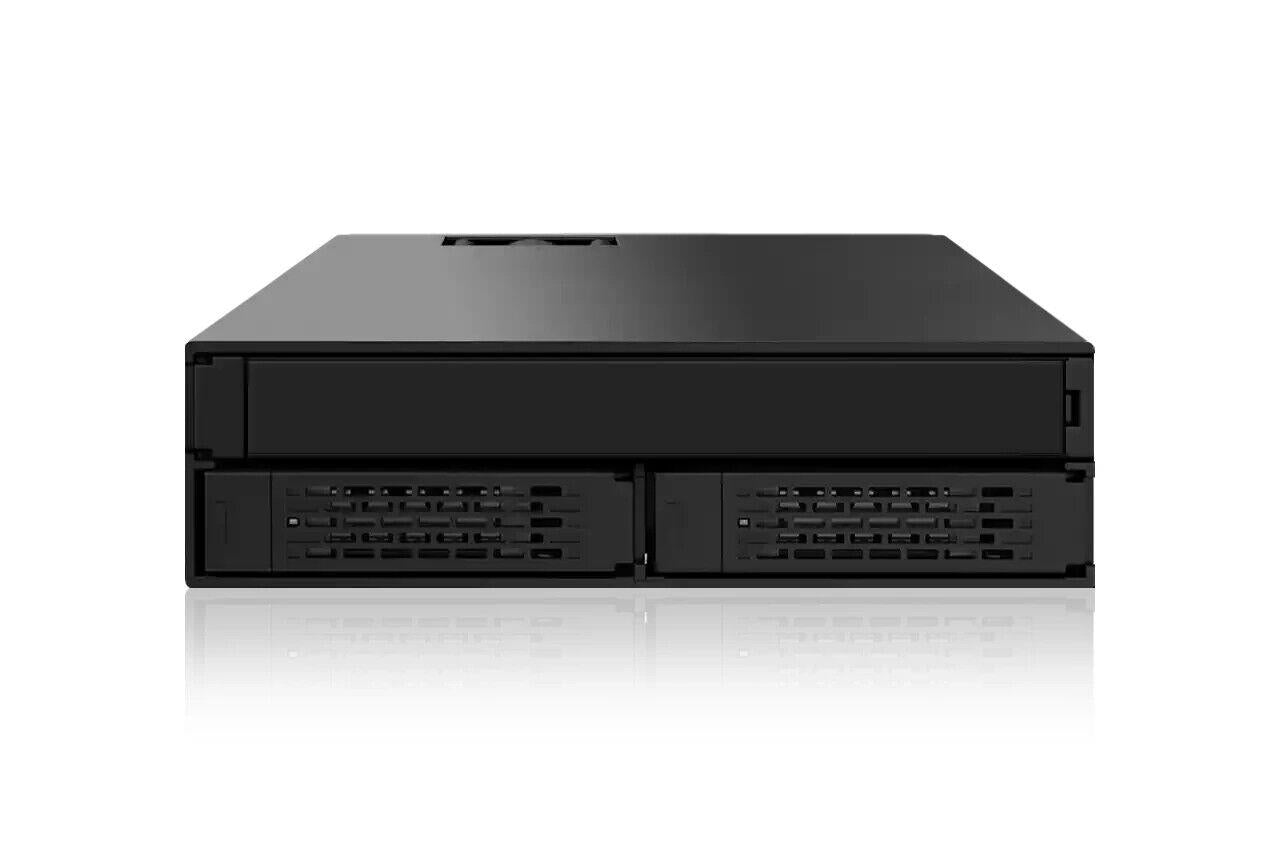

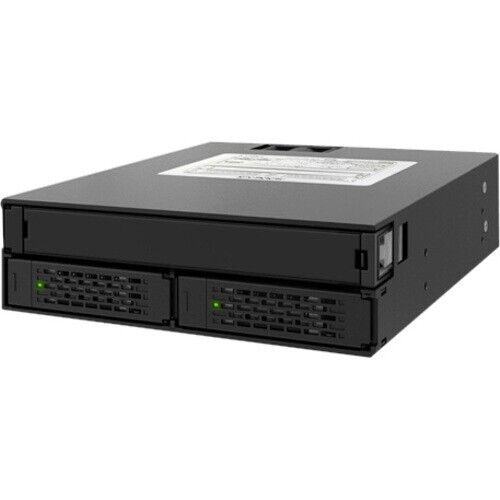

Introducing the MB994IPO-3SB, a full metal dual bay 2.5" SATA/SAS hard drive / SSD mobile rack backplane designed with a Slim Optical Disk Drive (ODD) slot for use in a single 5.25" device bay. It's a perfect device designed for small form factor system or server such as: IPC, HTPC, NAS, Home Servers and All-In-One computers. Dual 4-pin power connectors are used to ensure secured and consistent power supply to both drives and ODD, whether they are low power consumption 2.5" SATA SSD's or power hungry 15000 RPM 2.5" SAS drives. Also included is a single 40mm cooling fan with on & off switch to assist the drives running at their optimal temperatures, in even the most intense applications.

Features

• Top cover for the tray adds extra drive/ODD protection.
• Status LED on Front for each drive.

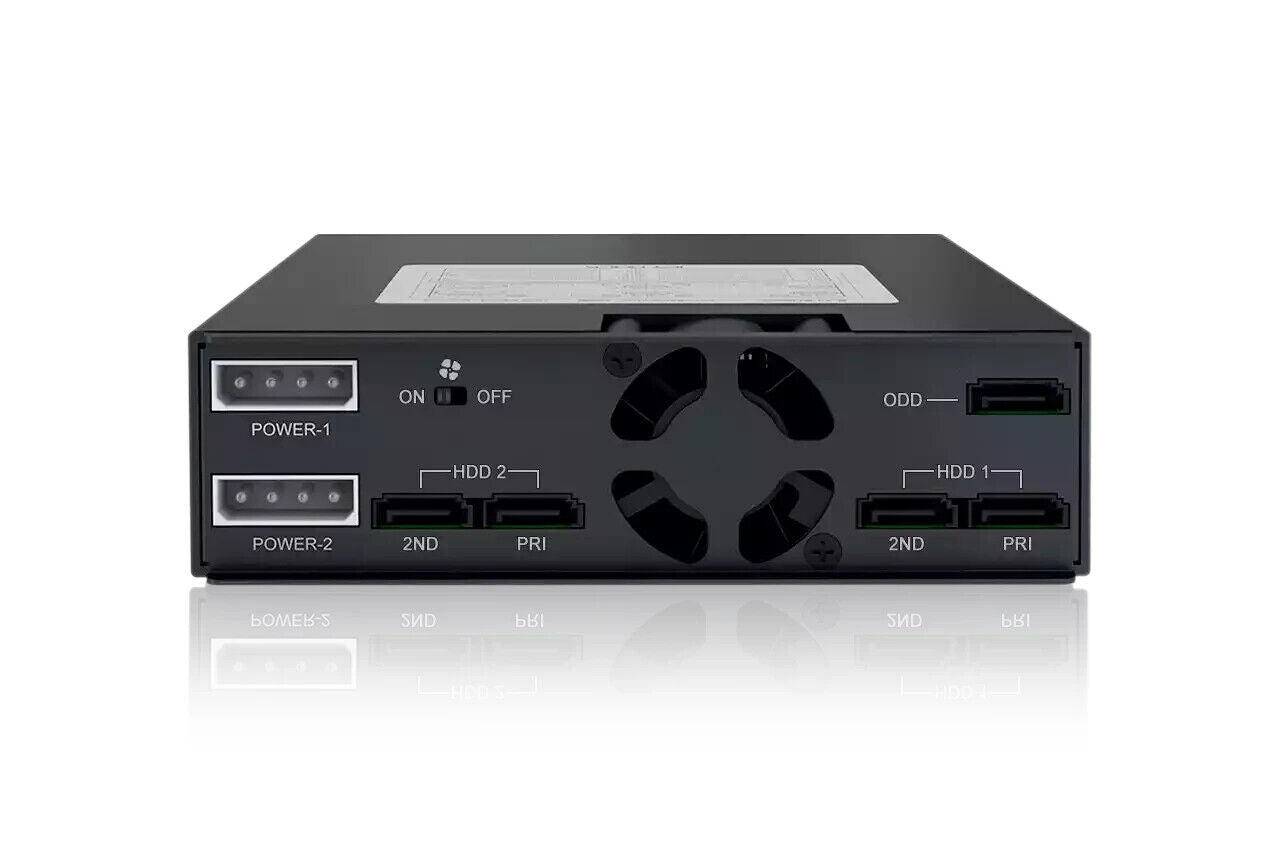

• On & off switch for cooling fan, reduce the power usage and fan noise when using SSD.
• Available 40mm cooling fan.

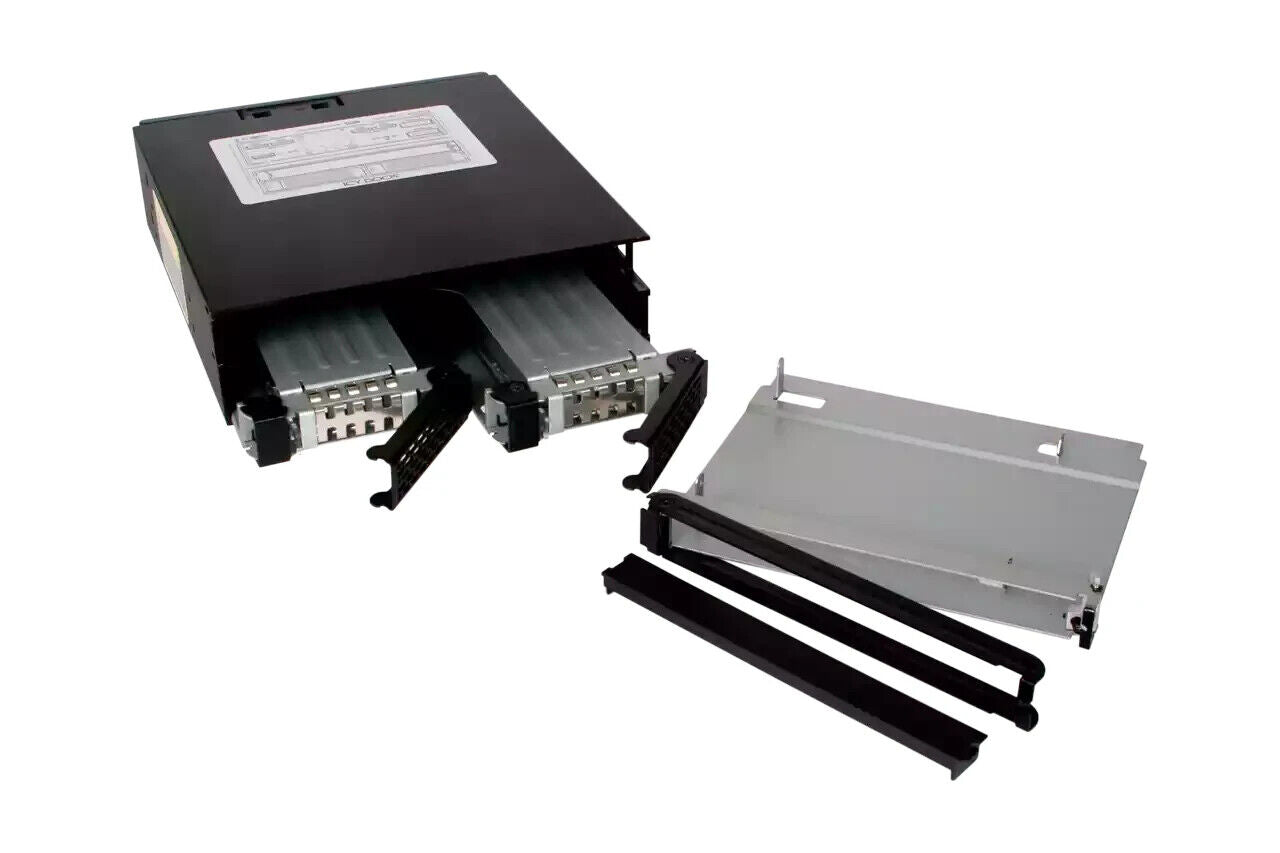

• Full Metal EZ Slide Mini Tray & EZ-ODD Tray system with Full Cage Design.
• 2 x 4 pin power connector to properly power all components.
• Full aluminum body construction.
• Accommodates hard drives or SSD with up to 15mm Height.
• Supports SATA III & SAS 2.0 interface.
• Fits 2 x 2.5" SATA/SAS hard drive or SSD & 1 x slim optical disk drive (ODD).

I/O Expansions

Number of Total Expansion Bays 3

Number of 5.25" Bays 1

Number of 2.5" Bays 2

Interfaces/Ports

Host Interface Serial ATA

Drive Interface Serial Attached SCSI (SAS)

Serial ATA

Physical Characteristics

Weight (Approximate) 1.77 lb

Form Factor Internal

Height 1.6"

Width 5.8"

Depth 6.7"

Compatible Drive Bay Width 5.25"

Cooling Fan Yes

Product Color Matte Black

Product Material SECC

Aluminum

Miscellaneous

Compatibility

Accommodate 9.5mm, 12.5mm & 15mm drives

Recycled Yes

Environmentally Friendly Yes

Environmental Certification RoHS
