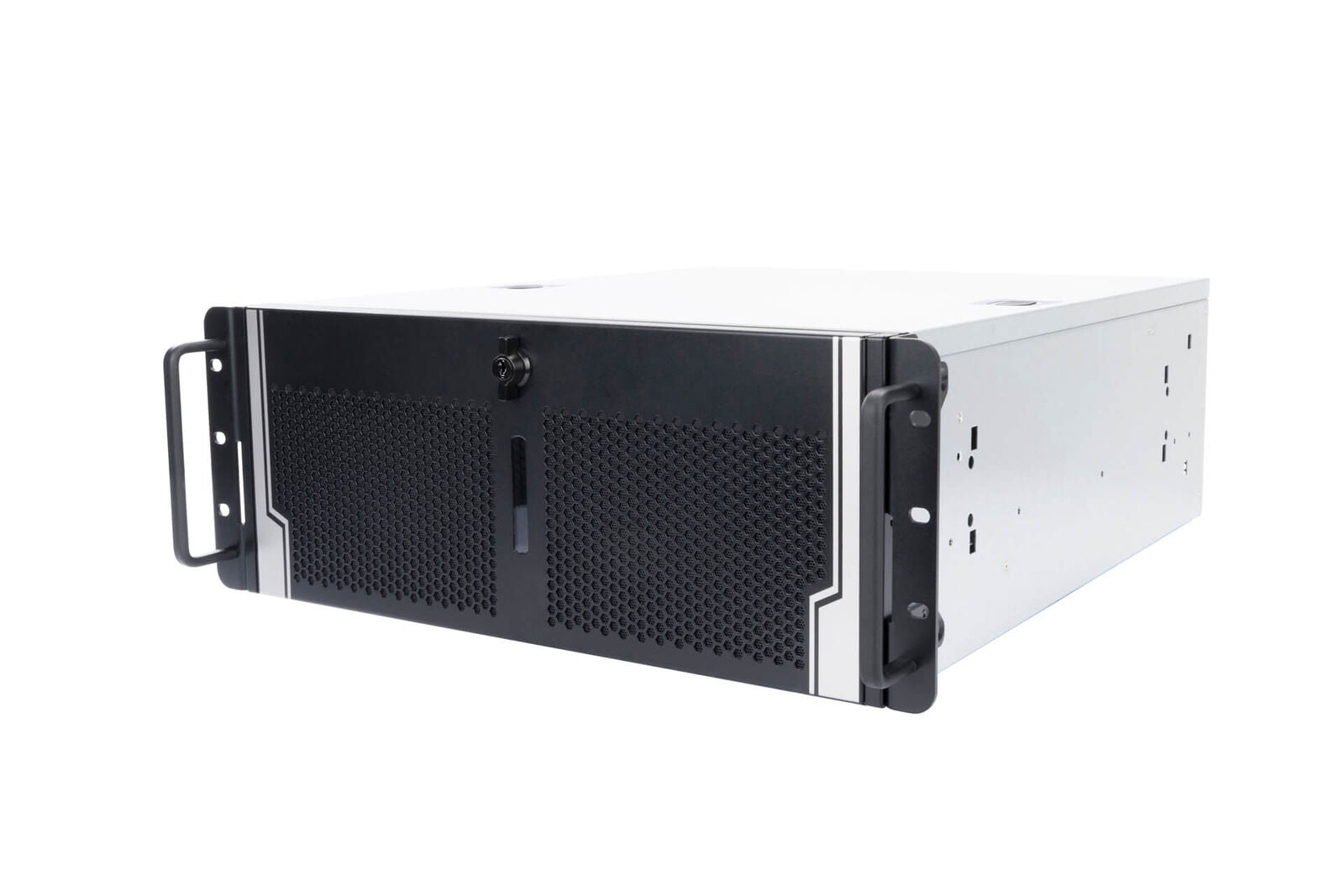

In-Win IW-R400-01N Rackmount 4U Entry Level No PS 3 1 (4) Bays NO BP HD Tray

 Vendor: In-Win

SKU: 206768
MPN: IW-R400-01N

Marketing Information
Supports 80 x 25 mm Front Fan x 2
Expandable storage option with In Win storage kit
Tool-free cover for easy installation and quick maintenance

Detail Specifications
M/B Form Factor
ATX (12" x 9.6"), CEB (12" x 10.5"), EEB(12" x 13")
The bottom 5.25 drive bay space should be reserved for the EEB motherboard installation.
Drive Bay
External: 5.25" x 3, 3.5" x 1
Internal: 3.5" x 4, 2.5" x 1
Power Supply
Supports
Form Factor: PS2 or 1+1 Mini-Redundant
Watt: PS2 up to 600W, Mini-Redundant up to 500W
Indicator
Power Status, HDD, LAN Activity LEDs
Front Control Panel
Power Switch, System Reset, USB 2.0 x 2
Chassis Security
Intrusion Switch
Cooling Fan
Supports
80 x 25 mm Front Fan x 2
80 x 25 mm PWM Rear Fan x 2 (optional)
Expansion Slot
Full Height PCI Slot x 7
Material
Material: SGCC
Thickness: 1.2 mm
Rail Kit
Supports 28" Ball-bearing

Warranty Information
1 Year- Direct from the Manufacturer
