Plugable USBC-SATA-V USB 3.1 Gen 2 10Gbps SATA Upright Hard Drive Dock and SSD

General Information

Brand Name Plugable

Manufacturer Part Number USBC-SATA-V

Manufacturer Plugable Technologies

Product Model USBC-SATA-V

Product Name USB 3.1 Gen 2 10Gbps SATA Upright Hard Drive Dock and SSD Dock

Product Type Drive Dock

Packaged Quantity 1

Marketing Information:

Performance

Features future-proof USB 3.1 Gen 2, USB 3.0 and USB 2.0 connectivity with support for USB Type A and Type C host systems. Uses the ASMedia 1351E chipset and firmware with UASP and BOT support for maximum performance and features. Drive sleeps automatically on OS power events or 10 minutes of idle to conserve power and reduce heat.

Form Factor

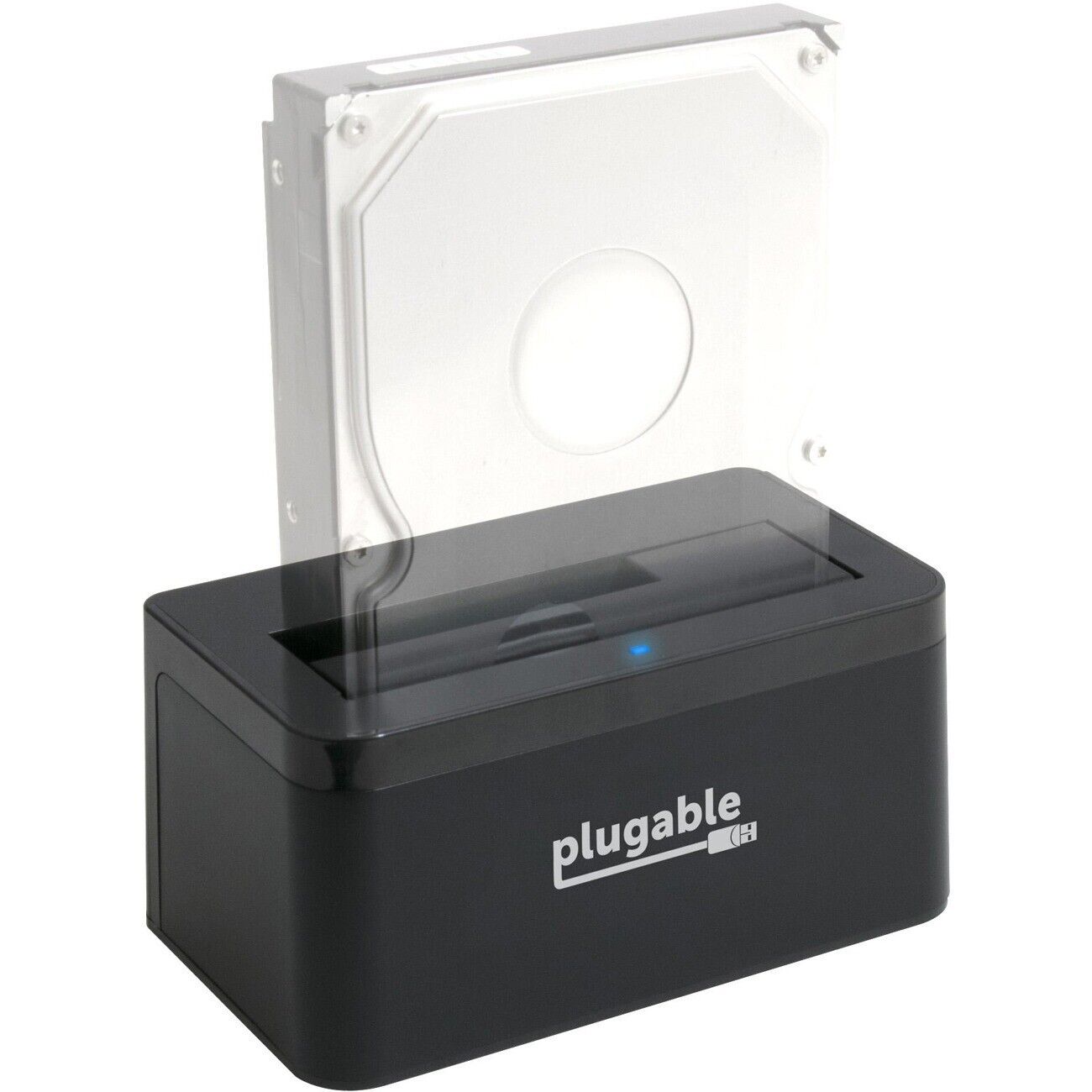

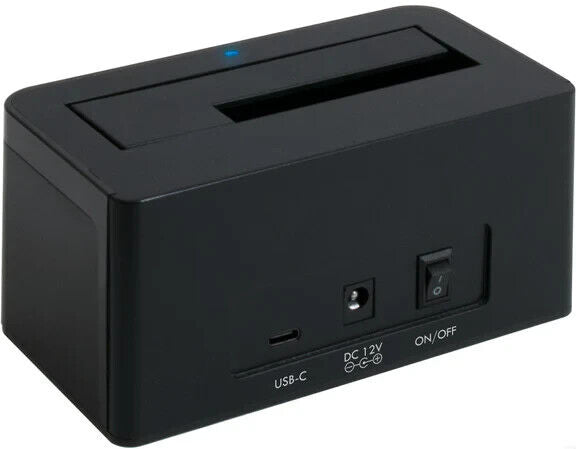

Vertical design provides maximum cooling while taking up minimal space. Robust on/off toggle switch powers off dock when not in use. Blue LED reports drive activity. 12V3A power adapter provides power for even the largest enterprise SATA drives so you can attain top performance speeds during the entire file transfer.

Compatibility

Uses standard drivers in modern operating systems, so no additional drivers required. Compatible with Windows XP through 10, macOS, and Linux / Unix. Supports 12TB+ drives on 64-bit operating systems (32-bit Windows supports drives up to 2TB max). Connects to USB-C and Thunderbolt 3 ports with the provided USB-C cable, as well as legacy USB 2.0 and USB 3.0 hosts with the provided USB 3.0 cable. Supports all 2.5" and 3.5" SATA hard drives, solid state drives, and hybrid drives up to any volume size available on the market today (currently 12TB+). IDE/EIDE/PATA, SCSI, SAS, mSATA, and M.2 drives are not compatible.

In the box

USB-C to SATA Dock, 1m/3ft USB-C to USB-C Cable, 1m/3ft USB-A to USB-C Cable, AC 12V3A Power Adapter 100-240V 50/60Hz, Quick Start Guide

Features

Supports 2.5""/3.5"" SATA drives

USB-C 3.1 Gen 2 performance

Upright orientation for max cooling and compact footprint

Plug and play

Hot-Swappable

Universal USB compatibility

Technical Information

Total Hard Drive Capacity Supported 8 TB

Total Solid State Drive Capacity Supported 8 TB

Number of Hard Drives Supported 1

Number of Hard Drives Installed 0

Number of Solid State Drive Supported 1

Number of Solid State Drive Installed 0

Physical Characteristics

Form Factor External

I/O Expansions

Number of Total Expansion Bays 1

Number of 2.5"/3.5" Bays 1

Interfaces/Ports

Host Interface USB 3.1 (Gen 2) Type C

Drive Interface SATA

Power Description

Input Voltage 230 V AC

120 V AC

230 V AC

120 V AC

Power Source AC Adapter

Maximum Power Supply Wattage 36 W

Miscellaneous

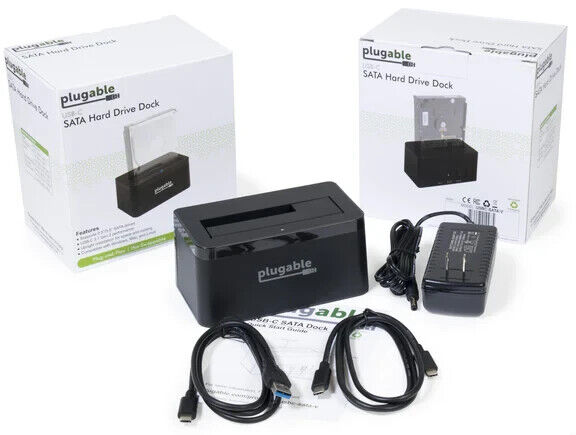

Package Contents

USB 3.1 Gen 2 10Gbps SATA Upright Hard Drive Dock and SSD Dock

1 x 3ft USB-C male to USB-C Male USB Cable

1 x 3ft USB-C male to USB-A Male USB Cable

1 x 36W 12V/3A AC Power Adapter

1 x Quick Start Guide

Platform Supported Linux

Mac

PC

Country of Origin China
