SIIG JU-SA0W11-S1 USB3.1 Gen2 Type-C to M.2 PCIe SSD MVMe Enclosure

Marketing Information

• •This ultra small enclosure easily adds fast PCIe NVMe SSD storage to Windows or Mac computers through USB 3.1 Gen 2 Type-A or Type-C ports

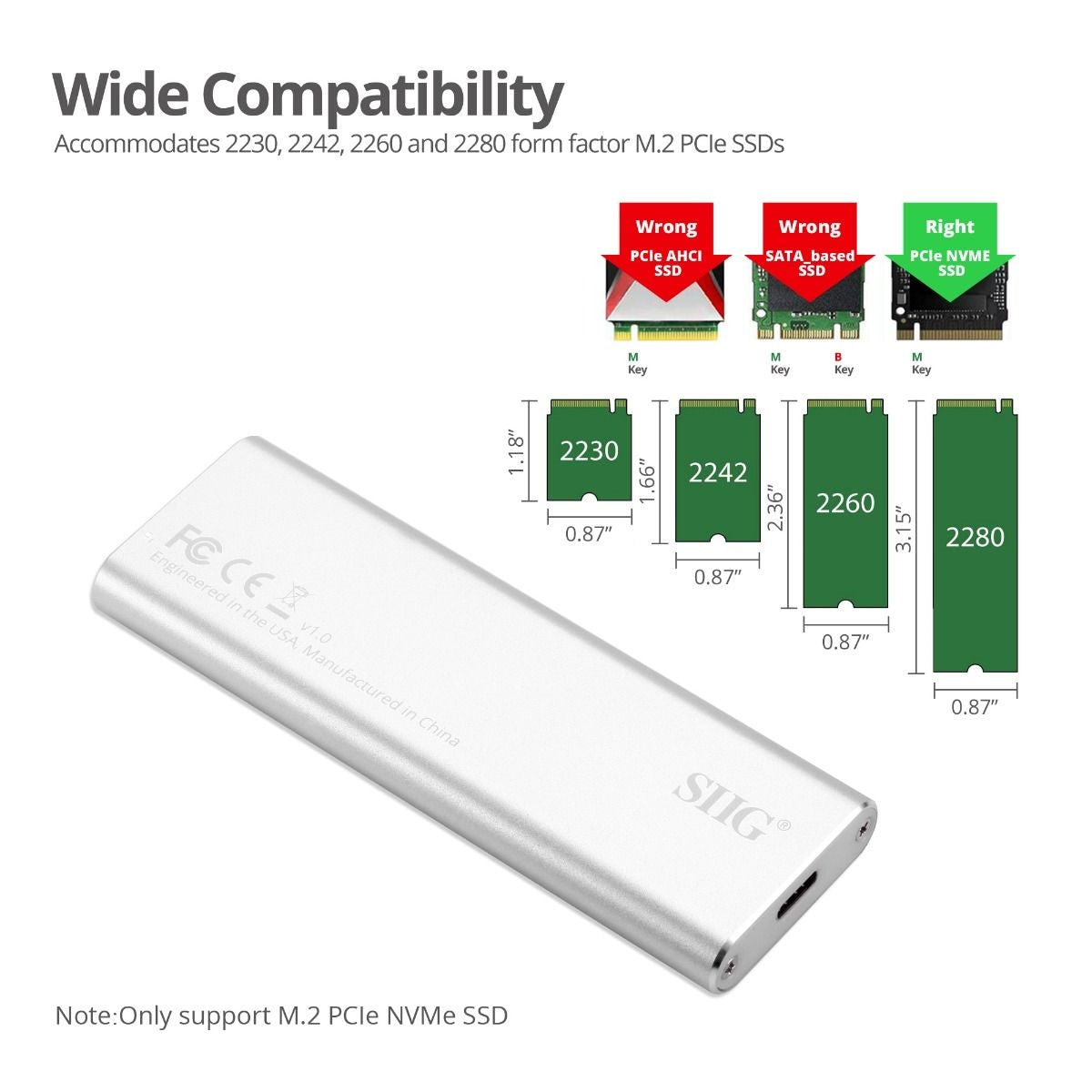

• •Accommodates 2230, 2242, 2260 and 2280 form factor M.2 M Key PCIe NVMe SSDs

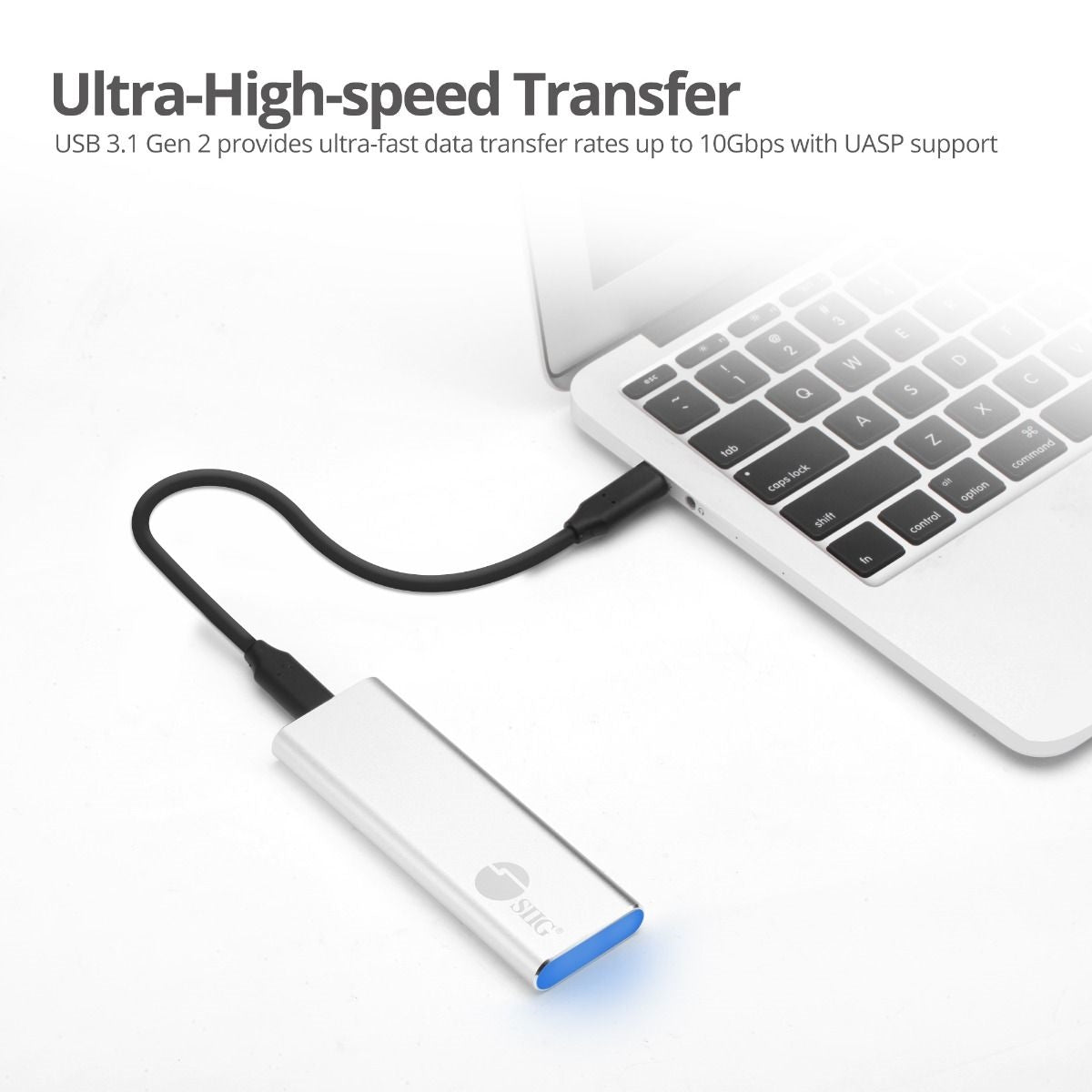

• •USB 3.1 Gen 2 provides ultra-fast data transfer rates up to 10Gbps with UASP support. Requires UASP compatible USB 3.1 host controller hardware along with Windows 10 and Windows 8 native USB 3.1 host controller drivers
• •USB Type-C interface features reversible connection design supports non-directional plug-in
• •Built-in LED for power and data transfer status
• •Bus powered for extra portability, no need to take along a separate power adapter when on the go

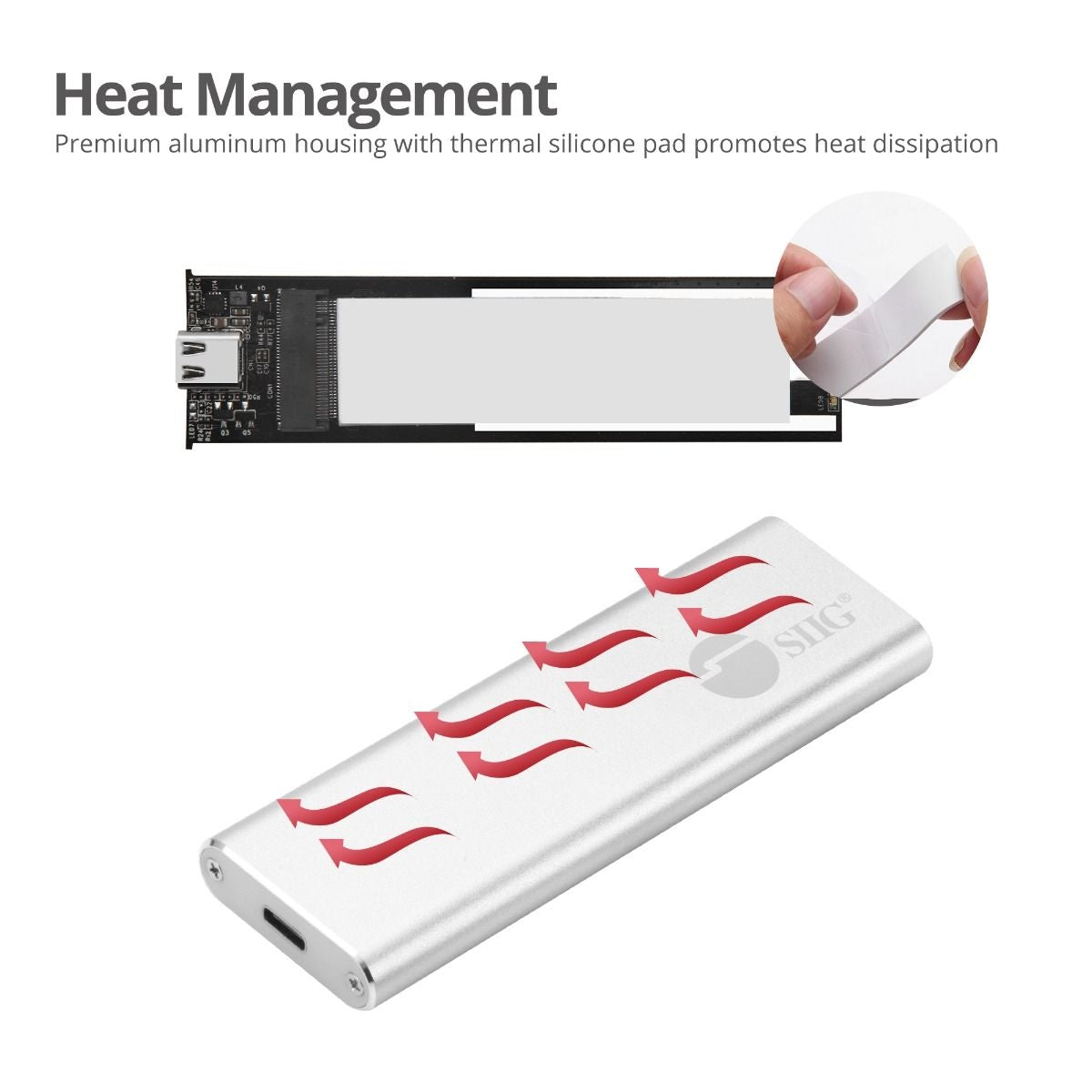

• •Ultra-slim, lightweight and compact design aluminum housing offers durability and excellent heat dissipation for long life and reliable performance

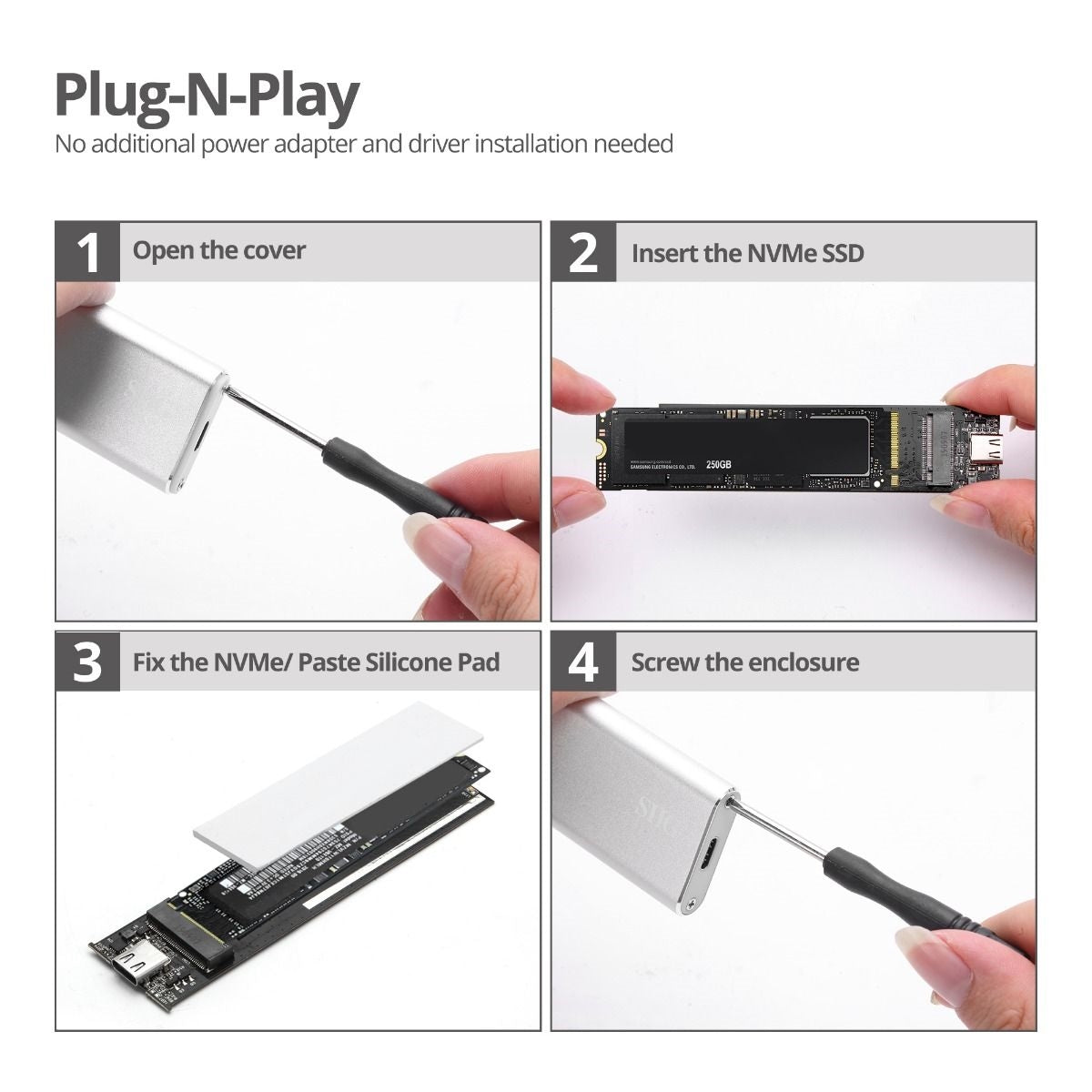

• •Plug-n-Play installation, no driver installation required

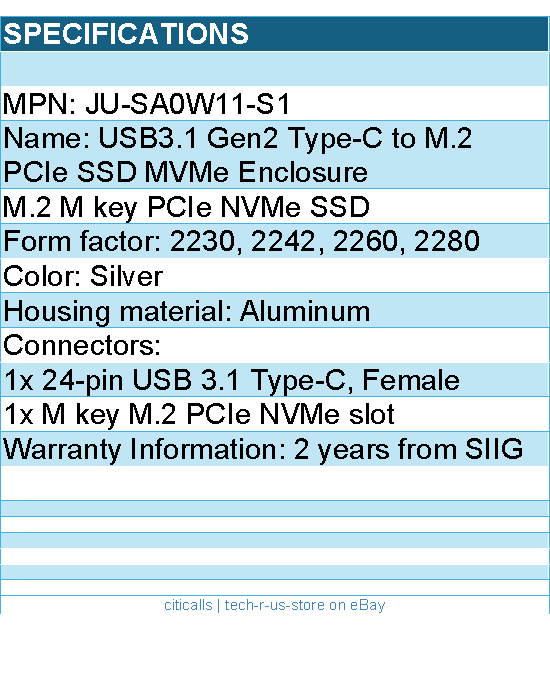

Detail Specifications

• Chipset: JMicron JMS583
• Compatible with PCIe 3.1a specification and backward compatible with PCIe 1.0 and PCIe 2.0
• USB data transfer rate: Up to 10Gbps
• Power source: USB bus power
• Memory type
• M.2 M key PCIe NVMe SSD
• Form factor: 2230, 2242, 2260, 2280
• Storage capacity: 2TB (max)
• Product
  • Color: Silver
  • Housing material: Aluminum
  • Connectors:
  • 1x 24-pin USB 3.1 Type-C, Female
  • 1x M key M.2 PCIe NVMe slot

  USB cable

  • USB 3.1, Type-A (M) to Type-C (M), 9.5 inches
  • USB 3.1, Type-C (M) to Type-C (M), 10 inches
• Environmental conditions
  • Operating temperature: 32 to 140 degrees F
  • Storage temperature: 14 to 158 degrees F
  • Relative humidity: 5% to 90% RH (non-condensing)
• Certifications/Standards
• FCC, CE, RoHS
• Requirements
  • Desktop PC or laptop with one available USB 3.1 Type-A or Type-C port
  • M.2 M key PCIe NVMe SSD up to 2TB
  • Windows 10 (32-/64-bit) / 8.x (32-/64-bit) / 7 (32-/64-bit)
  • Windows Server 2019 / 2016 / 2012 R2 / 2012 (32-/64-bit) / 2008 R2 / 2008
  • Mac OS X 10.6 or later
• Package Contents

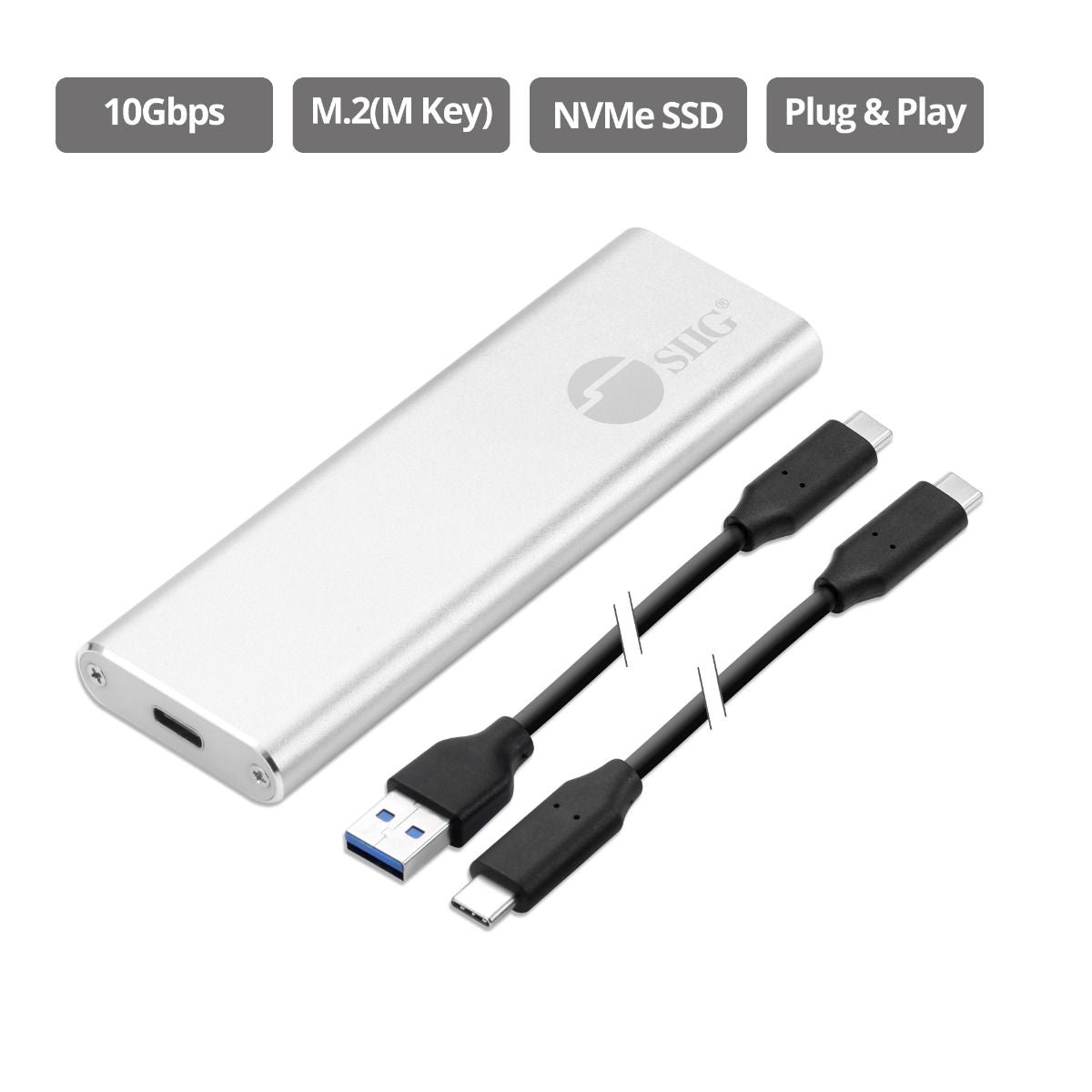

  • USB 3.1 Gen 2 Type-C to M.2 PCIe NVMe SSD Enclosure
  • USB 3.1 Type-A (M) to Type-C (M) cable
  • USB 3.1 Type-C (M) to Type-C (M) cable
  • Thermal silicon pad
  • Screw driver
  • Screw kit (screw nut)
  • Quick start guide

Warranty Information

• 2 years from SIIG
