StarTech HSB220SAT25B 2x 2.5" to 3.5" Trayless Hot Swap SATA Rack Backplane BLK

Name: StarTech HSB220SAT25B 2x 2.5" to 3.5" Trayless Hot Swap SATA Rack Backplane BLK
Brand: Startech
SKU: INGaSTA U45138 - HSB220SAT25B
Price: 68.14 USD
Availability: OutOfStock

$68.14 USD

Shipping calculated at checkout.

Out of stock

Description

2 Drive 2.5in Trayless Hot Swap SATA Mobile Rack Backplane

Easy, trayless removal and insertion of dual 2.5in SATA hard drives from single 3.5in bay

Product ID: HSB220SAT25B

Warranty Information

Warranty

2 Years

Connector(s)

Connector Type(s)

2 - SP4 (4 pin, Small Drive Power)

2 - SATA Power (15 pin)

2 - SATA (7 pin, Data)

Drive Connectors

2 - SATA (7 pin, Data)

2 - SATA Power (15 pin)

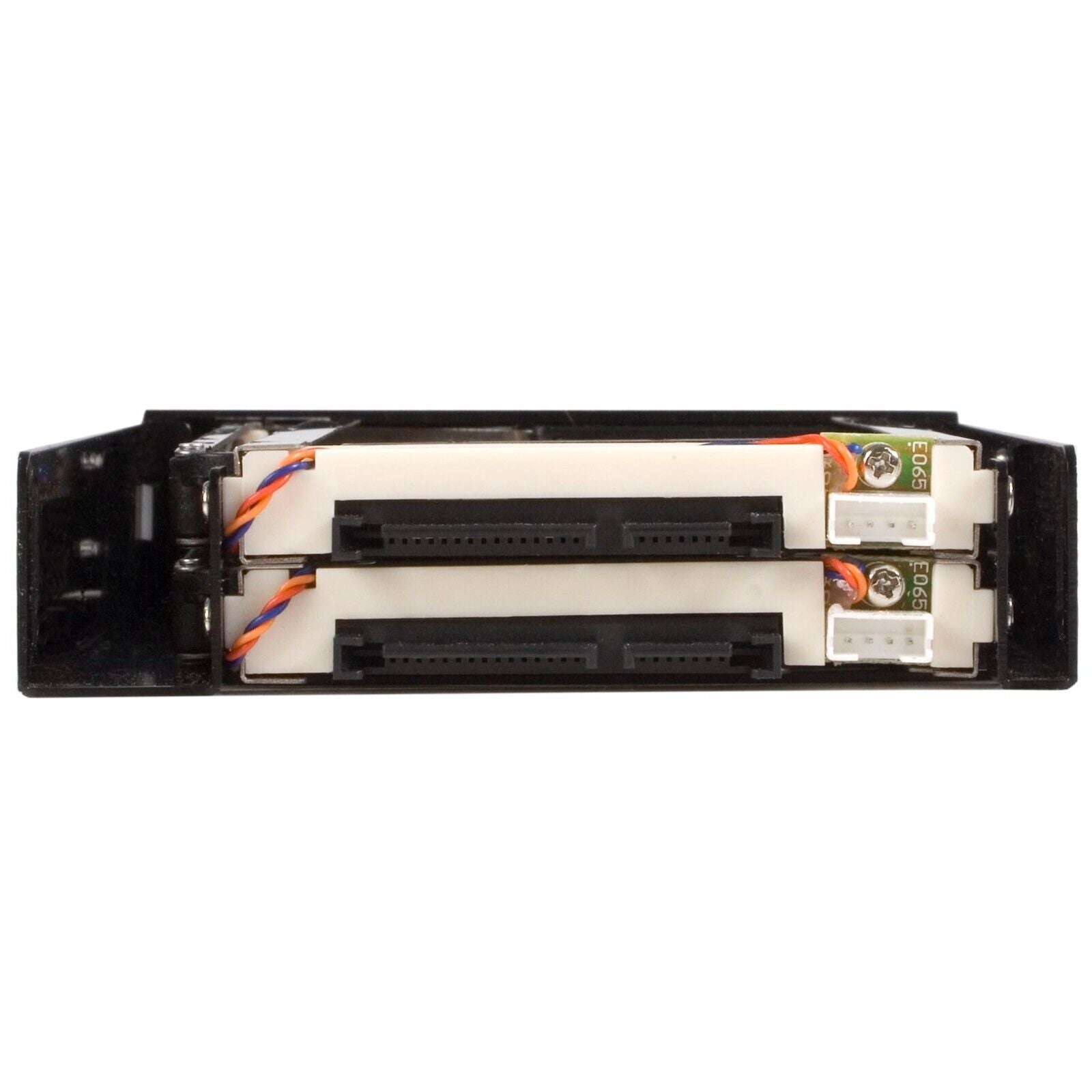

Host Connectors

2 - SATA Power (15 pin)

2 - SATA (7 pin, Data)

Hardware

Front Door Key Lock

Number of Drives

Drive Size

2.5in

Compatible Drive Types

SATA

Indicators

LED Indicators

1 - Power/Drive Activity

Packaging Information

Package Height

2.0 in [5.2 cm]

Package Length

6.7 in [17.0 cm]

Shipping (Package) Weight

1.1 lb [0.5 kg]

Package Width

5.0 in [12.8 cm]

Package Quantity

Performance

Type and Rate

SATA III (6 Gbps)

Max Drive Capacity

Tested up to 500GB per drive

Hot Swap Capability

Yes

Physical Characteristics

Weight of Product

10.1 oz [286.0 g]

Color

Black

Material

Aluminum

Max Drive Height

0.4 in [9.5 mm]

Product Length

5.3 in [13.4 cm]

Product Width

4.0 in [10.2 cm]

Product Height

0.9 in [2.4 cm]

Software

OS Compatibility

OS independent; No software or drivers required

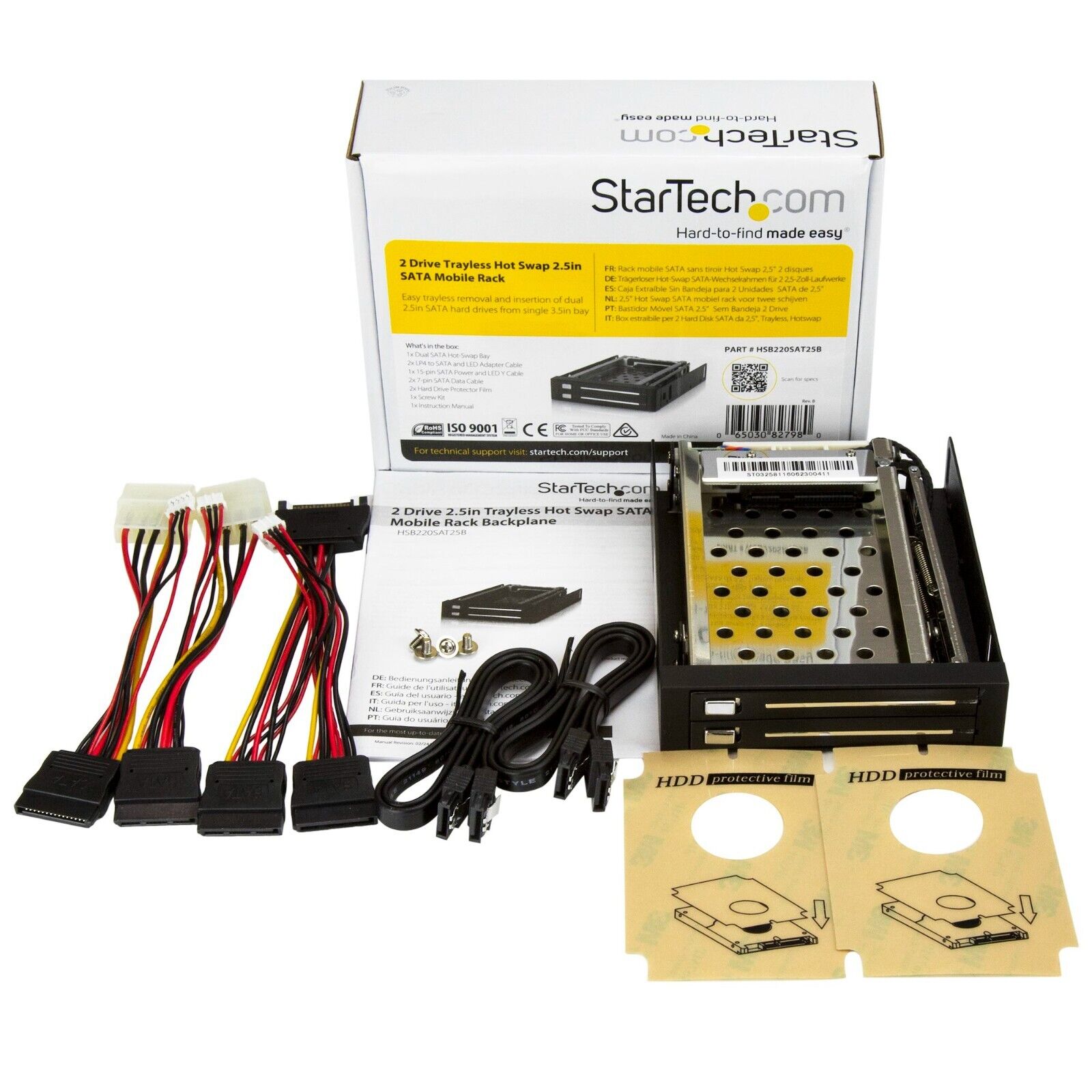

What's in the Box

Included in Package

2 - LP4 to SATA and LED adapter cable

1 - dual SATA hot-swap bay

1 - 15-pin SATA power and LED Y cable

2 - 7-pin SATA data cable

2 - hard drive protector film

1 - screw kit

1 - instruction manual

Shipping Notes:

All our StarTech products are normally shipped within 1-2 business days from any of our warehouse locations below:

Monrovia, CA 91016 (Most usual)
Fort Worth, TX 76155
Carol Stream, IL 60188
Moore, SC 29369
Hazelton, PA 18202

…MJ5
