Vantec NST-230C3-BK NexStar SX M.2 NVMe SSD to USB 3.2 Type C Black Enclosure

This Second generation 20G enclosure offers Real speed, not 10G or 5G. It is using USB 3.2 Gen 2x2 Chipset for Fast 20G Speed. The Chipset link the PCI Express Gen3 to USB 3.2 Gen2x2 to your USB C port for the fastest read and write. This enclosure requires only one screw and is made strong with Aluminum Alloy and heat-dissipating properties. The installation is simple and easy using quick mount and one screw. The Anodized Aluminum embedded Heat Sink design keeps both the enclosure and your NVMe module cool at top speed. Designed with great features like USB 3.1 Gen 2x2, USB C native, UASP, Plug & Ready, Pocket size, and all the great support you can expect from Vantec Storage.

SPECIFICATIONS

• Model: NST-230C3-BK

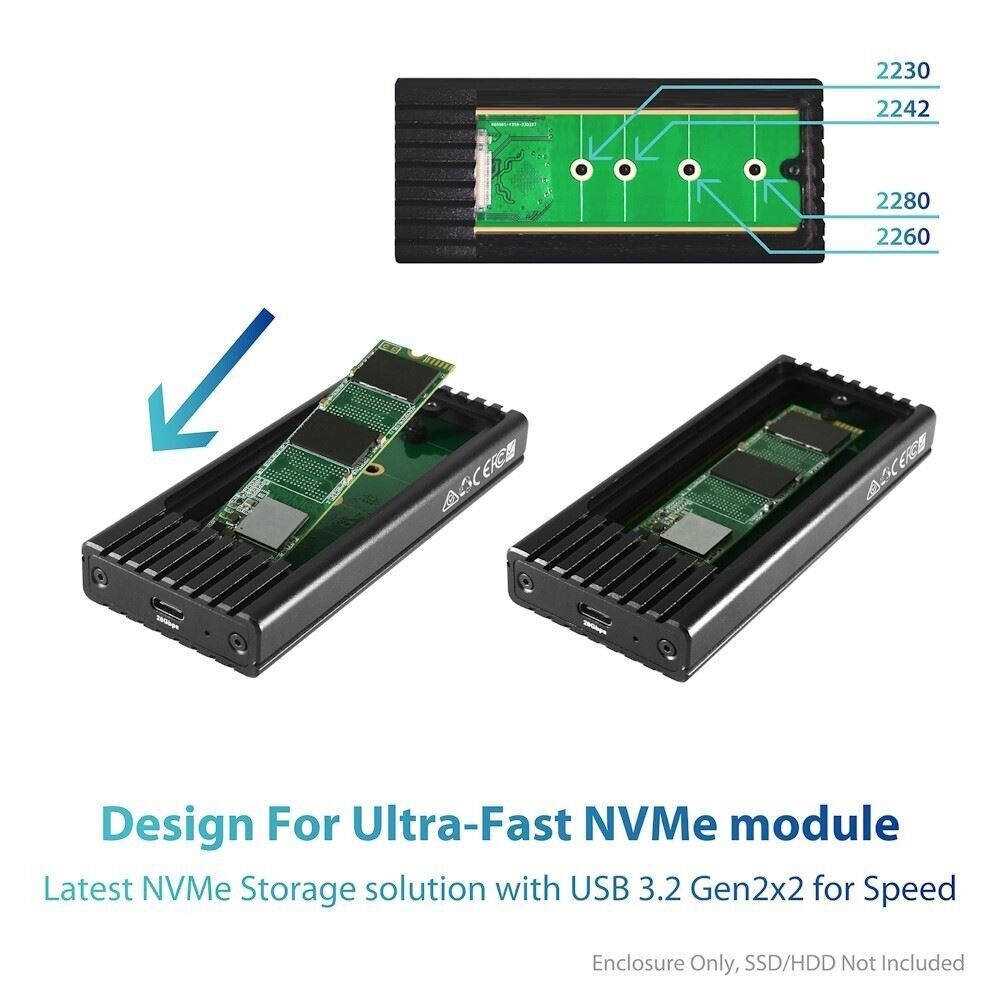

• M.2 size: Length support 2230, 2242, 2260, 2280
• M.2 Support: M.2 NVMe with “M” Key Only
• Internal Interface: 1 x M.2 (NVMe, M-Key)

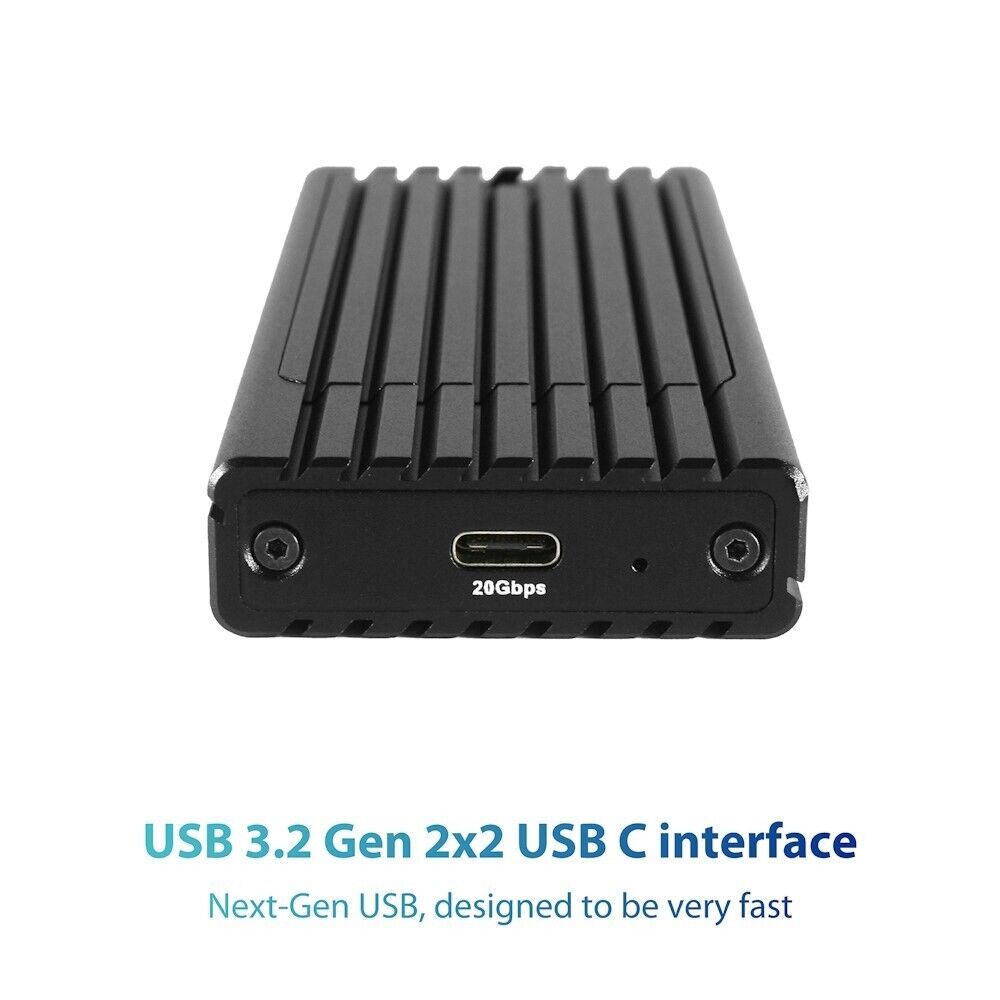

• External Interface: Standard USB 3.2 Gen 2x2 USB C
• Enclosure Material: Anodized Aluminum with Heat Sink
• Power Supply: Bus-powered, no external power supply needed
• USB cable Type: Shielded USB C to C Cable
• USB cable length: 380mm / 14.9 inches

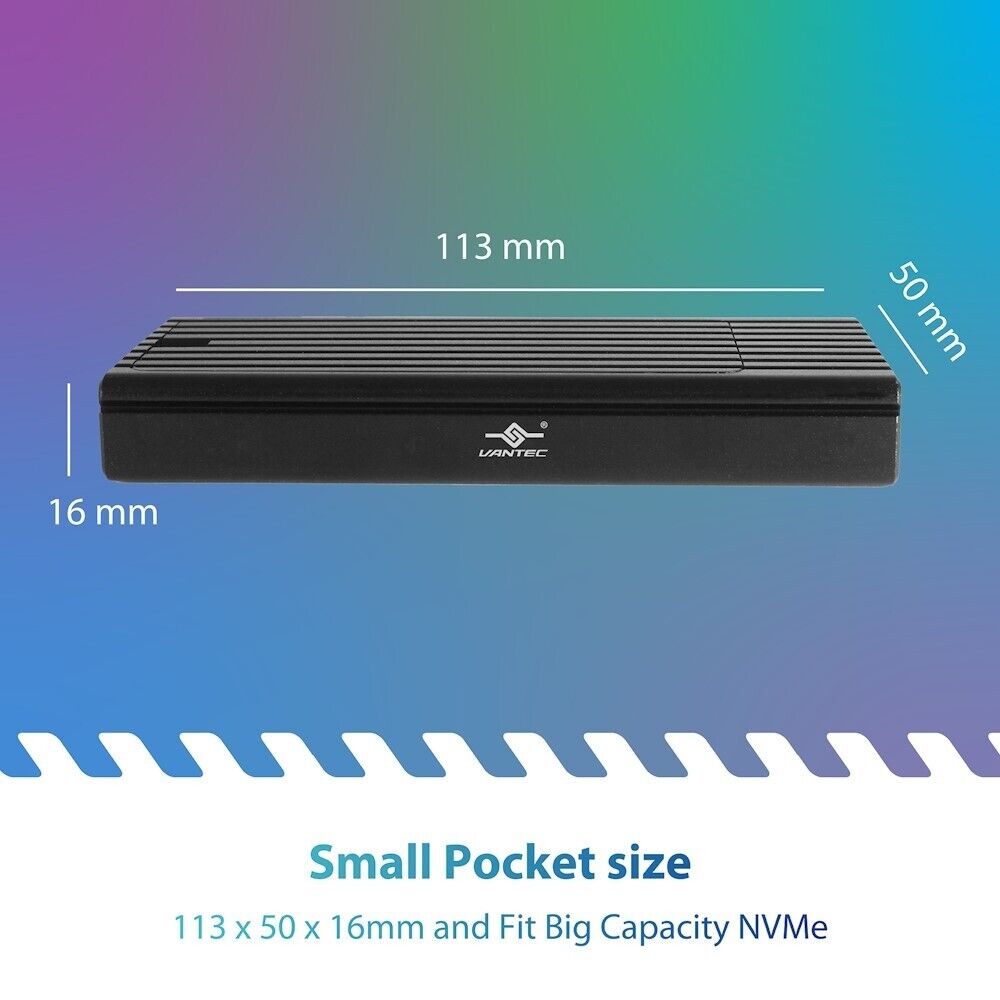

• Dimensions: 113 x 50 x 16 mm / 4.4 x 1.9 x 0.6 inches
• Item Weight: 144 grams / 5.1 oz.
• OS Support: Mac OS X 10.10 or higher, Windows 10/11, Latest Linux kernel

 Environmental:

• Operating Temperature: 0 ℃ to +45℃
• Operating Humidity: 10% to 85 % RH (no condensation)
• Storage Temperature: -10℃ to +70℃
• Storage Humidity: 5% to 90% RH (no condensation)

 System Requirements:

• USB Type C port (preferred support 20G speed)
• Latest OS support for USB C
• M.2 NVMe module with “M” Key only (PCIe 3.0 x4)

 PACKAGE CONTENTS:

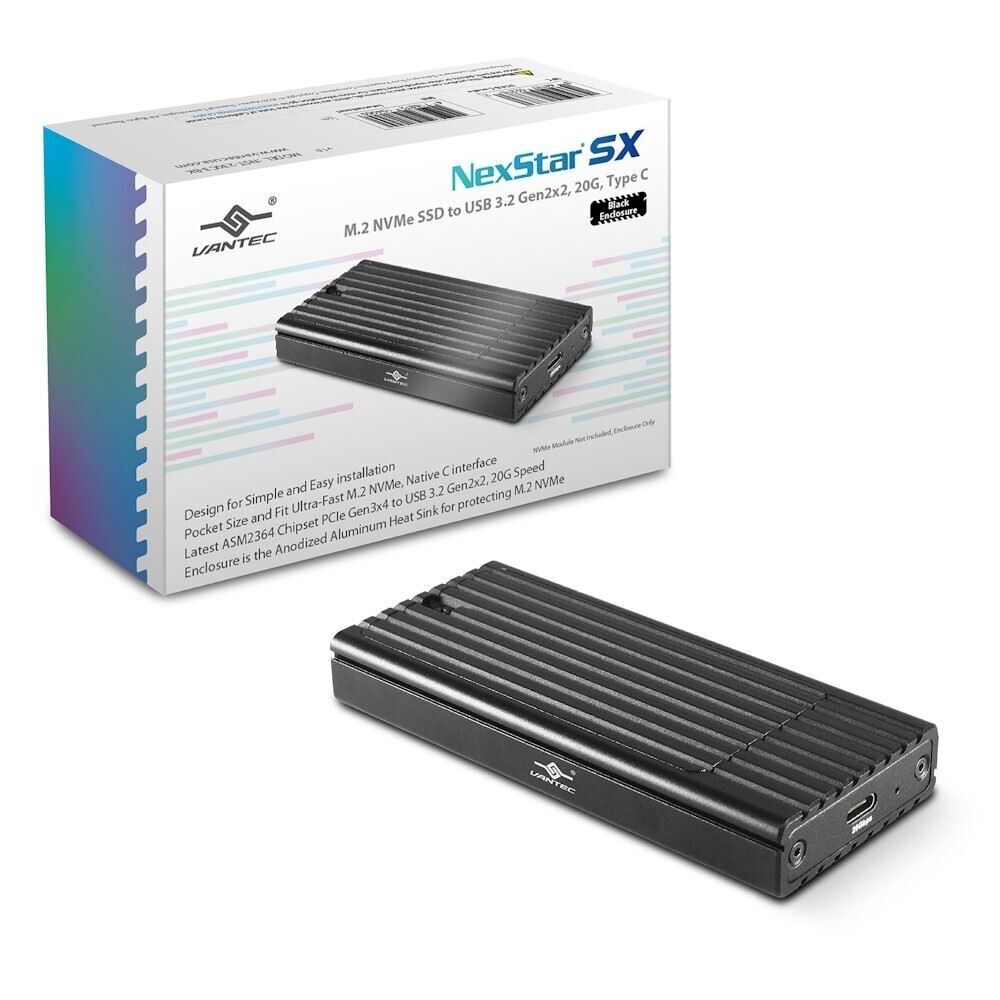

• 1 x M.2 NVMe SSD to USB 3.2 Gen2x2, 20G, Type C, Black Enclosure
• 1 x Shielded 380mm USB C to C Cable
• 1  x Thermal Pad
• 1 x Quick Guide

EAN: 4716872104000
UPC: 844767023762
