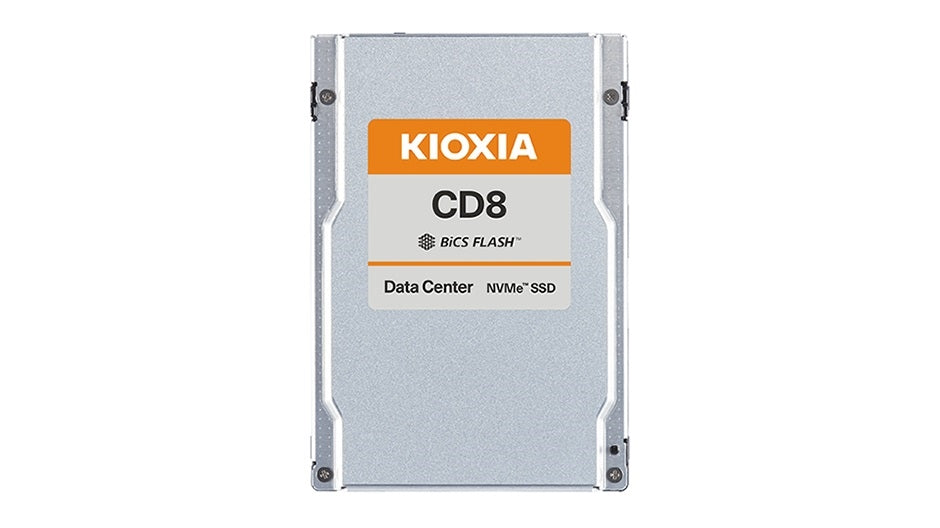

Kioxia KCD8XRUG1T92 SSD - 1.92TB 2.5 PCIe4 CD8-R SDF1E85GEB SIE 1 DWPD Bare

Marketing Information

• Data Center NVMe™ Read Intensive SSD
• KIOXIA CD8-R Series is a read intensive data center NVMe™ SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing, and virtualization. Built with a PCIe® 4.0 (16 GT/s x4) interface, the CD8-R Series SSDs deliver consistent performance up to 1,250K IOPS (random read) and 200K IOPS (random write).
• Featuring KIOXIA 112-layer BiCS FLASH™ 3D TLC flash memory, the CD8-R 2.5-inch form factor SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 15.36 TB in a 2.5-inch form factor, making them well-suited for hyperscale data center applications.

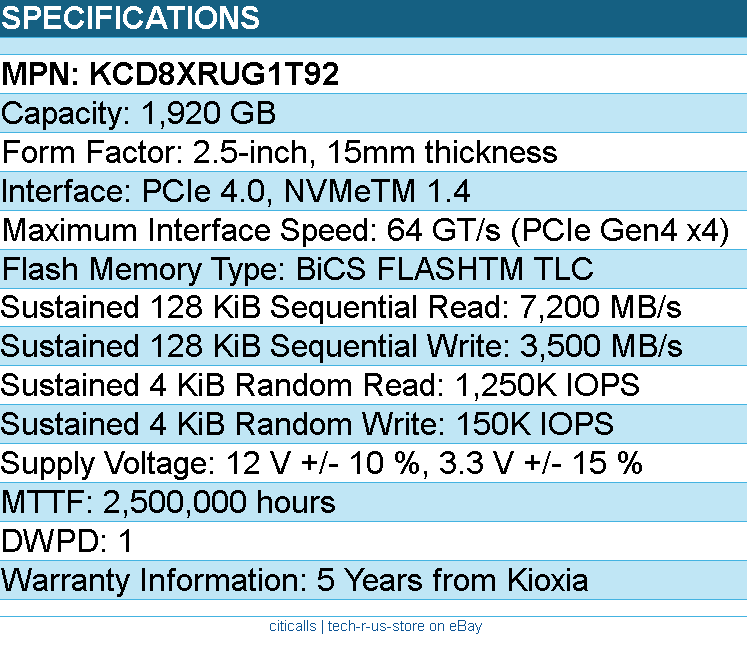

Detail Specifications

• SIE Model Number: KCD8XRUG1T92
• Capacity: 1,920 GB

Basic Specifications

• Form Factor: 2.5-inch, 15mm thickness
• lnterface: PCIe 4.0, NVMeTM 1.4
• Maximum Interface Speed: 64 GT/s (PCIe Gen4 x4)
• Flash Memory Type: BiCS FLASHTM TLC
• Performance in single port (1x4) mode (Up to)
• Sustained 128 KiB Sequential Read: 7,200 MB/s
• Sustained 128 KiB Sequential Write: 3,500 MB/s
• Sustained 4 KiB Random Read: 1,250K IOPS
• Sustained 4 KiB Random Write: 150K IOPS

Power Requirements

• Supply Voltage: 12 V +/- 10 %, 3.3 V +/- 15 %
• Power Consumption (Active): 13 W typ.
• Power Consumption (Ready): 5 W typ.

Reliability

• MTTF: 2,500,000 hours

• DWPD: 1

Environmental

• Temperature (Operating): 0 oC to 75 oC
• Temperature (Non-operating): -40 oC to 85 oC
• Humidity (Operating): 5 % to 95 % R.H.
• Vibration (Operating): 21.27 m/s2 ( 2.17 Grms ) ( 5 to 800 Hz )
• Shock (Operating): 9.8 km/s2 ( 1,000 G ) ( 0.5 ms )

Warranty Information

• 5 Years from Kioxia

Shipping Notes:

All our products are normally shipped within 1-2 business days from any of our warehouse locations below:

• Monrovia, CA 91016 (Most usual)
• Fremont, CA 94538
• Richardson, TX 75018
• Duluth, GA 30096
• Itasca, IL 60143
• Edison, NJ 08837

International orders may take an additional 2 to 3 days to processing documentation.

California Prop 65 Warning. This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
