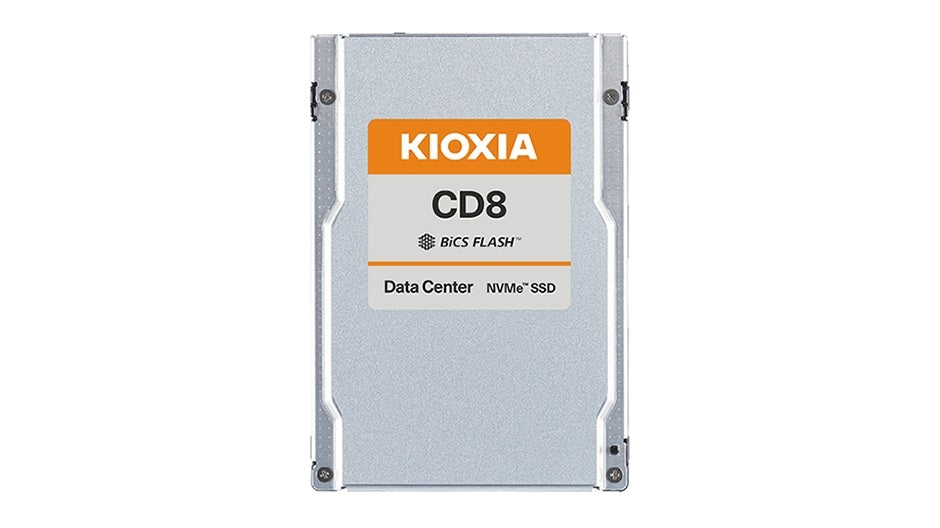

Kioxia KCD8XRUG7T68 SSD - 7.68TB 2.5 PCIe4 CD8-R SDF1E83GEB SIE 1 DWPD Bare

Marketing Information

• Data Center NVMe™ Read-intensive SSD
• The CD8-R Series is a read-intensive data center NVMe™ SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing, and virtualization. Built with a PCIe® 4.0 (16 GT/s x4) interface, CD8-R Series SSDs deliver consistent performance up to 1,250K IOPS (random read) and 200K IOPS (random write).
• Featuring KIOXIA 112-layer BiCS FLASH™ 3D TLC flash memory, CD8-R 2.5-inch form factor SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 15.36 TB in a 2.5-inch form factor, making them well-suited for hyperscale data center applications.

Key Features

• PCIe® 4.0, NVMe™ 1.4 specification compliant
• Open Compute Project Datacenter NVMe™ SSD specification v2.0 support (not all requirements)
• Form factor: 2.5-inch, 15mm height
• Proprietary KIOXIA architecture: controller, firmware and 112-layer BiCS FLASH™ 3D TLC
• Single-port design, optimized for data center class workloads
• Consistent performance and reliability for demanding 24x7 environments
• Designed for high-density storage deployments
• Power loss protection (PLP) and end-to-end data correction
• Security options: SIE, SED
• Key Applications
• Hyperscale
• IoT and big data analytics
• Online transaction processing (OLTP)
• (transactional and relational databases)
• Virtualized environments
• Streaming media and content delivery networks

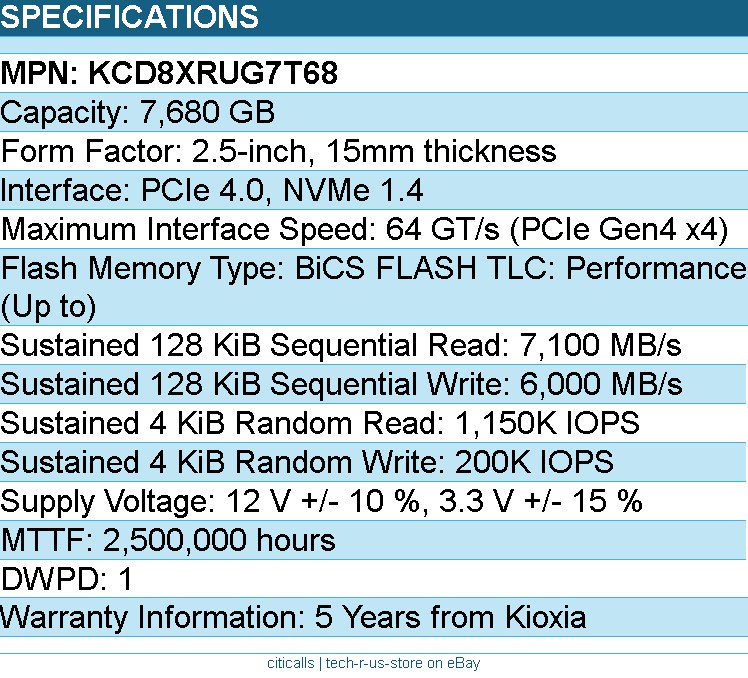

Detail Specifications

• MPN: KCD8XRUG7T68
• Capacity: 7,680 GB

Basic Specifications

• Form Factor: 2.5-inch, 15mm thickness
• lnterface: PCIe 4.0, NVMe 1.4
• Maximum Interface Speed: 64 GT/s (PCIe Gen4 x4)
• Flash Memory Type: BiCS FLASH TLC: Performance (Up to)
• Sustained 128 KiB Sequential Read: 7,100 MB/s
• Sustained 128 KiB Sequential Write: 6,000 MB/s
• Sustained 4 KiB Random Read: 1,150K IOPS
• Sustained 4 KiB Random Write: 200K IOPS

Power Requirements

• Supply Voltage: 12 V +/- 10 %, 3.3 V +/- 15 %
• Power Consumption (Active): 19 W typ.
• Power Consumption (Ready): 5 W typ.

Reliability

• MTTF: 2,500,000 hours
• DWPD: 1

Environmental

• Temperature (Operating): 0 oC to 75 oC
• Temperature(Non-operating): -40 oC to 85 oC
• Humidity (Operating): 5 % to 95 % R.H.
• Vibration (Operating): 21.27 m/s2 2.17 Grms ( 5 to 800 Hz )
• Shock (Operating): 9.8 km/s2 1,000 G ( 0.5 ms )

Warranty Information

• 5 Years from Kioxia
