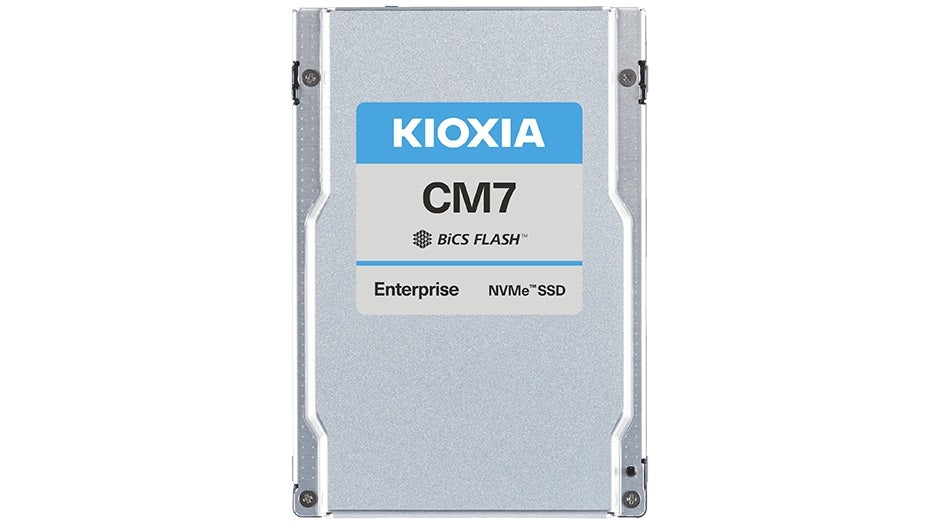

Kioxia KCMYXRUG3T84 SSD - 3.84TB 2.5 PCIe5 CM7-R SDF7084GEB SIE 1 DWPD Bare

Marketing Information

• Enterprise NVMe™ Read Intensive SSD
• KIOXIA CM7-R Series is a read intensive SSD that is optimized to support a broad range of enterprise applications and associated workloads, including business intelligence, online transaction processing, and software defined storage and virtualization. Built on PCIe® 5.0 and NVMe™ 2.0 technology, the CM7 Series SSDs deliver excellent performance up to 2,700K IOPS (random read) and 310K IOPS (random write).
• Featuring KIOXIA 112-layer BiCS FLASH™ 3D TLC flash memory, the CM7-R Series of enterprise NVMe™ SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and support storage capacities up to 30.72 TB, making them ideally suited for read intensive enterprise applications.

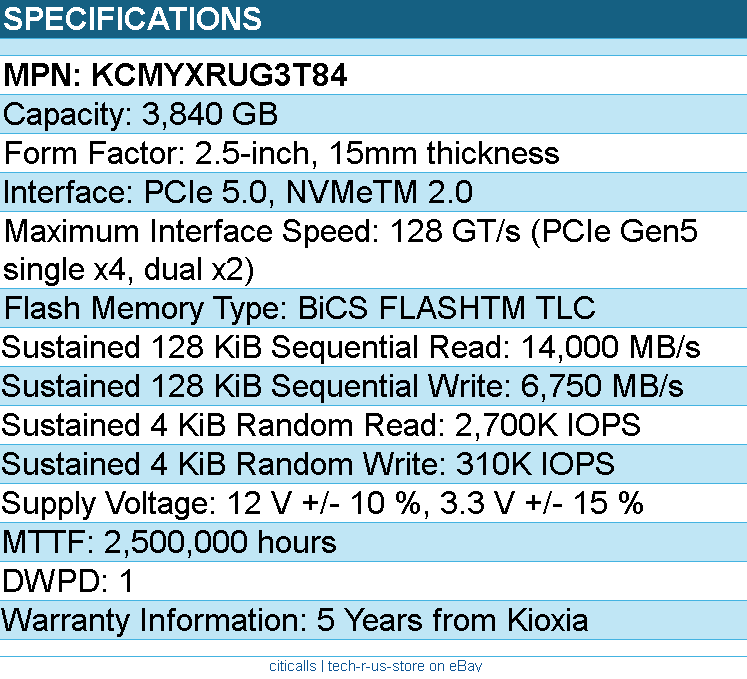

Detail Specifications

• SIE Model Number: KCMYXRUG3T84
• Capacity: 3,840 GB

Basic Specifications

• Form Factor: 2.5-inch, 15mm thickness
• lnterface: PCIe 5.0, NVMeTM 2.0
• Maximum Interface Speed: 128 GT/s (PCIe Gen5 single x4, dual x2)
• Flash Memory Type: BiCS FLASHTM TLC
• Performance in single port (1x4) mode (Up to)
• Sustained 128 KiB Sequential Read: 14,000 MB/s
• Sustained 128 KiB Sequential Write: 6,750 MB/s
• Sustained 4 KiB Random Read: 2,700K IOPS
• Sustained 4 KiB Random Write: 310K IOPS

Power Requirements

• Supply Voltage: 12 V +/- 10 %, 3.3 V +/- 15 %
• Power Consumption (Active): 25 W typ.
• Power Consumption (Ready): 5 W typ.

Reliability

• MTTF: 2,500,000 hours
• DWPD: 1

Environmental

• Temperature (Operating): 0 oC to 76 oC
• Temperature (Non-operating): -40 oC to 85 oC
• Humidity (Operating): 5 % to 95 % R.H.
• Vibration (Operating): 21.27 m/s2 ( 2.17 Grms ) ( 5 to 800 Hz )
• Shock (Operating): 9.8 km/s2 ( 1,000 G ) ( 0.5 ms )

Warranty Information

• 5 Years from Kioxia
