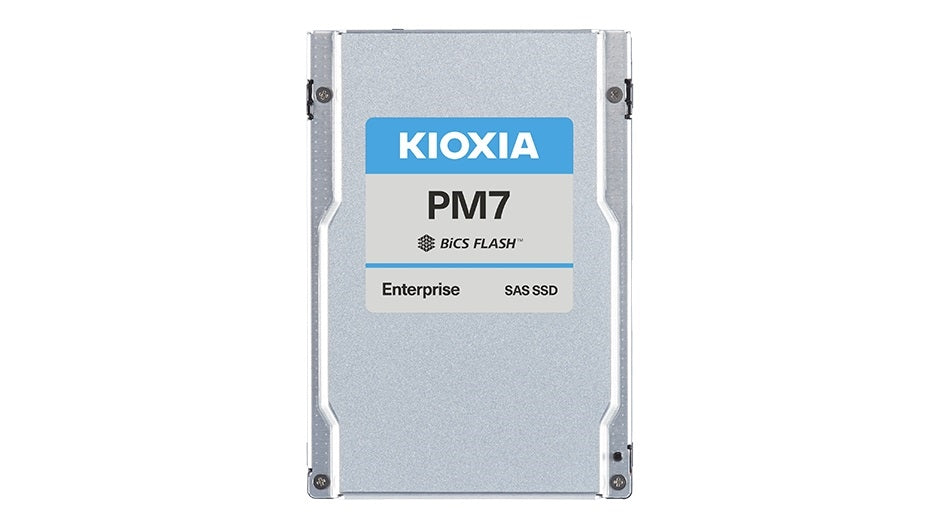

Kioxia KPM7XRUG3T84 SSD - 3.84TB 2.5 SAS PM7-R SDFU084GFB SIE 1 DWPD Bare

Marketing Information

• Enterprise SAS SSD
• SAS SSD 2.5-inch
• PM7-R Series 24G SAS Enterprise SSD is optimized for read intensive applications, including web services, data warehousing, streaming media and video on demand. The series provides high levels of performance, reliability and endurance, and is designed to minimize total cost of ownership.
• Featuring KIOXIA 112-layer BiCS FLASH™ 3D flash memory, this 7th generation enterprise SAS SSD PM7-R Series offers 1 DWPD (Drive Writes Per Day) with capacities up to 30.72 TB.

Key Features

• 24G SAS interface with single/dual-port support
• Capacities from 1.92TB to 30.72 TB
• T10 Multi-Stream Write support
• Up to 720K random read IOPS (4 KiB) in dual-port mode
• 2.5-inch form factor, 15 mm Z-height
• 1 DWPD with 100 % Random Write Workload
• Power Loss Protection and End-to-End Data Protection, including T10 DIF
• Pin-3 Power Disable Support
• Sanitize Instant Erase (SIE) option
• Self-Encrypting (SED) option
• Self-Encrypting (SED), FIPS 140-2 option
• 5-year limited warranty

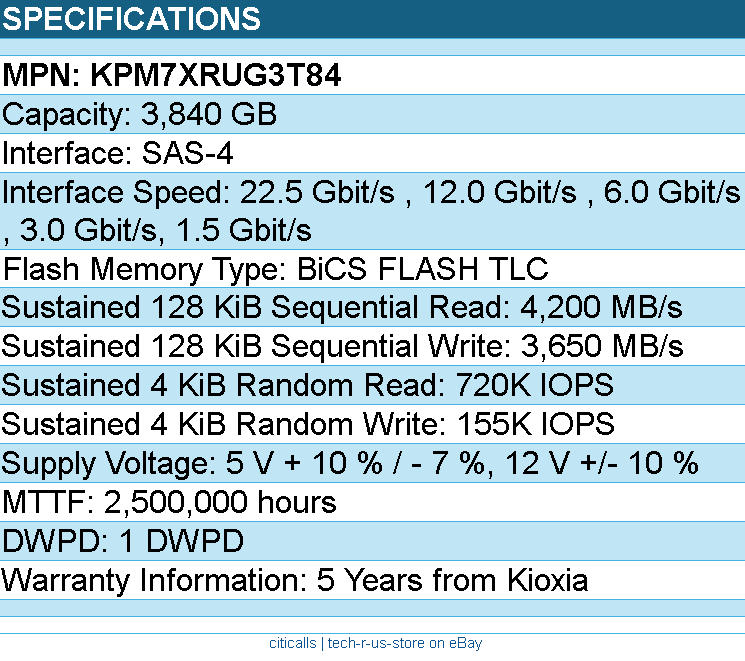

Detail Specifications

• Capacity: 3,840 GB

Basic Specifications

• lnterface: SAS-4
• lnterface Speed: 22.5 Gbit/s , 12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s, 1.5 Gbit/s
• Flash Memory Type: BiCS FLASH TLC

Performance (in dual-port mode)

• Sustained 128 KiB Sequential Read: 4,200 MB/s
• Sustained 128 KiB Sequential Write: 3,650 MB/s
• Sustained 4 KiB Random Read: 720K IOPS
• Sustained 4 KiB Random Write: 155K IOPS

Power Requirements

• Supply Voltage: 5 V + 10 % / - 7 %, 12 V +/- 10 %
• Power Consumption (Ready): 5 W typ.

Reliability

• MTTF: 2,500,000 hours
• DWPD: 1 DWPD

Environmental

• Temperature (Operating): 0 oC to 70 oC
• Humidity (Operating): 5 % R.H. to 95 % R.H.
• Vibration (Operating): 21.27 m/s2 2.17 G ( Peak, 5 to 800 Hz )
• Shock (Operating): 9.8 km/s2 1,000 G ( Peak, 0.5 ms )

Warranty Information

• 5 Years from Kioxia
