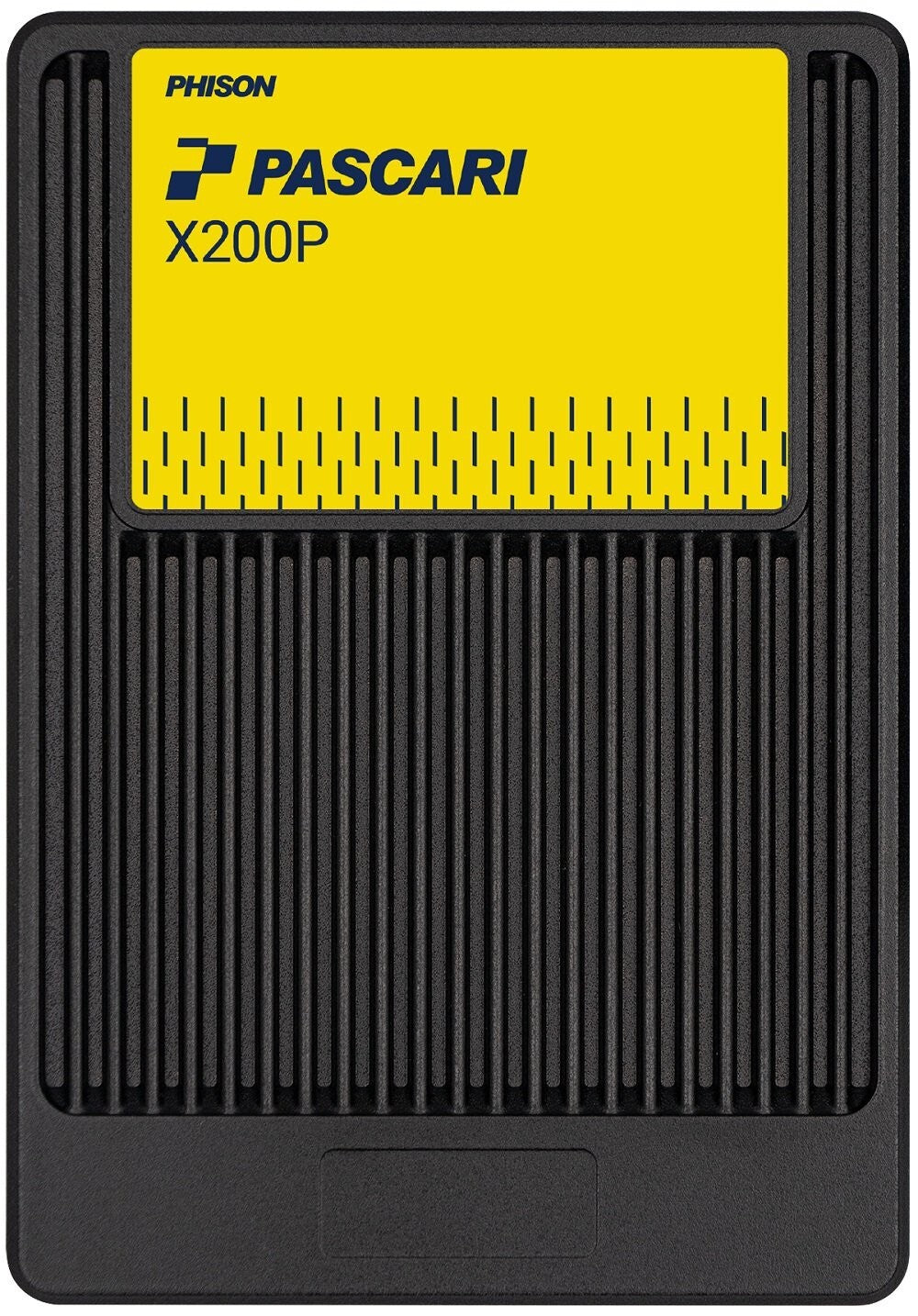

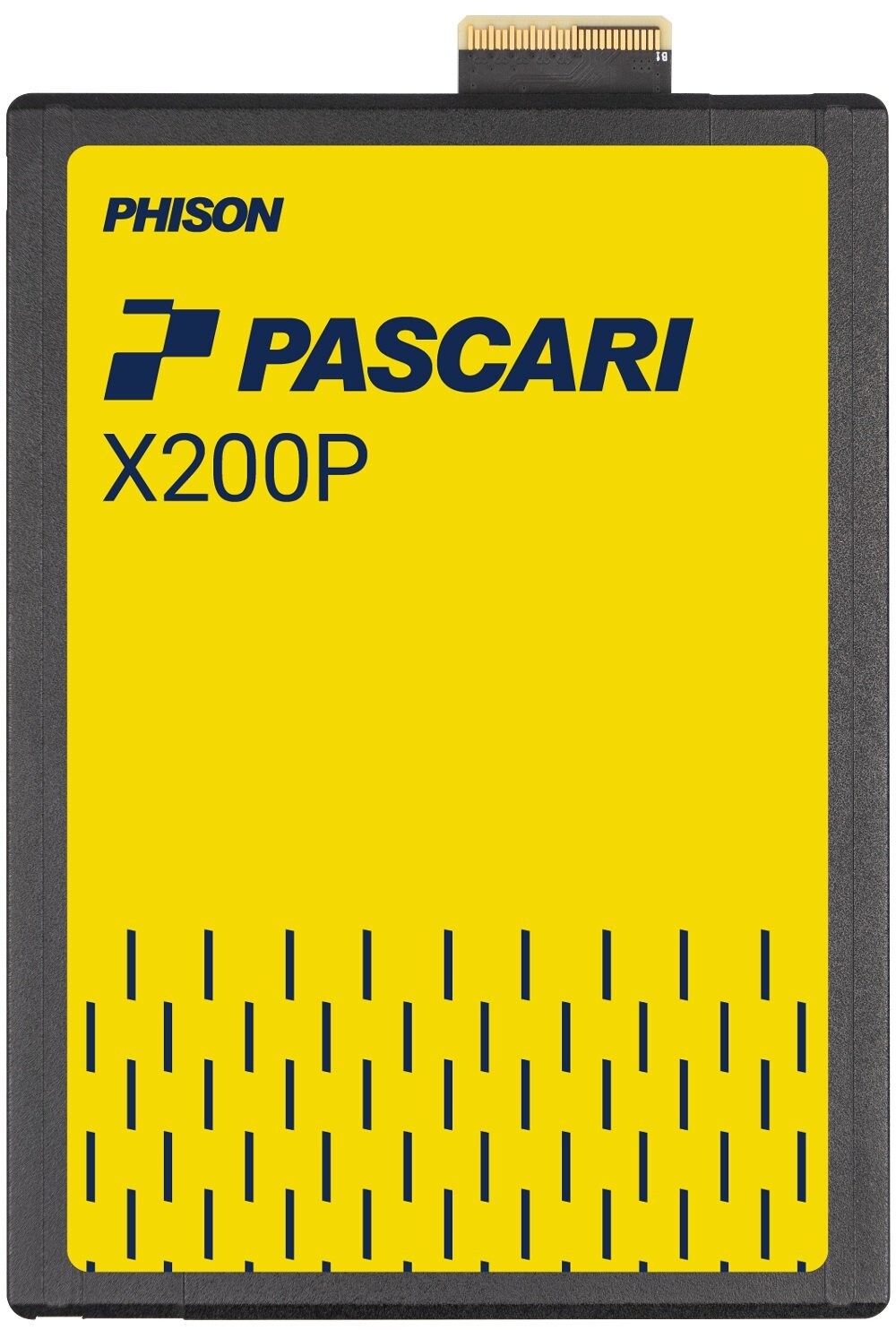

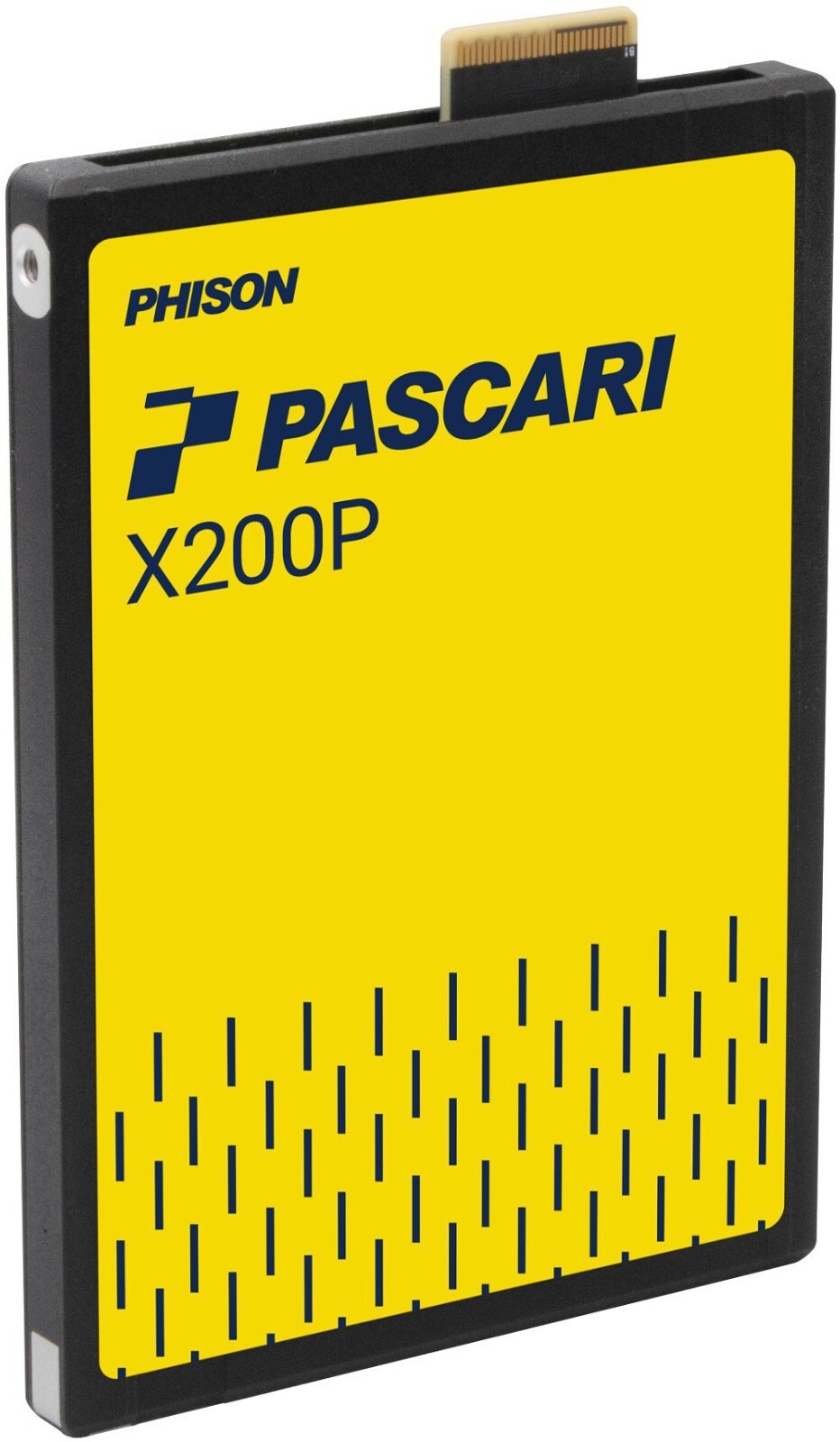

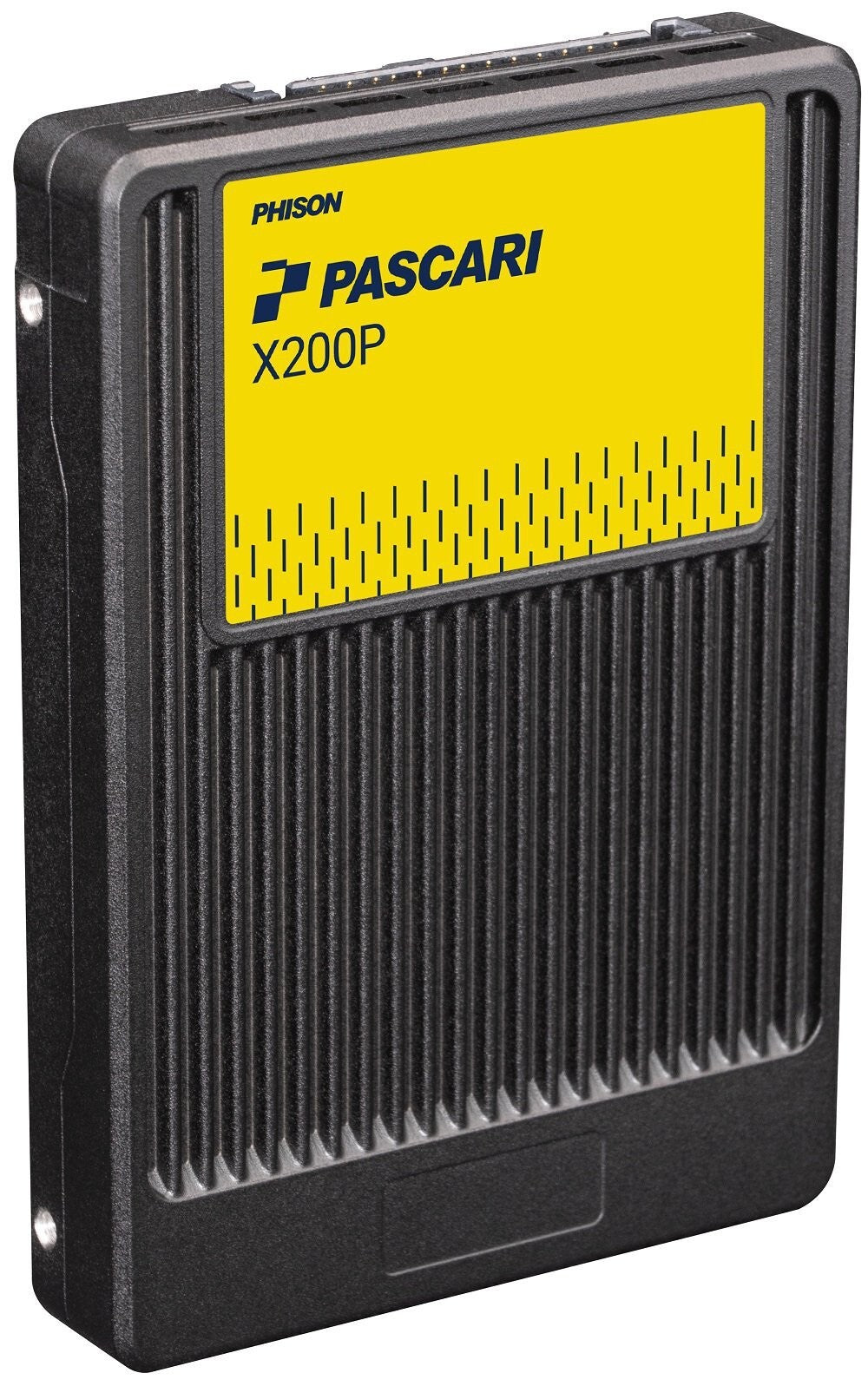

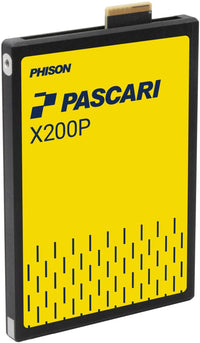

PHISON XP208H031T92P222T0410 Pascari 1920 GB U.2 15mm Single Port PCIe Gen5x4

MPN: XP208H031T92P222T0410

Main Features

• Capacities: 1920 GB
• Form Factor: U.2 15mm
• Security: Opal
• PCIe Interface
• PCIe Gen5x4
• Single Port x4 lanes
• PCIe AER (Advanced Error Reporting)
• Performance
• Maximum Sequential 128KB Read/Write (QD=32, Workers=1)(MB/s): 14,000/4200
• Maximum 4K Sustained Random Read/Write (QD=64, Workers=8)(IOPS): 2,100,000/160,000
• Latency 4K Sustained Random Read/Write (µs): 60/10(QD=1, Workers=1); 85/250(QD=4, Workers=8); 260/4000(QD=64, Workers=8)
• IOPS Consistency 4KB Sustained Random Read/Write: 95%/95%
• 4KB Sustained Random Read/Write Quality of Service (QoS=99%)(4KB): 80/12(QD=1, Workers=1); 140/250 (QD=4, Workers=8); 900/4000(QD=64, Workers=8)
• Power Consumption
• Active Power: 25 W
• Inrush Current: 2.5A
• Idle Power: <9W
• DWPD: 1DWPD
• TBW: 3504 TB
• LBAF: 512 / 512+ 8 / 4K / 4K + 8 / 4K + 64 Bytes
• MTBF: 2.5 million hours
• UBER(Uncorrectable Bit Error Rates): 3D NAND < 1 sector per 10^18 bits read
• Advanced Flash Management
• ECC
• Static and Dynamic Wear Leveling
• Bad Block Management
• Deallocate (TRIM) Command
• SMART
• Over-Provision
• Firmware Upgrade
• Temperature Range
• Operation: 0C ~ 70C with specified airflow
• Storage: -40C ~ 85C
• RoHS compliant
• Enterprise Features Support List
• Namespace
• Single Port
• Reservation
• Metadata Protection Thermal throttling
• Power Loss Protection
• Hardware AES-XTS 256-bit Encryption
• Support SMBus
• Support NVMe-MI (Management Interface)
• Data Retention: 3 months
• Physical Dimension: U.2 15mm 100(L)x70(W)x15(H) mm
• Compliance
• PCIe Express Base 5.0
• NVMe Express 2.0
• NVMe Express Management Interface Rev 1.2
• PCIe Express SFF-8639 Module Specification Revision 4.0, Version1.0
• Flash Configuration: 256GB x 8
• Flash Type: 32CE, 512Gb, QDP
• Weight (g): <250
• TBW (Terabytes Written) and DWPD (Drive Write Per Day)
• Flash Structure: 256GB x 8
• Flash Type: 3D eTLC
• TBW: 3504
• DWPD: 1
• Supply Voltage
• 12v: +/- 10%
• 12v noise level: 240mVp-p, 0-20MHz
• 12v min off time: 500ms
• 3.3v aux: +/- 15%
• Inrush current: 12v 2.5A
