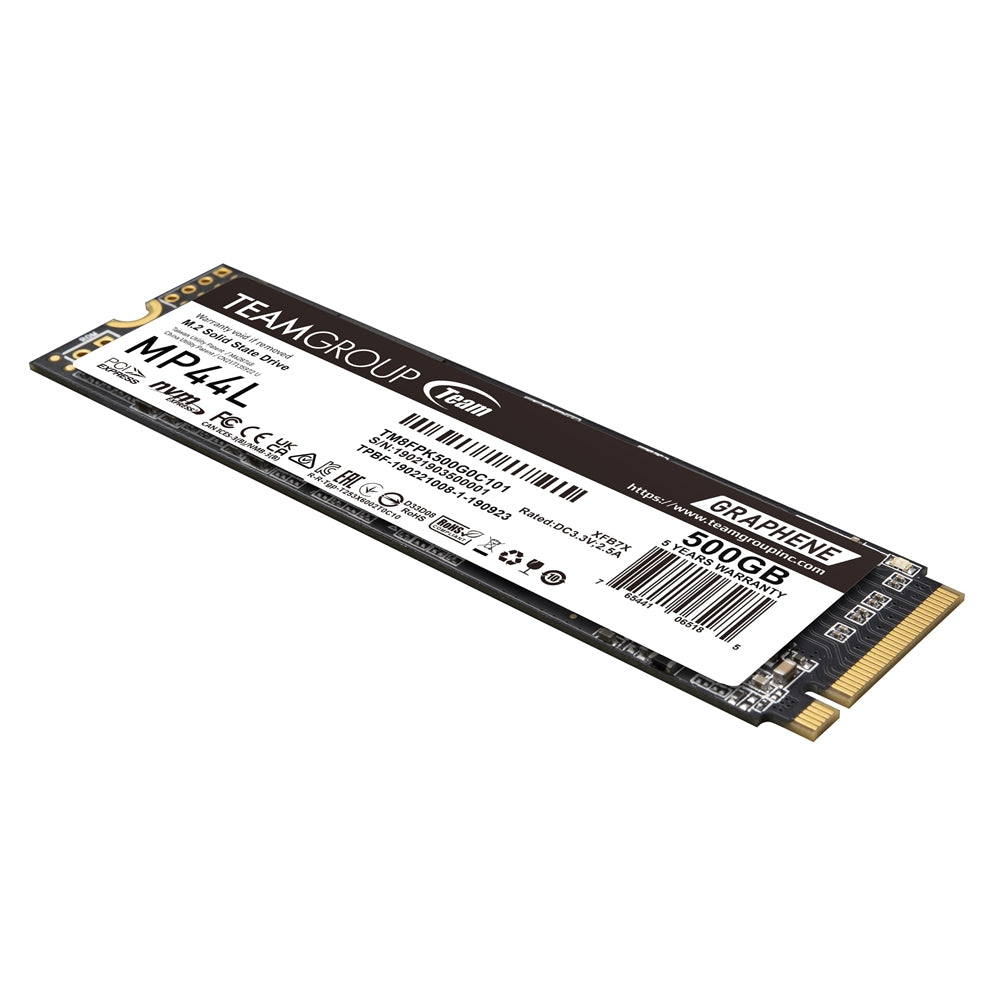

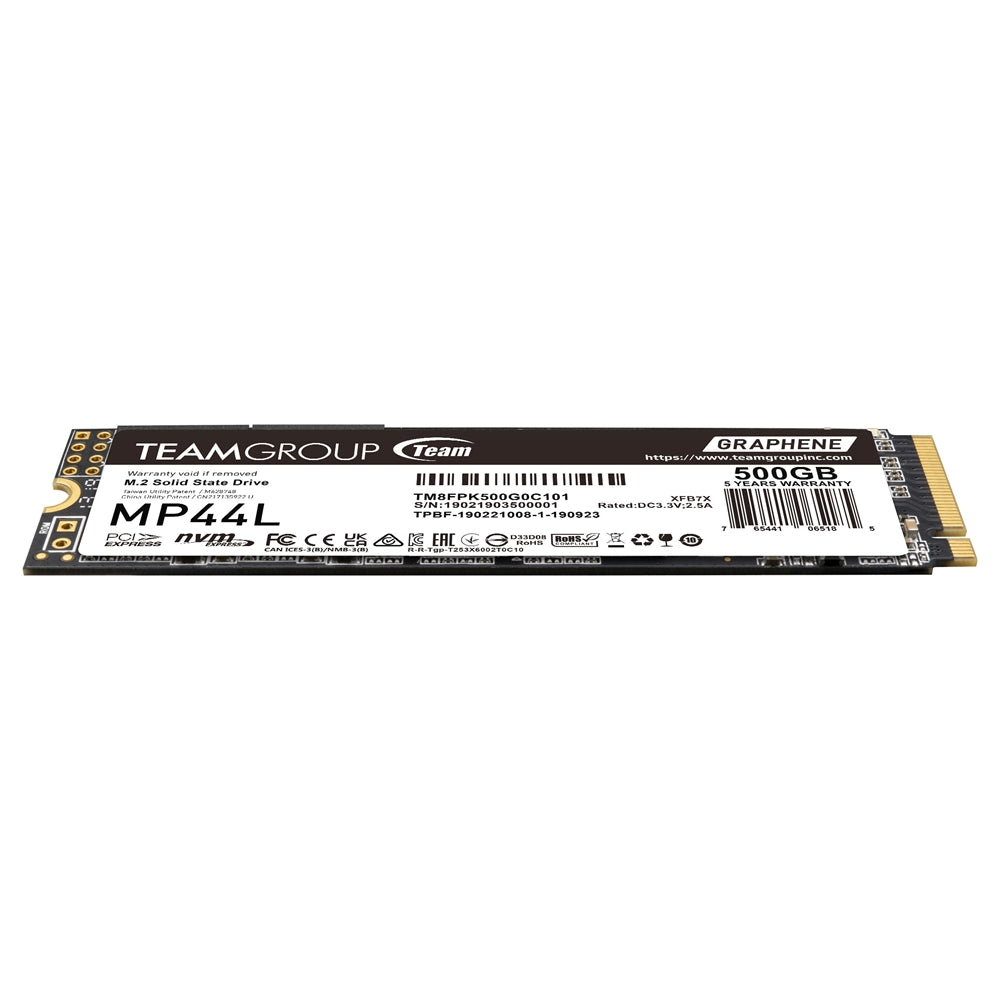

TEAMGROUP TM8FPK500G0C101 SSD - 500GB MP44L M.2 2280 NVMe 1.4 PCIE GEN 4X4 RTL

Marketing Information

• MP44L M.2 PCIe 4.0 SSD

Feature

• Heat dissipating graphene SSD label.
• Supporting SLC Cache enhancing work efficiency drastically.
• Diversified optimization technology for stability, durability, and enhanced reliability.
• Supporting the latest NVMe standards.
• S.M.A.R.T. monitoring software.
• Taiwan Utility Patent (number: M628748)
• China Utility Patent (number: CN 217135922 U)

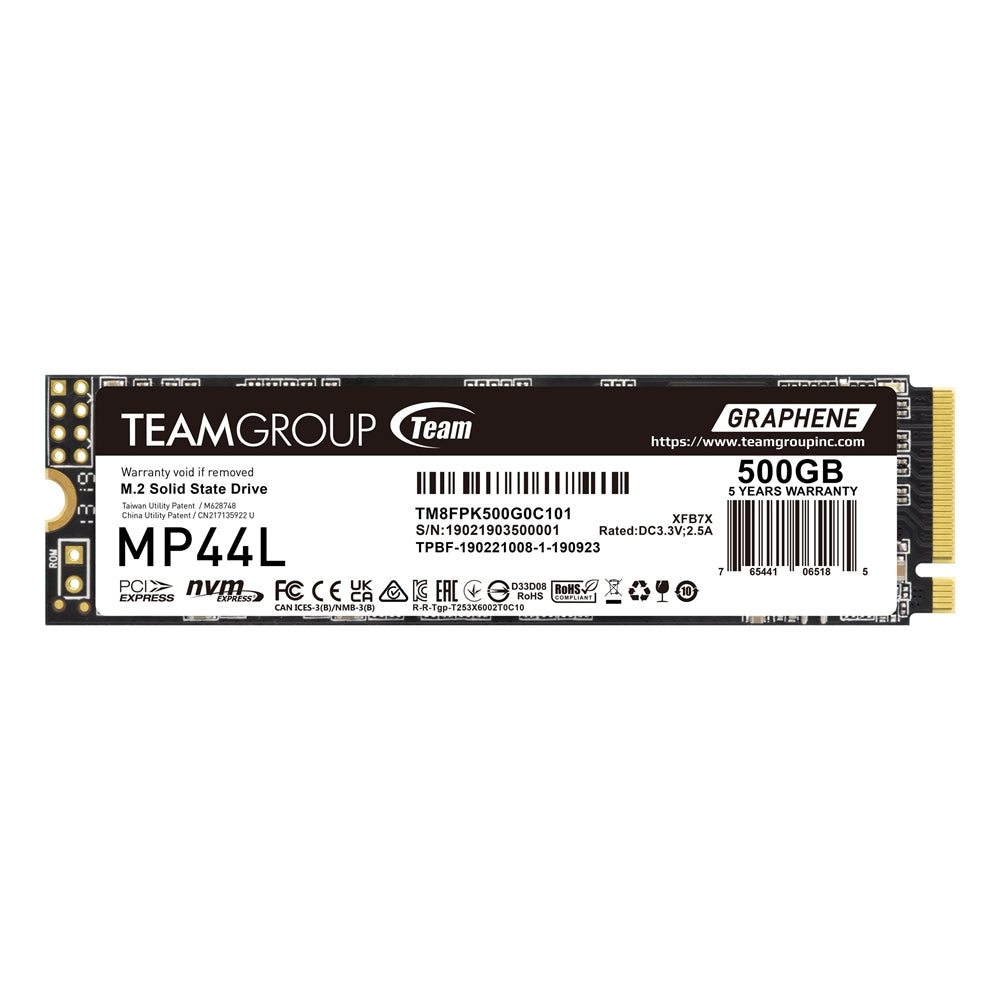

Heat dissipating graphene SSD label

MP44L M.2 PCIe SSD is the first product to introduce conductive graphene coating on aluminum foil to the SSD label. Less than 1mm thick, the new label design eradicates mechanical interference when assembling. Moreover, together with the onboard M.2 heat sink, the heat dissipating performance is doubled!

Supporting SLC Cache enhancing work efficiency drastically

MP44L M.2 PCIe SSD adopts the PCIe Gen4x4 interface and supports SLC Cache. It delivers read/write speeds of up to 5,000/4,500MB/s . Compared with the PCIe Gen3 interface, the performance is more than doubled,and drastically enhances work efficiency.

Diversified optimization technology for stability, durability, and better reliability

It supports Windows TRIM optimization option and Low Density Parity Check Code (LDPC) , reducing wearing on SSD during high-speed read/write duties. It also features precise error correction capability, enabling MP44L M.2 PCIe SSD to operate at high speed with stability, durability, and reliability.

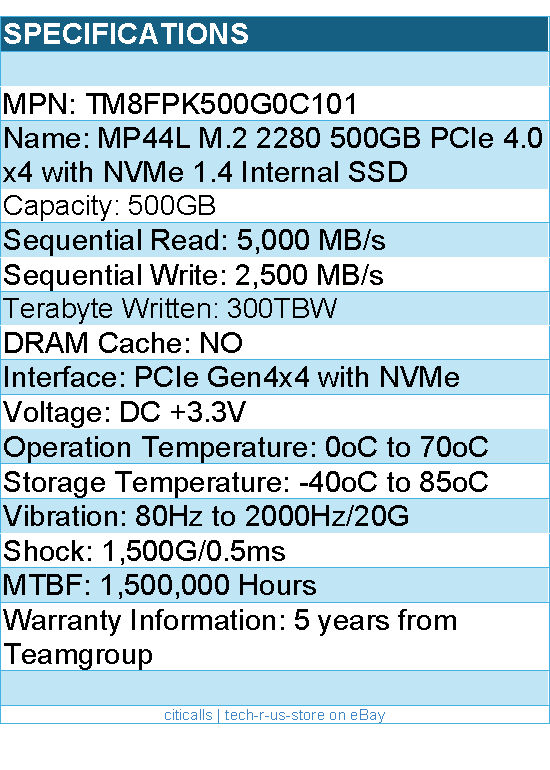

Detail Specifications

• MPN: TM8FPK500G0C101
• Name: MP44L M.2 2280 500GB PCIe 4.0 x4 with NVMe 1.4 Internal Solid State Drive
• Model: MP44L M.2 PCIe 4.0 SSD
• Capacity: 500GB
• Sequential Read: 5,000 MB/s
• Sequential Write: 2,500 MB/s
• Terabyte Written: 300TBW
• DRAM Cache: NO
• Interface: PCIe Gen4x4 with NVMe
• Voltage: DC +3.3V
• Operation Temperature: 0oC to 70oC
• Storage Temperature: -40oC to 85oC
• IOPS: 500GB Read/Write : up to 440K / 545K IOPS Max
• Humidity: RH 90% under 40oC (operational)
• Vibration: 80Hz to 2000Hz/20G
• Shock: 1,500G/0.5ms
• MTBF: 1,500,000 Hours
• Operating System
• Compatible with Intel and AMD platforms and has one of the following operating systems :
• Windows 11 / 10 / 8 / 7 / Vista
• Linux 2.6.33 or later
