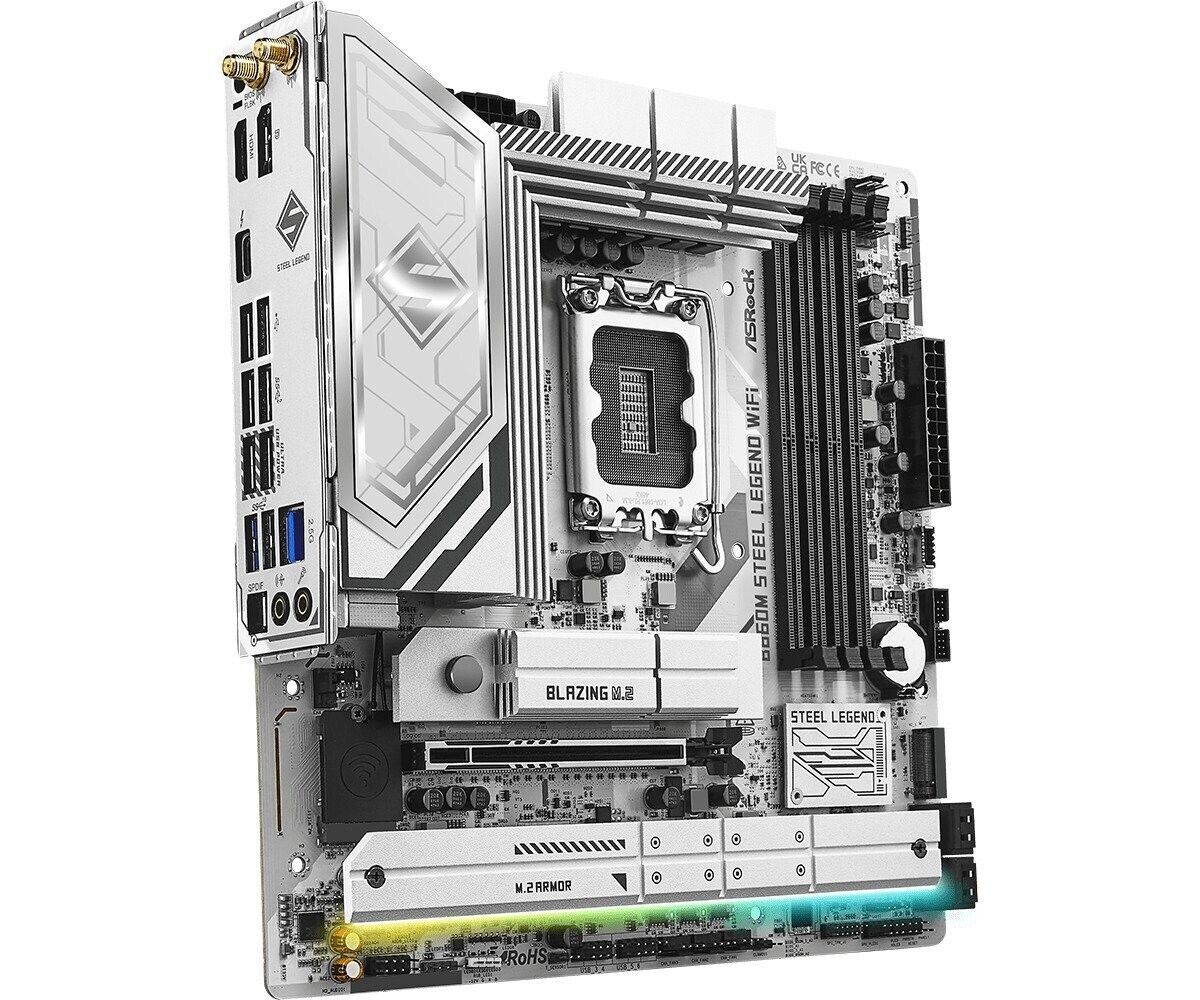

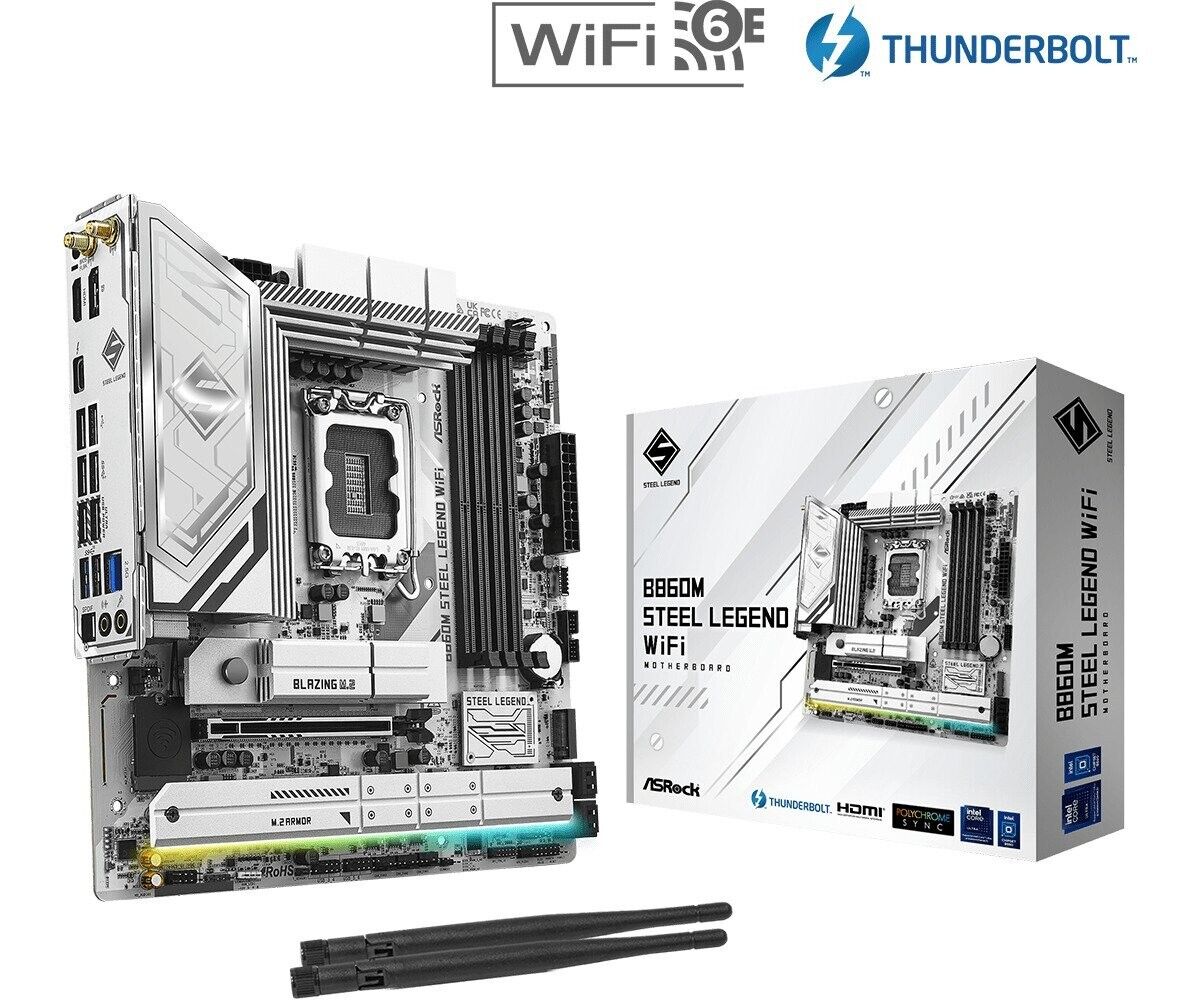

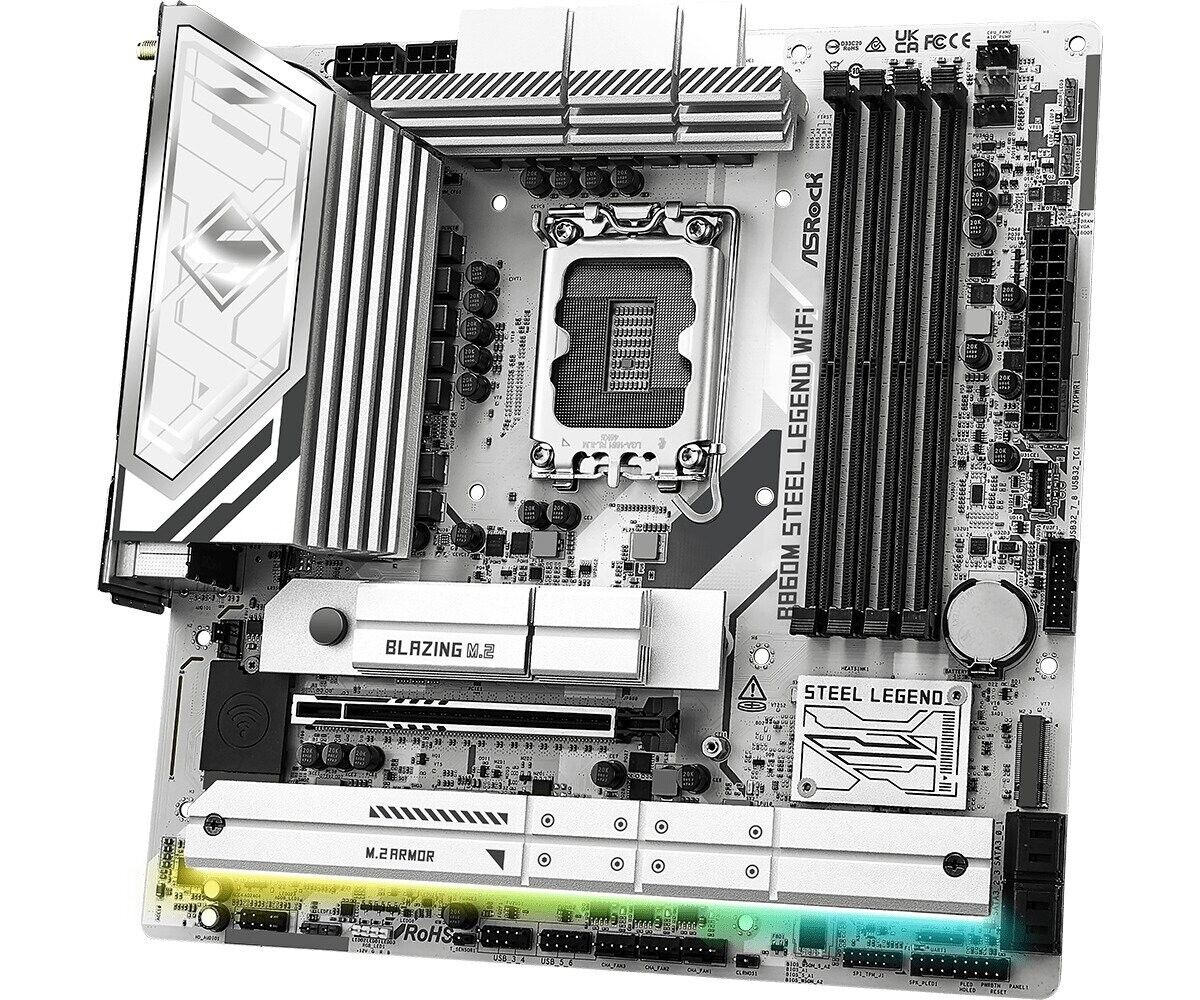

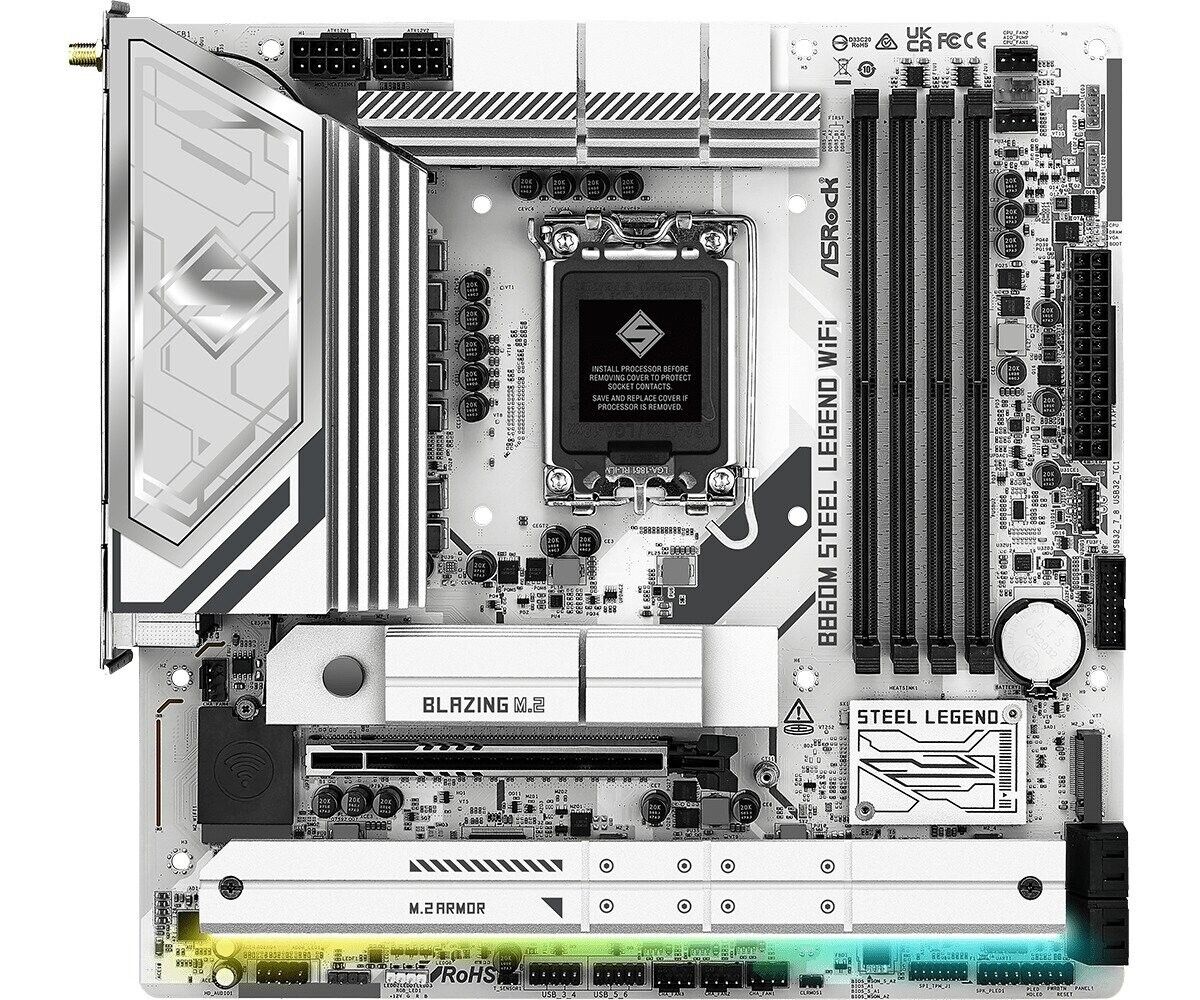

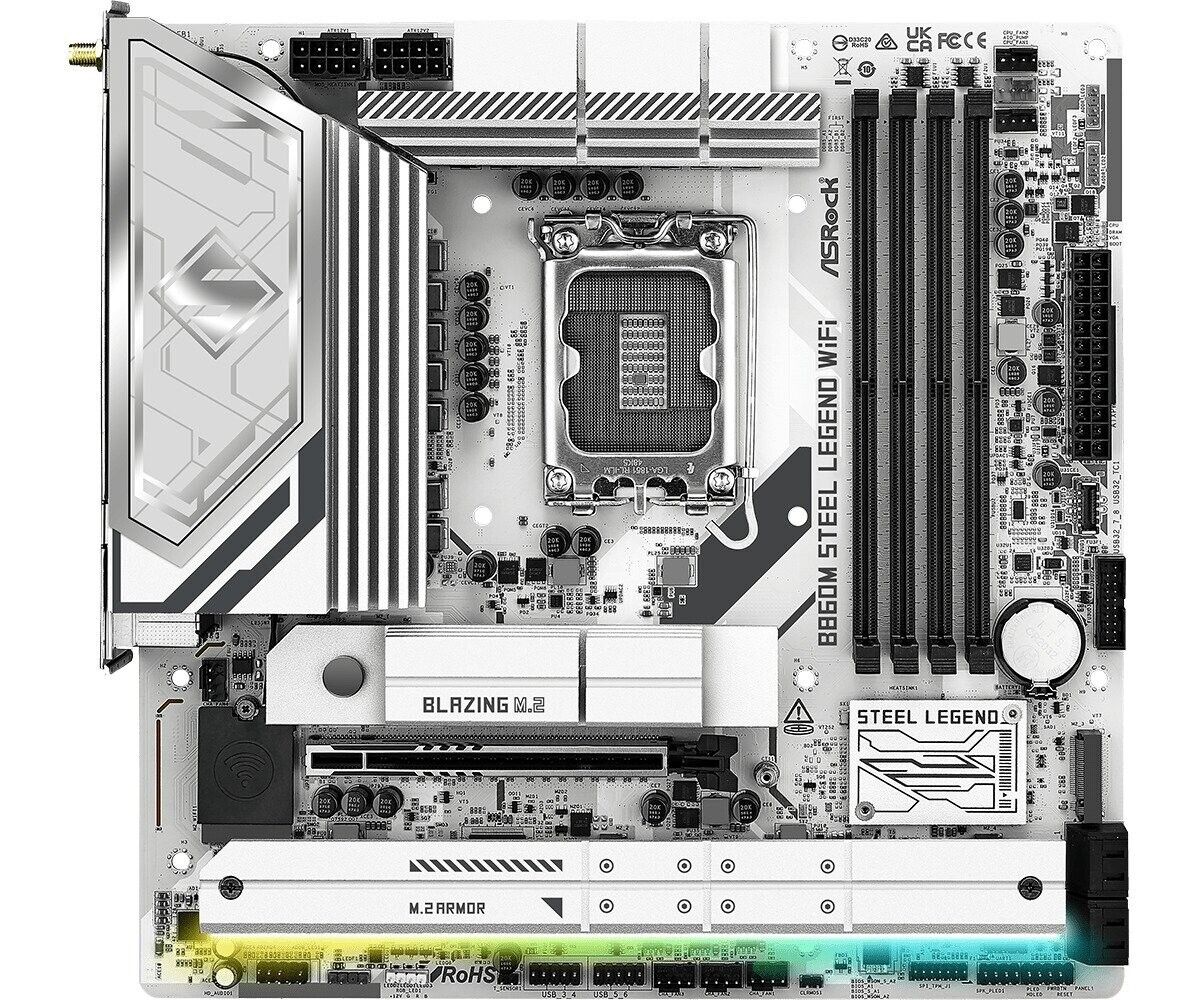

ASRock B860M STEEL LEGEND WIFI 6E Intel B860 LGA1851 Intel Core Ultra Processors

MPN: B860M STEEL LEGEND WIFI

Main Features

• Unique Feature
• -Superb Productivity:
• -PCIe Gen5 (Graphics, M.2)
• -Dual Channel DDR5
• -Thunderbolt 4 Type-C Port (40 Gb/s)
• -Rock-Solid Durability:
• -12+1+1+1+1 Power Phase, 80A SPS for VCore+GT+SA with Enlarged Heatsink Armor
• -Flexible Integrated I/O Shield
• -20K Long-lasting Black Caps (high quality and conductive polymer capacitors)
• -Ultrafast Connectivity:
• -2.5G LAN, 802.11axe Wi-Fi 6E Module
• -EZ Update:
• -BIOS Flashback Button
• -ASRock Auto Driver Installer
• -EZ Troubleshooter:
• -ASRock Post Status Checker
• CPU
• -Supports Intel Core Ultra Processors (Series 2) (LGA1851)
• -Supports Intel Hybrid Technology
• -Supports Intel Turbo Boost Max 3.0 Technology
• -Supports Intel Thermal Velocity Boost (TVB)
• -Supports Intel Adaptive Boost Technology (ABT)
• -Integrated NPU for dedicated AI acceleration
• -Chipset: Intel B860
• Memory
• -Dual Channel DDR5 Memory Technology
• -4 x DDR5 DIMM Slots
• -Supports DDR5 non-ECC, un-buffered memory up to 8666+(OC)
• -Supports Clocked Unbuffered DIMM (CUDIMM)
• -Max. capacity of system memory: 256GB
• -Supports Intel Extreme Memory Profile (XMP) 3.0x
• BIOS: 256Mb AMI UEFI Legal BIOS with GUI support
• Graphics
• -Intel Xe LPG Graphics Architecture
• -1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
• -1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
• -1 x Intel Thunderbolt 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
• Audio
• -7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
• -Impedance Sensing on Rear Out port
• -Individual PCB Layers for R/L Audio Channel
• -Nahimic Audio
• LAN
• -2.5 Gigabit LAN 10/100/1000/2500 Mb/s
• -Dragon RTL8125BG
• -Supports Dragon 2.5G LAN Software
• -Smart Auto Adjust Bandwidth Control
• -Visual User Friendly UI
• -Visual Network Usage Statistics
• -Optimized Default Setting for Game, Browser, and Streaming Modes
• -User Customized Priority Control
• Wireless LAN
• -802.11axe Wi-Fi 6E Module
• -Supports IEEE 802.11a/b/g/n/ac/ax/axe
• -Supports Dual-Band 2x2 with extended 6GHz band support
• -2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
• -Supports Bluetooth 5.3
• -Supports MU-MIMO
• Slots
• -CPU: 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
• -Chipset: 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT)
• Storage
• -CPU: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
• -Chipset:
• -1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
• -1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
• -1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
• -4 x SATA3 6.0 Gb/s Connectors
• -Supports NVMe SSD as boot disks
• RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• USB
• -CPU: 1 x Thunderbolt 4 Type-C (Rear)
• -Chipset:
• -1 x USB 3.2 Gen2 Type-C (Front)
• -2 x USB 3.2 Gen2 Type-A (Rear)
• -6 x USB 3.2 Gen1 (4 Rear, 2 Front)
• -6 x USB 2.0 (2 Rear, 4 Front)
• Connector
• -1 x Thermistor Cable Header
• -1 x SPI TPM Header
• -1 x Power LED and Speaker Header
• -1 x RGB LED Header
• -3 x Addressable LED Headers
• -2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)
• -4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
• -1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
• -1 x 24 pin ATX Power Connector
• -2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
• -1 x Front Panel Audio Connector
• -2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
• -1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
• -1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)

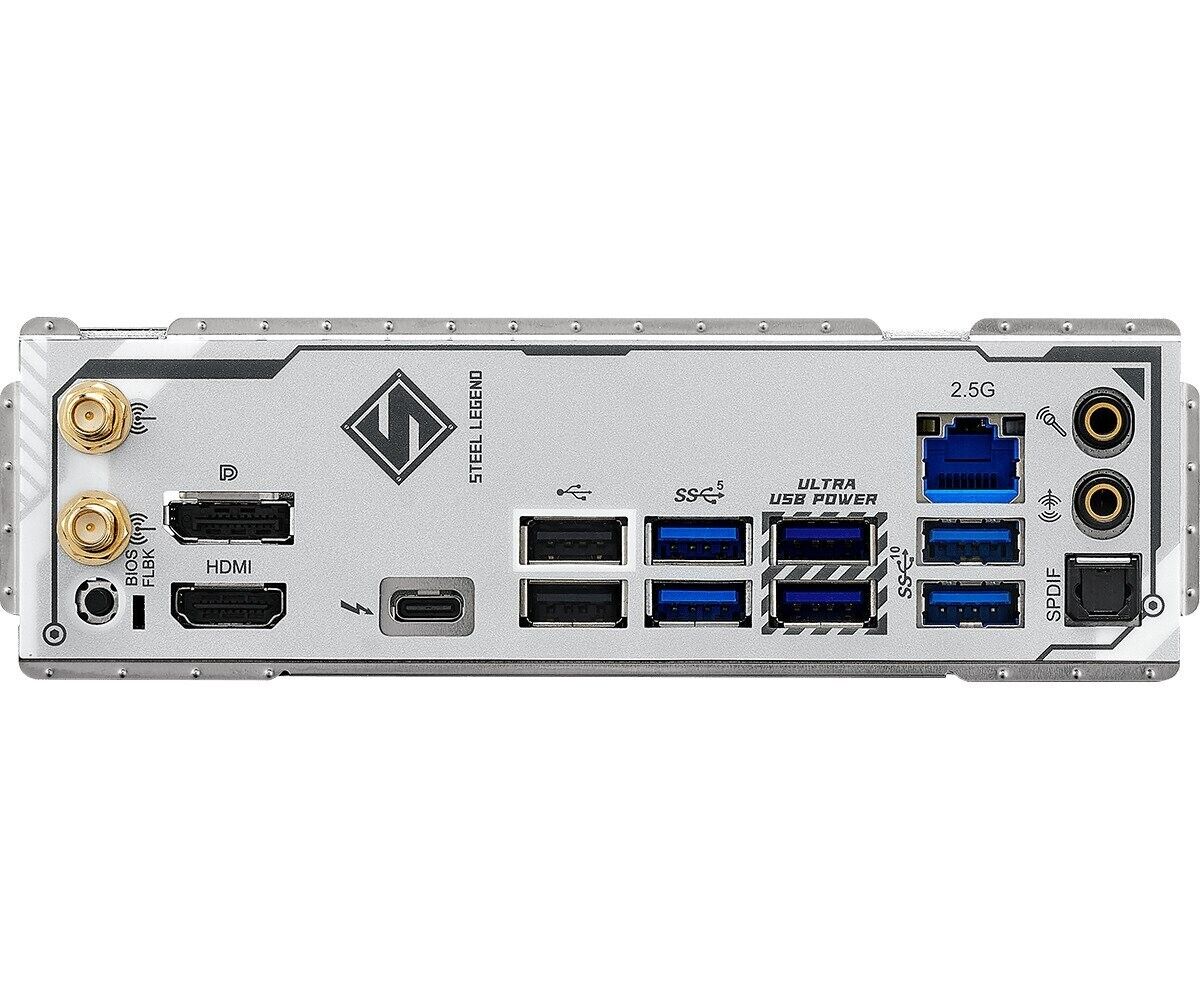

• Rear Panel I/O
• -2 x Antenna Ports
• -1 x HDMI Port
• -1 x DisplayPort 1.4
• -1 x Optical SPDIF Out Port
• -1 x Thunderbolt 4 Type-C Port (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt protocol)
• -2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
• -4 x USB 3.2 Gen1 Ports
• -2 x USB 2.0 Ports
• -1 x RJ-45 LAN Port
• -1 x BIOS Flashback Button
• -1 x Line Out Jack (Gold Audio Jack)
• -1 x Microphone Input Jack (Gold Audio Jack)
• Software and UEFI
• -Software:
• -ASRock Motherboard Utility (A-Tuning)
• -ASRock Dragon 2.5G LAN Software
• -ASRock Polychrome SYNC
• -UEFI:
• -ASRock EZ Mode
• -ASRock Full HD UEFI
• -ASRock My Favorites in UEFI
• -ASRock Auto Driver Installer
• -ASRock Instant Flash
• Accessories
• -2 x SATA Data Cables
• -2 x ASRock WiFi 2.4/5/6 GHz Antennas
• -1 x Thermistor Cable
• -1 x Screw for M.2 Socket
• Form Factor
• -Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
• -2oz Copper PCB
• OS: Microsoft Windows 11 64-bit
• Certifications
• -FCC, CE
• -ErP/EuP ready (ErP/EuP ready power supply is required)
