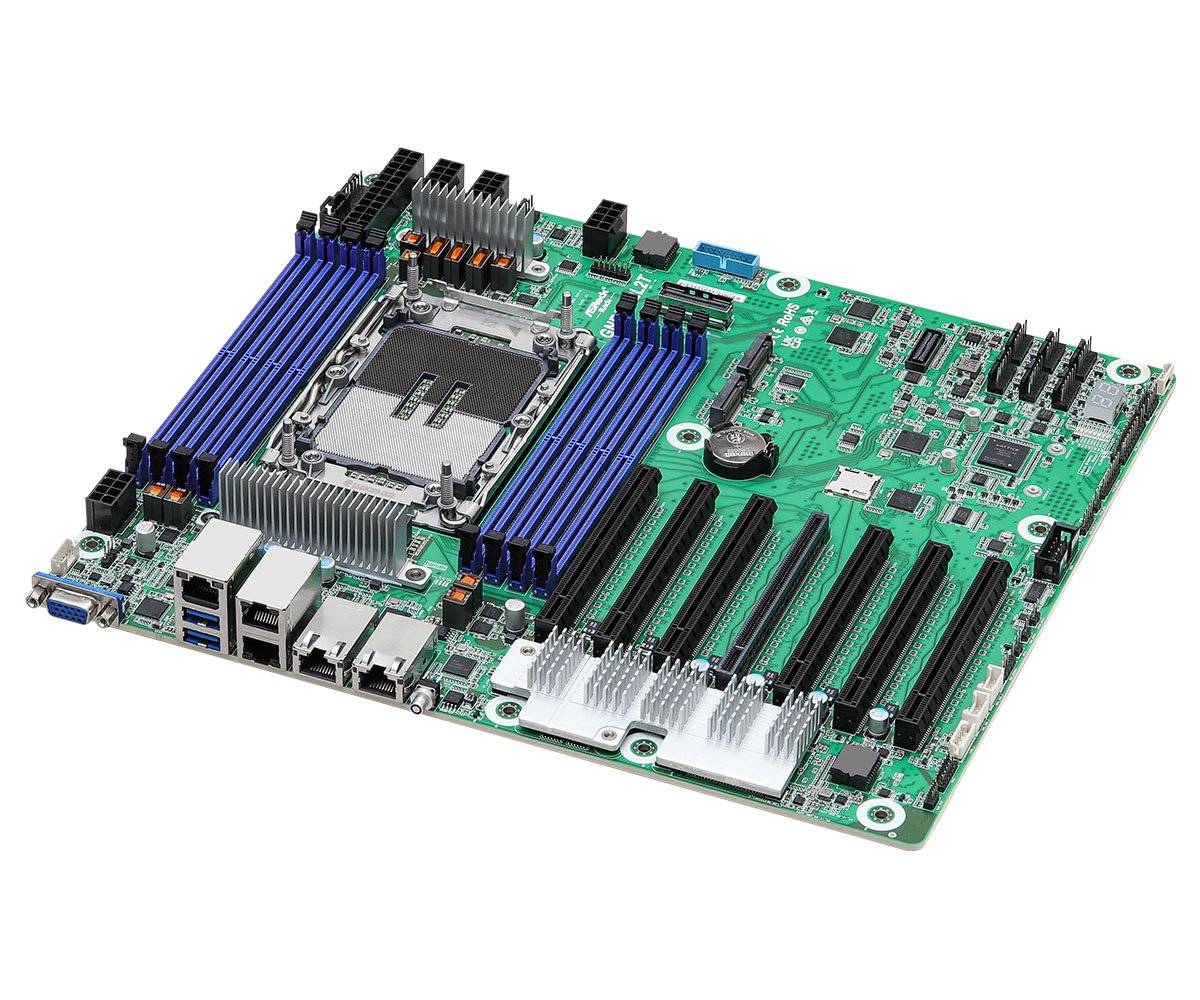

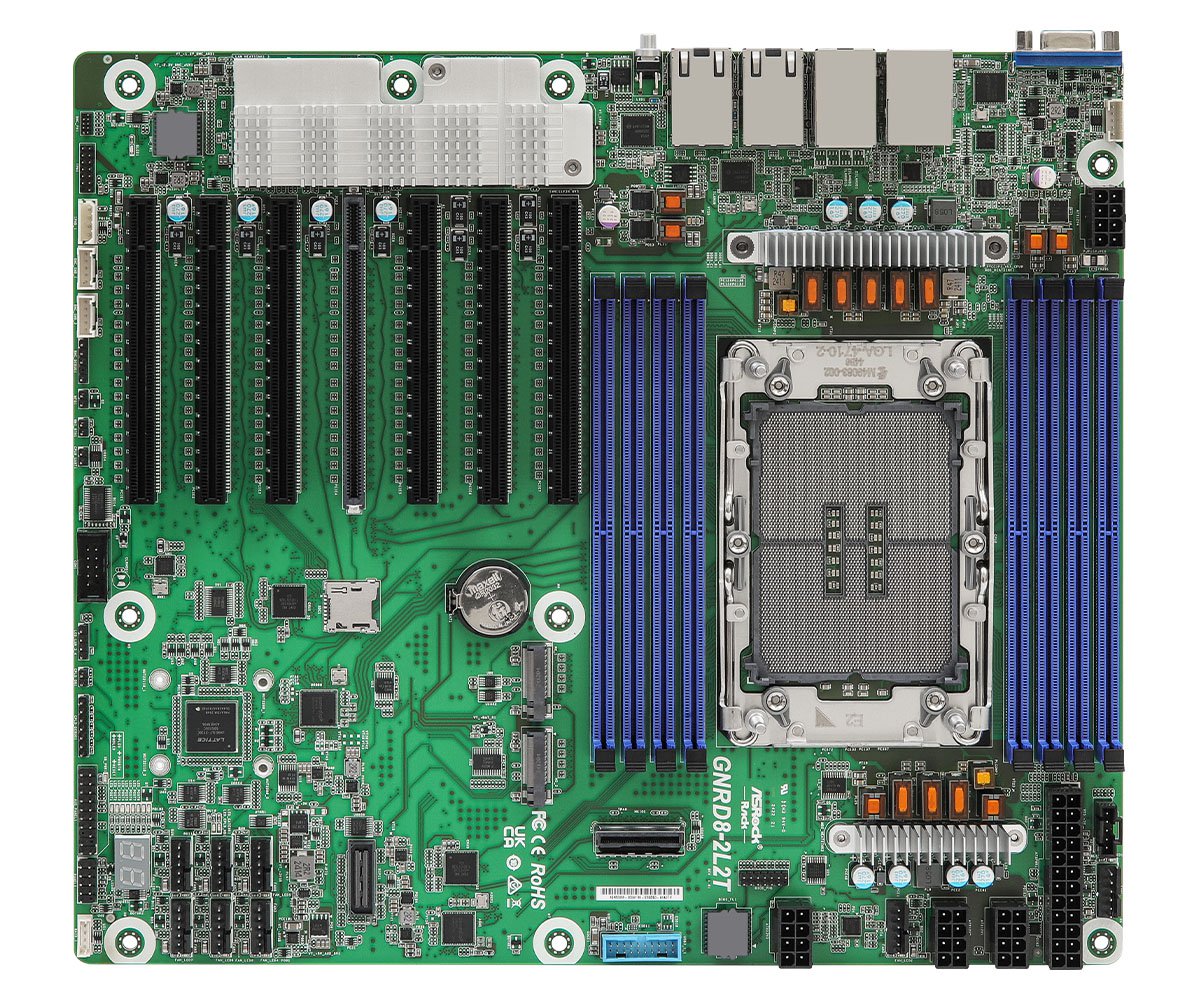

ASRock GNRD8-2L2T LGA 4710 Socket/ DDR5/ USB 3.2/ M.2/ CEB Server Motherboard

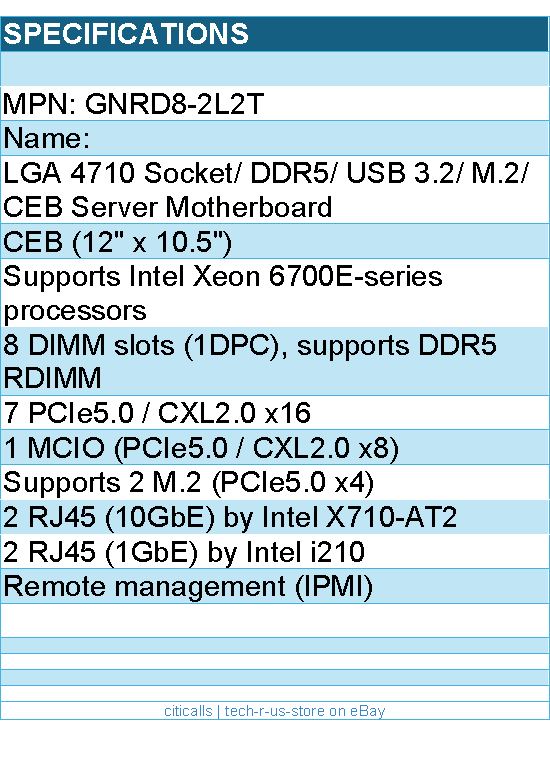

Main Features

• Physical Status
• Form Factor: CEB
• Dimensions: 12" x 10.5"
• Processor System
• CPU: Supports Intel Xeon 6700E-series processors
• Socket: 1 Socket E2 (LGA 4710)
• Chipset: System on Chip
• System Memory
• Supported DIMM Quantity: 8 DIMM slots (1DPC)
• Supported Type: DDR5 RDIMM
• Max. Capacity per DIMM: RDIMM: 128GB
• Max. DIMM Frequency: RDIMM: 6400MT/s
• Voltage: 1.1V
• PCIe Expansion Slots (SLOT7 close to CPU)
• PCIe x 16:
• SLOT7: PCIe5.0 / CXL2.0 x16
• SLOT6: PCIe5.0 / CXL2.0 x16
• SLOT5: PCIe5.0 / CXL2.0 x16
• SLOT4: PCIe5.0 / CXL2.0 x16
• SLOT3: PCIe5.0 / CXL2.0 x16
• SLOT2: PCIe5.0 / CXL2.0 x16
• SLOT1: PCIe5.0 / CXL2.0 x16
• TPM support: 1 (13-pin, SPI)
• Other PCIe Expansion Connectors
• M.2 slot: 2 M-key (PCIe5.0 x4), supports 22110/2280 form factor
• Others: 1 MCIO (PCIe5.0 / CXL2.0 x8)
• Ethernet
• Additional GbE Controller:
• 2 RJ45 (10GbE) by Intel X710-AT2
• 2 RJ45 (1GbE) by Intel i210
• Server Management
• BMC Controller: ASPEED AST2600: IPMI2.0 with iKVM and vMedia support
• IPMI Dedicated GLAN: 1 Realtek RTL8211F for dedicated management GLAN
• Graphics
• Controller: ASPEED AST2600: 1 DB15 (VGA), 1 (15-pin) header

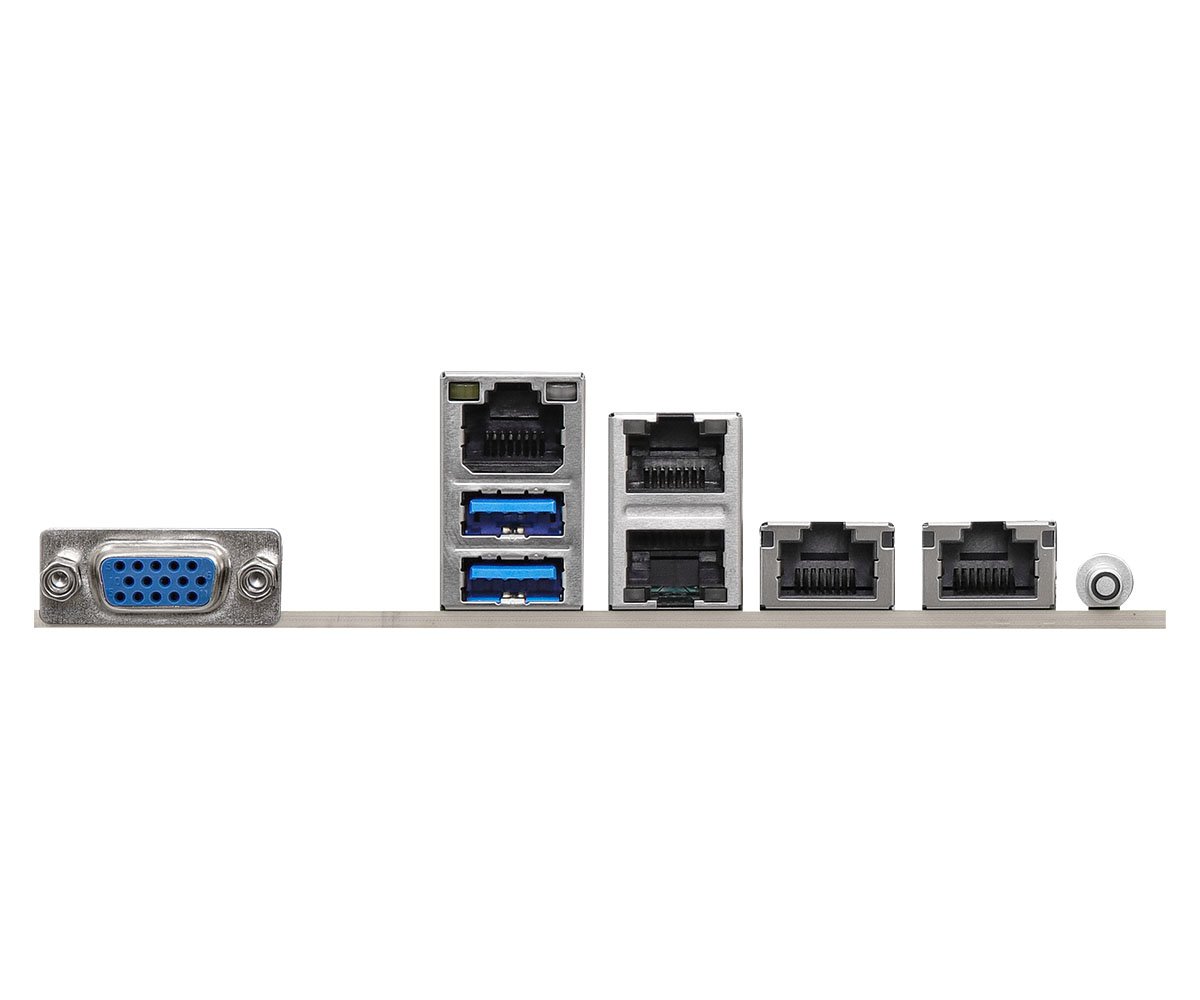

• Rear I/O
• UID Button/LED: 1 UID button w/ LED
• VGA Port: 1 DB15 (VGA)
• USB 3.2 Gen1 Port: 2 Type-A (UBS3.2 Gen1)
• RJ45: 2 RJ45 (10GbE), 2 RJ45 (1GbE), 1 dedicated IPMI
• Internal Connector/Headers
• Power Connector: 1 (24-pin, ATX main power), 4 ( 8-pin, ATX 12V)
• Auxiliary Panel Header: 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
• System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
• COM Header: 1 (9-pin)
• Fan Header: 8 (6-pin)
• TPM Header: 1 (13-pin, SPI)
• VROC header: 1
• HSBP: 1
• SMBus header: 2
• PMBus header: 1
• IPMB Header: 1
• Clear CMOS: 1 (contact pads)
• Front Lan LED Connector: 1
• USB 3.2 (Gen1) Header: 1 header (19-pin, 1 USB3.2 Gen1)
• USB 2.0 Header: 1 header (19-pin, 1 USB2.0)
• NMI Header: 1
• LED Indicators
• Standby PWR LED: 1 (5VSB)
• 80 Debug Port LED: 1
• Fan Fail LED: 8
• BMC heartbeat LED: 1
• System BIOS
• BIOS Type: AMI UEFI BIOS; 512Mb SPI Flash ROM
• BIOS Features: Plug and Play, ACPI 4.0 and above compliance wake up events, SMBIOS 3.4 and above, ASRock Rack instant flash
• Hardware Monitor
• Temperature: CPU, MB, Card Side, M.2, RAM, TR Temperature Sensing
• Fan:
• Fan Tachometer
• CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
• Fan Multi-Speed Control
• Voltage: 1.8V_PCH, +BAT, PVNN_PCH, 3.3V, 5V, 12V, 3.3VSB, 5VSB, 12V, +12VSB
• Environment
• Temperature: Operation temperature: 10C~ 35C/ Non operation temperature: -40C~ 70C
• Humidity: Non operation humidity: 20% ~ 90% ( Non condensing)
