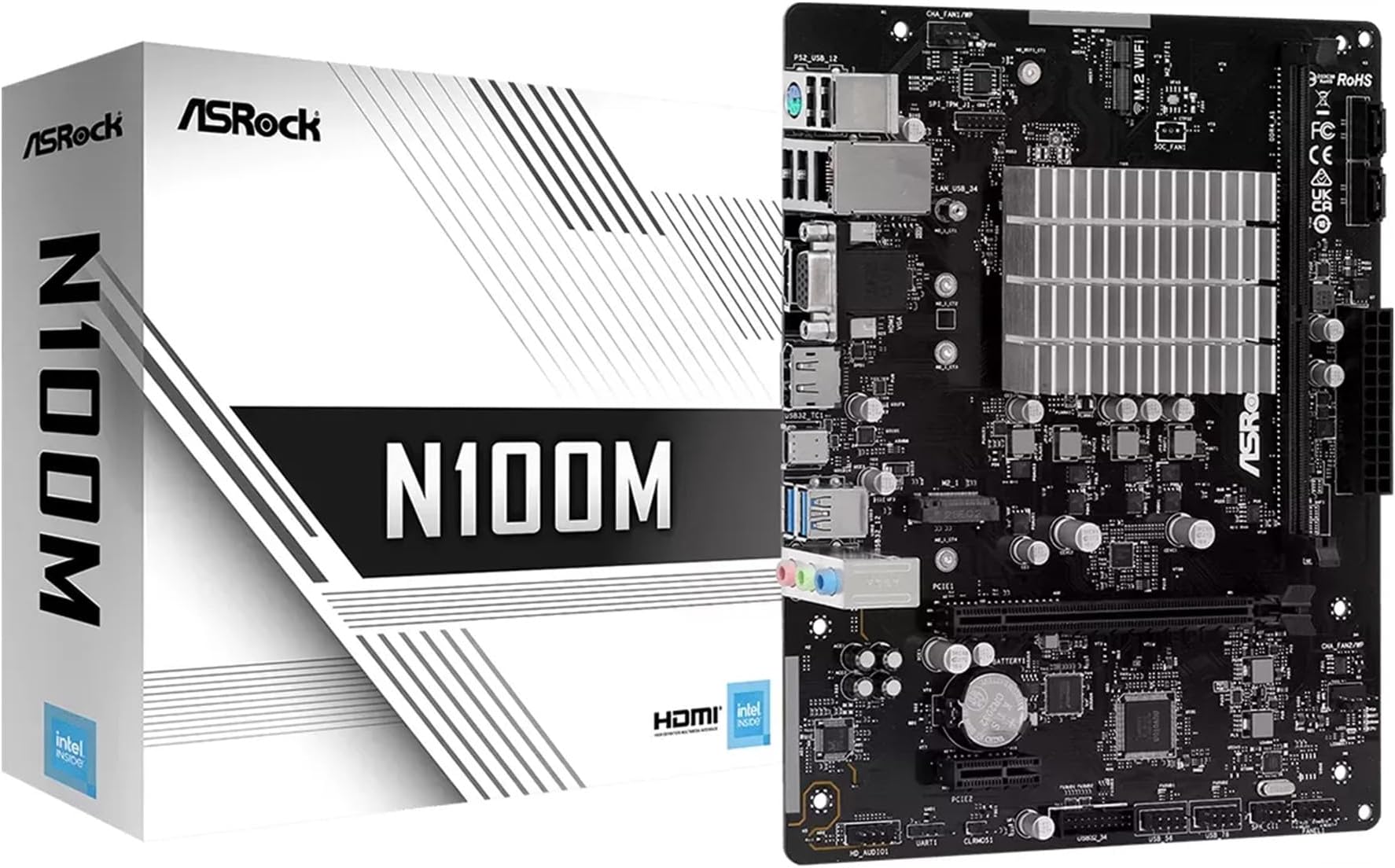

ASRock N100M N100 Max32GB DDR4 Micro ATX Motherboard - Retail

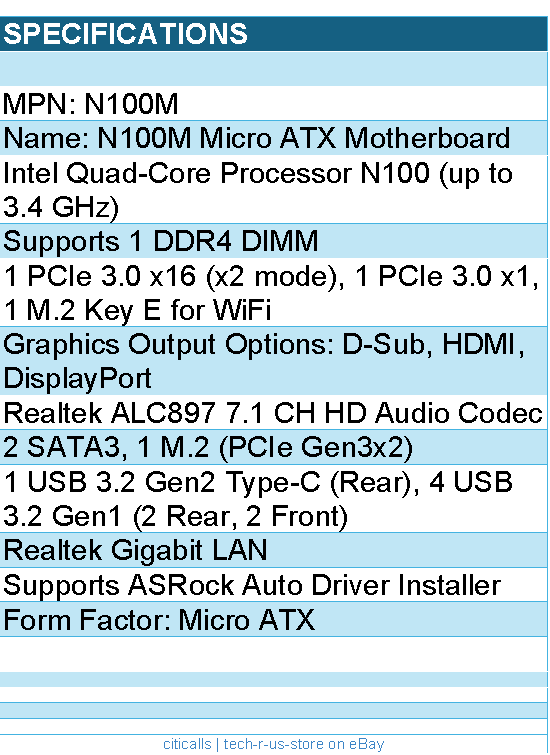

Product Information

• Brand: ASRock
• Model: N100M
• Supported CPU
• CPU Type
  • Intel® Quad-Core Processor N100 (Up to 3.4 GHz)
  • Supports Intel® Turbo Boost Technology
• Chipsets
• Chipset
  • Intel® Quad-Core Processor N100 (Up to 3.4 GHz)
  • Supports Intel® Turbo Boost Technology
• Memory
• Memory Standard: 1 x DDR4 DIMM Slot
  • Supports DDR4 non-ECC, un-buffered memory up to 3200
  • Supports ECC UDIMM memory modules (operate in non-ECC mode)
  • Max. capacity of system memory: 32GB
• Maximum Memory Supported 32GB
• Expansion Slots
• PCI Express 3.0 x16: 1 x PCIe 3.0 x16 Slot (PCIE1), supports x2 mode*
  • 1 x PCIe 3.0 x1 Slot (PCIE2)
  • 1 x M.2 Socket (Key E), supports type 2230 Intel® CNVio (Integrated WiFi/BT)
• *Supports NVMe SSD as boot disks
• **M.2 PCI Express module is not supported
• Storage Devices
• Serial ATA (SATA) 2 x SATA3 6.0 Gb/s Connectors
• *Supports NVMe SSD as boot disks
• M.2 1 x M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x2 (16 Gb/s) mode*
• Onboard Audio
• Audio Channels: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• *The inbox driver for Windows® 10 only supports 2-channel audio output. Please refer to the FAQ to check how to turn on the 5.1-channel audio output and any limitations.
• Onboard LAN
• Max LAN Speed: Gigabit LAN 10/100/1000 Mb/s
• - Realtek 8111H
• Rear Panel Ports
• Back I/O Ports 2 x Antenna Mounting Points
  • 1 x PS/2 Mouse/Keyboard Port
  • 1 x D-Sub Port
  • 1 x HD- Port
  • 1 x DisplayPort 1.4
  • 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
  • 2 x USB 3.2 Gen1 Ports
  • 4 x USB 2.0 Ports
  • 1 x RJ-45 LAN Port
  • HD Audio Jacks: Line in / Front Speaker / Microphone
• Software Feature
• Windows 11 - Microsoft® Windows® 10 64-bit / 11 64-bit
• Form Factor: Micro ATX
