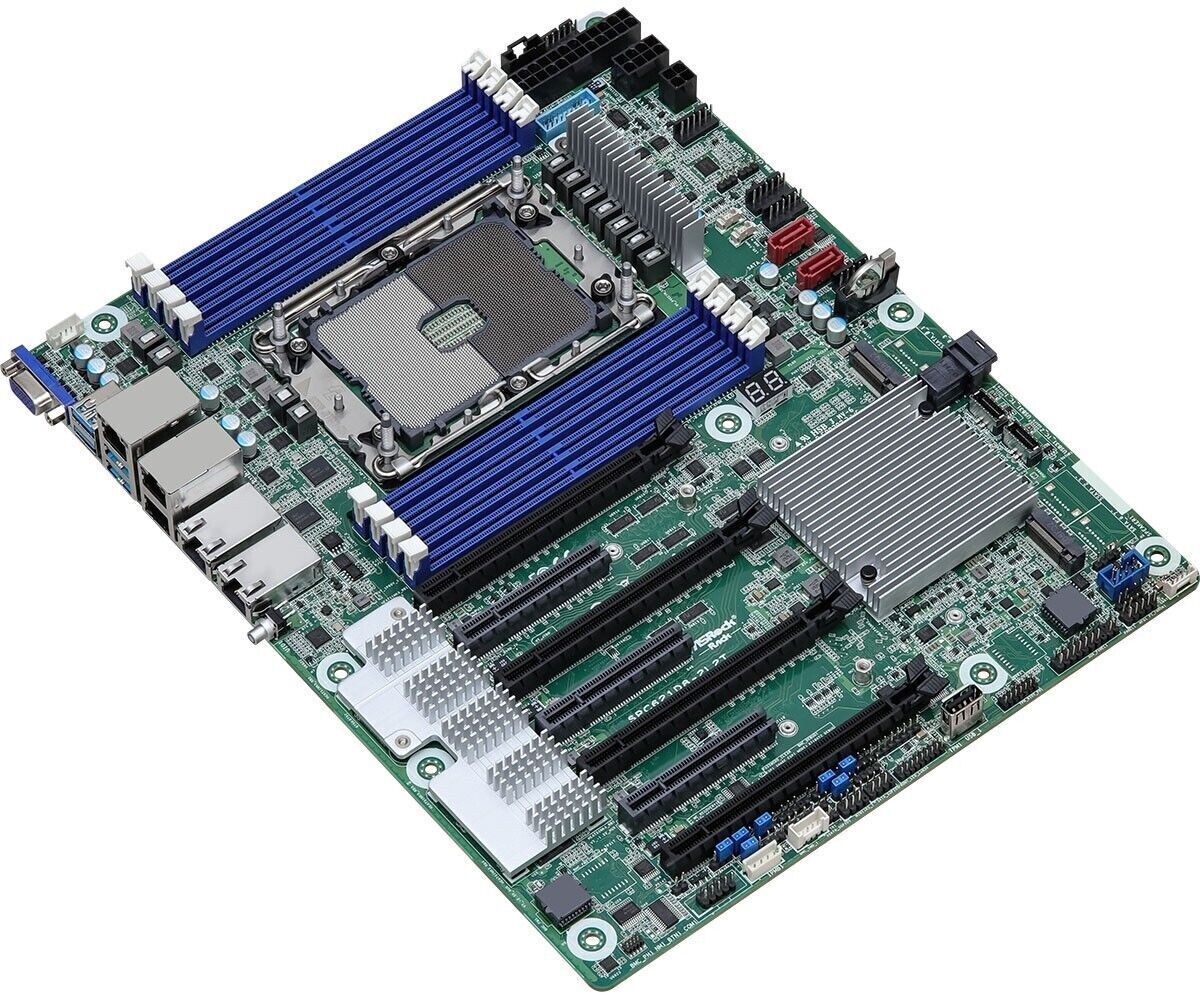

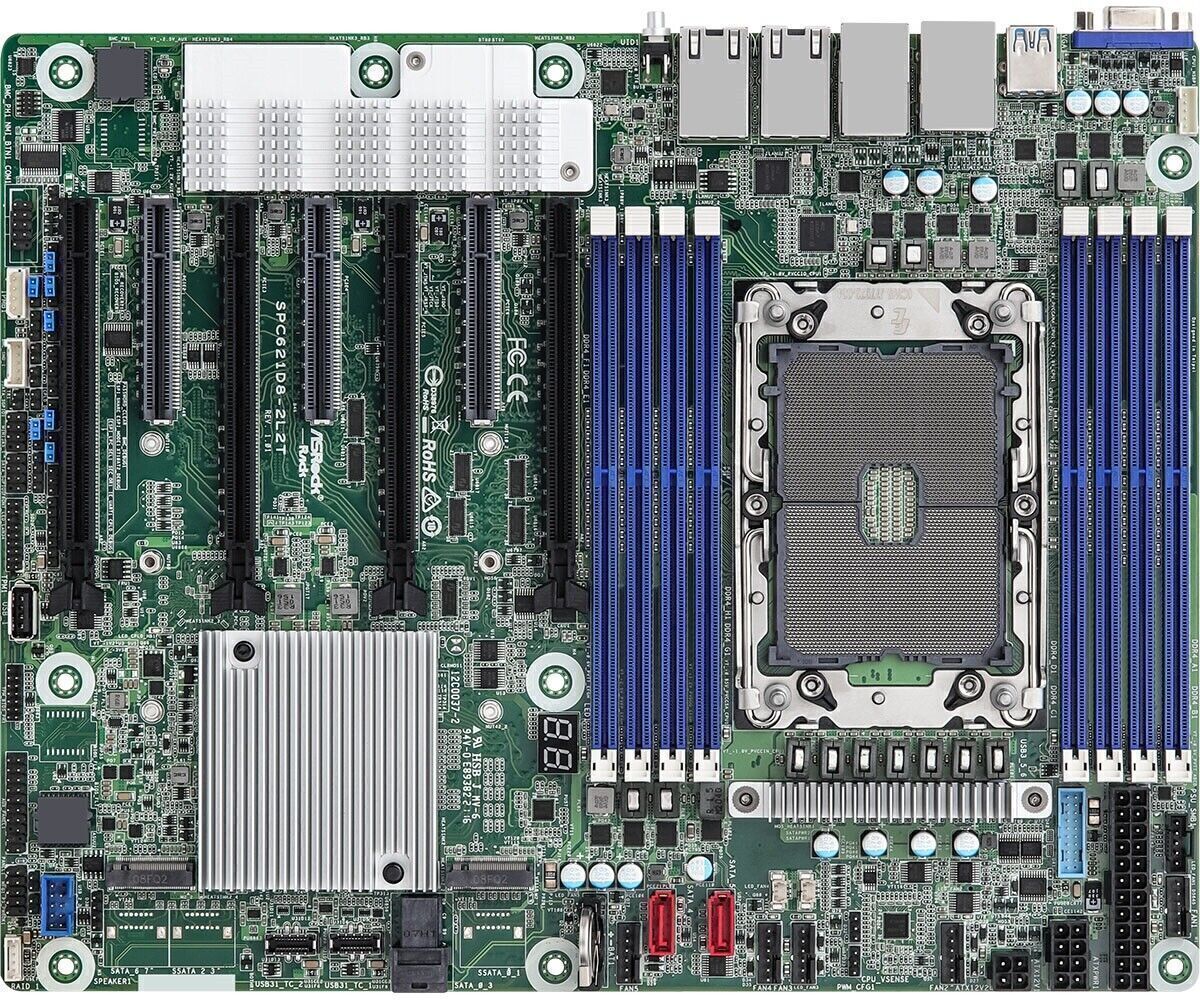

ASRock SPC621D8-2L2T Motherboard C621A LGA4189 Single Socket P+ Xeon 256GB DDR4
$655.14 USD $655.14 USD $0.00 USD
Shipping calculated at checkout.
Out of stock
Description

Marketing Information

• ATX (12" x 9.6")
• Supports 3rd Gen Intel® Xeon® Scalable Processors
• 8 DIMM slots (1DPC), supports DDR4 RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, and Intel® Optane™ Persistent Memory
• 4 PCIe4.0 x16, 3 PCIe4.0 x8
• Supports 1 M.2 (PCIe3.0 x4 or SATA 6Gb/s), 1 M.2 (PCIe3.0 x1 or SATA 6Gb/s)
• 8 SATA 6Gb/s (including 2 ports from M.2)
• 2 RJ45 (10GbE) by Intel® X710-AT2, 2 RJ45 (1GbE) by Intel® i210
• Remote management (IPMI)

Detail Specifications

Form Factor
ATX
Processor System
CPU
Supports 3rd Gen Intel Xeon Scalable processors
Socket
Single Socket P+ (LGA 4189)
Chipset
Intel C621A
System Memory
Supported DIMM Quantity
8 DIMM slots (1DPC)
Supported Type
Supports DDR4 288-pin RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, Intel OptaneTM Persistent Memory 200 series
Max. Capacity per DIMM
RDIMM: up to 64GB
RDIMM-3DS: up to 256GB
LRDIMM: up to 128GB
LRDIMM-3DS: up to 256GB
DIMM Frequency
max. 3200MHz
Voltage
1.2V
PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16
SLOT7: PCIe4.0 x16
SLOT5: PCIe4.0 x16
SLOT3: PCIe4.0 x16
SLOT1: PCIe4.0 x16
Note: SLOT7/5/3 auto-switch to PCIe4.0 x8 when SLOT6/4/2 occupied
PCIe x 8
SLOT6: PCIe4.0 x8
SLOT4: PCIe4.0 x8
SLOT2: PCIe4.0 x8
Other PCIe Expansion Connectors
M.2 slot
1 M-key (PCIe3.0 x4 or SATA 6Gb/s), supports 22110/2280/2242 form factor
1 M-key (PCIe3.0 x1 or SATA 6Gb/s), supports 22110/2280/2242 form factor
SATA/SAS Storage
PCH Built-in Storage
Intel C621A (8 SATA 6Gb/s RAID 0/1/5/10):
1 Mini-SAS HD, 2 SATA DOM, 2 M.2
Ethernet
Additional GbE Controller
Intel X710-AT2: 2 RJ45 (10 GbE)
Intel i210: 2 RJ45 (1GbE)
Server Management
BMC Controller
ASPEED AST2500
IPMI Dedicated GLAN
1 x Realtek RTL8211E for dedicated management GLAN
Graphics
Controller
ASPEED AST2500
VRAM
DDR4 16MB

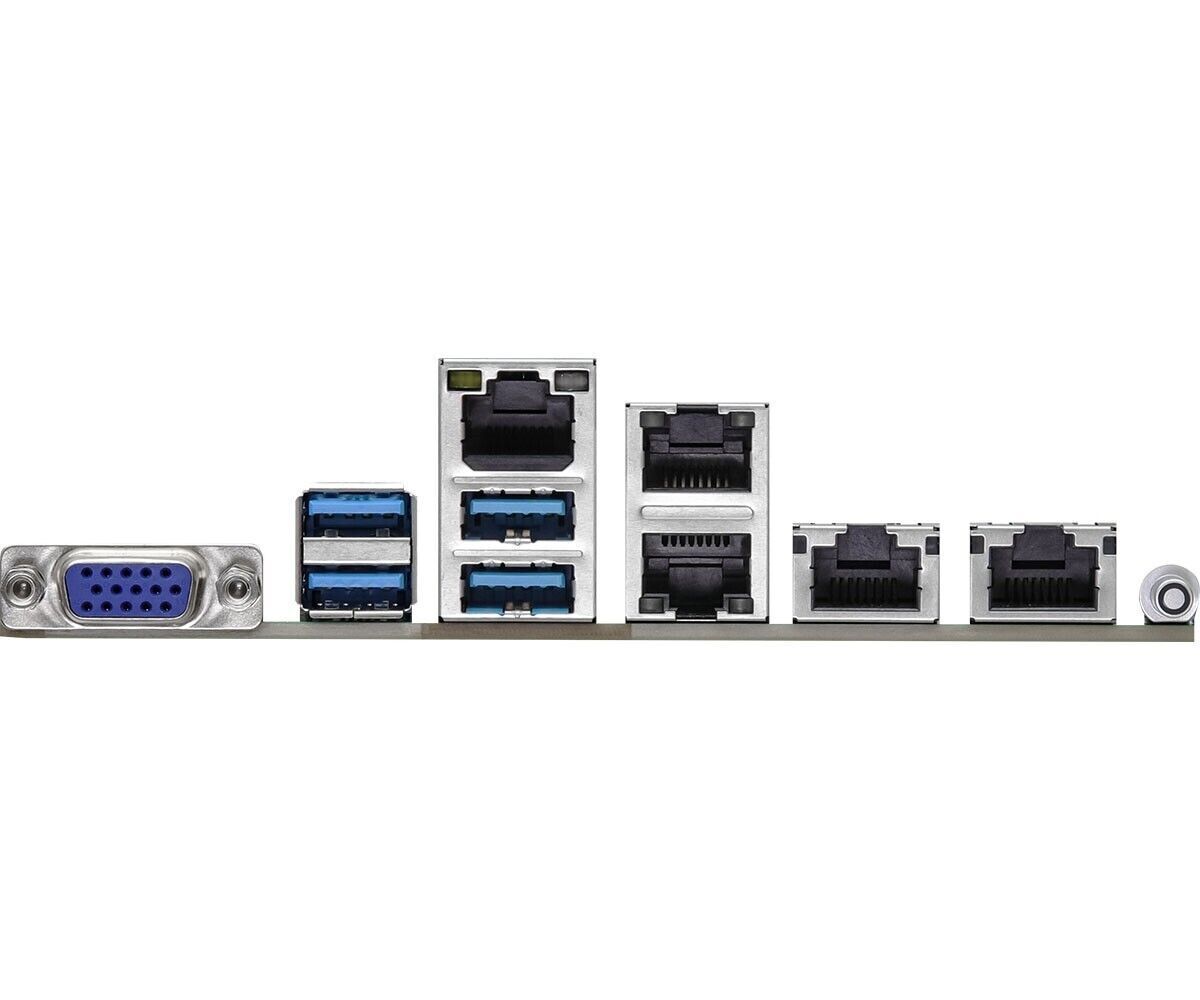

Rear I/O
UID Button/LED
1
VGA Port
1 DB15
USB 3.2 Gen1 Port
4 Type-A (USB3.2 Gen1)
RJ45
2 RJ45 (10GbE), 2 RJ45 (1GbE)
Dedicate LAN
1 dedicated IPMI
Internal Connector/Headers
Auxiliary Panel Header
1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
System Panel
1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
COM Header
1
Video output
1
Speaker Header
1
Buzzer
1
Fan Header
5 (6-pin)
Thermal Sensor Header
1
TPM Header
1 (17-pin, LPC), 1 (13-pin, SPI)
VROC header
1
SGPIO Header
1
SMBus header
1
PMB header
1
IPMB Header
1
Clear CMOS
1 (contact pads)
USB 3.2 (Gen1) Header
1 (19-pin, 2 USB3.2 Gen1)
USB 3.2 (Gen2) Header
2 (Type-C, 2 USB3.2 Gen2)
USB 2.0 Header
1 (9-pin, 2 USB2.0)
Type A USB 2.0 Port
1 (Type-A, 1 USB2.0)
NMI Header
1
Power Connector
1 (24-pin, ATX main power), 1 (8-pin, ATX 12V), 1 (4-pin, ATX 12V), 1 (3-pin, SATA power)
ME/SPS Recovery
1
NC-SI
1
LED Indicators
Standby PWR LED 5vsb
1
80 Debug Port LED
1
Fan Fail LED
5
LED Indicators
Standby PWR LED 5vsb
1
80 Debug Port LED
1
Fan Fail LED
5
Hardware Monitor
Temperature
CPU, PCH, MB, Card side Temperature Sensing
Fan
CPU/Rear/Front Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
CPU/Rear/Front Fan Multi-Speed Control
Voltage
+12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3.3VSB, 5VSB
Environment
Temperature
Operation temperature: 10oC to 35oC / Non operation temperature: -40oC to 70oC
Humidity
Non operation humidity: 20% to 90% ( Non condensing)
Item Dimension (L inchxW inchxH inch)
15 x 12 x 4

Weight
6.00 lb

Warranty Information
36 Months
