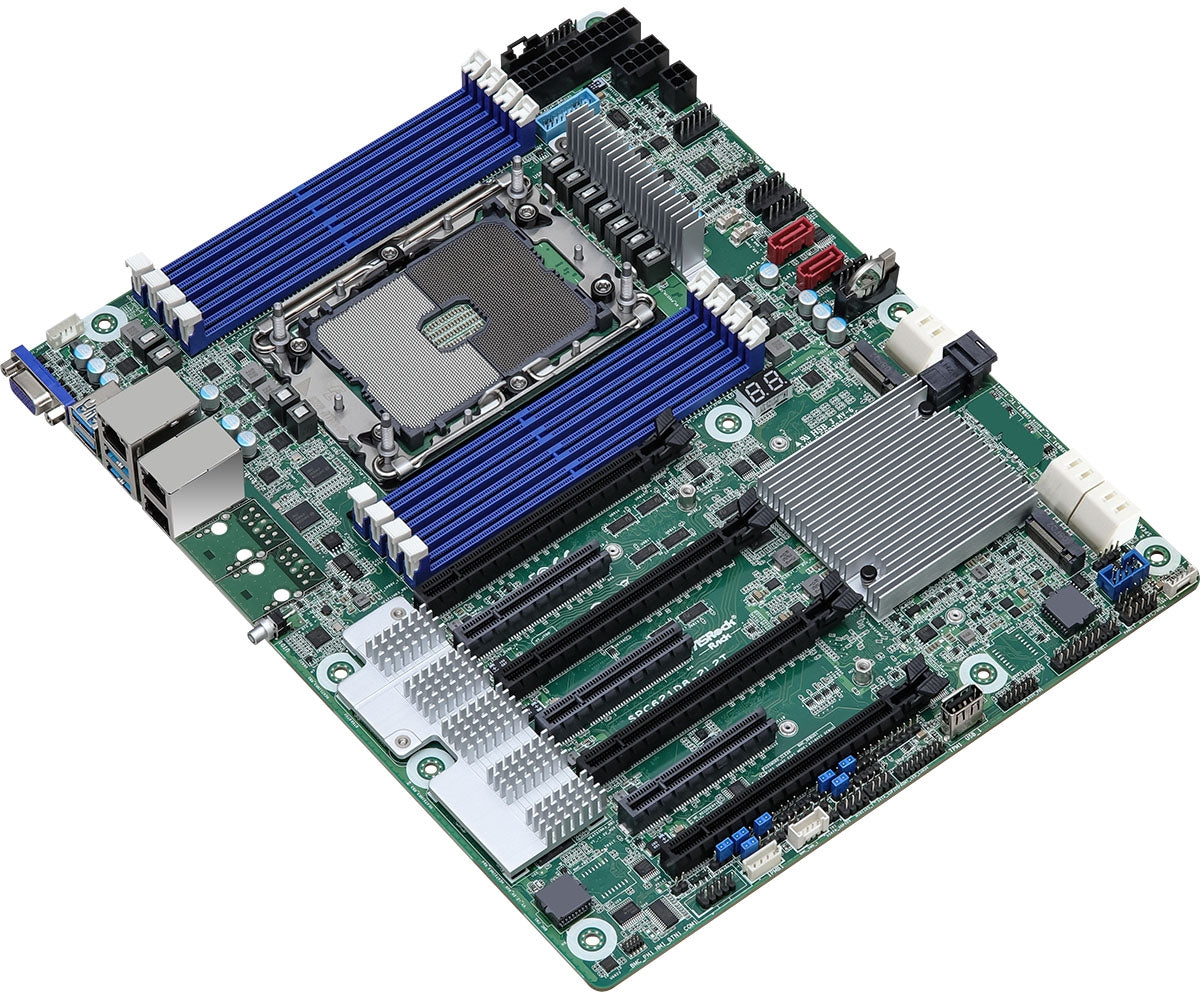

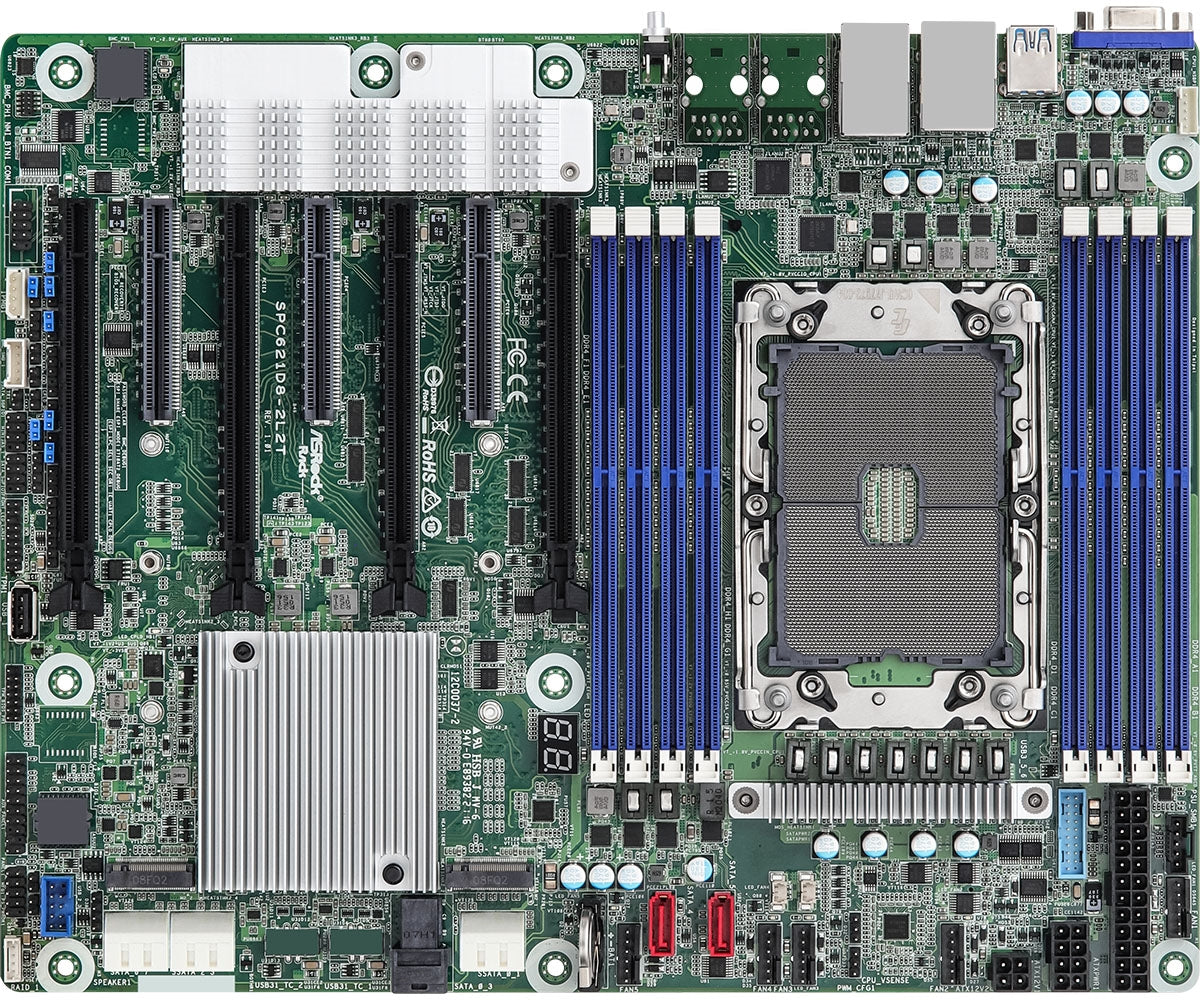

ASRock SPC621D8 Server Motherboard - C621A Xeon Socket P+ LGA4189 DDR4 PCIe ATX

Marketing Information

• ATX (12" x 9.6")
• Supports 3rd Gen Intel® Xeon® Scalable Processors
• 8 DIMM slots (1DPC), supports DDR4 RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, and Intel® Optane™ Persistent Memory
• 4 PCIe4.0 x16, 3 PCIe4.0 x8
• Supports 1 M.2 (PCIe3.0 x4), 1 M.2 (PCIe3.0 x1 or SATA 6Gb/s)
• 13 SATA 6Gb/s (including 1 port from M.2)
• 2 RJ45 (1GbE) by Intel® i210
• Remote management (IPMI)

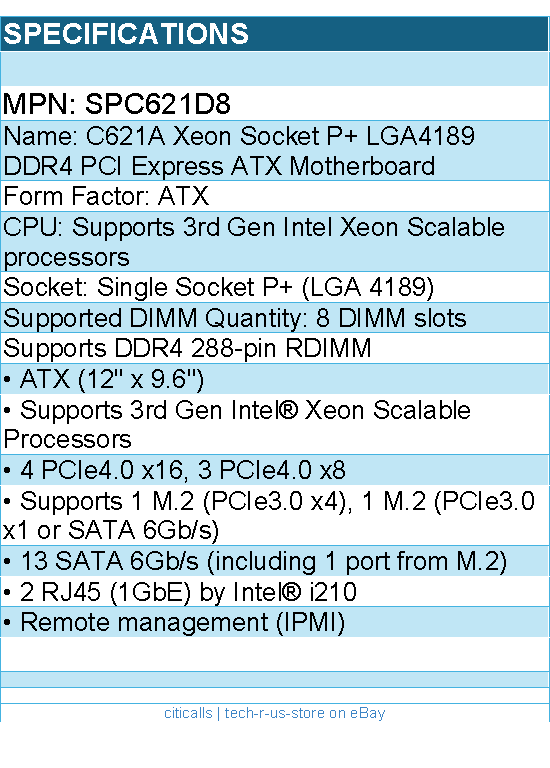

Detail Specifications

• Physical Status
• Form Factor: ATX
• Dimensions: 12inch x 9.6inch
• Processor System
• CPU: Supports 3rd Gen Intel Xeon Scalable processors
• Socket: Single Socket P+ (LGA 4189)
• Chipset: Intel C621A
• System Memory
• Supported DIMM Quantity: 8 DIMM slots (1DPC)
• Supported Type: Supports DDR4 288-pin RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, Intel OptaneTM Persistent Memory 200 series
• Max. Capacity per DIMM
  • RDIMM: up to 64GB
  • RDIMM-3DS: up to 256GB
  • LRDIMM: up to 128GB
  • LRDIMM-3DS: up to 256GB
• DIMM Frequency
• max. 3200MHz
• Voltage
• 1.2V
• PCIe Expansion Slots (SLOT7 close to CPU)
• PCIe x 16
  • SLOT7: PCIe4.0 x16Note
  • SLOT5: PCIe4.0 x16Note
  • SLOT3: PCIe4.0 x16Note
  • SLOT1: PCIe4.0 x16
• Note: SLOT7/5/3 auto-switch to PCIe4.0 x8 when SLOT6/4/2 occupied
• PCIe x 8
  • SLOT6: PCIe4.0 x8
  • SLOT4: PCIe4.0 x8
  • SLOT2: PCIe4.0 x8
• Other PCIe Expansion Connectors
• M.2 slot
• 1 M-key (PCIe3.0 x4), supports 22110/2280/2242 form factor
• 1 M-key (PCIe3.0 x1 or SATA 6Gb/s), supports 22110/2280/2242 form factor
• SATA/SAS Storage
• PCH Built-in Storage
• Intel C621A (13 SATA 6Gb/s, RAID 0/1/5/10):
• 1 Mini-SAS HD, 6 SATA 7-pin, 2 SATA DOM, 1 M.2
• Ethernet
• Additional GbE Controller
• Intel i210: 2 RJ45 (1GbE)
• Server Management
• BMC Controller
• ASPEED AST2500
• IPMI Dedicated GLAN
• 1 x Realtek RTL8211E for dedicated management GLAN
• Graphics
• Controller: ASPEED AST2500
• VRAM
• DDR4 16MB
• Rear I/O
• UID Button/LED: 1
• VGA Port: 1 DB15
• USB 3.2 Gen1 Port: 4 Type-A (USB3.2 Gen1)
• RJ45: 2 RJ45 (1GbE)
• Dedicate LAN: 1 dedicated IPMI
• Internal Connector/Headers
• Auxiliary Panel Header: 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
• System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
• COM Header: 1
• Video output: 1
• Speaker Header: 1
• Buzzer: 1
• Fan Header: 5 (6-pin)
• Thermal Sensor Header: 1
• TPM Header: 1 (17-pin, LPC), 1 (13-pin, SPI)
• VROC header: 1
• SGPIO Header: 1
• SMBus header: 1
• PMB header: 1
• IPMB Header: 1
• Clear CMOS: 1 (contact pads)
• USB 3.2 (Gen1) Header: 1 (19-pin, 2 USB3.2 Gen1)
• USB 2.0 Header: 1 (9-pin, 2 USB2.0)
• Type A USB 2.0 Port: 1 (Type-A, 1 USB2.0)
• NMI Header: 1
• Power Connector: 1 (24-pin, ATX main power), 1 (8-pin, ATX 12V), 1 (4-pin, ATX 12V), 1 (3-pin, SATA power)
• ME/SPS Recovery: 1
• NC-SI: 1
• LED Indicators
• Standby PWR LED 5vsb: 1
• 80 Debug Port LED: 1
• Fan Fail LED: 5
• System BIOS
• BIOS Type: 256Mb SPI Flash ROM
• BIOS Features: AMI UEFI BIOS
• Hardware Monitor
• Temperature: CPU, PCH, MB, Card side Temperature Sensing
• Fan:
• CPU/Rear/Front Fan Tachometer
• CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
• CPU/Rear/Front Fan Multi-Speed Control
• Voltage: +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3.3VSB, 5VSB
• Environment
• Temperature: Operation temperature: 10oC to 35oC / Non operation temperature: -40oC to 70oC
• Humidity: Non operation humidity: 20% to 90% ( Non condensing)

Warranty Information

• 36M from ASRock
