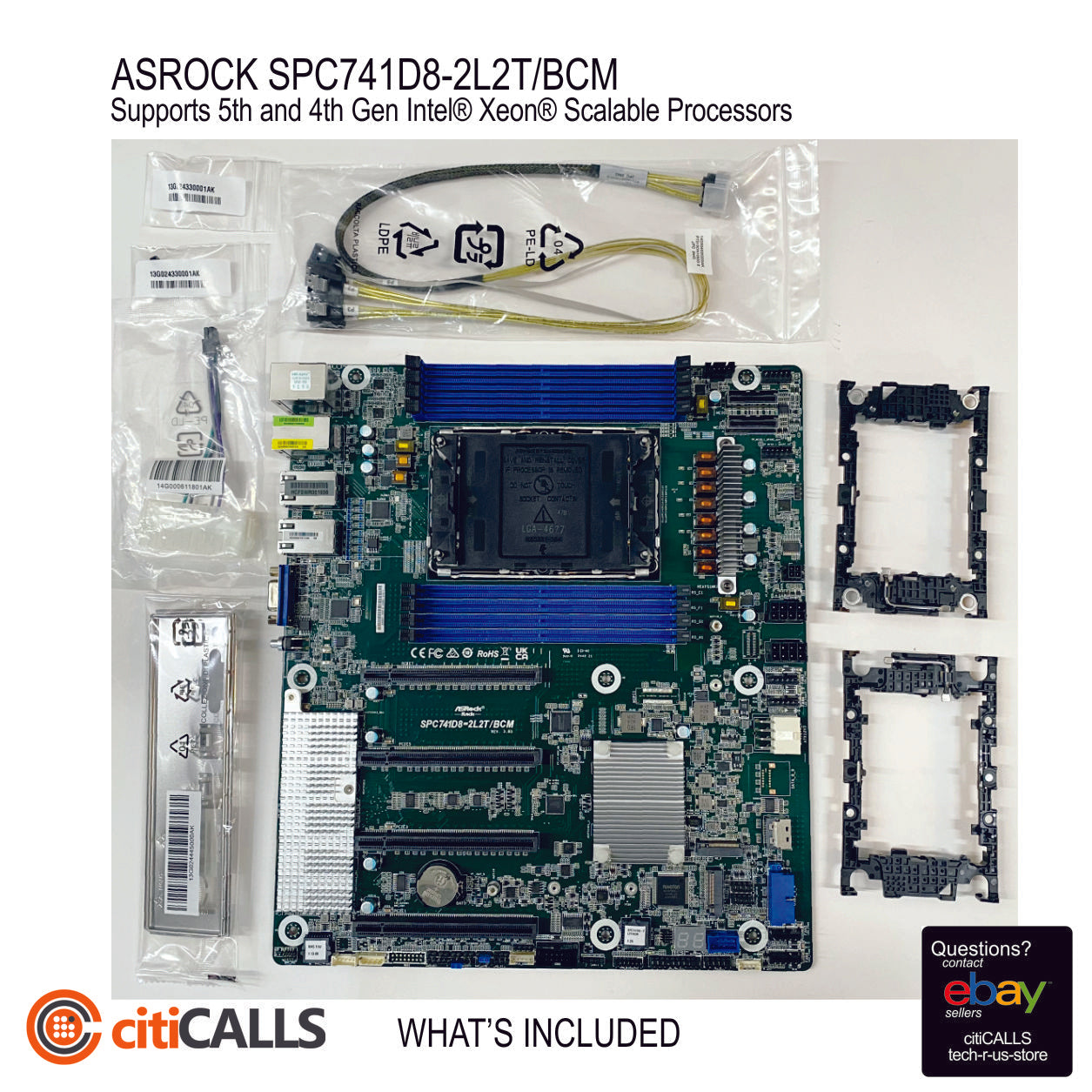

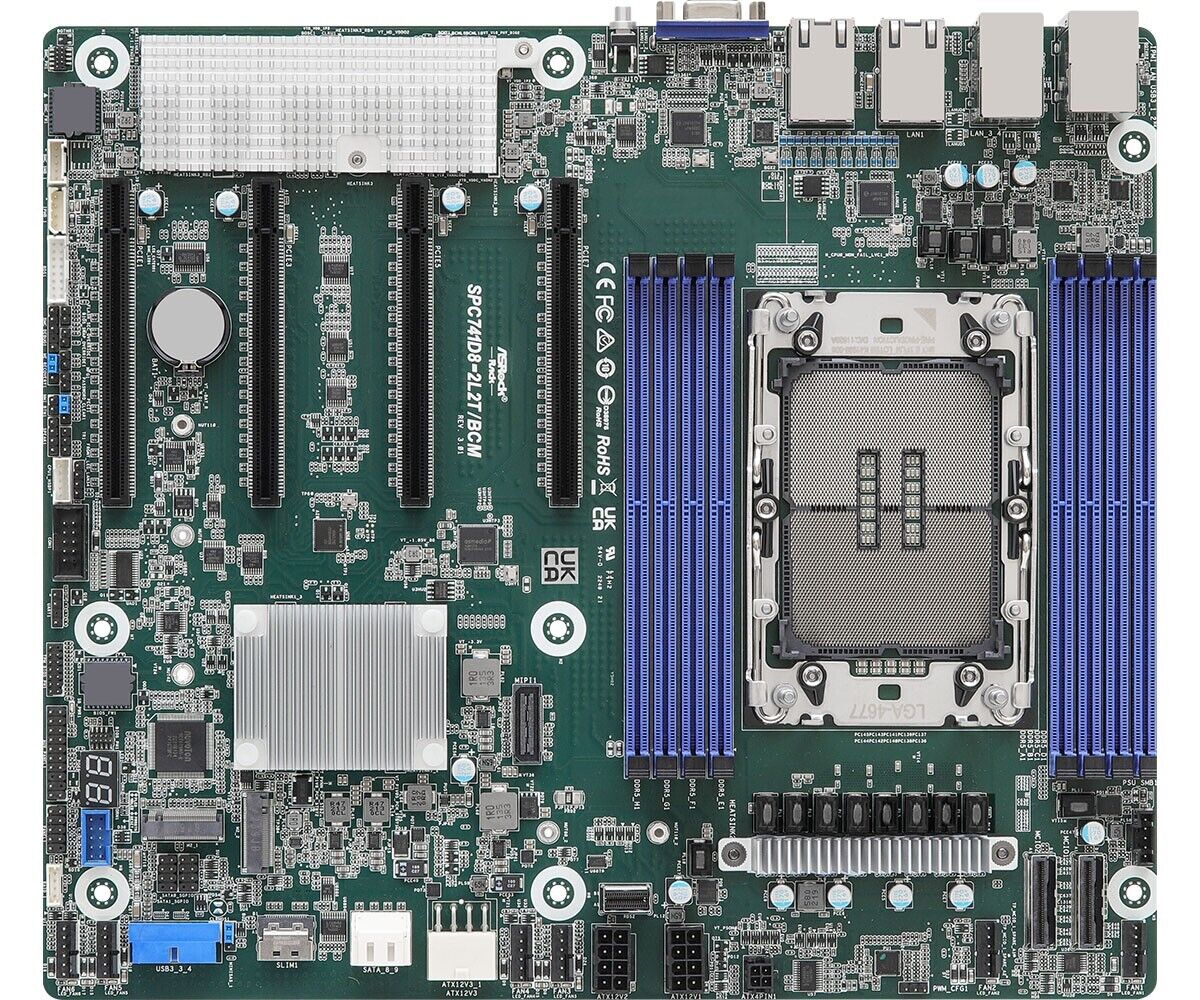

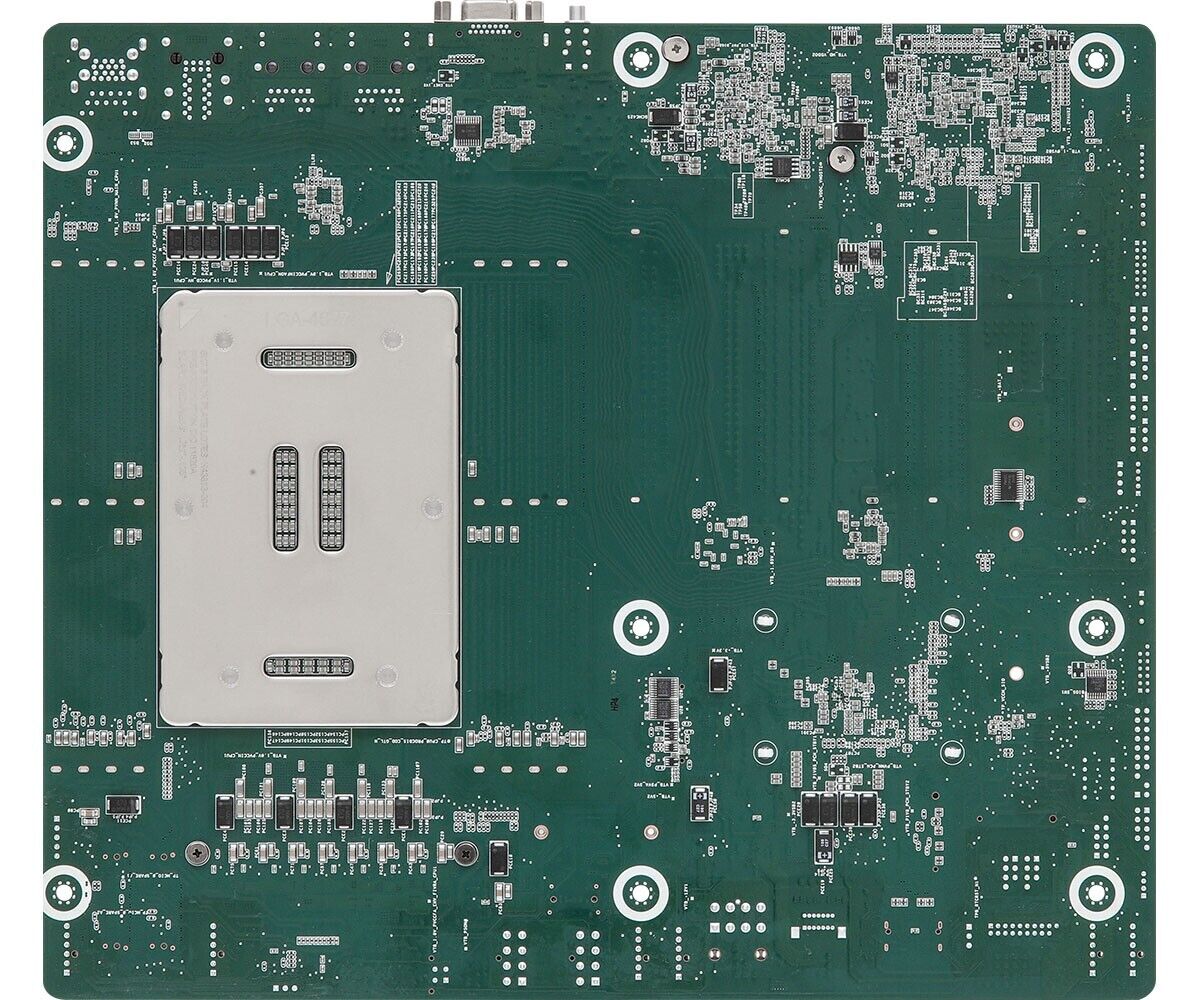

ASRock SPC741D8-2L2T/BCM MB CEB BCM C741 Xeon LGA4677 DDR5 M.2 SATA 10Gbe-RJ45

Physical Status

• Form Factor: CEB
• Dimensions: 12'' x 10.5'' (304.8 x 266.7 mm)

Processor System

• CPU: Supports 5th and 4th Gen Intel® Xeon® Scalable Processors
• Socket: Single Socket E (LGA 4677)
• Thermal Design Power: 350W
• Chipset: Intel® C741

System Memory

• Supported DIMM Quantity: 8 DIMM slots (1DPC)
• Supported Type: 288-pin DDR5 RDIMM/ RDIMM-3DS
• Max. Capacity per DIMM: RDIMM: 96GB
• RDIMM-3DS: 2H- 128 GB / 4H- 256 GB
• Max. DIMM Frequency: 5600 MT/s on 5th Gen Intel® Xeon® Scalable Processors
• 4800 MT/s on 4th Gen Intel® Xeon® Scalable Processors
• *Memory speed and capacity support varies by CPU SKU
• Voltage: 1.1V

PCIe Expansion Slots (SLOT7 close to CPU) PCIe x 16:

• SLOT7: PCIe5.0 / CXL1.1 x16 [CPU]
• SLOT5: PCIe5.0 / CXL1.1 x16 [CPU]
• SLOT3: PCIe5.0 / CXL1.1 x16 [CPU]
• SLOT1: PCIe5.0 / CXL1.1 x16 [CPU]

Other PCIe Expansion Connectors

• M.2 slot:
  • 1 M-key M2_1 (PCIe3.0 x4 or SATA 6Gb/s), supports 22110/2280/2242 form factor [PCH]
  • 1 M-key M2_2 (PCIe3.0 x4 or SATA 6Gb/s), supports 22110/2280 form factor [PCH]
• Others:
  • 2 MCIO (PCIe5.0 x8) [CPU]
  • 1 MCIO (PCIe3.0 x4 or SATA 6Gb/s) [PCH]

SATA/SAS Storage

• PCH Built-in Storage:
  • Intel® C741 (Up to 12 SATA 6Gb/s, support RAID 0/1/5/10):
  • 1 MCIO 4i for 4 SATA, 8 SATA via optional M2U2-HD-4G M.2 device

 Ethernet GbE Controller:

• 2 RJ45 (1GbE) by Intel® i210
• 2 RJ45 (10GbE) by Broadcom BCM57416

Server Management

• BMC Controller: ASPEED AST2600: IPMI2.0 with iKVM and vMedia support
• IPMI Dedicated GLAN: 1 RJ45 Dedicated IPMI LAN port by Realtek RTL8211F

Graphics Controller:

• ASPEED AST2600:
• 1 DB15 (VGA)

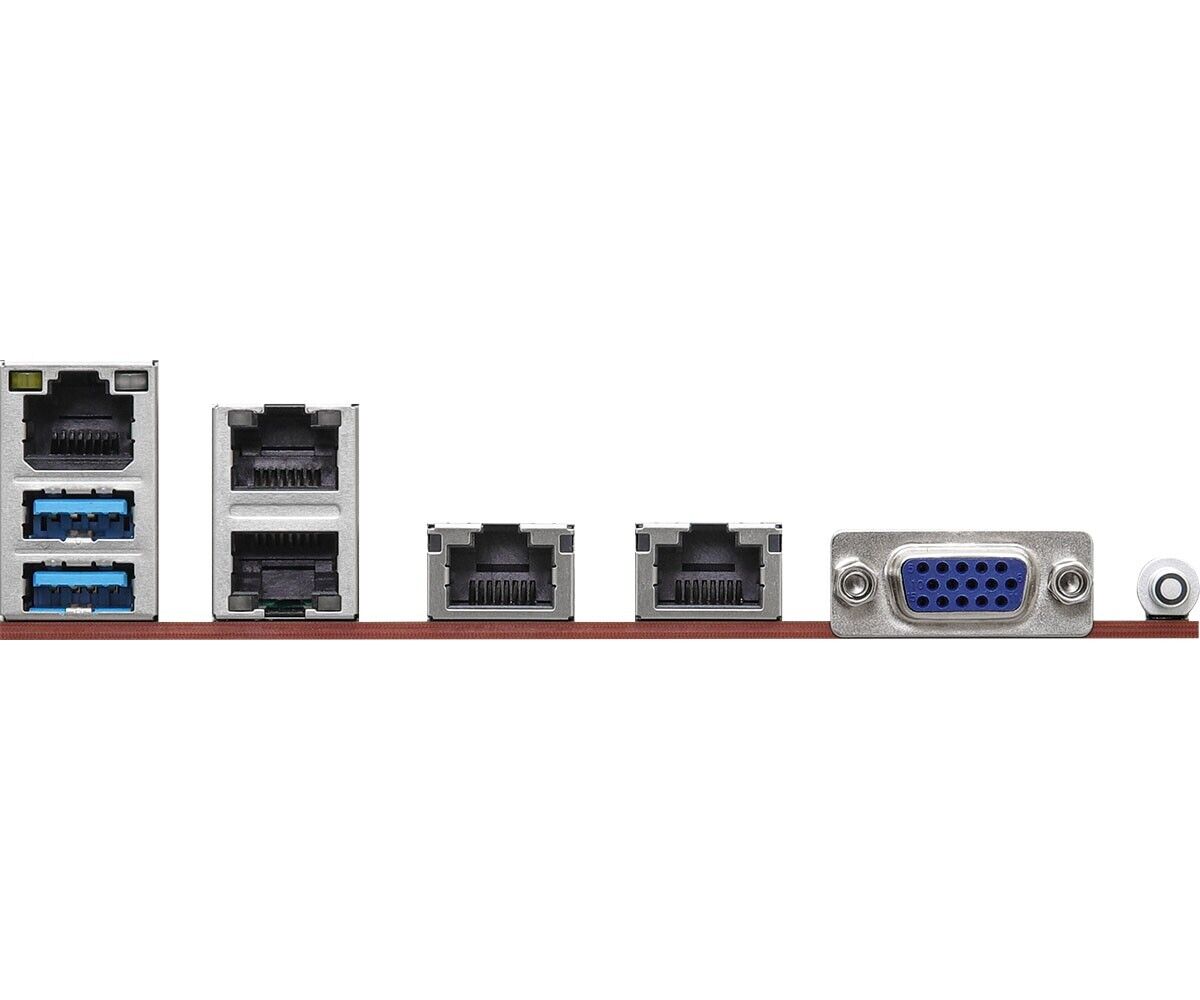

Rear I/O

• UID Button/LED: 1 UID button w/ LED
• VGA Port: 1 DB15 (VGA)
• USB 3.2 Gen1 Port: 2 Type-A (USB3.2 Gen1)
• RJ45: 2 RJ45(10GbE), 2 RJ45(1GbE), 1 dedicated IPMI

Internal Connector/Headers

• Power Connector: 1 Micro-Fit (4-pin, ATX PSU signal), 3 (8-pin, ATX 12V)
• Auxiliary Panel Header: 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
• System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
• COM Header: 1 (9-pin)
• Speaker Header: 1 (4-pin)
• Fan Header: 6 (6-pin)
• Thermal Sensor Header: 1
• TPM Header: 1 (13-pin, SPI)
• VROC header: 1
• SGPIO Header: 2
• HSBP: 1
• SMBus header: 1
• PMBus header: 1
• IPMB Header: 1
• Clear CMOS: 1 (contact pads)
• Front Lan LED Connector: 1
• USB 3.2 (Gen1) Header: 1 (19-pin, 2 USB3.2 Gen1)
• USB 2.0 Header: 1 (9-pin, 2 USB2.0)
• NMI Header: 1

LED Indicators

• Standby PWR LED: 1
• 80 Debug Port LED: 1
• Fan Fail LED: 6
• BMC heartbeat LED: 1

System BIOS

• BIOS Type: AMI 256Mb SPI Flash ROM
• BIOS Features: Plug and Play (PnP), ACPI 4.0 and above compliance wake up events, SMBIOS 3.4 and above, ASRock Rack Instant Flash

Hardware Monitor

• Temperature: CPU, MB, Card side, TR1 Temperature sensing
• Fan:
  • Fan Tachometer
  • CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
  • Fan Multi-Speed Control
• Voltage: CPU1_PVCCIN, 1.05V_PCH, 1.8V_PCH, +BAT, PVNN_PCH, 3.3V, 5V, 12V, 3.3VSB, 5VSB, +12V, +12VSB

 Environment

• Temperature: Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
• Humidity: Non operation humidity: 20% ~ 90% ( Non condensing)
