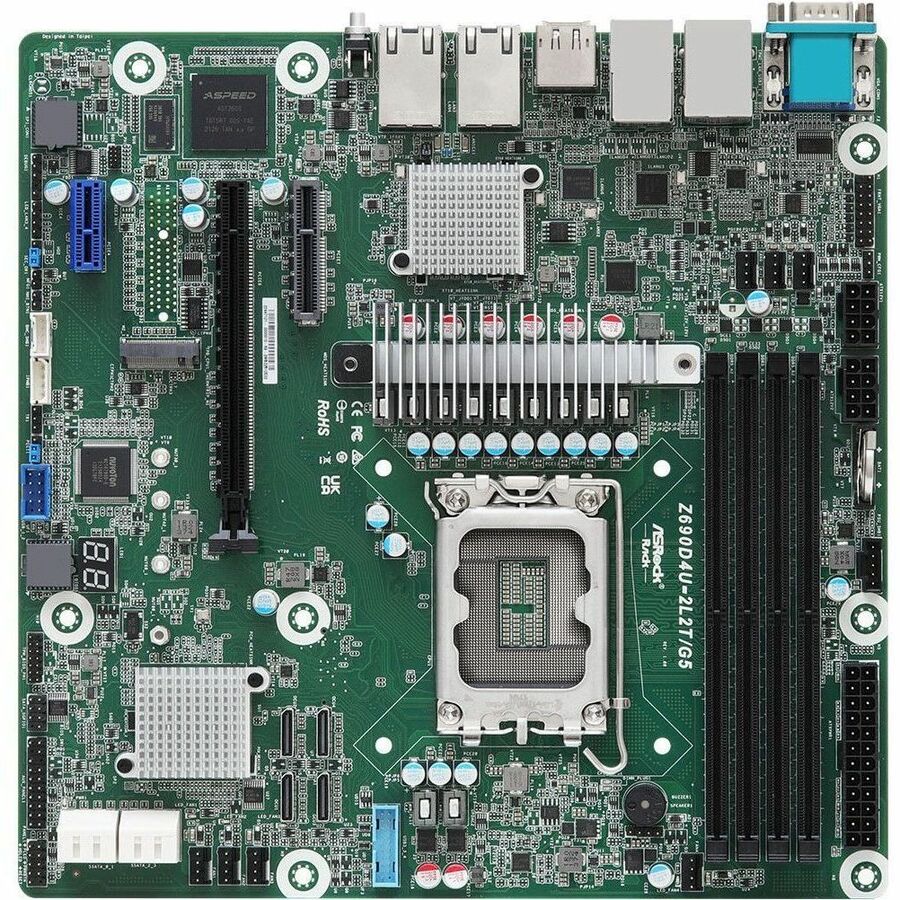

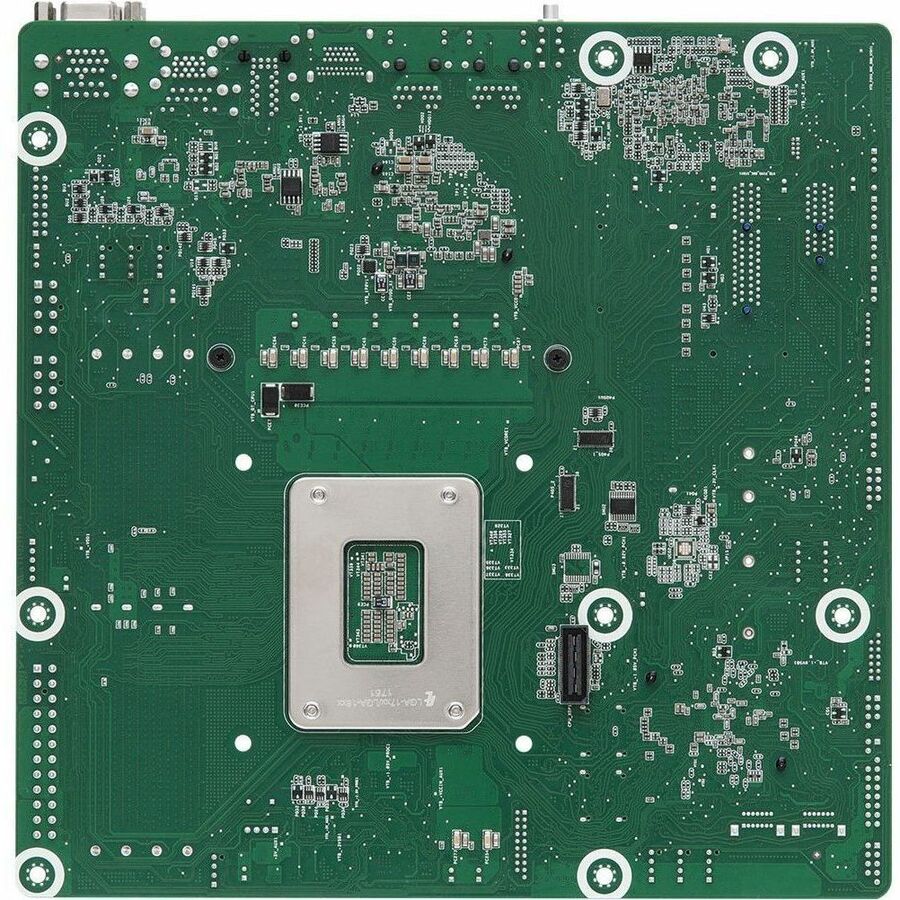

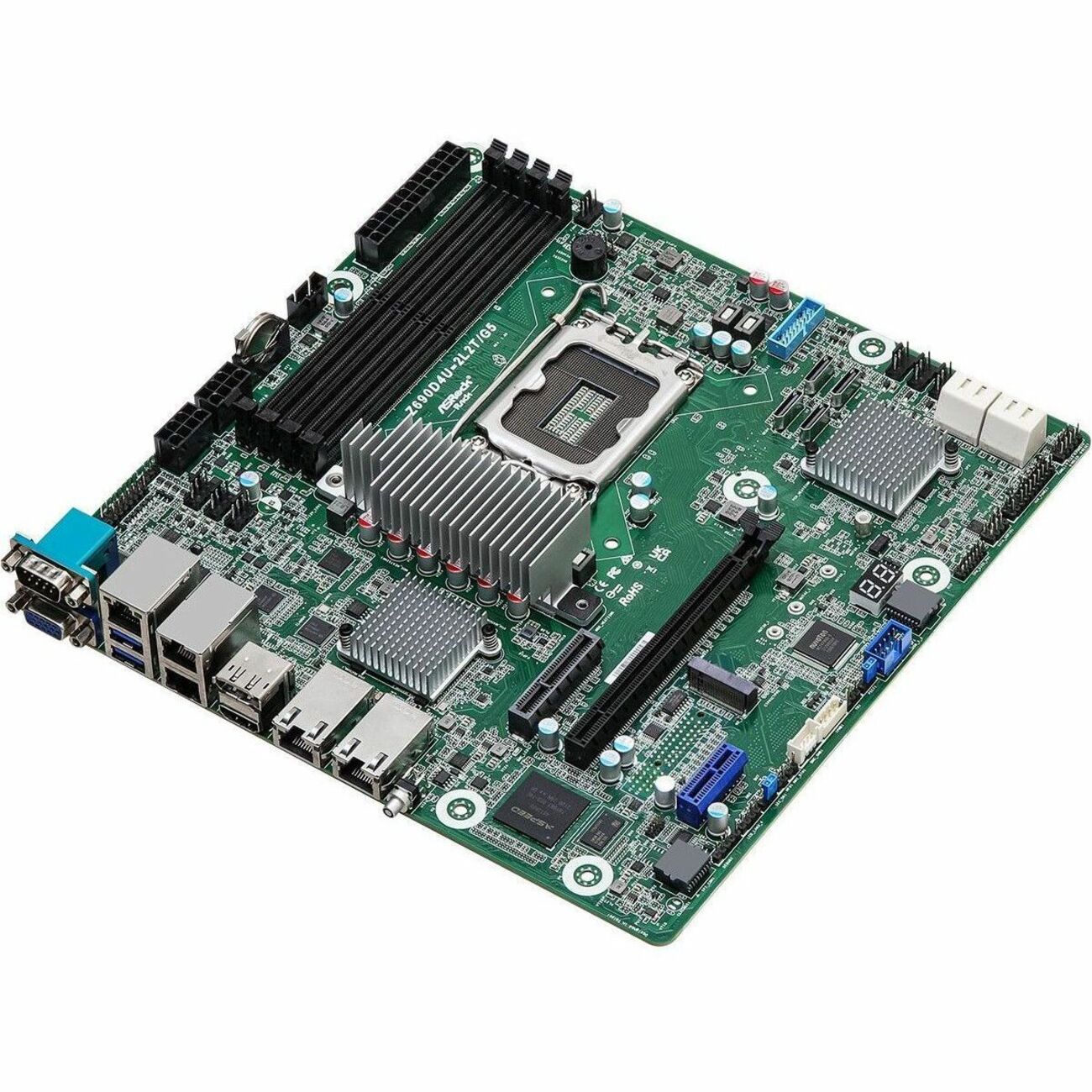

Asrock Z690D4U-2L2T/G5 Z690 LGA1700 DDR5 RAID 10G-LAN VGA HDI- DP Server mATX MB

ASRock Rack Z690D4U-2L2T/G5 Server Motherboard - Intel Z690 Chipset - Socket LGA-1700 - Micro ATX
Core, Pentium, Celeron Processor Supported - 48 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 8 x SATA Interfaces

• Micro-ATX (9.6" x 9.6")
• Supports Intel®Core™ 14th Gen, 13th & 12th Gen Intel®Core™, Pentium®and Celeron®series processors
• 4 DIMM slots (2DPC), supports DDR5 non-ECC UDIMM
• 1 PCIe5.0 x16, 1 PCIe4.0 x4, 1 PCIe3.0 x1
• 3 OCuLink (PCIe4.0 x4), 1 OCuLink (PCIe4.0 x4 or 4 SATA 6Gb/s)
• Supports 1 M.2 (PCIe3.0 x4)

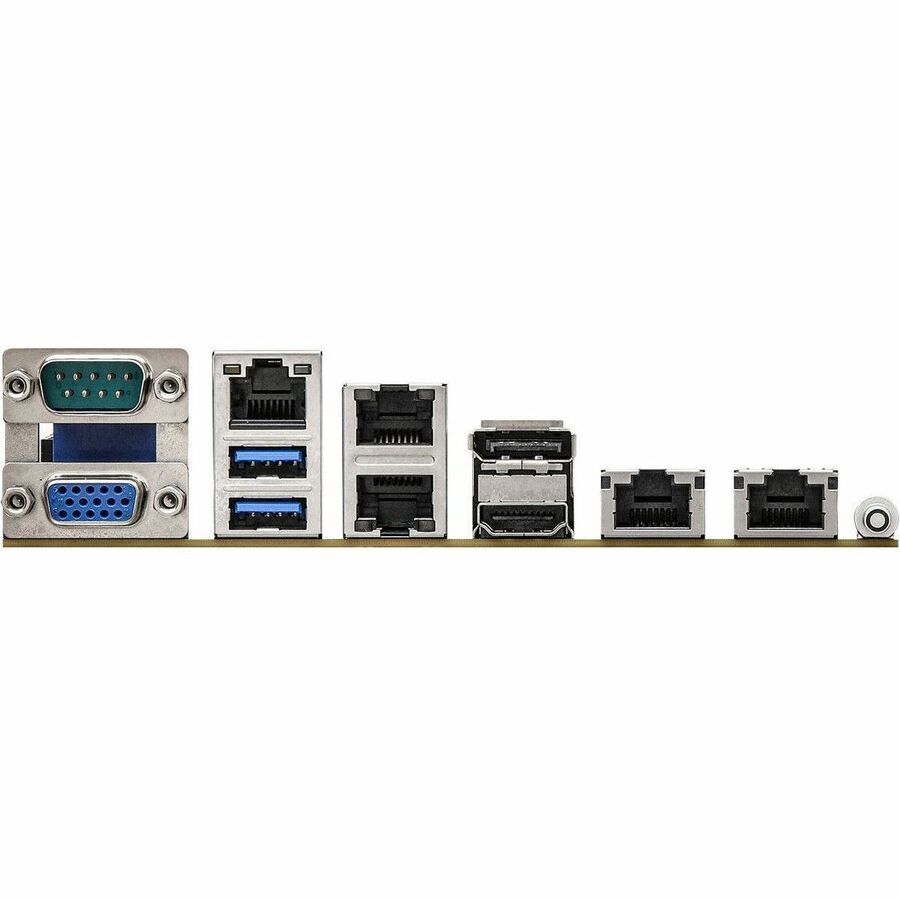

• 2 RJ45 (10GbE) by Intel®X710
• 2 RJ45 (1GbE) by Intel®i210
• Up to 8 SATA 6Gb/s
• 1 VGA, 1 HDMI, 1 DisplayPort
• Remote Management (IPMI)

TECHNICAL SPECS

• Chipset Manufacturer: Intel
• Chipset Model: Z690
• Total Processor Supported: 1
• Processor Socket: Socket LGA-1700
• Processor Generation Supported
  • 14th Gen
  • 13th Gen
  • 12th Gen
• Processor Supported
  • Core
  • Pentium
  • Celeron
• Number of Memory Slots4
• Memory Form Factor
  • DIMM
  • UDIMM
• Maximum Memory Supported: 48 GB
• Memory Technology: DDR5 SDRAM
• Memory Speed Supported
  • 4400 MHz
  • 4000 MHz
  • 3600 MHz
• Controller Type: Serial ATA/600
• RAID Supported: Yes
• RAID Levels
  • 0
  • 1
  • 5
  • 10
• Onboard Video: CPU Dependent Video
• Graphics Controller Model: AST2600
• Gigabit Ethernet: Yes
• 10Gigabit Ethernet: Yes
• Total Number of Expansion Slots: 3
• PCI Express Standard
  • PCI Express 3.0
  • PCI Express 4.0
  • PCI Express 5.0
• Total Number of PCI Express Slots: 3
• Number of PCI Express x1 Slots: 1
• Number of PCI Express x4 Slots: 1
• Number of PCI Express x16 Slots: 1
• Total Number of USB Ports: 2
• Number of USB 3.2 Gen 1 Type-A Ports: 2
• VGAYes
• HDMIYes
• DisplayPortYes
• Number of Network (RJ-45) Ports4
• Number of SATA Interfaces8
• Number of M.2 Interfaces1
• Total Number of Onboard USB Ports4
• Number of Onboard USB 2.0 Ports2
• Form Factor: Micro ATX
• Width: 9.6"
• Depth: 9.6"
• Environmental Compliance
  • China Restriction of Hazardous Substances (China RoHS)
  • Restriction of Hazardous Substances (RoHS)
  • Taiwan Restriction of Hazardous Substances (Taiwan RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
