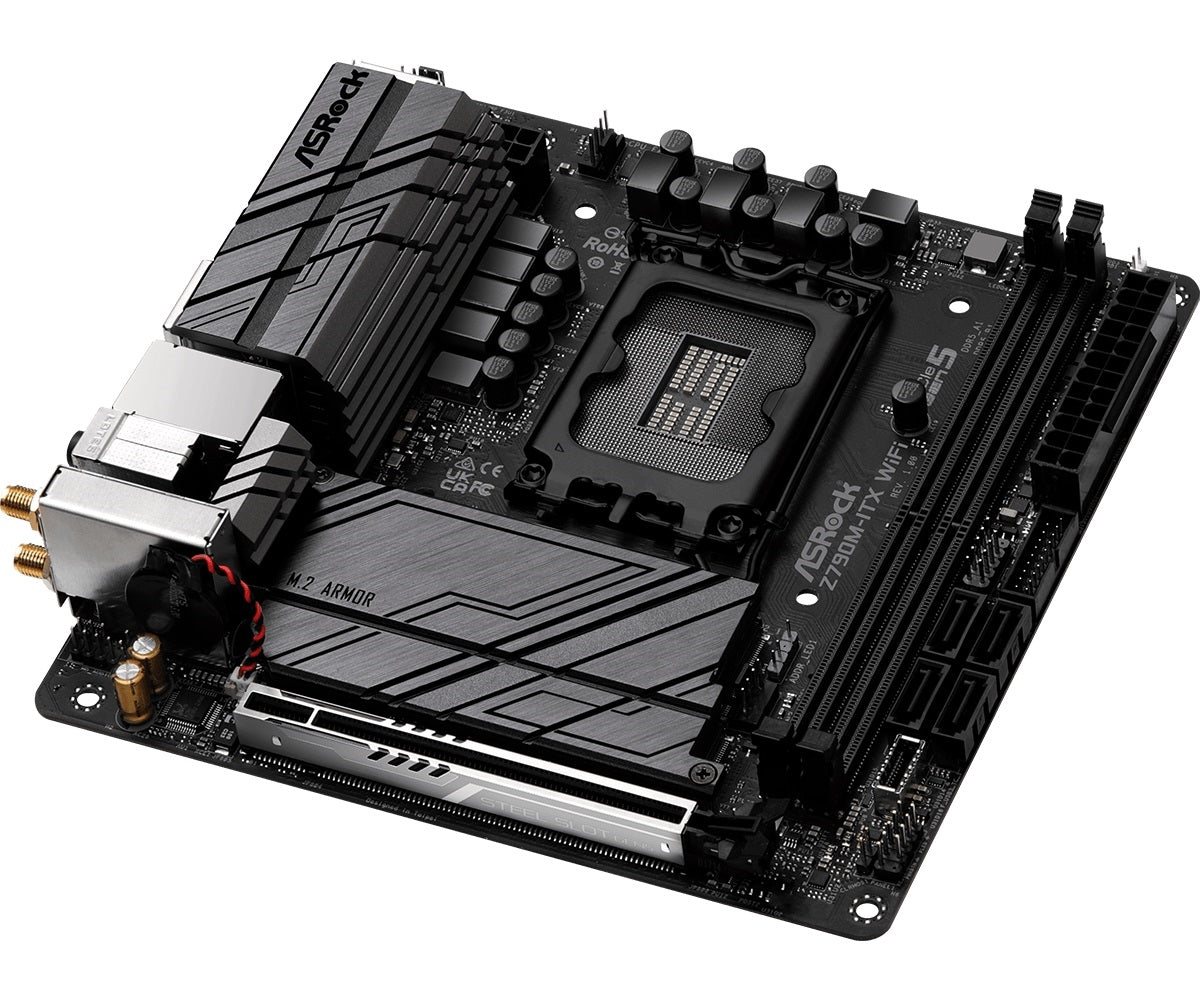

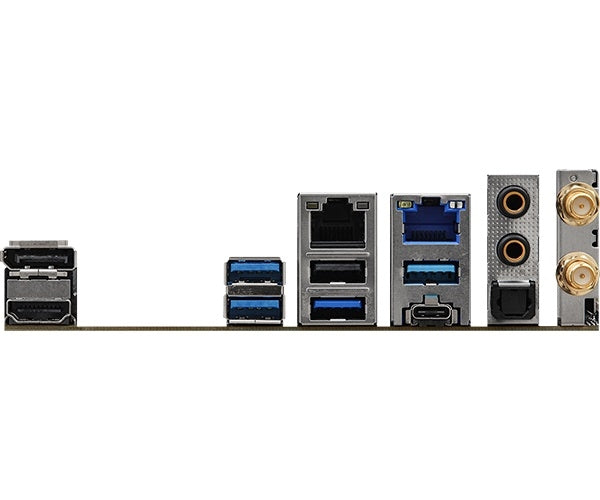

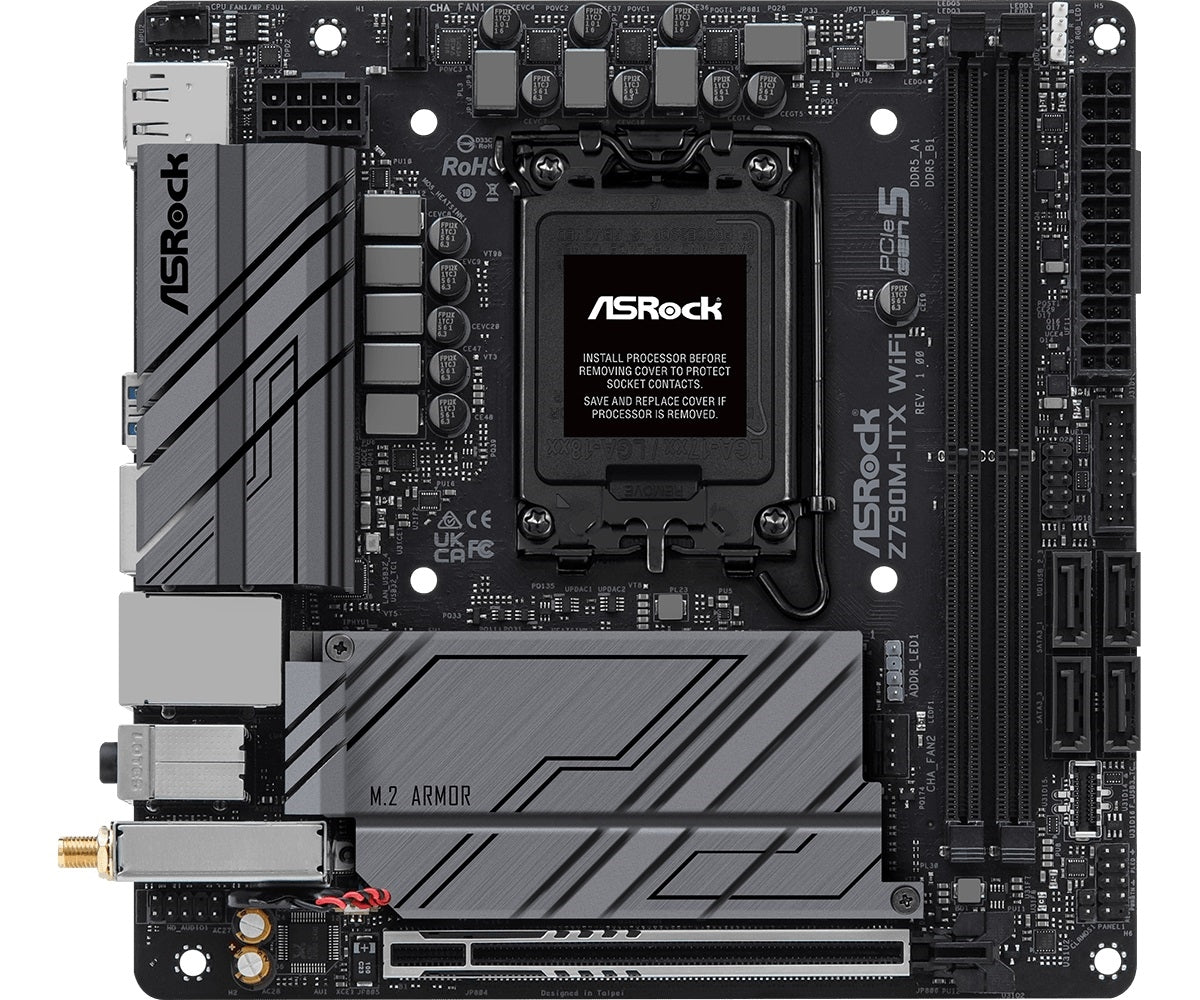

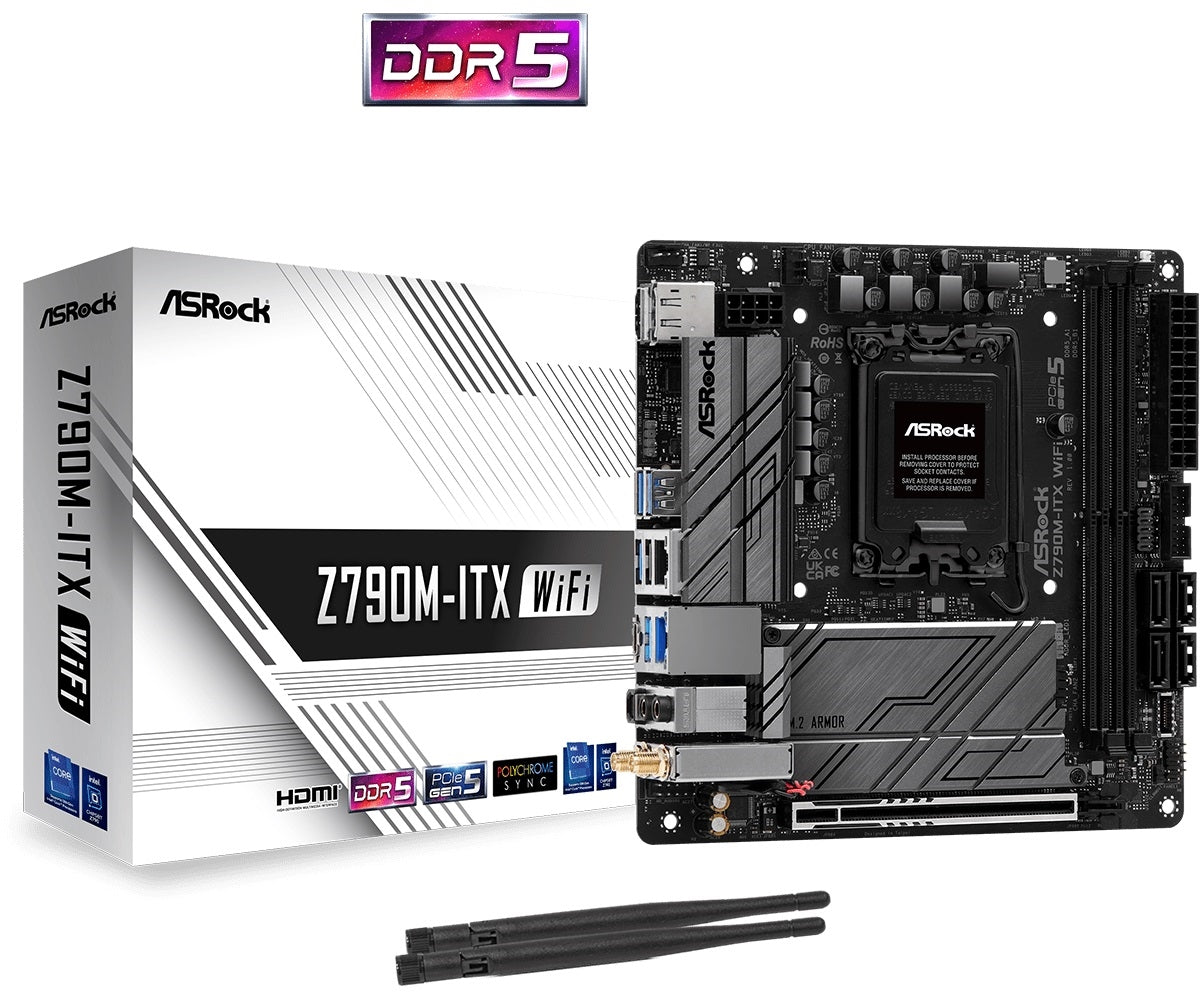

ASRock Z790M-ITX WiFi - Motherboard - mini ITX - LGA1700 Socket
$264.16 USD $264.16 USD $0.00 USD
Shipping calculated at checkout.
Out of stock
Description
SKU: 268003
MPN: Z790M-ITX WIFI

Detail Specifications:
CPU:
  • Supports 13th Gen and 12th Gen and next gen Intel CoreTM Processors (LGA1700)
  • Supports Intel Hybrid Technology
  • Supports Intel Turbo Boost Max 3.0 Technology
  • Supports Intel Thermal Velocity Boost (TVB)
  • Supports Intel Adaptive Boost Technology (ABT)
  • Chipset
  • Intel Z790
Memory:
  • Dual Channel DDR5 Memory Technology
  • 2 x DDR5 DIMM Slots
  • Supports DDR5 non-ECC, un-buffered memory up to 7000+(OC) 1
  • Max. capacity of system memory: 96GB
  • Supports Intel Extreme Memory Profile (XMP) 3.0
11DPC 1R Up to 7000+ MHz (OC), 5600 MHz Natively.
1DPC 2R Up to 5200+ MHz (OC), 5200 MHz Natively.

BIOS:
  • -128Mb AMI UEFI Legal BIOS with GUI support
Graphics:
  • Intel Xe Graphics Architecture (Gen 12)
  • 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz
  • 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
  • 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
1Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Audio:
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • Nahimic Audio
LAN:
  • 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Intel I226V)
  • 1 x Gigabit LAN 10/100/1000 Mb/s (Intel I219V)

..ja..
