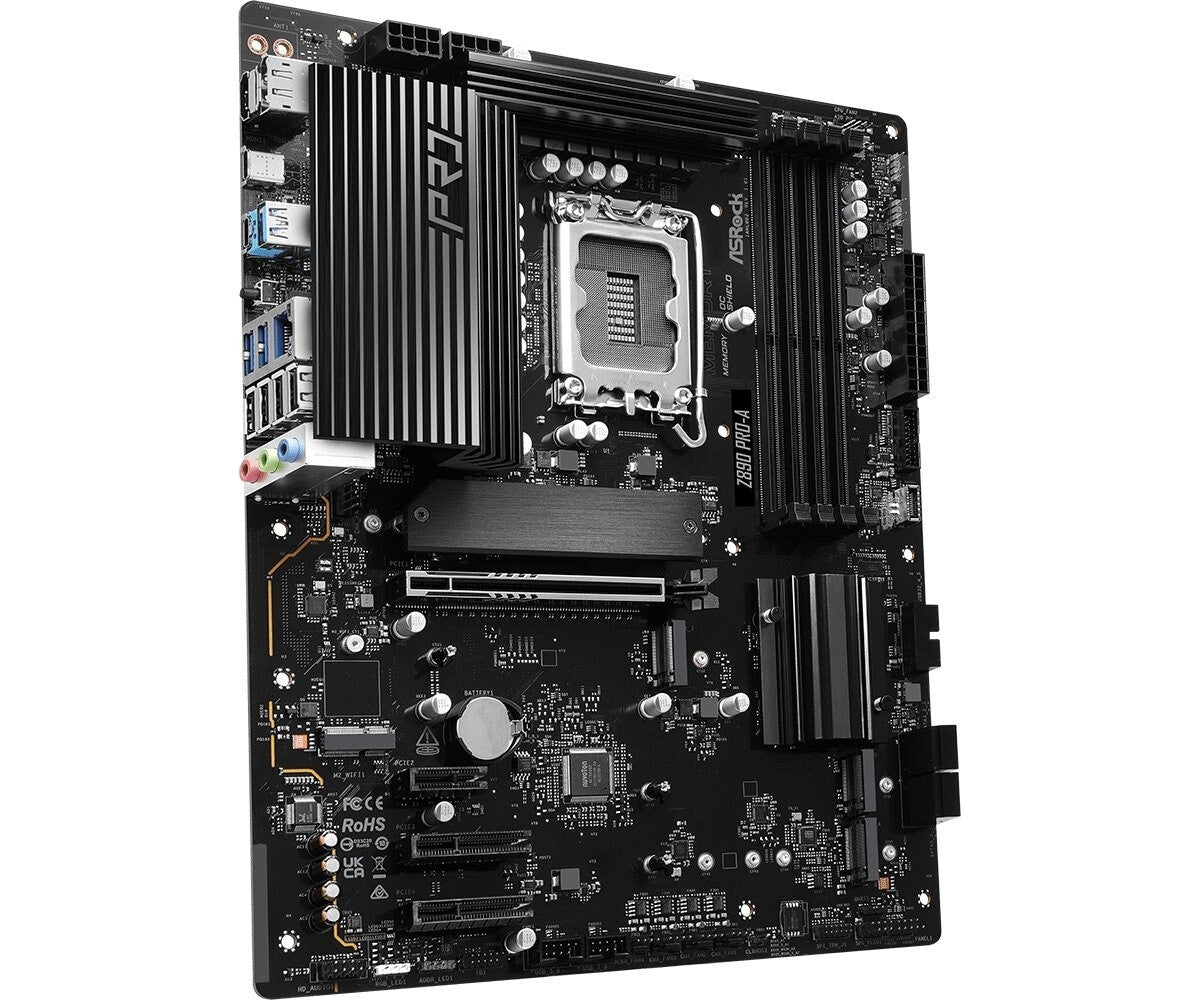

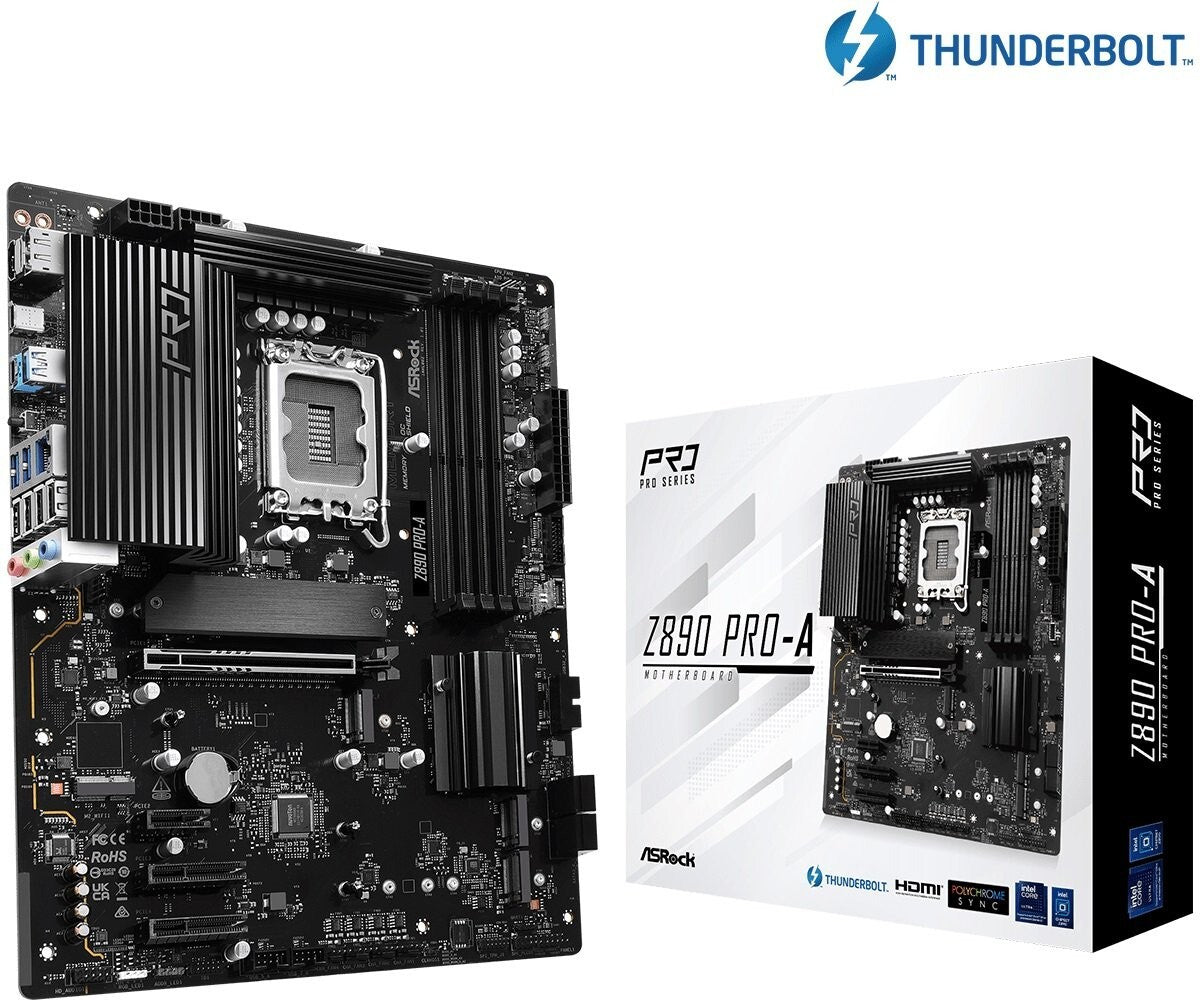

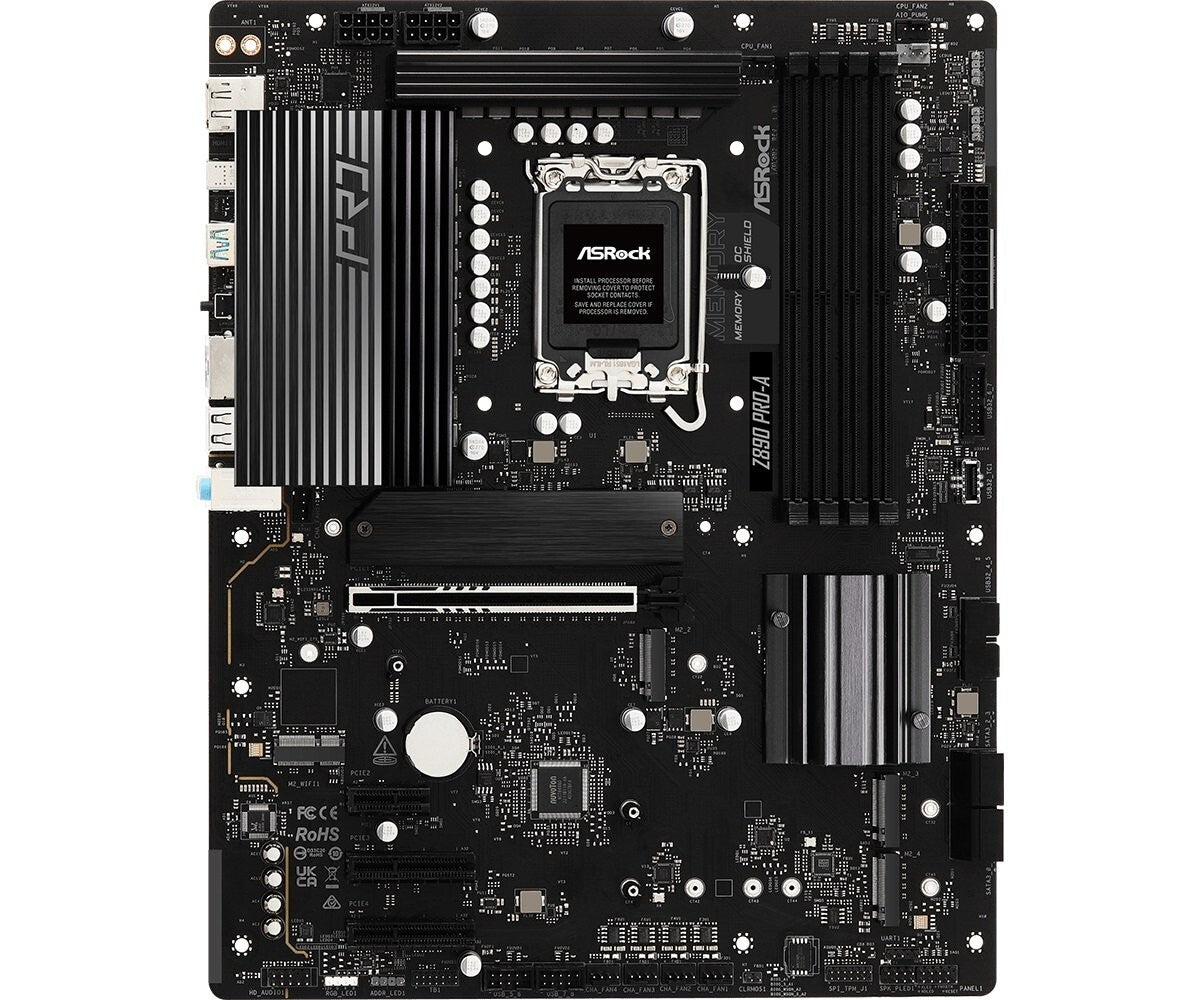

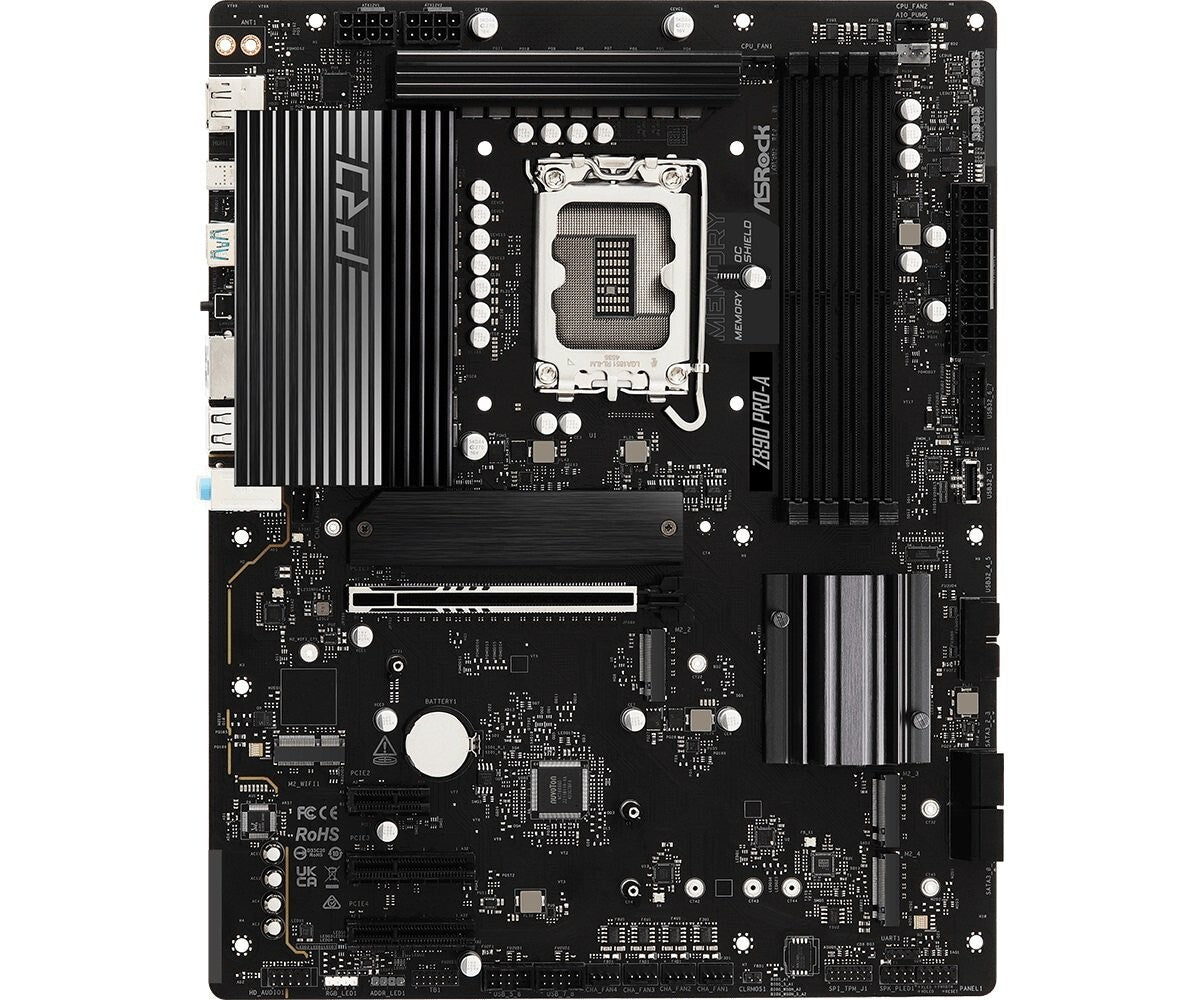

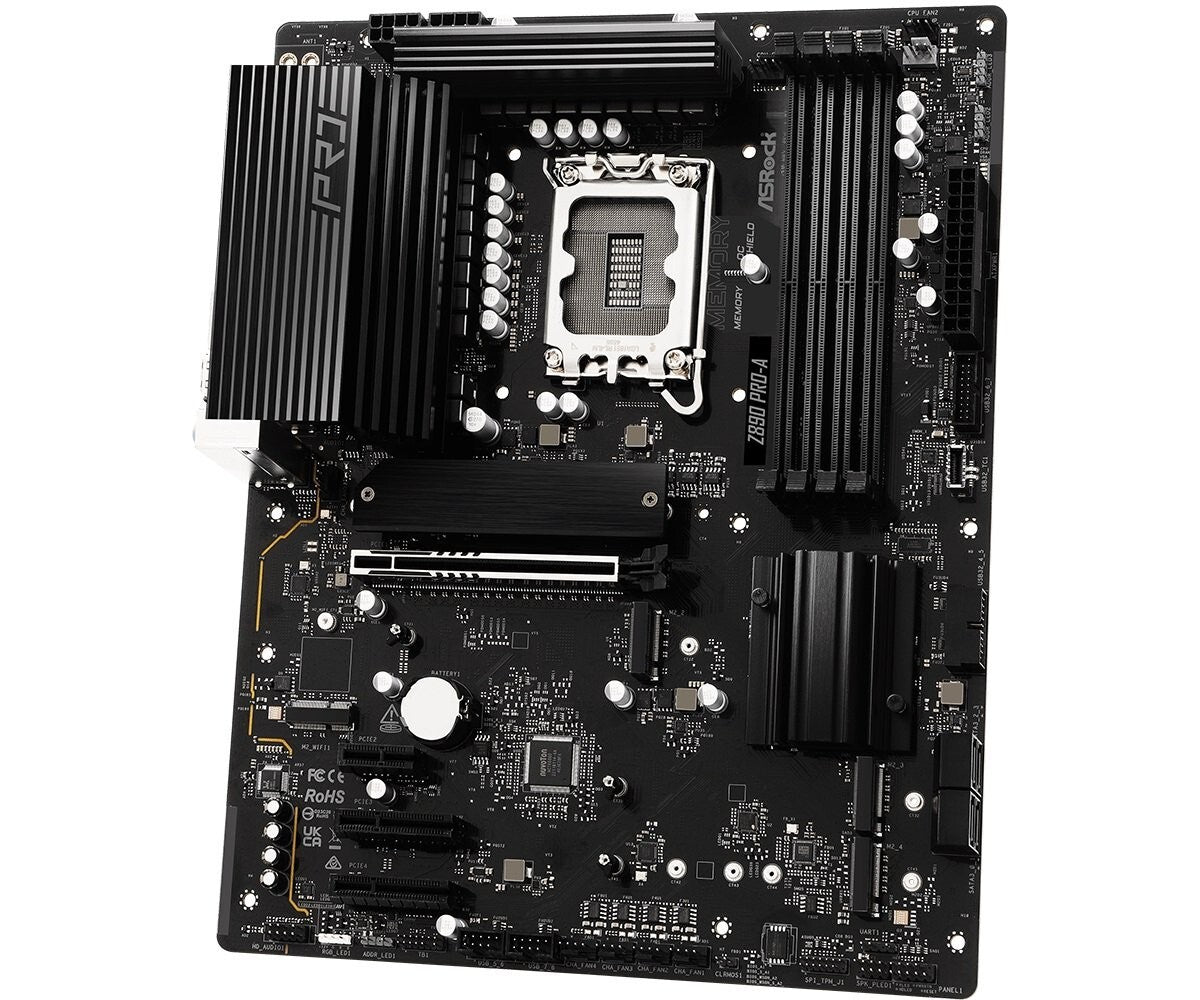

ASRock Z890 PRO-A LGA1851RL-ILM/ Intel Z890/ DDR5/ SATA3/ USB 3.2/ M.2/ ATX MB

MPN: Z890 PRO-A

Main Features

• Unique Feature
• Superb Productivity:
• PCIe Gen5 (Graphics, M.2)
• Dual Channel DDR5
• Thunderbolt 4 Type-C Port (40 Gb/s)
• Rock-Solid Durability:
• 16+1+1+1+1 Power Phase, Dr. MOS for VCore+GT
• Memory OC Shield
• Ultrafast Connectivity:
• 2.5G LAN
• EZ Update:
• BIOS Flashback Button
• ASRock Auto Driver Installer
• EZ Troubleshooter:
• ASRock Post Status Checker
• CPU
• Supports Intel Core Ultra Processors (Series 2) (LGA1851RL-ILM)
• Supports Intel Hybrid Technology
• Supports Intel Turbo Boost Max 3.0 Technology
• Supports Intel Thermal Velocity Boost (TVB)
• Supports Intel Adaptive Boost Technology (ABT)
• Integrated NPU for dedicated AI acceleration
• Chipset: Intel Z890
• Memory
• Dual Channel DDR5 Memory Technology
• 4 x DDR5 DIMM Slots
• Supports DDR5 non-ECC, un-buffered memory up to 9066MHz+(OC)
• Supports Clocked Unbuffered DIMM (CUDIMM)
• Max. capacity of system memory: 256GB
• Supports Intel Extreme Memory Profile (XMP) 3.0x
• BIOS: 256Mb AMI UEFI Legal BIOS with GUI support
• Graphics
• Intel Xe LPG Graphics Architecture
• 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
• 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
• 1 x Intel Thunderbolt 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
• Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• LAN
• 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
• Dragon RTL8125BG
• Supports Dragon 2.5G LAN Software
• Smart Auto Adjust Bandwidth Control
• Visual User Friendly UI
• Visual Network Usage Statistics
• Optimized Default Setting for Game, Browser, and Streaming Modes
• User Customized Priority Control
• Slots
• CPU: 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
• Chipset:
• 2 x PCIe 4.0 x4 Slots (PCIE3 and PCIE4), support x4 mode
• 1 x PCIe 4.0 x1 Slot (PCIE2)
• 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT)
• Storage
• CPU:
• 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
• 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
• Chipset:
• 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
• 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes
• 4 x SATA3 6.0 Gb/s Connectors
• RAID
• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
• USB
• CPU:
• 1 x Thunderbolt 4 Type-C (Rear)
• 1 x USB 3.2 Gen2x2 Type-C (Rear) Chipset:
• 1 x USB 3.2 Gen2x2 Type-C (Front)
• 1 x USB 3.2 Gen2 Type-A (Rear)
• 6 x USB 3.2 Gen1 (2 Rear, 4 Front)
• 8 x USB 2.0 (4 Rear, 4 Front)
• Connector
• 1 x SPI TPM Header
• 1 x Power LED and Speaker Header
• 1 x RGB LED Header
• 3 x Addressable LED Headers
• 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
• 5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
• 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
• 1 x 24 pin ATX Power Connector
• 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
• 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
• 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

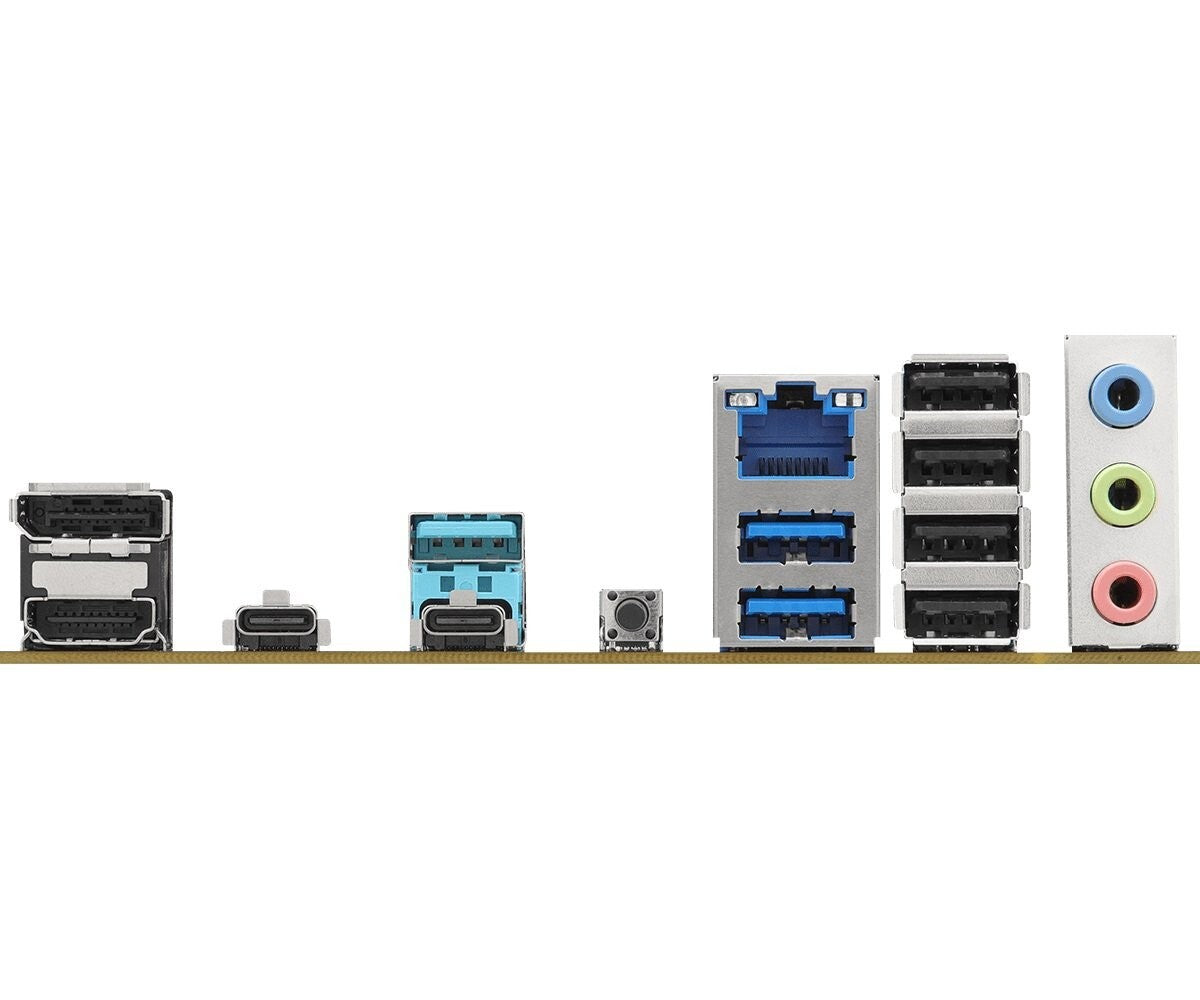

• Rear Panel I/O
• 2 x Antenna Mounting Points
• 1 x HDMI Port
• 1 x DisplayPort 1.4
• 1 x Thunderbolt 4 Type-C Port (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt protocol)
• 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
• 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
• 2 x USB 3.2 Gen1 Ports
• 4 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• 1 x BIOS Flashback Button
• HD Audio Jacks: Line in / Front Speaker / Microphone
• Software and UEFI
• Software:
• ASRock Motherboard Utility (A-Tuning)
• ASRock Dragon 2.5G LAN Software
• ASRock Polychrome SYNC
• UEFI:
• ASRock EZ Mode
• ASRock Full HD UEFI
• ASRock My Favorites in UEFI
• ASRock Auto Driver Installer
• ASRock Instant Flash
• Accessories
• 1 x I/O Shield
• 2 x SATA Data Cables
• 1 x Screw for M.2 Socket
• Form Factor
• ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
• 2oz Copper PCB
• OS: Microsoft Windows 11 64-bit
• Certifications
• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
