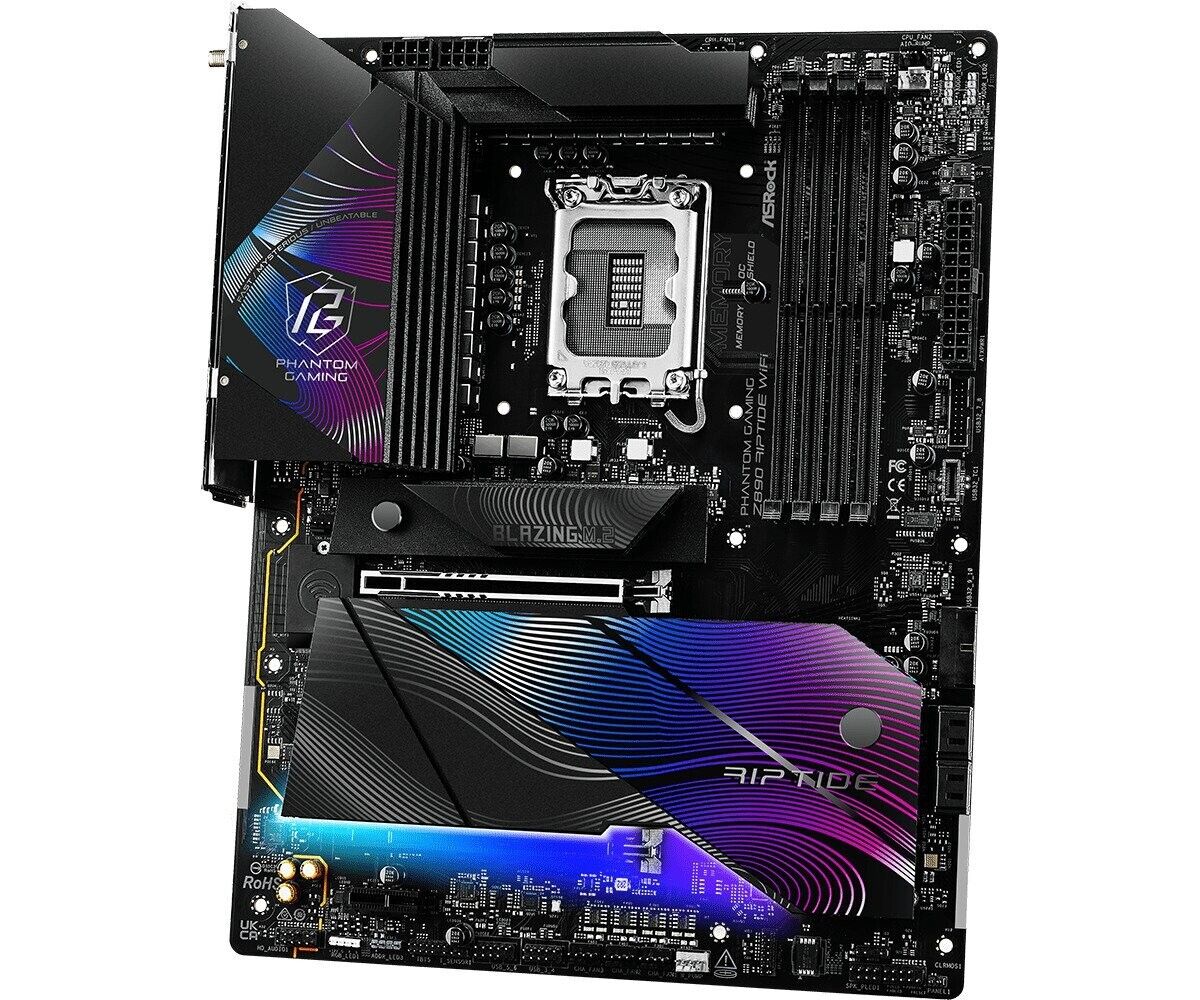

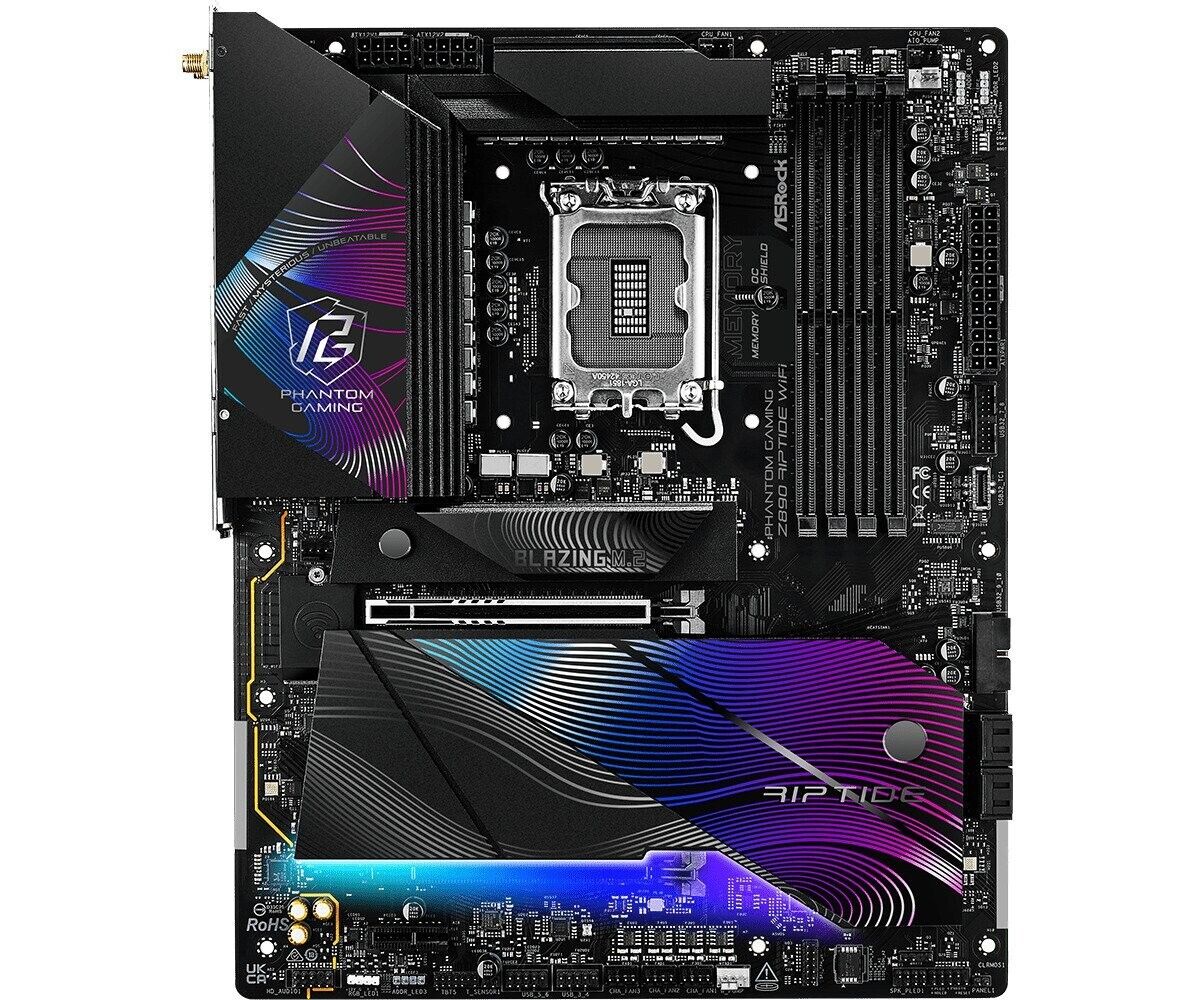

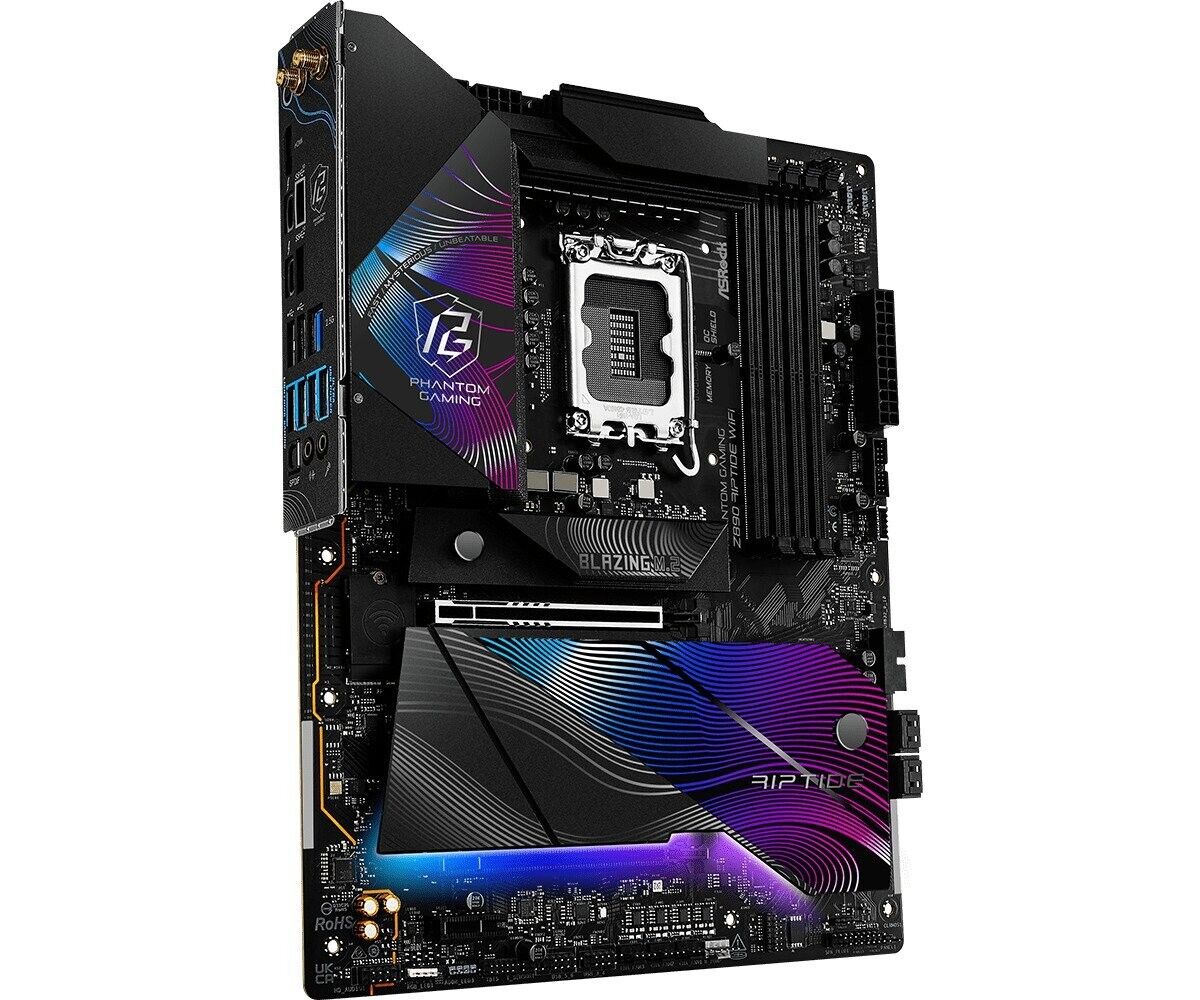

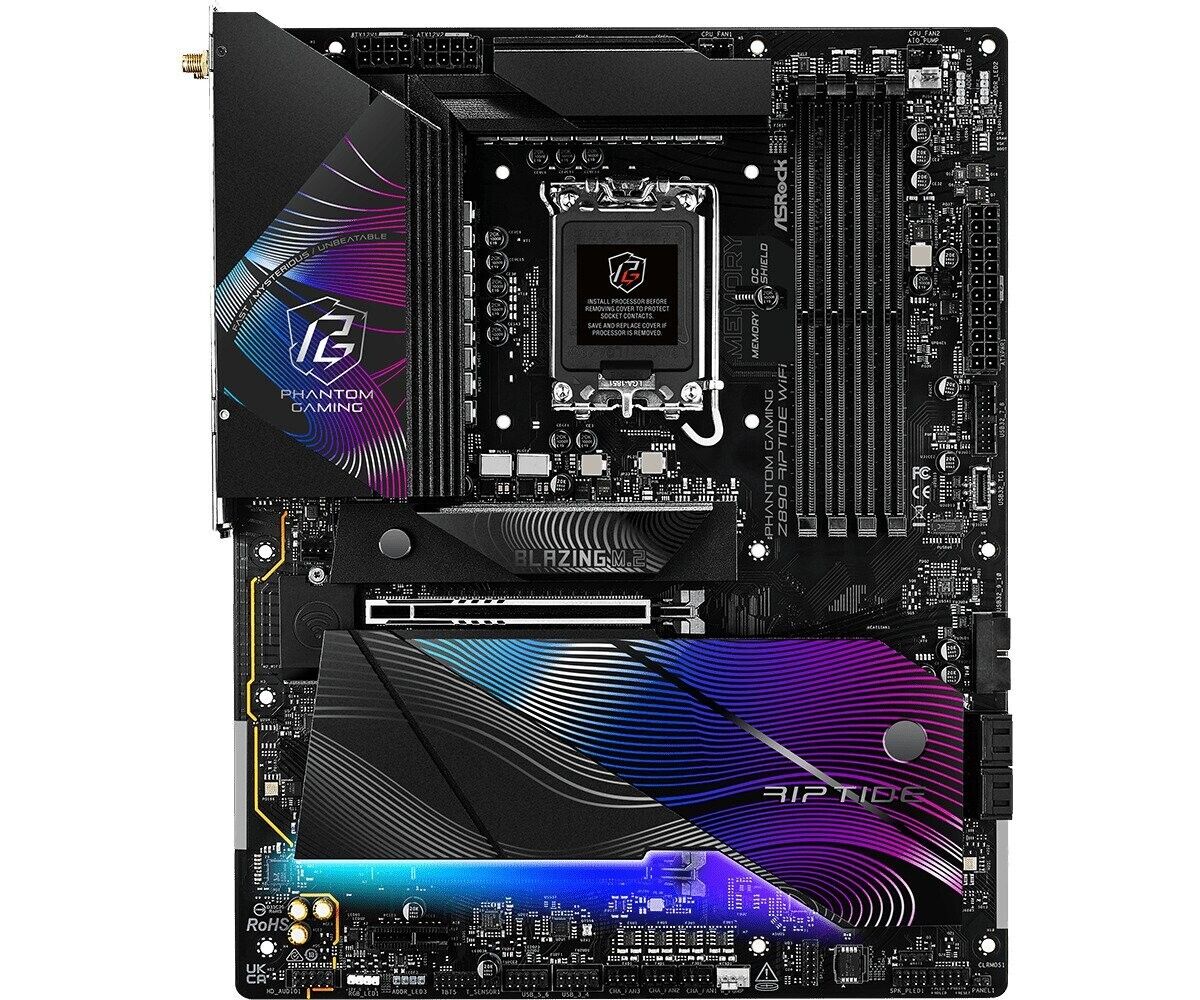

ASRock Z890 RIPTIDE WIFI LGA 1851 Intel Z890 DDR5 SATA 6G/s M.2 ATX Motherboard

MPN: Z890 RIPTIDE WIFI

Main Features

• Unique Feature
• -Superb Productivity:
• -PCIe Gen5 (Graphics, M.2)
• -Dual Channel DDR5
• -Thunderbolt 4 Type-C Ports (40 Gb/s)
• -Rock-Solid Durability:
• -Server-Grade Low-Loss PCB
• -18+1+1+1+1 Power Phase, 80A SPS for VCore+GT+SA with Enlarged Heatsink Armor
• -Memory OC Shield
• -Flexible Integrated I/O Shield
• -20K Long-lasting Black Caps (high quality and conductive polymer capacitors)
• -Ultrafast Gaming:
• -Killer 2.5G LAN, 802.11be Wi-Fi 7 Module
• -ASRock Lightning Gaming Ports
• -EZ Update:
• -BIOS Flashback Button
• -ASRock Auto Driver Installer
• -EZ Troubleshooter:
• -ASRock Post Status Checker
• CPU
• -Supports Intel Core Ultra Processors (Series 2) (LGA1851)
• -Supports Intel Hybrid Technology-
• -Supports Intel Turbo Boost Max 3.0 Technology
• -Supports Intel Thermal Velocity Boost (TVB)
• -Supports Intel Adaptive Boost Technology (ABT)
• -Integrated NPU for dedicated AI acceleration
• Chipset: Intel Z890
• Memory
• -Dual Channel DDR5 Memory Technology
• -4 x DDR5 DIMM Slots
• -Supports DDR5 non-ECC, un-buffered memory up to 9466MHz+(OC)
• -Supports Clocked Unbuffered DIMM (CUDIMM)
• -Max. capacity of system memory: 256GB
• -Supports Intel Extreme Memory Profile (XMP) 3.0x
• BIOS: 256Mb AMI UEFI Legal BIOS with GUI support
• Graphics
• Intel Xe LPG Graphics Architecture
• 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
• 2 x Intel Thunderbolt 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
• Audio
• -7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
• -Impedance Sensing on Rear Out port
• -Individual PCB Layers for R/L Audio Channel
• -Nahimic Audio
• LAN
• -2.5 Gigabit LAN 10/100/1000/2500 Mb/s
• -Killer E3100G
• -Supports Killer LAN Software
• Wireless LAN
• -802.11be 2x2 Wi-Fi 7 Module
• -Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
• -Supports 2.4GHz/5GHz/6GHz frequency band
• -Supports 320MHz channel bandwidth with 6GHz frequency band
• -1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
• -Supports Bluetooth 5.4
• -Supports MU-MIMO
• Slots
• -CPU:
• -1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
• -Chipset:
• -1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode
• -1 x PCIe 4.0 x1 Slot (PCIE3)
• -1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT)
• Storage
• -CPU:
• -1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
• -1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
• -Chipset:
• -1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
• -1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
• -1 x Hyper M.2 Socket (M2_5, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes
• -4 x SATA3 6.0 Gb/s Connectors
• RAID
• -Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• -Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
• USB
• -CPU:
• -2 x Thunderbolt 4 Type-C (Rear)
• -Chipset:
• -1 x USB 3.2 Gen2x2 Type-C (Front)
• -2 x USB 3.2 Gen2 Type-A (Rear)
• -8 x USB 3.2 Gen1 (4 Rear, 4 Front)
• -6 x USB 2.0 (2 Rear, 4 Front)
• Connector
• -1 x Thermistor Cable Header
• -1 x SPI TPM Header
• -1 x Power LED and Speaker Header
• -1 x RGB LED Header
• -3 x Addressable LED Headers
• -2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
• -4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
• -1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
• -1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
• -1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
• -2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
• -1 x Front Panel Audio Connector
• -2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
• -2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
• -1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

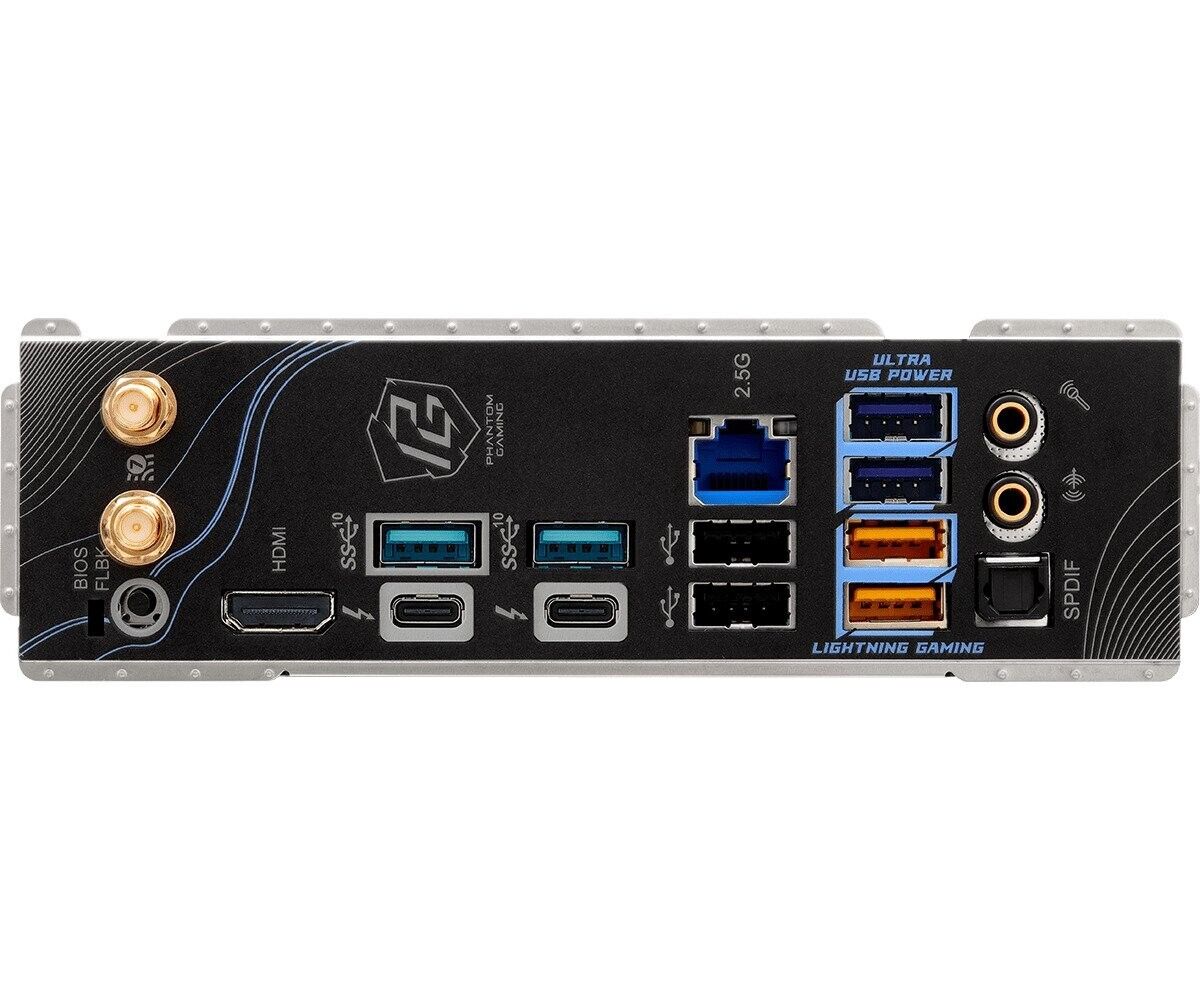

• Rear Panel I/O
• -2 x Antenna Ports
• -1 x HDMI Port
• -1 x Optical SPDIF Out Port
• -2 x Thunderbolt 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt protocol)
• -2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
• -4 x USB 3.2 Gen1 Ports
• -2 x USB 2.0 Ports
• -1 x RJ-45 LAN Port
• -1 x BIOS Flashback Button
• -1 x Line Out Jack (Gold Audio Jack)
• -1 x Microphone Input Jack (Gold Audio Jack)
• Software and UEFI
• -Software:
• -ASRock Motherboard Utility (Phantom Gaming Tuning)
• -Killer Control Center
• -ASRock Polychrome SYNC
• -UEFI:
• -ASRock EZ Mode
• -ASRock Full HD UEFI
• -ASRock My Favorites in UEFI
• -ASRock Auto Driver Installer
• -ASRock Instant Flash

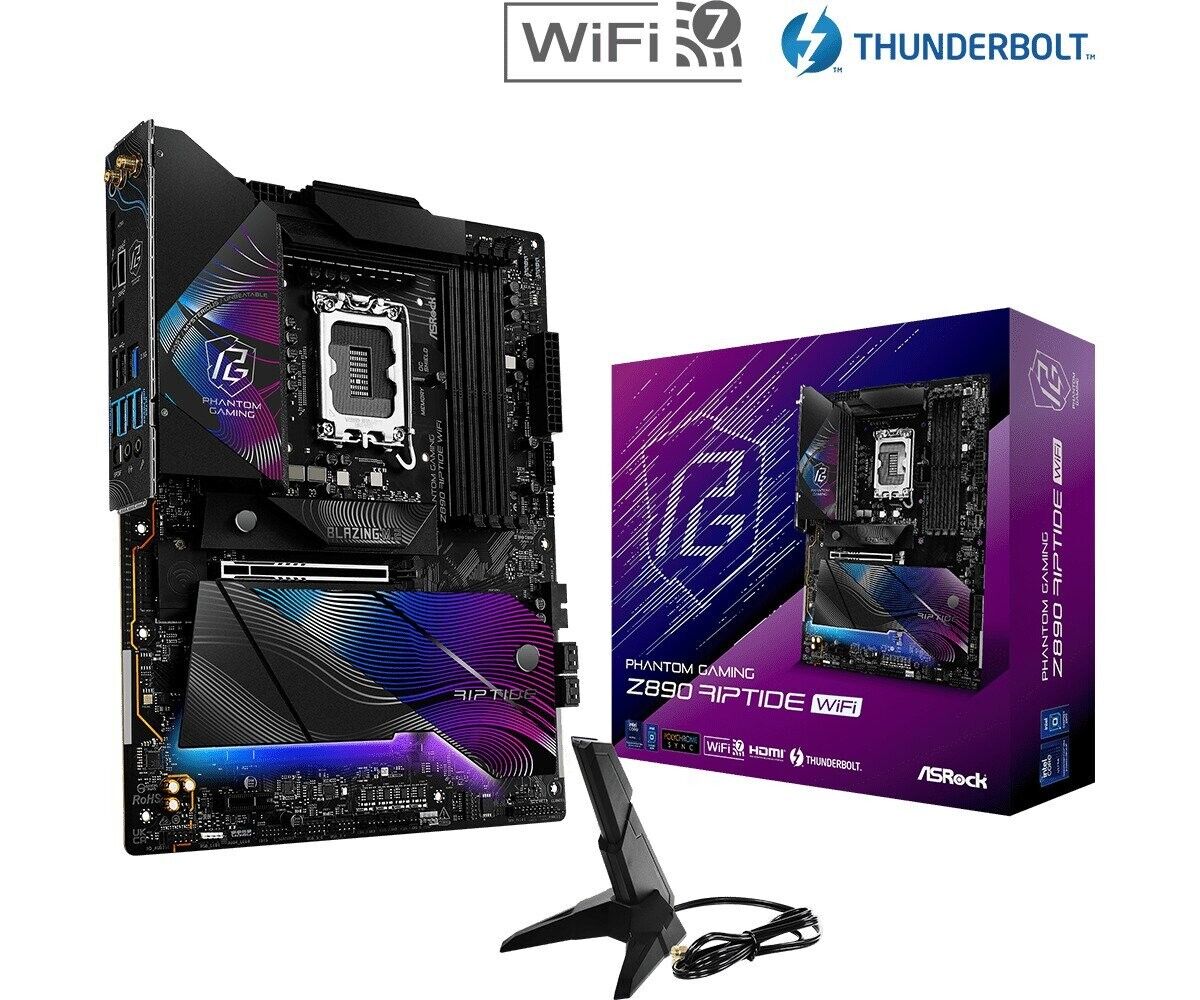

• Accessories
• -2 x SATA Data Cables
• -1 x ASRock WiFi 2.4/5/6 GHz Antenna
• -1 x ARGB Splitter Cable
• -1 x Thermistor Cable
• Form Factor
• -ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
• -2oz Copper PCB
• OS: Microsoft Windows 10 64-bit / 11 64-bit
• Certifications
• -FCC, CE
• -ErP/EuP ready (ErP/EuP ready power supply is required)
