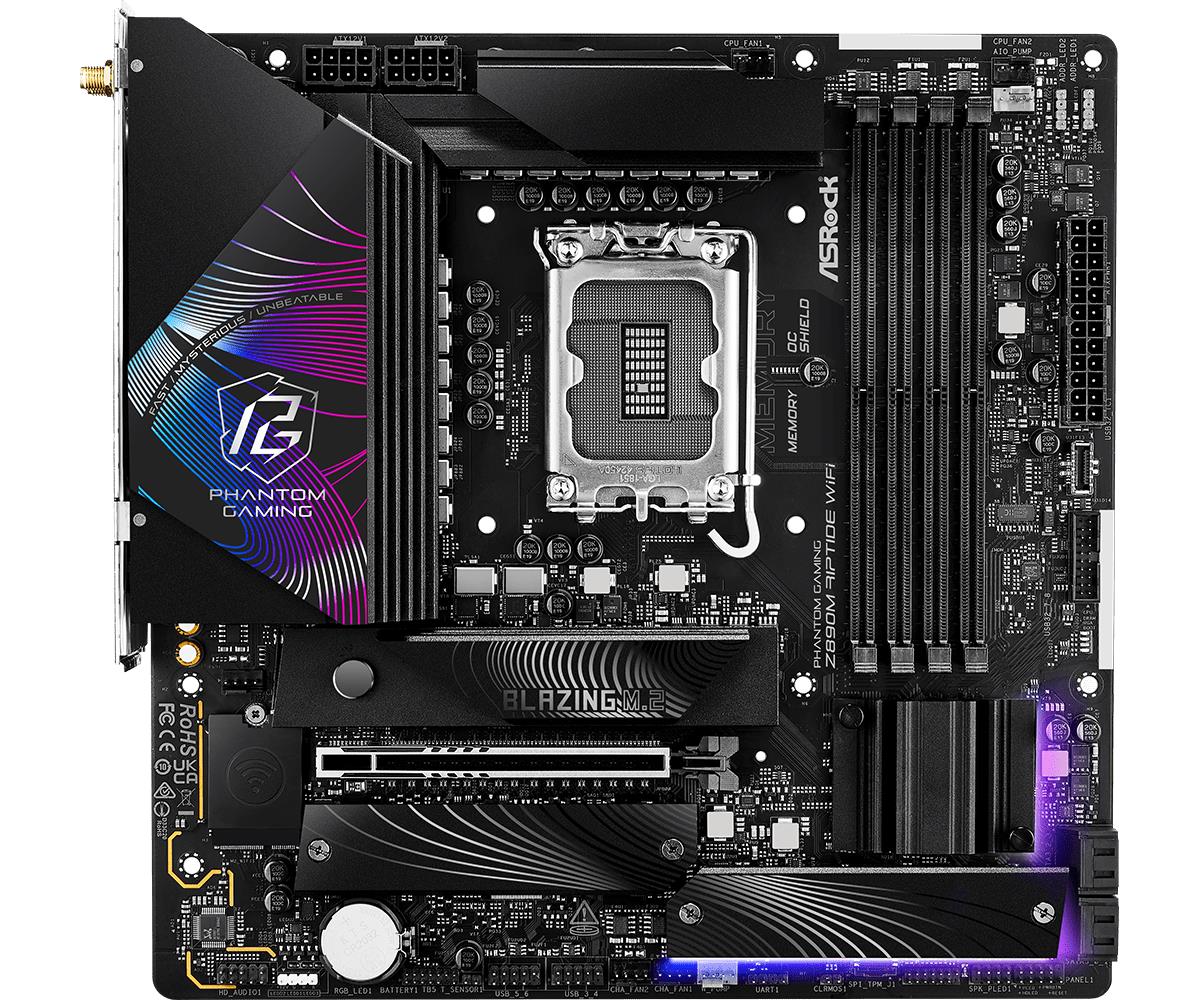

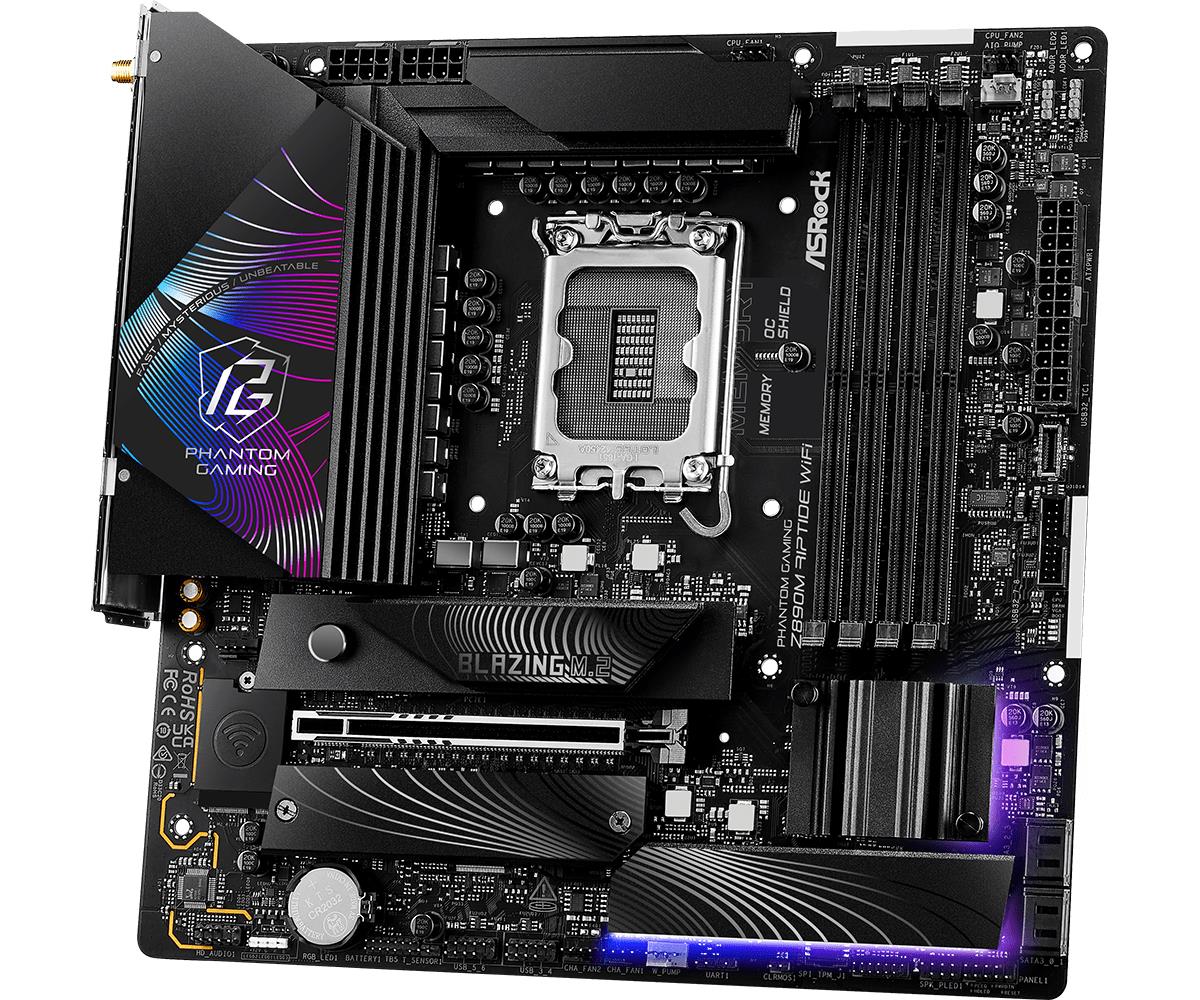

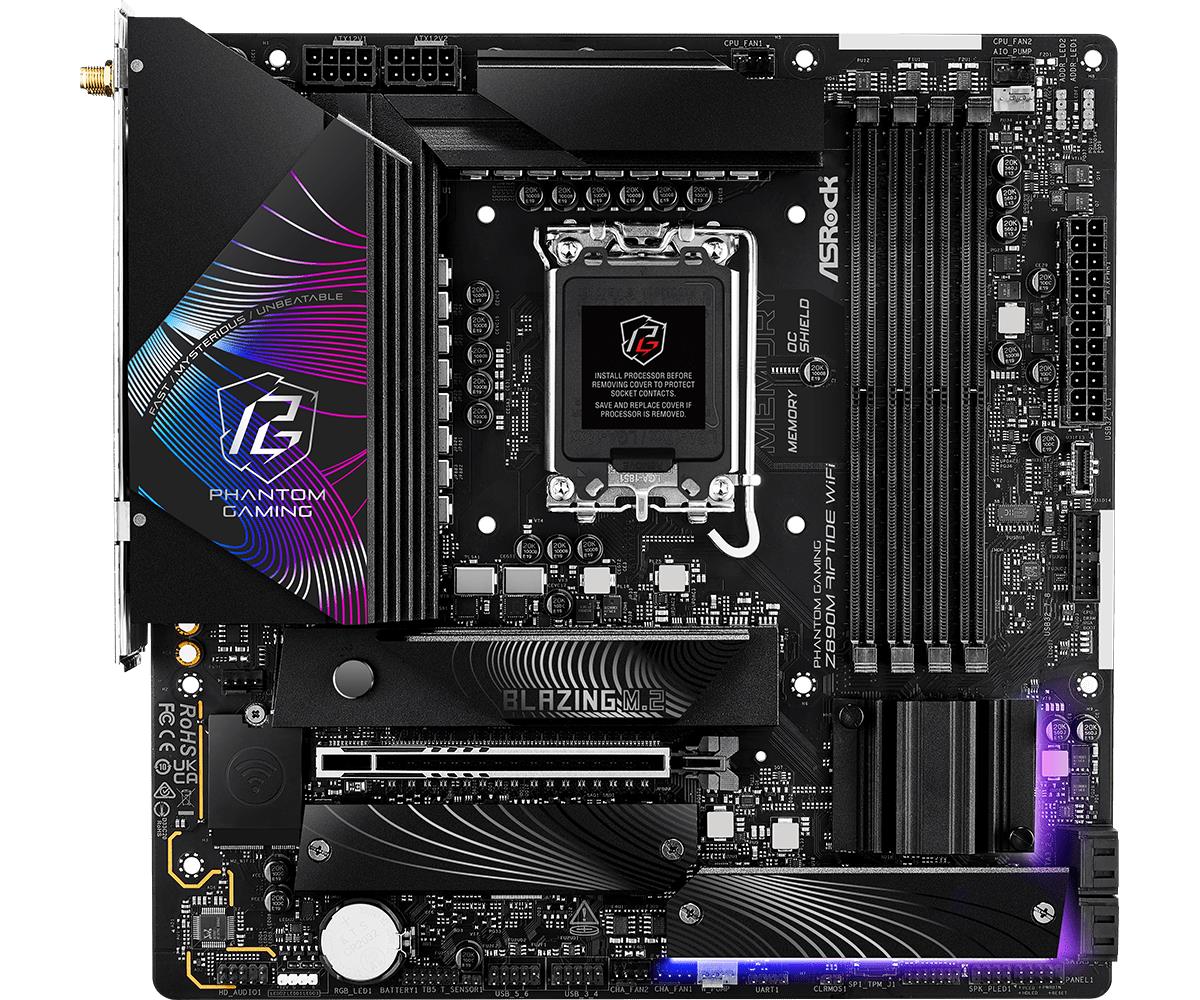

ASRock Z890M RIPTIDE WIFI MB Intel Core LGA1851 DDR5 2.5 LAN HDI- DP RAID mATX

Unique Feature

• Superb Productivity
  • PCIe Gen5 (Graphics, M.2)
  • Dual Channel DDR5
  • Thunderbolt™ 4 Type-C Ports (40 Gb/s)
• Rock-Solid Durability
  • Server-Grade Low-Loss PCB
  • 16+1+1+1+1 Power Phase, 80A Dr.MOS for VCore+GT+SA with Enlarged Heatsink Armor
  • Memory OC Shield
  • Flexible Integrated I/O Shield
  • 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)
• Ultrafast Gaming
  • Killer 2.5G LAN, 802.11axe Wi-Fi 6E Module
  • Killer DoubleShot™ Pro
• EZ Update
  • BIOS Flashback Button
  • ASRock Auto Driver Installer
• EZ Troubleshooter

CPU

• Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851RL-ILM)
• Supports Intel® Hybrid Technology
• Supports Intel® Turbo Boost Max 3.0 Technology
• Supports Intel® Thermal Velocity Boost (TVB)
• Supports Intel® Adaptive Boost Technology (ABT)
• Integrated NPU for dedicated AI acceleration

Chipset

• Intel® Z890

Memory

• Dual Channel DDR5 Memory Technology
• 4 x DDR5 DIMM Slots
• Supports DDR5 non-ECC, un-buffered memory up to 9466MHz+(OC)*
• Supports Clocked Unbuffered DIMM (CUDIMM)
• Max. capacity of system memory: 256GB
• Supports Intel® Extreme Memory Profile (XMP) 3.0x

BIOS

• 256Mb AMI UEFI Legal BIOS with GUI support

Graphics

• Intel® Xe LPG Graphics Architecture
• 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
• 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
• 2 x Intel® Thunderbolt™ 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz*

Audio

• 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• Nahimic Audio

LAN

• 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
• Killer E3100G
• Supports Killer LAN Software
• Supports Killer DoubleShot™ Pro

Wireless LAN

• 802.11axe Wi-Fi 6E Module
• Supports IEEE 802.11a/b/g/n/ac/ax/axe
• Supports Dual-Band 2x2 160MHz with extended 6GHz band support*
• 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
• Supports Bluetooth 5.3
• Supports MU-MIMO
• Supports Killer LAN Software
• Supports Killer DoubleShot™ Pro

Slots

• CPU:
  • 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
• Chipset:
  • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)

Storage

• CPU:
  • 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
  • 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
• Chipset:
  • 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
  • 4 x SATA3 6.0 Gb/s Connectors

RAID

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices*

USB

• CPU:
  • 2 x Thunderbolt™ 4 Type-C (Rear)
• Chipset:
  • 1 x USB 3.2 Gen2x2 Type-C (Front)
  • 2 x USB 3.2 Gen2 Type-A (Rear)
  • 6 x USB 3.2 Gen1 (4 Rear, 2 Front)
  • 6 x USB 2.0 (2 Rear, 4 Front)

Connector

• 1 x Thermistor Cable Header
• 1 x SPI TPM Header
• 1 x Power LED and Speaker Header
• 1 x RGB LED Header*
• 2 x Addressable LED Headers**
• 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***
• 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
• 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
• 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
• 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
• 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
• 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
• 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

* Supports in total up to 12V/3A, 36W LED Strip
** Support in total up to 5V/3A, 15W LED Strip
*** CPU_FAN1 supports the fan power up to 1A (12W).
CPU_FAN2, CHA_FAN1~3, AIO_PUMP and W_PUMP support the fan power up to 3A (36W).
CPU_FAN2, CHA_FAN1~3, AIO_PUMP and W_PUMP can auto detect if 3-pin or 4-pin fan is in use.

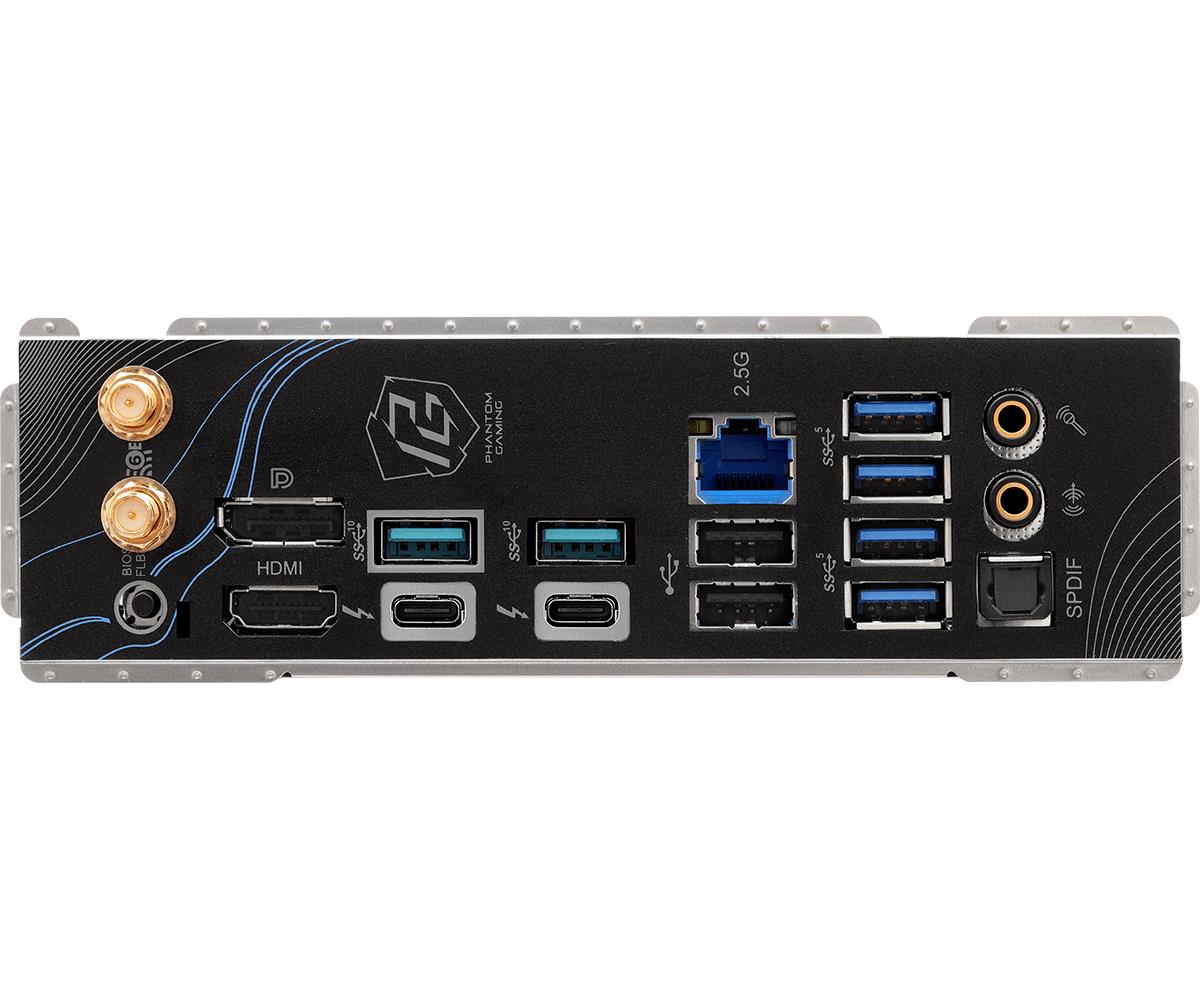

Rear Panel I/O

• 2 x Antenna Ports
• 1 x HDMI Port
• 1 x DisplayPort 1.4
• 1 x Optical SPDIF Out Port
• 2 x Thunderbolt™ 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol)*
• 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
• 4 x USB 3.2 Gen1 Ports
• 2 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• 1 x BIOS Flashback Button
• 1 x Line Out Jack (Gold Audio Jack)
• 1 x Microphone Input Jack (Gold Audio Jack)

* Supports USB PD 3.0 up to 5V@3A (15W) charging

Software and UEFI

• Software
  • ASRock Motherboard Utility (Phantom Gaming Tuning)
  • Killer Control Center
  • ASRock Polychrome SYNC*
• UEFI
  • ASRock EZ Mode
  • ASRock Full HD UEFI
  • ASRock My Favorites in UEFI
  • ASRock Auto Driver Installer
  • ASRock Instant Flash

*These utilities can be downloaded from ASRock Live Update & APP Shop.

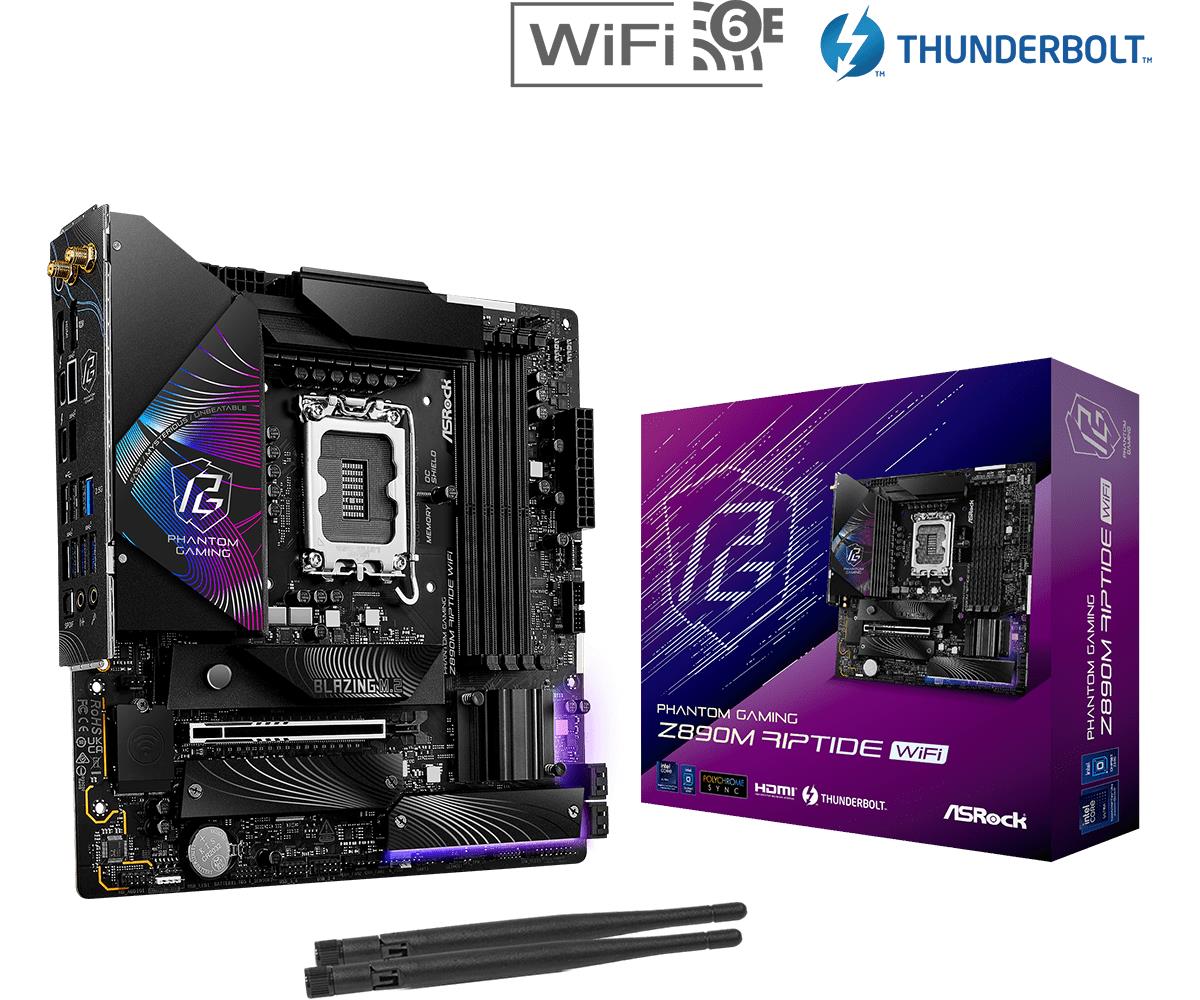

Accessories

• 2 x SATA Data Cables
• 2 x ASRock WiFi 2.4/5/6 GHz Antennas
• 1 x ARGB Splitter Cable
• 1 x Thermistor Cable

Form Factor

• Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
• 2oz Copper PCB

OS

• Microsoft Windows® 11 64-bit

Certifications

• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
