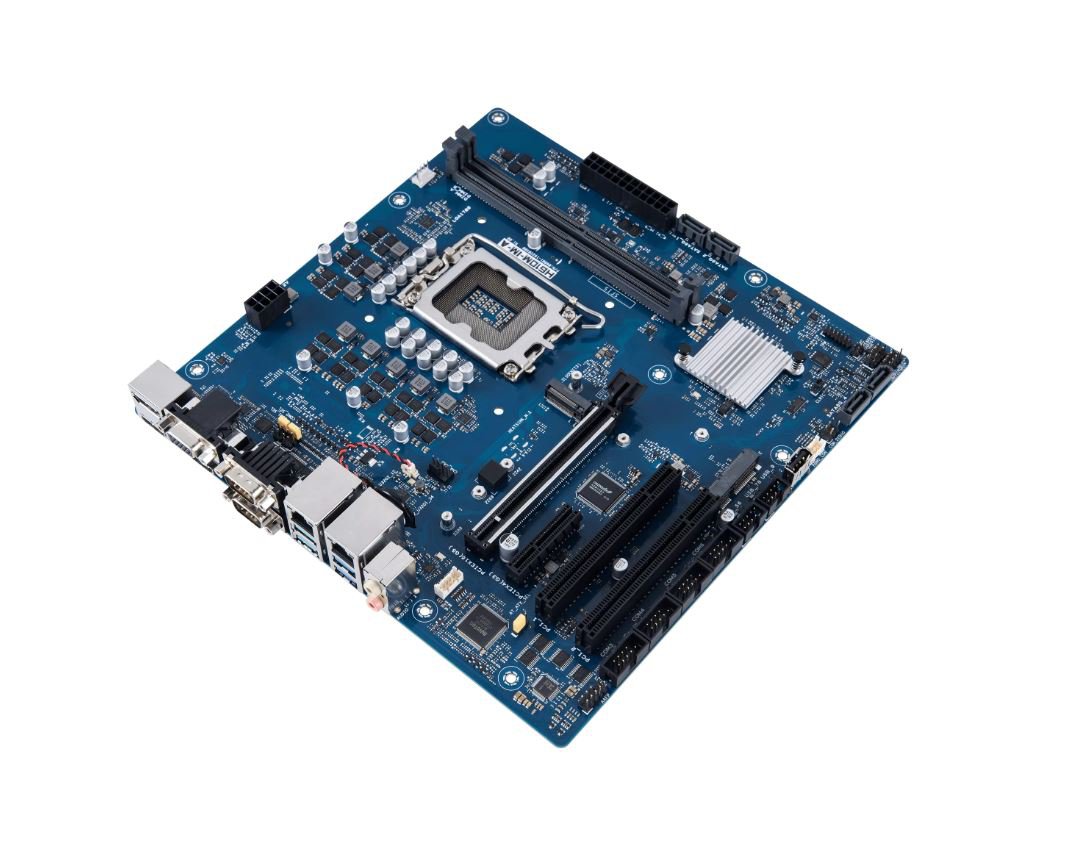

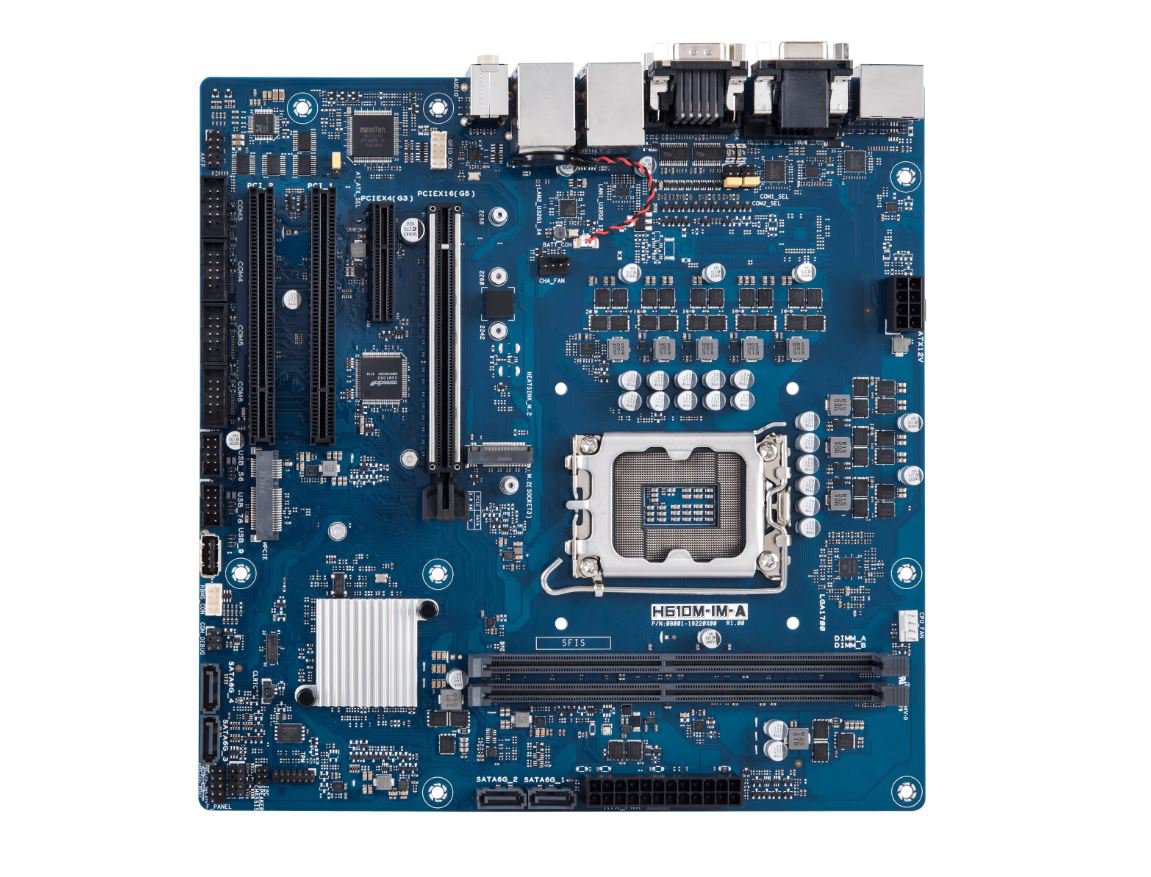

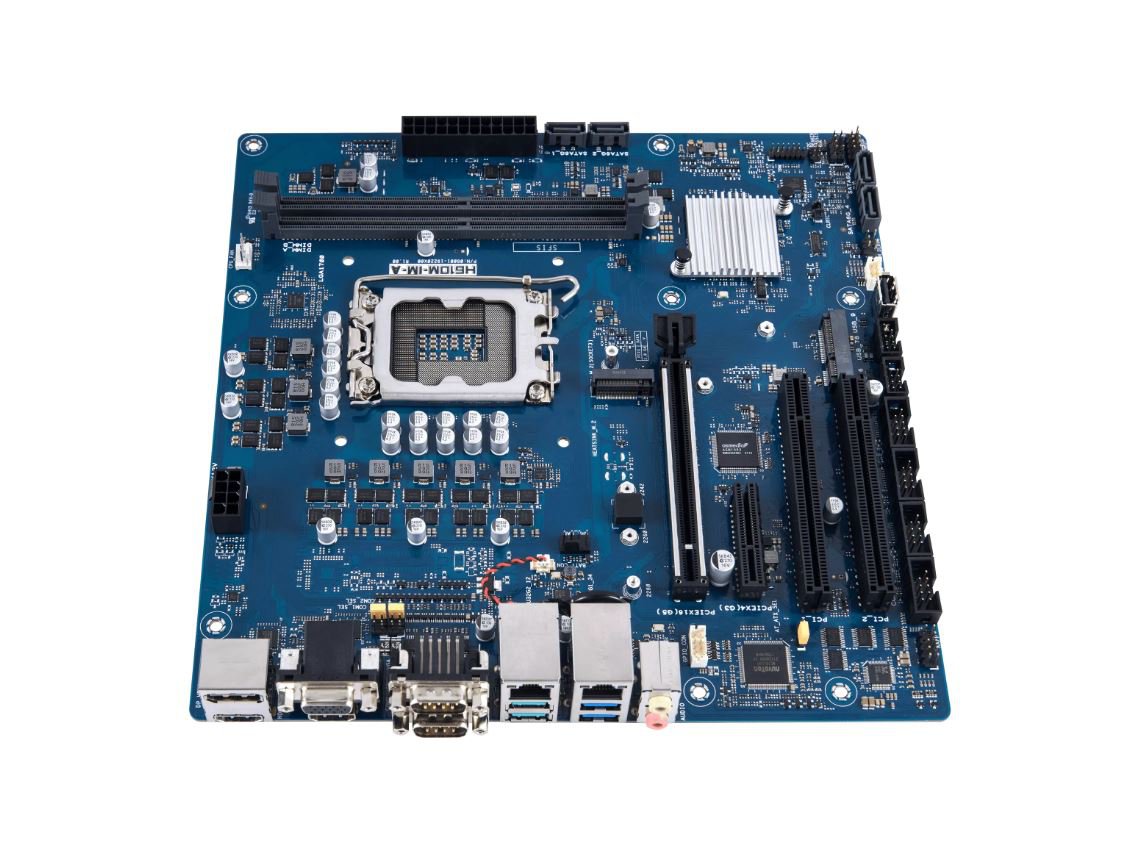

ASUS H610M-IM-A Industrial Micro-ATX Motherboard, LGA1700 socket forIntel 14th/ 13th / 12th Gen Core i9/ i7/ i5/ i3/ Pentium /Celeron Processors, Max. 65W TDP, H610, 2 x U-DIMM, VGA,DP, 2 x HDMI, 1 x PCIe 5.0 x16 slot, 1 x PCIe 3.0/2.0 x4 slot(x1 speed), 1 x Mini PCIe,6 x COM,2 x LAN, USB 3.2Gen2, Triple Dispaly
- Package: RETAIL
- Mfr#: H610M-IM-A
SPECIFICATIONS
- Processor System
- CPU: LGA1700 Socket for Intel Core i9/ i7/ i5/ i3/ Pentium /Celeron Processors support 14th/13th/12th Gen CPU, Max. 65W TDP
- Chipset: Intel H610 chipset
- Memory
- Technology: DDR4 2133/2400/2666/2933/3200 MHz
- Max.: 64GB
- Socket: 2 x U-DIMM
- Display
- HDMI: 2, Supports HDMI 2.1 up to 4096 X 2160 @ 60 Hz
- Display Port: 1, Supports 1.4 up to 4096 x 2160 @ 60 Hz
- VGA: 1, Supports 1920 x 1200 @60 Hz
- Triple Display: VGA / DP / HDMI1 / HDMI2
- Expansion Slot
- PCIe x16: 1 x PCIe 5.0 x16 slot
- PCIe x4: 1 x PCIe 3.0/2.0 x4 slot(x1 speed)
- PCI: 2 x PCI slot
- Mini PCIe: 1 x full/half mini-PCIe
- Ethernet
- Speed: 10/100/1000Mbps
- Controller: 1 x Realtek 8111H, 1 x Intel i219V
- Connector: 2 x RJ-45
- Audio
- Codec: Realtek ALC897 High Definition Audio
- Connector: Line-Out, Mic-in
- Storage
- SATA port: 4 x SATA Gen 3.0, up to 6Gb/s
- M.2: 1 x M.2 Socket with M key, type 2242/2260/2280(SATA/PCIe x4 mode)

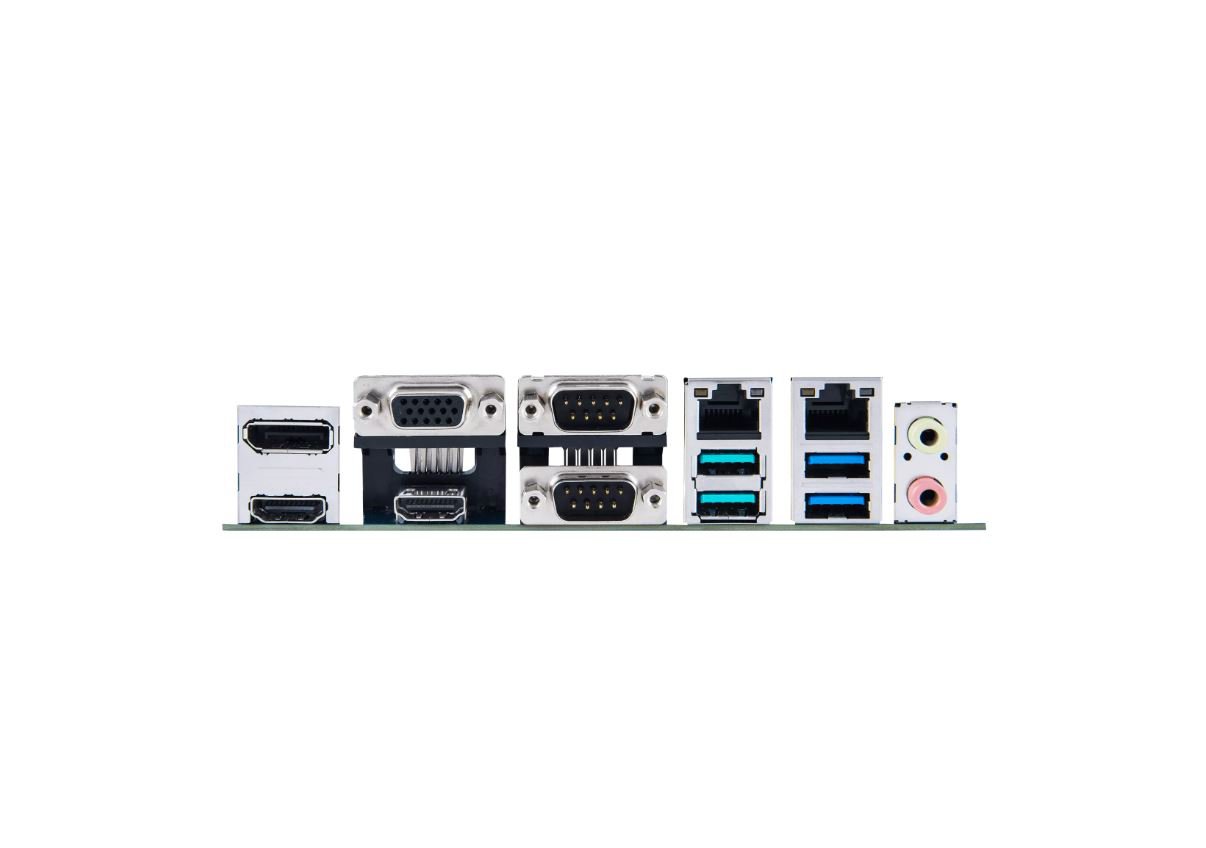

- Rear I/O
- HDMI: 2
- Display Port: 1
- VGA: 1
- USB3.2 GEN2: 2
- USB3.2 GEN1: 2
- Ethernet: 2
- Serial Port: 2(RS232/422/485)
- Audio jack: 2
- Internal Connector
- Serial Port: 4 (RS232)
- USB2.0: 2x Header Support Additional 4x USB2.0 Connectors, 1x stick socket
- CPU Fan Connector: 1 (PWM Mode)
- Chassis Fan Header: 1 (PWM Mode)
- Chassis Intruder Header: 1
- Front Panel Audio Header (AAFP): 1
- System Panel Header: 1 (10-1 Pin)
- Clear CMOS Jumper: 1
- Speaker Connector: 1 (4-pin)
- GPIO Header: 1 (8 Bit)
- AT/ATX Select Header: 1
- PS/2(KBMS): 1
- I2C header: 1
- Power Connector: 1 X 8-pin ATX Power Connector, 1 X 24-pin ATX Power Connector
- Watchdog Timer: H/W: YES
- Security: TPM: 1 x SPI TPM header
- Power: Power Type: both ATX/AT mode
- Operating System
- Microsoft Windows: Windows 10 (64bit) / Win10 IoT Enterprise
- Linux: Ubuntu, RedHat Enterprise, Fedora Workstation, OpenSUSE
- Environment
- Operating Temperature: 0~60° C
- Non-Operating Temperature: -40~85° C
- Relative Humidity: 10%~95%, non-coagulation
- Dimension: Form Factor: Micro-ATX 244X244mm
- Certification: Safety: CE, FCC
