ASUS PRIME B760M-A AX Desktop Motherboard - Intel B760 Chipset

General Information

• Manufacturer: ASUS Computer International
• Brand Name: Asus
• Manufacturer Part Number: PRIME B760M-A AX
• Product Line: Prime
• Product Model: PRIME B760M-A AX
• Product Name: PRIME B760M-A AX Desktop Motherboard
• Product Type: Desktop Motherboard

Processor & Chipset

• Chipset Manufacturer: Intel
• Chipset Model: B760
• Total Processor Supported: 1
• Processor Socket: Socket LGA-1700
• Processor Generation Supported:
  • 12th Gen
  • 13th Gen
• Processor Supported:
  • Core
  • Pentium Gold
  • Celeron

Memory

• Number of Memory Slots: 4
• Memory Form Factor: DIMM, UDIMM
• Maximum Memory Supported: 128 GB
• Memory Technology: DDR5 SDRAM
• Memory Speed Supported:
  • 7000 MHz
  • 6800 MHz
  • 7200 MHz
  • 6600 MHz
  • 6400 MHz
  • 6200 MHz
  • 6000 MHz
  • 5800 MHz
  • 5600 MHz
  • 5400 MHz
  • 5200 MHz
  • 5000 MHz
  • 4800 MHz

I/O Controller

• Controller Type: Serial ATA/600
• RAID Supported: Yes
• RAID Levels:
  • 0
  • 1
  • 10
  • 5

Video

• Onboard Video: CPU Dependent Video

Audio

• Audio Channels: 7.1

Network & Communication

• Bluetooth: Yes
• Bluetooth Standard: Bluetooth 5.2
• Gigabit Ethernet: Yes
• 2.5Gigabit Ethernet: Yes
• Wireless LAN: Yes
• Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax

I/O Expansions

• Total Number of Expansion Slots: 4
• PCI Express Standard: PCI Express 4.0
• Total Number of PCI Express Slots: 4
• Number of PCI Express x16 Slots: 4

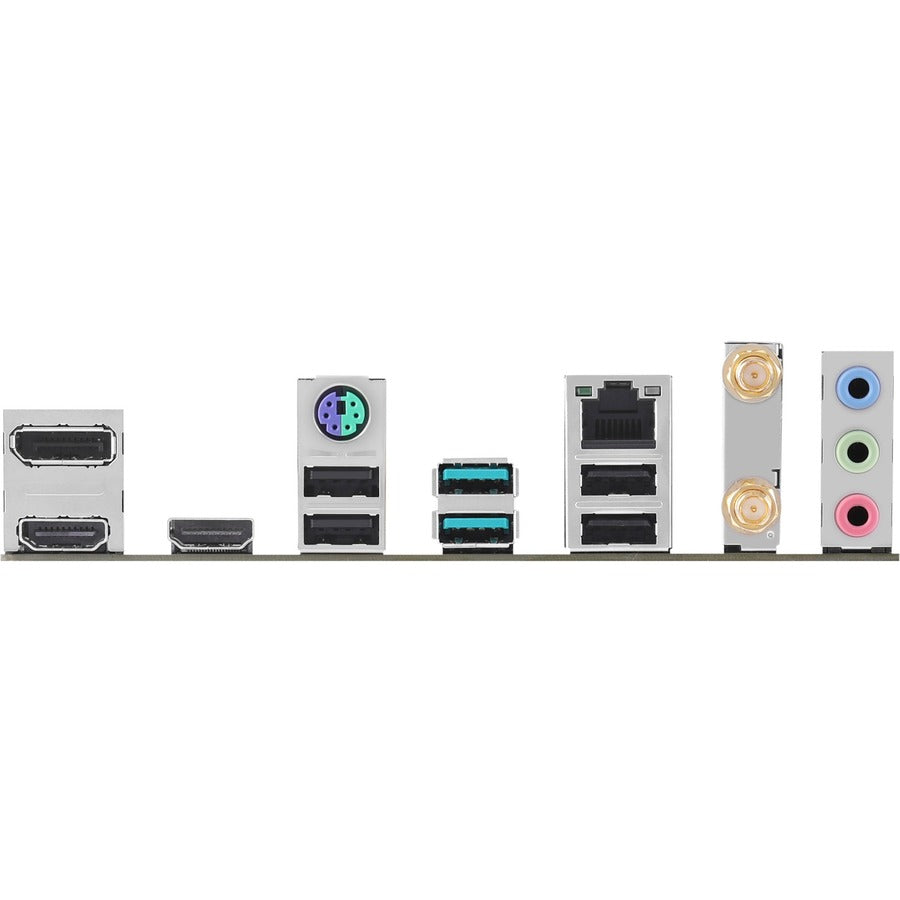

Interfaces/Ports

• Total Number of USB Ports: 6
• Number of USB 3.2 Gen 2 Type-A Ports: 2
• HD-: Yes
• HD- Version: 2.1
• DisplayPort: Yes
• Number of Network (RJ-45) Ports: 1

Onboard Interfaces

• Number of SATA Interfaces: 6
• Number of M.2 Interfaces: 2
• Total Number of Onboard USB Ports: 10
• Number of Onboard USB 2.0 Ports: 4
• Onboard S/PDIF Header: Yes

Physical Characteristics

• Form Factor: Micro ATX

Miscellaneous

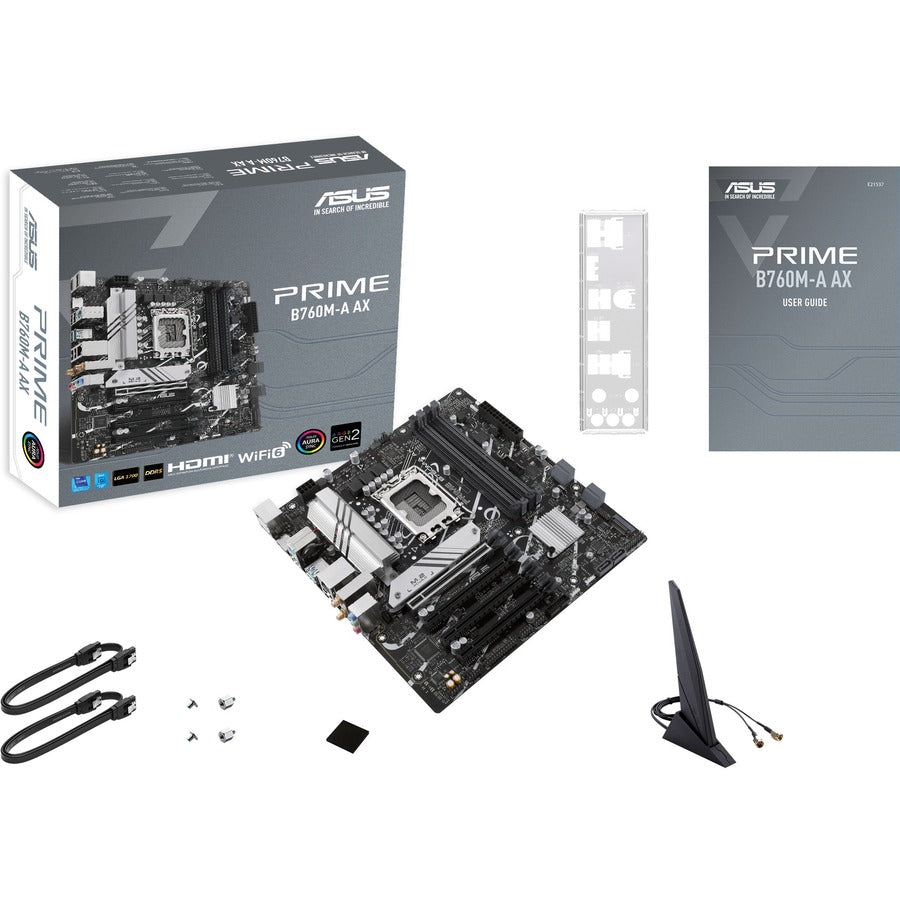

• Package Contents:
  • PRIME B760M-A AX Desktop Motherboard
  • 2 x SATA 6Gb/s cables
  • 1 x ASUS Wi-Fi moving antennas
  • 1 x I/O Shield
  • 1 x M.2 Rubber Package
  • 1 x Screw package for M.2 SSD
  • 1 x User guide
