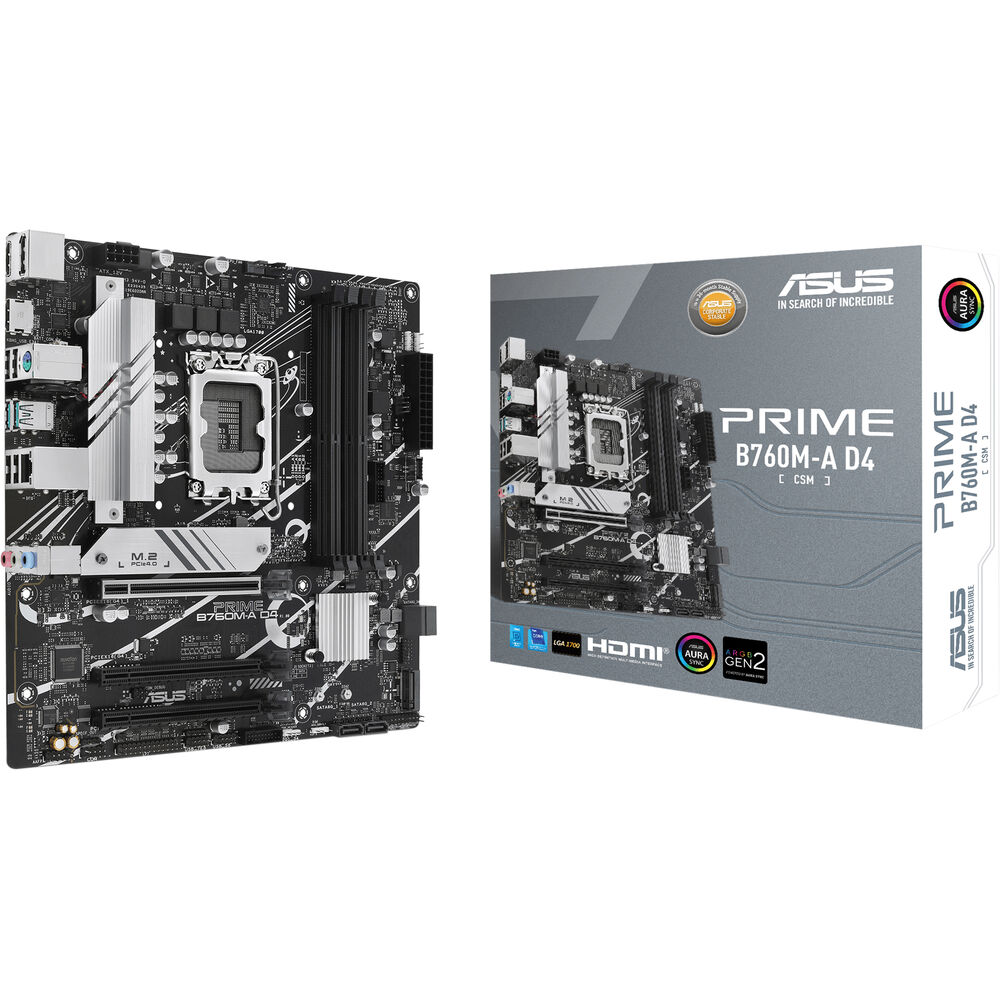

ASUS PRIME B760M-A D4-CSM mATX Motherboard - LGA 1700 Socket

Product Information

• Designed for business professionals, the ASUS PRIME B760M-A D4-CSM mATX Motherboard allows you to build a compact, yet powerful system to handle challenging projects. It is also backed by enterprise class features to help streamline IT management.

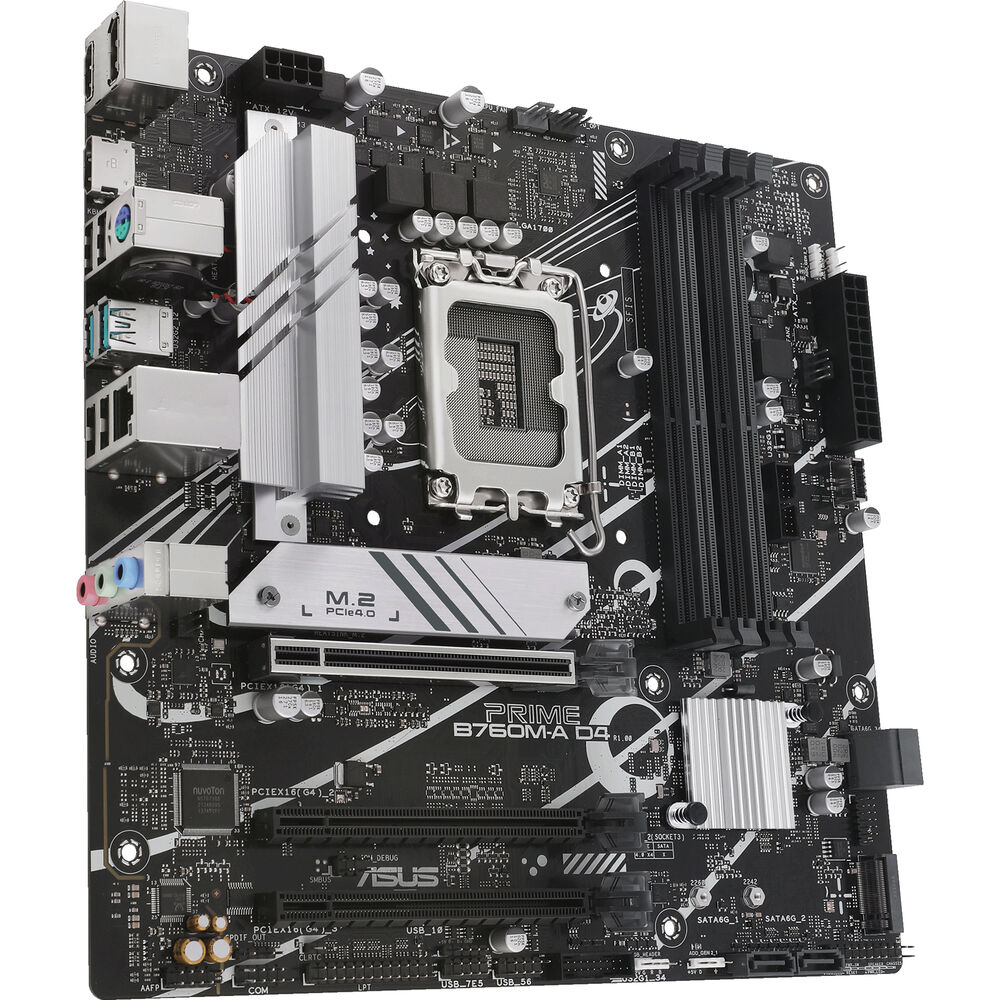

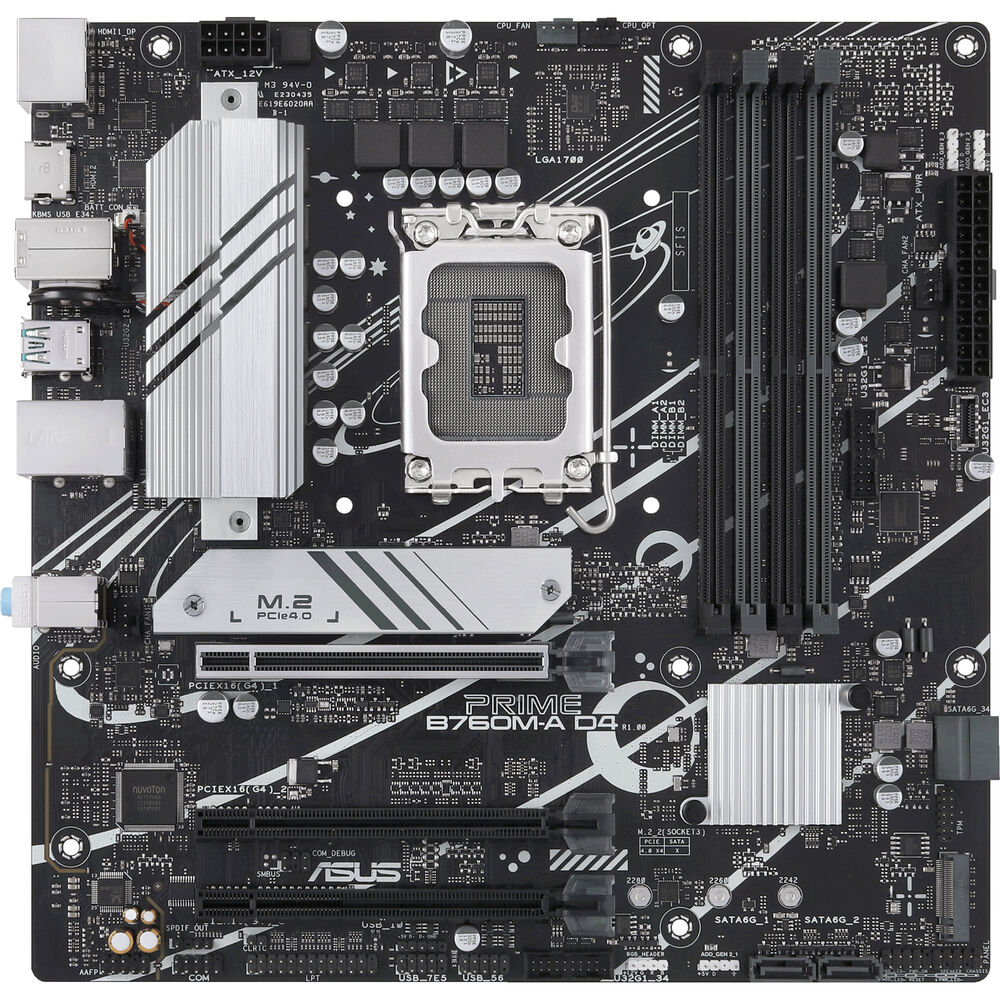

• Supporting the B760 chipset, this compact motherboard allows you to install a 14th, 13th, or 12th Gen Intel Core, Pentium Gold, or Celeron processor with the LGA 1700 socket. Four DDR4 slots are available, supporting up to 128GB of 5333 MT/s overclocked unbuffered memory, which can provide smooth multitasking experiences. For storage, there are two M.2 PCIe 4.0 2280 slots for SSDs that can quickly load demanding applications. Four SATA III connectors are also available. Add a powerful graphics card with the PCIe 4.0 x16 slot while other compatible expansions may be installed into the PCIe 4.0 x16 (x4 mode) and PCIe 4.0 x16 (x1 mode) slots.

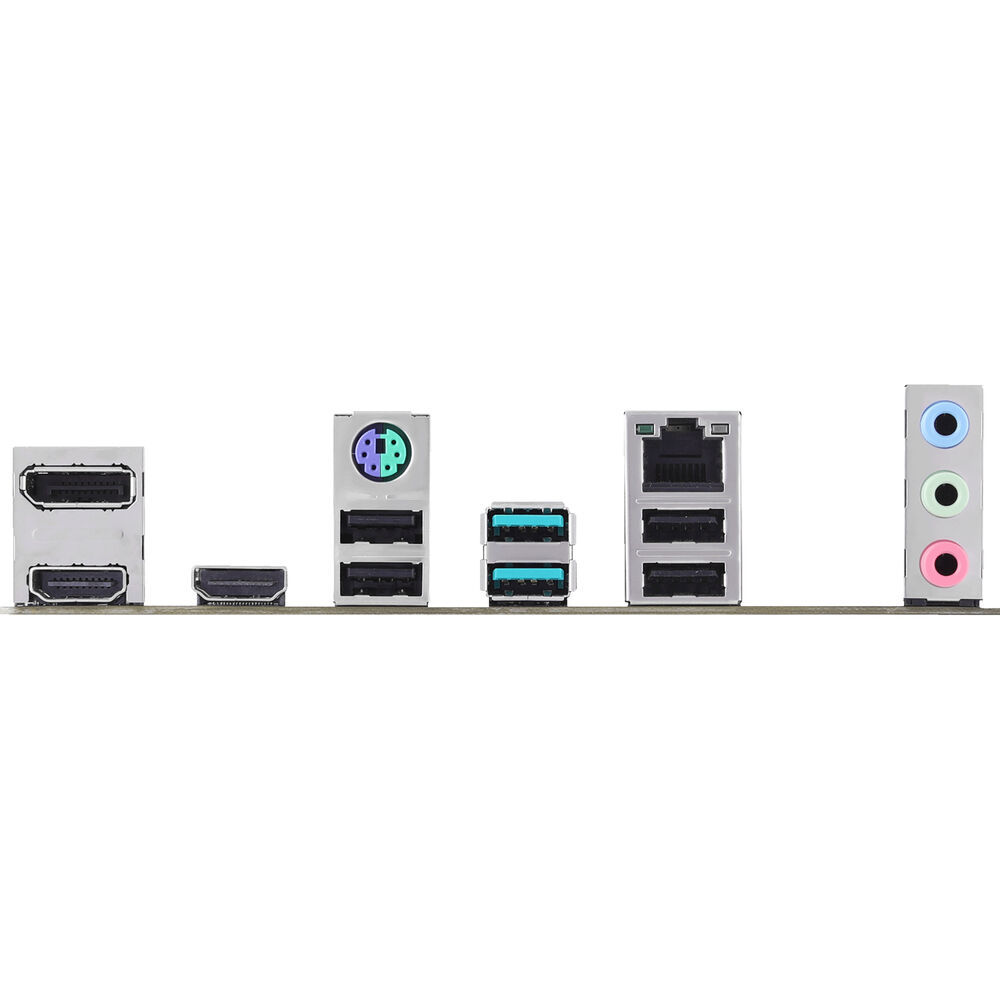

• The rear panel features two USB-A 3.2 Gen 2 ports that can transfer up to 10 Gb/s with compatible devices. The four USB-A 2.0 ports may be reserved for peripherals such as mice and keyboards. Connect to compatible networks with the 2.5 Gb/s Ethernet port. DisplayPort 1.4 and dual HD- 2.1 ports allow you to use processors with integrated graphics with up to 4K monitors. Windows 10 or 11 64-bit is needed to take advantage of all the motherboard's features.

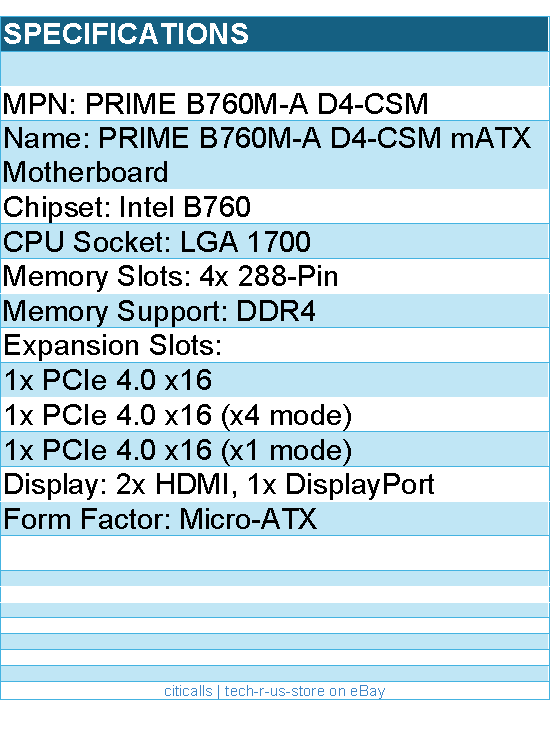

Specs:

• MPN: PRIME B760M-A D4-CSM
• Chipset : Intel B760
• CPU Socket: LGA 1700
• Memory Slots: 4x 288-Pin
• Memory Support: DDR4 2133, 2400, 2600, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 4000, 4266, 4400, 4600, 4800, 5000, 5066, 5300 MT/s
• Storage Slots: 2x M.2 (M Key) 2242, 2260, 2280 (PCIe 4.0 x4)
• Expansion Slots:
• 1x PCIe 4.0 x16
• 1x PCIe 4.0 x16 (x4 mode)
• 1x PCIe 4.0 x16 (x1 mode)
• Display: 2x HD-, 1x DisplayPort
• Form Factor: Micro-ATX
