ASUS PRIME B860-PLUS WIFI Motherboard - B860 LGA1851 192GB DDR5 ATX Retail

Marketing Information

• PRIME B860-PLUS WIFI
• ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860-PLUS WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
• * CEC Tier II ready
• AI Advisor
• ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.
• * Availability of ASUS AI Advisor may vary by region.
• AI Advisor functions may vary by platform.
• Robust power design
• Stable power is crucial for maximizing the performance of Intel® Core™ Ultra Processors (Series 2). The PRIME B860-PLUS WIFI is designed to meet the needs of high-core-count CPUs. It features 8(80A) + 1(80A) + 1(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amperes each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future Intel® processors.

Detail Specifications

• CPU
• Support Intel CoreTM Ultra Processors (Series 2) , LGA1851
• Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Note2
• Note1: Refer to https://www.asus.com/support/download-center/ for CPU support list.
• Note2: Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
• Chipset
• Intel B860 Chipset
• Memory
• 4 x DIMM slots, max. 256GB, DDR5
• Support up to 8666+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM) Note
• Dual channel memory architecture
• DIMM Fit
• Supports Intel Extreme Memory Profile (XMP) memory module
• ASUS Enhanced Memory Profile III (AEMP III)
• Note: Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
• Note: Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
• Graphics
• 1 x DisplayPort Note2
• 1 x HDMITM port Note3
• Note1: Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
• Note2: Supports max. 4K at 60Hz as specified in DisplayPort 1.4.
• Note3: Supports 4K at 60Hz as specified in HDMI 2.1.
• Note5: VGA resolution support depends on processors or graphic cards resolution.
• Expansion Slots
• Intel CoreTM Ultra Processors (Series 2) Note
• 1 x PCIe 5.0 x16 slot (PCIEX16(G5))
• Intel B860 Chipset
• 1 x PCIe 4.0 x16 slot (PCIEX16(G4)_3) (supports x4 mode)
• 3 x PCIe 4.0 x16 slots (PCIEX16(G4)_1/2/4) (support x1 mode)
• - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
• Storage
• Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Note
• Intel CoreTM Ultra Processors (Series 2) Note
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• Intel B860 Chipset
• M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports
• Note: Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
• Ethernet
• 1 x Realtek 2.5Gb Ethernet
• ASUS LANGuard
• Wireless and Bluetooth
• Wi-Fi 6E
• 2x2 Wi-Fi 6E (802.11ax)
• Supports 2.4/5/6GHz frequency band Note1
• Bluetooth v5.3 Note2
• Note1: WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later
• Note2: The Bluetooth version may vary, please refer to the Wi-Fi module manufacturers website for the latest specifications.
• USB
• Rear USB (Total 8 ports)
• 1 x USB 20Gbps port (1 x USB Type-C)
• 2 x USB 10Gbps ports (2 x Type-A)
• 1 x USB 5Gbps port (1 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• Front USB (Total 5 ports)
• 1 x USB 5Gbps port (1 x USB Type-C)
• 1 x USB 5Gbps header supports additional 2 USB 5Gbps ports
• 1 x USB 2.0 header supports 2 additional USB 2.0 ports
• Audio
• Realtek 7.1 Surround Sound High Definition Audio CODECNote
• - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• - Supports up to 24-Bit/192 kHz playback
• Audio Features
• - Audio Shielding
• - Premium audio capacitors
• - Dedicated audio PCB layers
• Note: A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

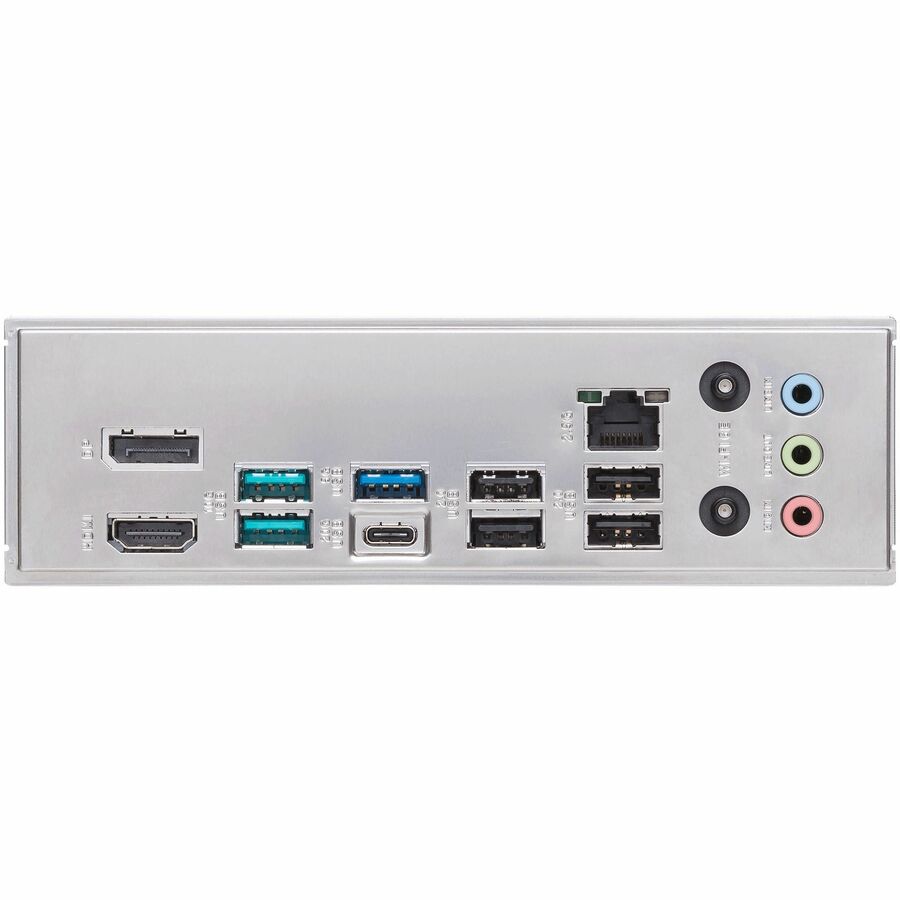

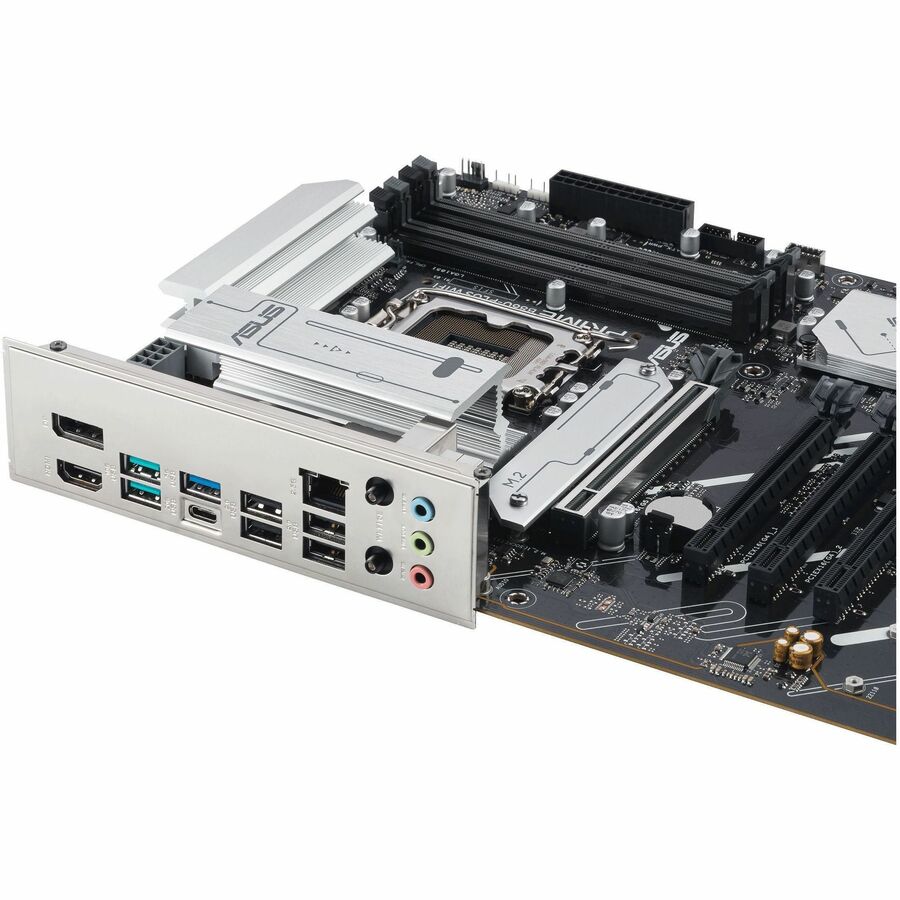

• Back Panel I/O Ports
• 1 x USB 20Gbps port (1 x USB Type-C)
• 2 x USB 10Gbps ports (2 x Type-A)
• 1 x USB 5Gbps port (1 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x DisplayPort
• 1 x HDMITM port
• 1 x Wi-Fi module
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks
• Internal I/O Connectors
• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 4 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V CPU Power connector
• Storage related
• 2 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 5Gbps connector (supports USB Type-C)
• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
• 1 x USB 2.0 header supports 2 additional USB 2.0 ports
• Miscellaneous
• 3 x Addressable Gen 2 headers
• 1 x Aura RGB header
• 1 x Clear CMOS header
• 1 x Chassis Intrusion header
• 1 x COM Port header
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x S/PDIF Out header
• 1 x SPI TPM header (14-1pin)
• 1 x 10-1 pin Front System Panel header
• 1 x ThunderboltTM (USB4) header
• Special Features
• ASUS 5X PROTECTION III
• -DIGI+ VRM (- Digital power design with DrMOS)
• - LANGuard
• - Overvoltage Protection
• - SafeSlot
• - Stainless-steel back I/O
• ASUS Q-Design
• - Q-Antenna
• - Q-Dashboard
• - Q-DIMM
• - Q-LED (CPU (red), DRAM (yellow), VGA (white), Boot Device (yellow green))
• - Q-Slot
• ASUS Thermal Solution
• - M.2 heatsink
• - VRM heatsink design
• ASUS EZ DIY
• - ProCool
• - Pre-mounted I/O shield
• Aura Sync
• - Aura RGB header
• - Addressable Gen 2 headers
• Operating System
• Windows 11 (22H2 and later), Windows 10 64-bit(21H2 and later)
• Form Factor
• ATX Form Factor
• 12 inch x 9.6 inch (30.5 cm x 24.4 cm)

Warranty Information

• 3 Year Warranty from ASUS
