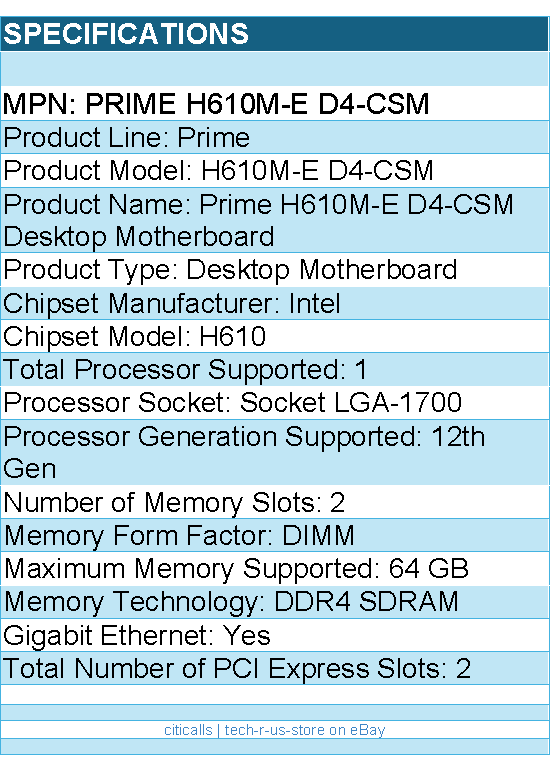

ASUS Prime H610M-E D4-CSM Desktop Motherboard - Intel H610 Chipset

General Information

• Manufacturer: ASUS Computer International
• Brand Name: Asus
• Manufacturer Part Number: PRIME H610M-E D4-CSM
• Product Line: Prime
• Product Model: H610M-E D4-CSM
• Product Name: Prime H610M-E D4-CSM Desktop Motherboard
• Product Type: Desktop Motherboard

Processor & Chipset

• Chipset Manufacturer: Intel
• Chipset Model: H610
• Total Processor Supported: 1
• Processor Socket: Socket LGA-1700
• Processor Generation Supported: 12th Gen
• Processor Supported:
  • Pentium Gold
  • Celeron
  • Core i5
  • Core i9
  • Core i3
  • Core i7

Memory

• Number of Memory Slots: 2
• Memory Form Factor: DIMM
• Maximum Memory Supported: 64 GB
• Memory Technology: DDR4 SDRAM
• Memory Speed Supported:
  • 3200 MHz
  • 3000 MHz
  • 2933 MHz
  • 2800 MHz
  • 2666 MHz
  • 2400 MHz
  • 2133 MHz

I/O Controller

• Controller Type: Serial ATA/600

Video

• Onboard Video: CPU Dependent Video

Network & Communication

• Gigabit Ethernet: Yes

I/O Expansions

• Total Number of Expansion Slots: 2
• Total Number of PCI Express Slots: 2
• Number of PCI Express x1 Slots: 1
• Number of PCI Express x16 Slots: 1

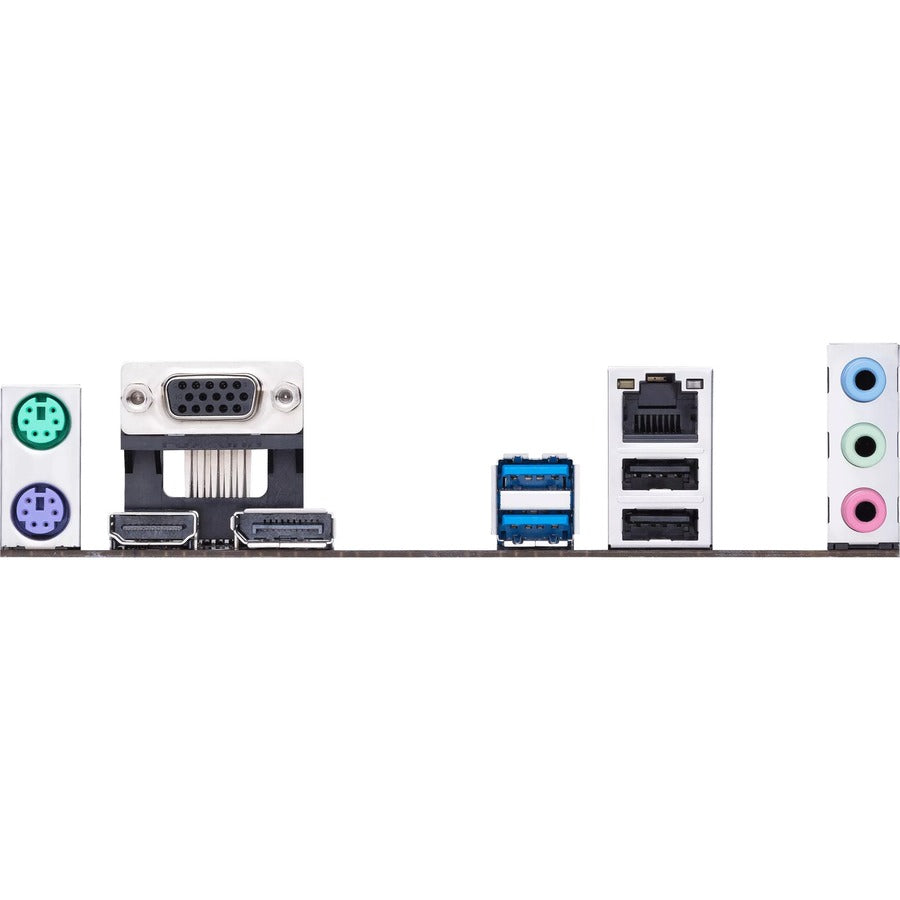

Interfaces/Ports

• Total Number of USB Ports: 4
• Number of USB 2.0 Ports: 2
• Number of USB 3.2 Gen 1 Ports: 2
• VGA: Yes
• HD-: Yes
• DisplayPort: Yes
• Number of Network (RJ-45) Ports: 1

Onboard Interfaces

• Number of SATA Interfaces: 4
• Number of M.2 Interfaces: 2
• Total Number of Onboard USB Ports: 6
• Number of Onboard USB 2.0 Ports: 4
• Number of Onboard USB 3.2 Ports: 2

Miscellaneous

• Environmentally Friendly: Yes
• Environmental Compliance: Restriction of Hazardous Substances (RoHS)
