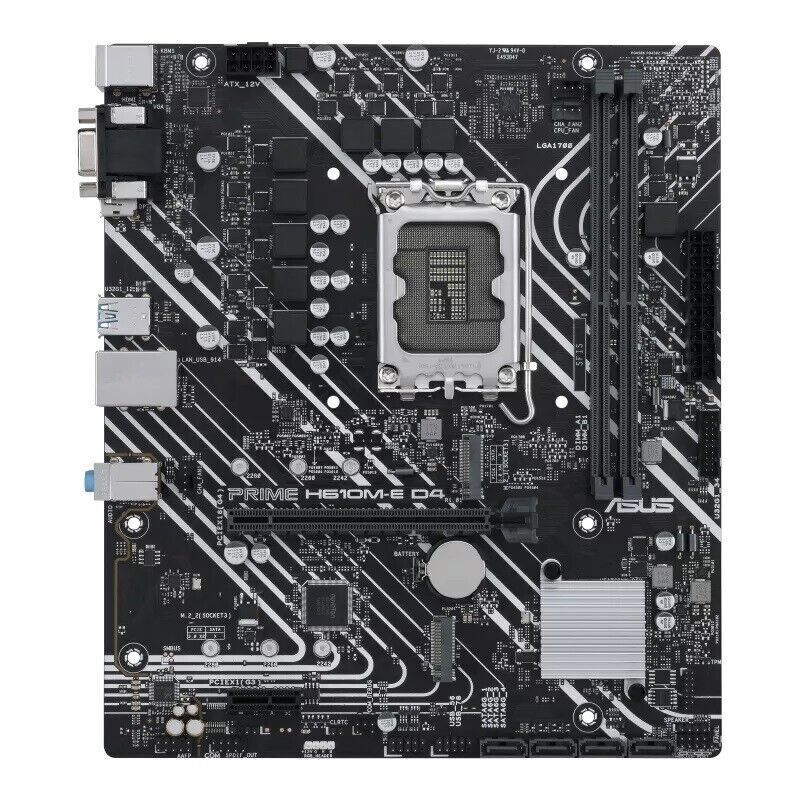

ASUS PRIME H610M-E D4-CSM Motherboard H610 LGA1700 Max 64GB DDR4 Display Port/
Regular price
$125.02 USD
Sale price
$125.02 USD
Regular price
$0.00 USD
Description
Couldn't load pickup availability
ASUS PRIME H610M-E D4-CSM Motherboard H610 LGA1700 Max 64GB DDR4 Display Port/
Current product
Current
Vendor:
ASUS
ASUS PRIME H610M-E D4-CSM Motherboard H610 LGA1700 Max 64GB DDR4 Display Port/
Regular price
$125.02 USD
Sale price
$125.02 USD
Regular price
$0.00 USD
Options
Descriptions
* D-Sub/HDMI mATX Retail
SKU: 273469
Vendor: ASUS
MPN: PRIME H610M-E D4-CSM
Marketing Information
PRIME H610M-E D4-CSM
Intel® H610 (LGA 1700) mic-ATX motherboard with DDR4, PCIe 4.0, dual M.2 slots, Realtek 1 Gb Ethernet,
DisplayPort, HDMI, D-Sub, USB 3.2 Gen 1 ports, SATA 6 Gbps, COM header, RGB header
• Intel® LGA 1700 socket: Ready for 13th & 12th Gen Intel® processors
• Comprehensive cooling: PCH heatsink and Fan Xpert 2+
• Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1
• 5X Protection III: Multiple hardware safeguards for all-round protection
• ASUS Control Center Express (ACCE) for easier IT endpoint management
PRIME
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th & 12th Generation Intel® processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime H610 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.
ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.
* Lifecycle support, program offering and supply status may vary by region. Please consult your local sales representative for more information.
Detail Specifications
Model
PRIME H610M-E D4-CSM
CPU
Intel Socket LGA1700 for 13th Gen Intel CoreTM Processors and 12th Gen Intel CoreTM, Pentium Gold and Celeron Processors 1
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 2
Chipset
Intel H610 Chipset
Memory
2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory 1
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
1 Actual memory data rate depends on the CPU types and DRAM modules
Graphics
1 x DisplayPort 2
1 x D-Sub port
1 x HDMI port 3
1 Graphics specifications may vary between CPU types.
2 Supports max. 4K at 60Hz as specified in DisplayPort 1.4.
3 Supports 4K at 60Hz as specified in HDMI 2.1.
Expansion Slots
Intel 13th and 12th Gen Processors
1 x PCIe 4.0 x16 slot
Intel H610 Chipset
1 x PCIe 3.0 x1 slot
Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel H610 Chipset
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)
4 x SATA 6Gb/s ports
Ethernet
1 x Realtek 1Gb Ethernet
USB
Rear USB (Total 4 ports)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 6 ports)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC 1
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
1 A chassis withe an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x D-Sub port
1 x HDMI port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard (purple) port
1 x PS/2 Mouse (green) port
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x RGB header
1 x Clear CMOS headerv 1 x Front Panel Audio header (AAFP)
1 x COM Port header
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
ASUS thermal Solution
- Aluminum heatsink design
ASUS Lighting Control
- RGB header
Software Features
ASUS Exclusive Software
Armoury Crate
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert 2+
ASUS CPU-Z
IT Management software supported
- ASUS Control Center Express (ACCE)
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 SSD screw package
Installation Media
1 x Support DVD
Documentation
1 x ACC Express Activation Key Card
1 x User guide
Operating System
Windows 11 64-bit, Windows 10 64-bit
Form Factor
mATX Form Factor
9.6 inch x 8.3 inch (24.4 cm x 21.1 cm)
Item Dimension (L inchxW inchxH inch)
11 x 11 x 3
Weight
3 lbs
Warranty Information
3 Years - Direct from the Manufacturer
