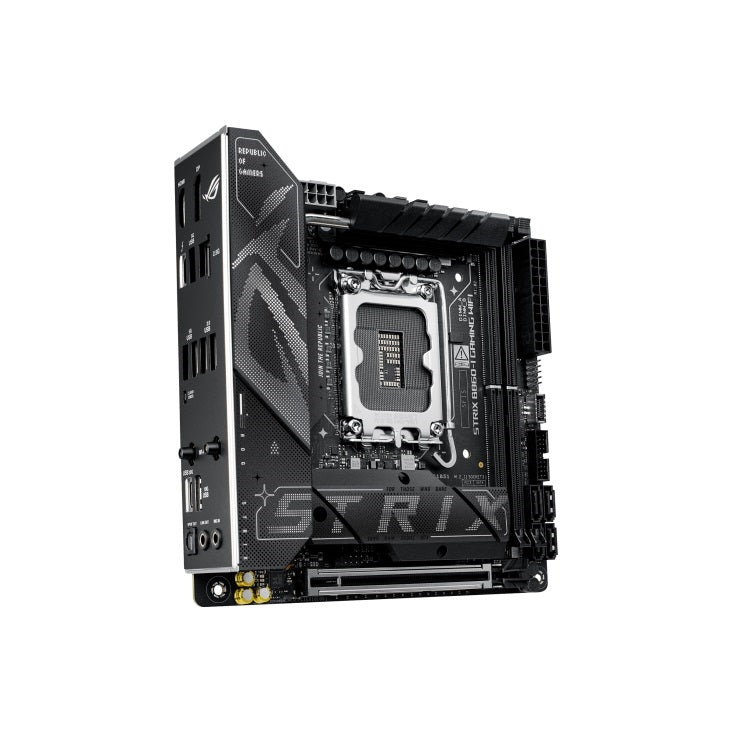

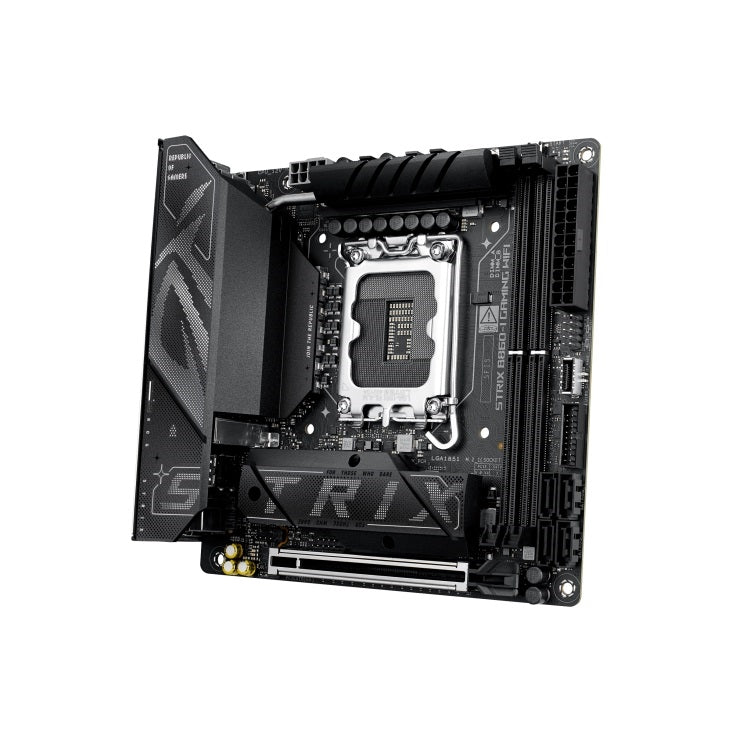

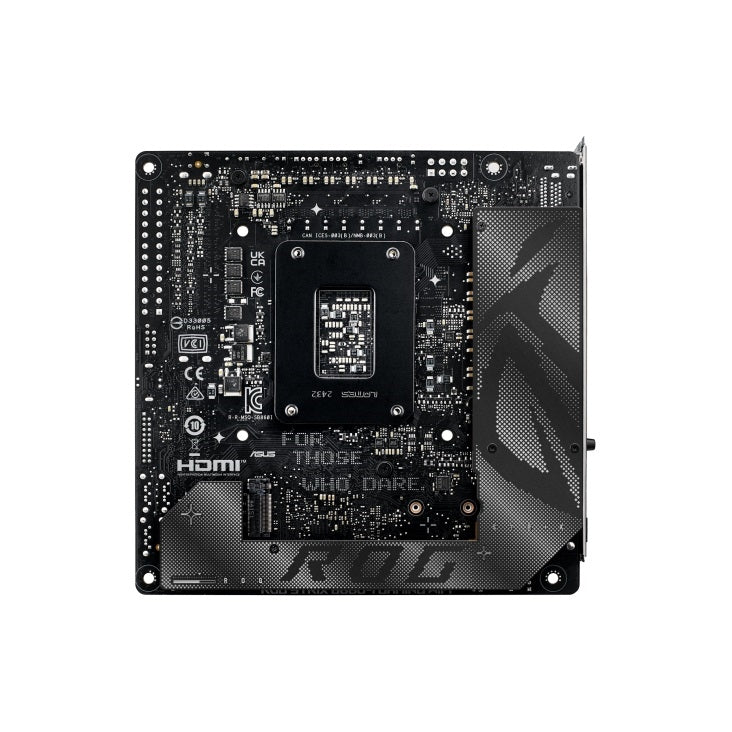

ASUS ROG STRIX B860-I GAM WIFI Motherboard - B860 LGA1851 96GB DDR5 ITX

Marketing Information

• ROG STRIX B860-I gaming wifi
• The ROG Strix B860-I Gaming WiFi is designed to dominate with Intel Core Ultra Processors(Series 2). Its advanced power design and AI solutions drive top-tier performance, while Thunderbolt 4, WiFi 7 and high-speed DDR5 slots offer cutting-edge connectivity. This motherboard delivers the power and speed needed for elite gaming and demanding AI applications.
• ASUS AI INTELLIGENCE
• ASUS AI ADVISOR
• Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.
• Availability of ASUS AI Advisor may vary by region.
• AI Advisor functions may vary by platform.
• AI NETWORKING II
• AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7.
• Features may vary by model.
• Performance
• OVERCLOCKING
• NPU BOOST
• The integrated NPU in Intel Core Ultra Processors (Series 2) efficiently accelerates AI workflows and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.
• The overclocking performance may vary depending on the CPU series and motherboard used.

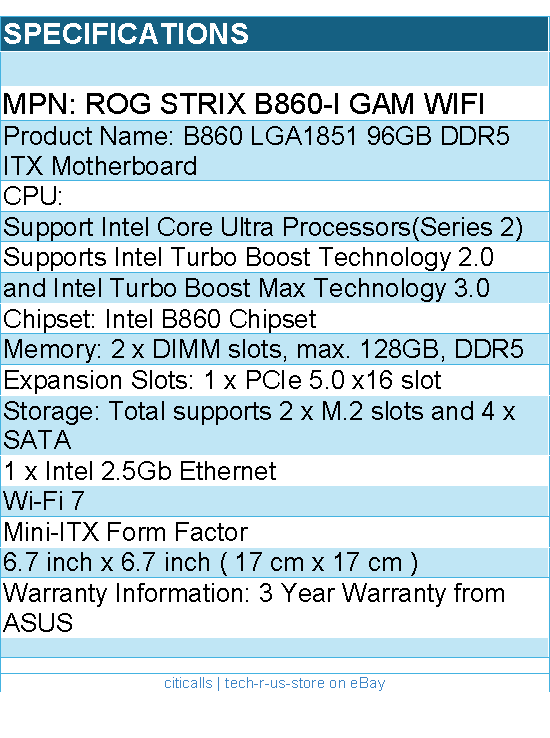

Detail Specifications

• Model: ROG STRIX B860-I GAMING WIFI
• News and Updates
• CPU:
• Support Intel Core Ultra Processors (Series 2)
• Supports Intel Turbo Boost Technology 2.0
• and Intel Turbo Boost Max Technology 3.0
• support depends on the CPU types.
• Chipset: Intel B860 Chipset
• Memory
• 2 x DIMM slots, max. 128GB, DDR5
• Supports up to 9066+MT/s (OC), Non-ECC
• Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
• Dual channel memory architecture
• DIMM Fit
• Supports Intel Extreme Memory Profile
• (XMP) memory module
• Non-ECC, un-buffered DDR5 memory
• supports On-Die ECC function.
• Graphics
• 1 x DisplayPort
• 1 x HD- port
• 1 x Intel Thunderbolt 4 supports
• DisplayPort and Thunderbolt video outputs
• Graphics specifications may vary between
• CPU types.
• Supports max. 4K at 60Hz as specified in
• DisplayPort 1.4.
• Supports 4K at 60Hz as specified in HD-
• 2.1.
• Supports up to 8K at 60Hz x1 with DSC,
• maximum total bandwidth up to 23.8Gbps, for resolution support please check
• DisplayPort 2.1 specs.
• VGA resolution support depends on
• processors or graphic cards resolution.
• Expansion Slots
• Intel Core Ultra Processors (Series 2)
• 1 x PCIe 5.0 x16 slot
• Storage
• Total supports 2 x M.2 slots and 4 x SATA
• 6Gb/s ports
• Intel Core Ultra Processors (Series 2)
• M.2_1 slot (Key M), type 2260/2280
• (supports PCIe 5.0 x4 mode)
• Intel B860 Chipset
• M.2_2 slot (Key M), type 2242/2260/2280
• (supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports
• Intel Rapid Storage Technology supports
• SATA RAID 0/1/5/10.
• Ethernet
• 1 x Intel 2.5Gb Ethernet
• ASUS LANGuard
• Wireless and Bluetooth
• Wi-Fi 7
• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6GHz frequency band
• Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
• Bluetooth v5.4
• Wi-Fi features may vary depending on the operating system
• For
• Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi
• 6E.
• For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendors website for details.
• Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
• The Bluetooth version may vary, please refer to the Wi-Fi module manufacturers website for the latest specifications.
• USB
• Rear USB (Total 8 ports)
• 1 x Thunderbolt 4 port (1 x USB Type-C)
• 1 x USB 20Gbps port (1 x USB Type-C)
• 1 x USB 10Gbps ports (1 x Type-A)
• 3 x USB 5Gbps ports (3 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• Front USB (Total 5 ports)
• 1 x USB 10Gbps connector (supports USB
• Type-C)
• 1 x USB 5Gbps header supports 2 additional
• USB 5Gbps ports
• 1 x USB 2.0 header supports 2 additional
• USB 2.0 ports
• USB Type-C power delivery output: max.
• 5V/3A
• Audio
• Realtek ALC1220P 7.1 Surround Sound High
• Definition Audio CODEC
• - Impedance sense for front and rear
• headphone outputs
• - Internal audio Amplifier to enhance the
• highest quality sound for headphone and speakers
• - Supports: Jack-detection,
• Multi-streaming, Front Panel Jack-retasking
• - High quality 120 dB SNR stereo playback
• output and 113 dB SNR recording input (Line-in)
• - Supports up to 32-Bit/192 kHz
• playback"
• Audio Features
• - SupremeFX Shielding Technology
• - Savitech SV3H712 AMP
• - Rear optical S/PDIF out port
• - Premium audio capacitors
• - Dedicated audio PCB layers
• Due to limitations in HDA bandwidth,
• 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
• A chassis with an HD audio module in the
• front panel is required to support 7.1 Surround Sound audio output.
• Back Panel I/O Ports
• 1 x Thunderbolt 4 port (1 x USB Type-C)
• 1 x USB 20Gbps port (1 x USB Type-C)
• 1 x USB 10Gbps ports (1 x Type-A)
• 3 x USB 5Gbps ports (3 x Type-A)
• 2 x USB 2.0 ports (2 x Type-A)
• 1 x DisplayPort
• 1 x HD- port
• 1 x Wi-Fi module
• 1 x Intel 2.5Gb Ethernet port
• 2 x Audio jacks
• 1 x Optical S/PDIF out port
• 1 x Clear CMOS button
• Internal I/O Connectors
• Fan and Cooling Related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin AIO Pump header
• 1 x 4-pin Chassis Fan headers
• Power Related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V CPU Power connector
• Storage Related
• 2 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 10Gbps connector (supports USB
• Type-C)
• 1 x USB 5Gbps header supports 2 additional
• USB 5Gbps ports
• 1 x USB 2.0 header supports 2 additional
• USB 2.0 ports
• Miscellaneous
• 2 x Addressable Gen2 headers
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x 10-1 pin Front System Panel header
• 1 x Thermal Sensor header
• Special Features
• Extreme Engine Digi+
• - 5K Black metallic capacitors
• ASUS Q-Design
• - PCIe Slot Q-Release Slim (with PCIe
• SafeSlot)
• - M.2 Q-Latch
• - Q-Antenna
• - Q-Dashboard
• - Q-DIMM
• - Q-LED (CPU red, DRAM yellow, VGA
• white, Boot Device yellow green)
• - Q-Slot
• ASUS Thermal Solution
• - M.2 heatsink backplate
• - M.2 heatsink
• - VRM heatsink design
• ASUS EZ DIY
• - Clear CMOS button
• - CPU Socket lever protector
• - ProCool
• - Pre-mounted I/O shield
• - SafeSlot
• - SafeDIMM
• Aura Sync
• - Addressable Gen2 headers
• Software Features
• ROG Exclusive Software
• - ROG CPU-Z
• - Dolby Atmos
• ASUS Exclusive Software
• Armoury Crate
• - Aura Creator
• - Aura Sync
• - Fan Xpert 4
• - GameFirst
• - Power Saving
• AIDA64 Extreme (60 days free trial)
• HWiNFO
• ASUS AI Advisor
• ASUS DriverHub
• ASUS GlideX
• TurboV Core
• Adobe Creative Cloud (Free Trial)
• Norton 360 for Gamers (60 Days Free Trial)
• WinRAR (40 Days Free Trial)
• UEFI BIOS
• ASUS EZ DIY
• - ASUS CrashFree BIOS 3
• - ASUS EZ Flash
• - ASUS UEFI BIOS EZ Mode
• - ASUS MyHotkey
• NPU Boost
• BIOS
• 256Mb Flash ROM, UEFI AMI BIOS
• Manageability
• WOL by PME, UEFI PXE
• Accessories
• Cables
• 2 x SATA 6Gb/s cables
• 1 x ROG USB2.0 splitter cable
• 1 x Panel cable
• Miscellaneous
• 1 x ASUS WiFi Q-Antenna
• 1 x Cable ties package
• 1 x M.2 Q-Latch package
• 1 x Screw package for M.2 SSD
• 1 x M.2 Bracket
• 1 x ROG key chain
• 1 x ROG Strix stickers
• Documentation
• 1 x Quick start guide
• Operating System
• Windows 11 (22H2 and later)
• Form Factor
• Mini-ITX Form Factor

Warranty Information

• 3 Year Warranty from ASUS
