ASUS TUF GAMING Z790-PLUS WIFI Gaming Desktop Motherboard - Intel Z790 Chipset

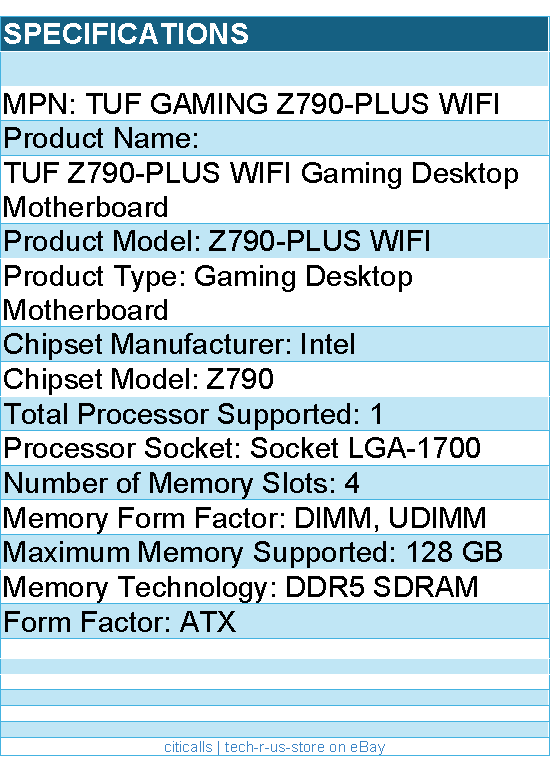

General Information

• Manufacturer: ASUS Computer International
• Brand Name: TUF
• Manufacturer Part Number: TUF GAMING Z790-PLUS WIFI
• Product Model: Z790-PLUS WIFI
• Product Name: TUF Z790-PLUS WIFI Gaming Desktop Motherboard
• Product Type: Gaming Desktop Motherboard

Processor & Chipset

• Chipset Manufacturer: Intel
• Chipset Model: Z790
• Total Processor Supported: 1
• Processor Socket: Socket LGA-1700
• Processor Generation Supported:
• 13th Gen
• 12th Gen
• Processor Supported:
• Core
• Pentium Gold
• Celeron

Memory

• Number of Memory Slots: 4
• Memory Form Factor:
  • DIMM
  • UDIMM
• Maximum Memory Supported: 128 GB
• Memory Technology: DDR5 SDRAM
• Memory Speed Supported:
  • 7200 MHz
  • 7000 MHz
  • 6800 MHz
  • 6600 MHz
  • 6400 MHz
  • 6200 MHz
  • 6000 MHz
  • 5800 MHz
  • 5600 MHz
  • 5400 MHz
  • 5200 MHz
  • 5000 MHz
  • 4800 MHz
• I/O Controller
• Controller Type: Serial ATA/600
• RAID Supported: Yes

RAID Levels:

• 0
• 1
• 5
• 10

Video

• Onboard Video: CPU Dependent Video

Audio

• Audio Channels: 7.1

Network & Communication

• Bluetooth: Yes
• Bluetooth Standard: Bluetooth 5.3Gigabit Ethernet: Yes
• 2.5Gigabit Ethernet: Yes
• Wireless LAN: Yes
• Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax

I/O Expansions

• Total Number of Expansion Slots: 5
• PCI Express Standard:
• PCI Express 5.0
• PCI Express 4.0
• PCI Express 3.0
• Total Number of PCI Express Slots: 5
• Number of PCI Express x1 Slots: 2
• Number of PCI Express x4 Slots: 1
• Number of PCI Express x16 Slots: 2

Interfaces/Ports

• Total Number of USB Ports: 8
• Number of USB 3.2 Gen 1 Type-A Ports: 4
• Number of USB 3.2 Gen 2 Type-A Ports: 2
• Number of USB 3.2 Gen 2 Type-C Ports: 1
• S/PDIF: Yes
• VGA: Yes
• HD-:Yes
• HD- Version: 2.1
• DisplayPort: Yes
• Number of Network (RJ-45) Ports: 1
• Thunderbolt: Yes
• Number of Thunderbolt 4 Ports: 1
• Onboard Interfaces
• Number of SATA Interfaces: 4
• Number of M.2 Interfaces: 4
• Total Number of Onboard USB Ports: 7
• Number of Onboard USB 2.0 Ports: 4

Physical Characteristics

• Form Factor: ATX
• Width: 12"
• Depth: 9.6"

Miscellaneous

• Package Contents:
  • TUF Z790-PLUS WIFI Gaming Desktop Motherboard
  • 2 x SATA 6Gb/s cables
  • 1 x ASUS Wi-Fi moving antenna
  • 1 x TUF GAMING sticker
  • 2 x M.2 Rubber Packages
  • 1 x Screw package for M.2 SSD
  • 1 x TUF Certification card
  • 1 x User guide
