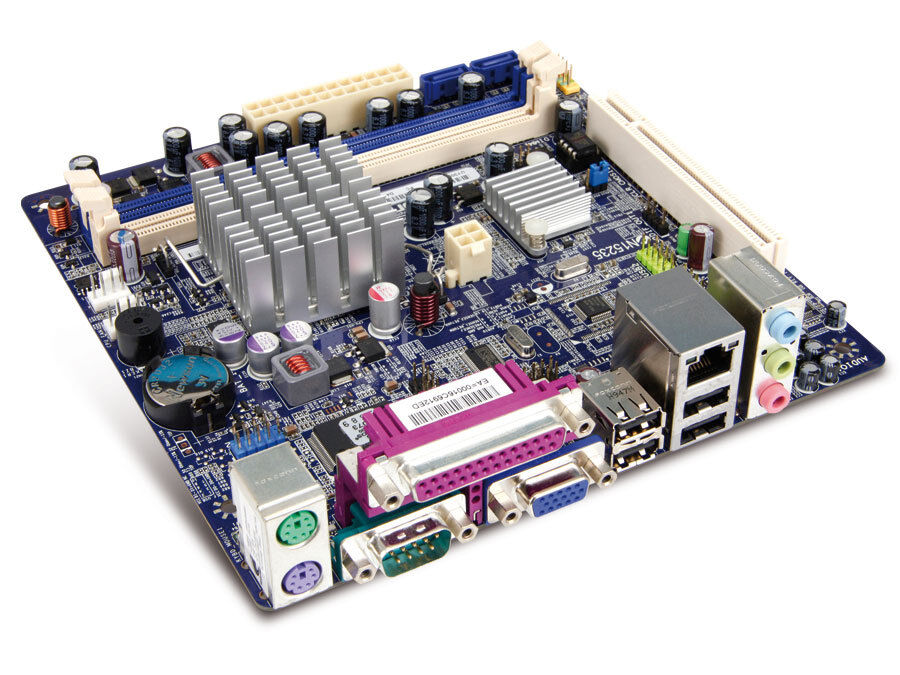

Foxconn D41S Intel Atom D410 DDR2 PCI SATA Giga LAN 8 USB Mini ITX Motherboard

• Intel® AtomTM Single-core D410 processor mounted onboard
• DDR2 800/667 MHz x 2 DIMM, Max. 4GB
• 1* PCI
• 2* SATA II
• 5.1 channel HDA
• Gigabit LAN
• 8 USB 2.0 ports

Overview
With an low- power processor [Intel® AtomTM ] integrated, the D41S are designed for a range of new market segments which focus on low-cost Internet-focused machines- nettops. With the Intel® NM10 chipset,the D41S enable simple, affordable nettops for emerging and mature markets. They are the best choice of simple device for web browsing, with a range of connectivity options including 5.1 channel HD audio, SATAII and USB2.0 - they are fully equipped for the corporate environment.

Specifications:
Processor: Intel® AtomTM Single-core D410 processor mounted onboard
Chipset: Intel® NM10
Front Side Bus
Memory: DDR2 800/667 MHz x 2 DIMM, Max. 4GB
VGA on Die: Integrated Intel® GMA 3150
Expansion Slots: 1* PCI
IDE: N/A
Serial ATA(SATA)/RAID: 2* SATA II
Audio: 5.1 channel HDA
LAN: Gigabit LAN
IEEE1394: N/A

Back Panel I/O Ports 1 x PS/2 keyboard port

• 1 x PS/2 mouse port
• 1 x Serial port
• 1 x Parallel port
• 1 x Audio jack supports 3 jacks
• 4 x USB 2.0 ports
• 1 x RJ45 LAN port
• 1 x VGA port

Internal I/O Connectors 1 x ATX 24-pin power connector

• 1 x ATX 4-pin 12V power connector
• 2 x 4-pin CPU / System fan connectors
• 1 x IrDA header
• 1 x TPM header
• 1 x COM header
• 2 x USB 2.0 header supports additional 4 ports
• 2 x Serial ATAII connectors
• 1 x Front panel connector
• 1 x Front Audio header
• 1 x S/PDIF out header
• 1 x Buzzer

BIOS Features 8MB flash EEPROM w/ LAN boot PnP, ACPI, WfM, DMI 2.0

Support CD
Standards/Manageability PCI 2.3, USB2.0, DMI 2.5

Special Features
Form Factor Mini-ITX (6.75 inch x 6.75 inch)
