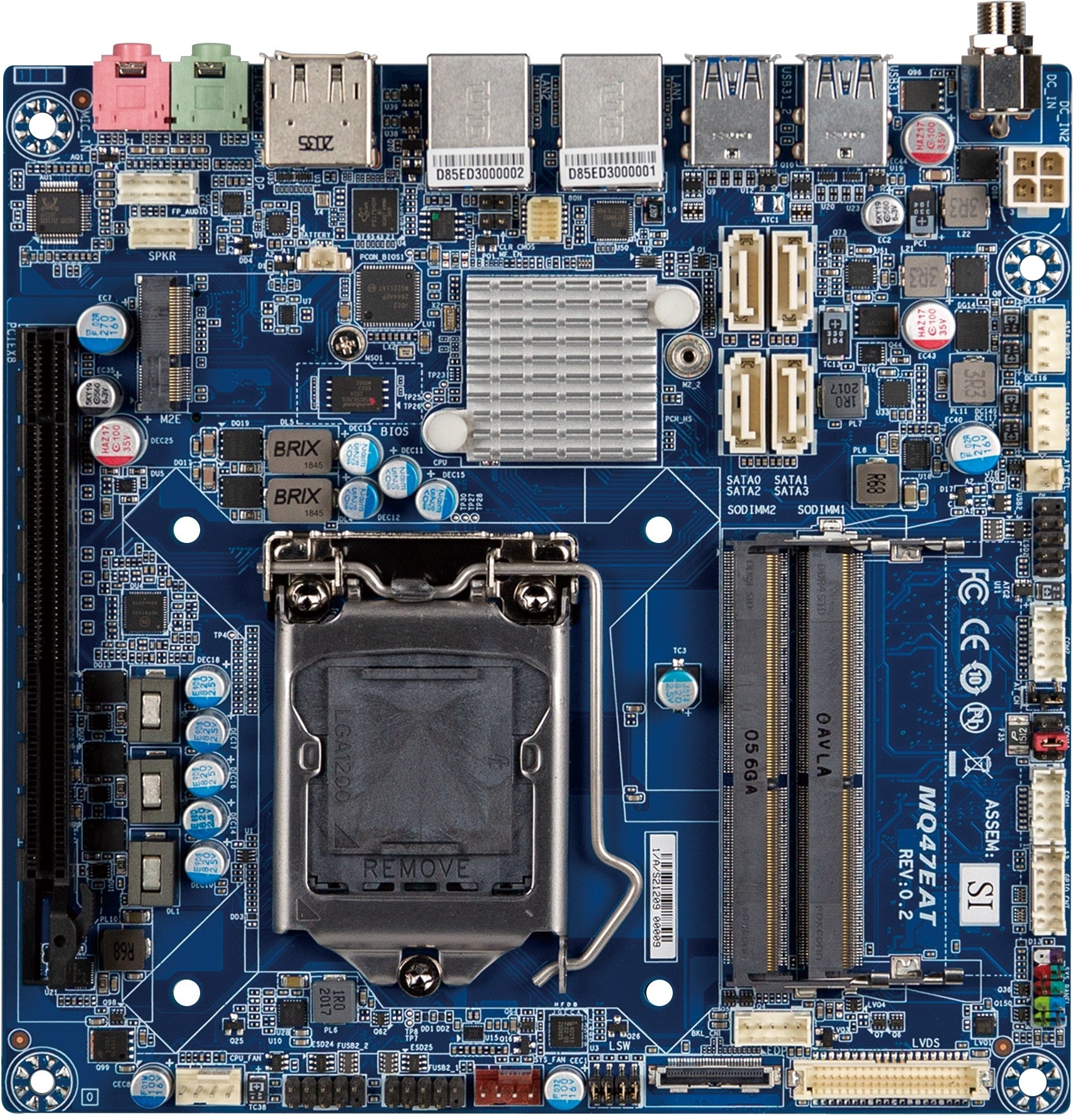

Gigabyte iTXL-Q47EA Motherboard Q470E LGA1200 Max.64GB DDR4 Thin Mini-ITX

Name: Gigabyte iTXL-Q47EA Motherboard Q470E LGA1200 Max.64GB DDR4 Thin Mini-ITX
Brand: Gigabyte
SKU: ASIaGIG 263491 - ITXL-Q47EA
Price: 214.63 USD
Availability: InStock

$214.63 USD

Shipping calculated at checkout.

In stock: 1

Description

SKU: 263491
MPN: iTXL-Q47EA

Marketing Information:
Thin Mini-ITX with Intel® Q470E Chipset, support 10th Generation Intel® Core™ Processor, Dual Channel DDR4 Memory, PCIe, 2 x COM, 10 x USB, 4 x SATA 6Gb/s

Key Features

Thin Mini-ITX form factor
Support 10th Generation Intel® Core™ Processors
Intel® Q470E Express chipset
Dual Channel DDR4, 2 x SO-DIMMs
2 x GbE LAN Ports
4 x SATA 6Gb/s Ports
HDMI, Display Port, eDP/LVDS ports for Multiple Display
Realtek® Audio codec
1 x COM Port (RS-232/422/485 & RI/5V/12V)
1 x COM Port (RS-232)

Detail Specifications:
Form Factor
Thin Mini-ITX
170W x 170D(mm)

CPU

Support for 10th Generation
Intel CoreTM i9/i7/i5/i3 processors, Pentium and Celeron processors in the LGA1200 package
TDP under 65W
L3 cache varies with CPU

Socket
1 x LGA 1200

Chipset
Intel Q470E Express Chipset

Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual channel DDR4 2933/2666 MHz memory modules

Ethernet
2 x GbE LAN Ports (Intel I219LM and Intel I211AT)

Video

Integrated Graphics Processor - Intel HD Graphics support:
1 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 at 60Hz
1 x DP port, supporting a maximum resolution of 4096x2160 at 60Hz
1 x LVDS port, supporting a maximum resolution of 1920x1080 at 60Hz
1 x eDP port, supporting a maximum resolution of 4096x2160 at 60Hz
(3 independent display outputs)

Audio
Realtek Audio Codec

Storage
4 x SATA 6Gb/s Ports (RAID 0/1/5/10)

Expansion Slots

1 x PCIe x16 (Gen3 x8)
1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)
x 2230 M.2 E-Key

Warranty Information
2 Years from Gigabyte
