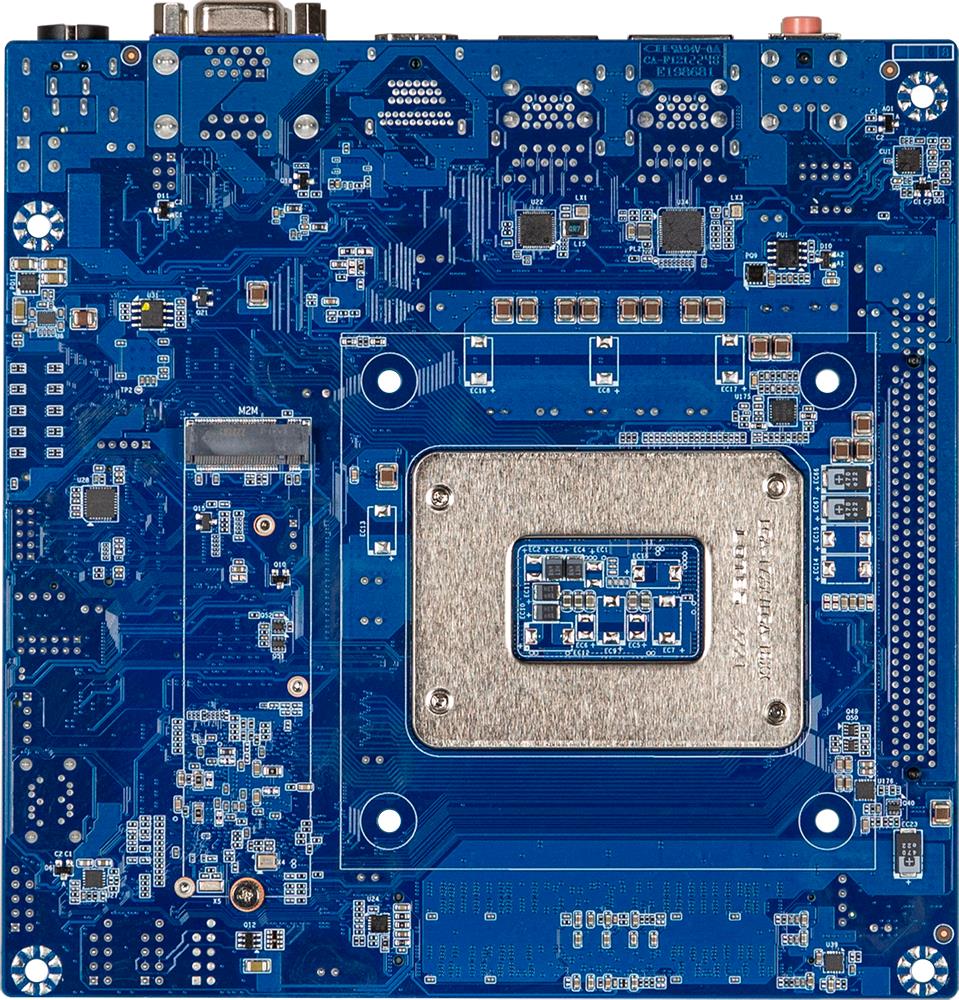

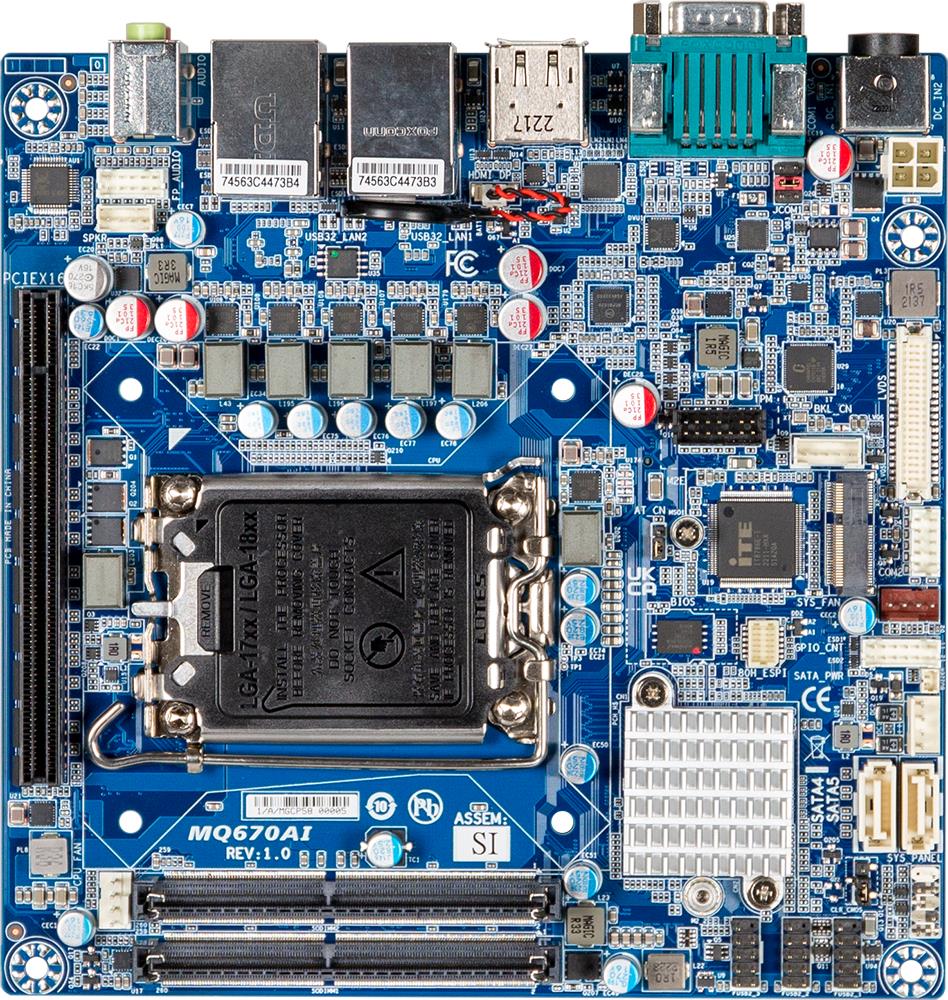

Gigabyte MITX-Q670A MB LGA1700 DDR4 M.2 SATA RAID DP HDI- VGA 2.5G-LAN mini-ITX

Key Features

Mini-ITX with Intel® Q670 Chipset, support 14th/13th/12th Generation Intel® Core™ Processors, Dual channel DDR4 memory, PCIe, 2 x COM, 10 x USB, 2 x SATA 6Gb/s

• Mini-ITX form factor
• Support 14th/13th/12th Generation Intel® Core™ Processors
• Intel® Q670 Chipset
• Dual Channel DDR4, 2 x SO-DIMMs
• 1 x GbE LAN Port
• 1 x 2.5GbE LAN Port

Form Factor

• Mini-ITX
• 170W x 170D(mm)

CPU

• Support for 14th/13th/12th Generation
• Intel® Core™ i9/i7/i5/i3, Pentium® and Celeron® processors in the LGA1700 package
• TDP under 65W

Socket

• 1 x LGA 1700

Chipset

• Intel® Q670 Chipset

Memory

• 2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB
• Support Dual channel DDR4 3200 MHz memory modules

Ethernet

• 1 x GbE LAN Port (Intel® I219LM)
• 1 x 2.5GbE LAN Port (Intel® I226V)

Video

• Integrated Graphics Processor - depends on CPU:
• 1 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz
• 1 x DP port, supporting a maximum resolution of 4096x2160 @60Hz
• 1 x VGA port, supporting a maximum resolution of 1920x1200 @60Hz
• 1 x LVDS port, supporting a maximum resolution of 1920x1200 @60Hz

(4 independent display outputs)

Audio

• Realtek® Audio codec

Storage

• 2 x SATA 6Gb/s Ports

RAID

• RAID 0/1

Expansion Slots

• 1 x PCIe x16 (Gen4 x16)
• 1 x 2280 M.2 M-Key (PCIe x4)
• 1 x 2230 M.2 E-Key (WiFi/BT)

Internal I/O

• 1 x 4-pin ATX main power connector
• 2 x SATA power connectors
• 1 x CPU fan header
• 1 x System fan header
• 1 x Front panel header
• 1 x Front panel audio header
• 1 x 2W Speaker out header
• 6 x USB 2.0 headers
• 1 x COM header (RS-232)
• 1 x GPIO (8-bits) & SMBUS header
• 1 x Backlight Control header
• 1 x Clear CMOS jumper
• 1 x Buzzer header
• 1 x AT/ATX mode select jumper

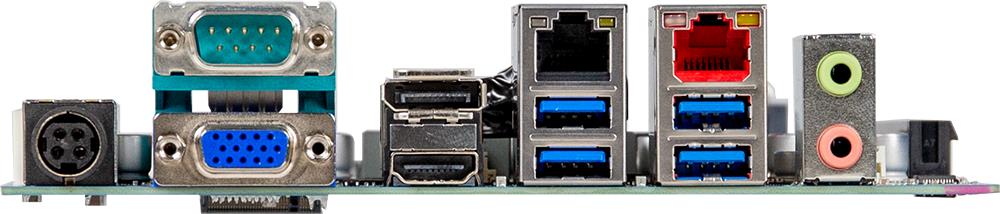

Rear l/O

• 2 x Audio Jacks (Line out, Mic in)
• 1 x COM Port (RS-232/422/485 & RI/5V/12V)
• 1 x HDMI
• 1 x Display Port
• 1 x VGA
• 2 x RJ45 LAN Ports
• 4 x USB 3.2 Gen 1
• 1 x DC Jack (+12V/+19V~+24VDC)

TPM

• 1 x TPM Header

OS Compatibility

• Windows 10/11 (x64)

Operating Properties

• Operating temperature: 0°C to 60°C
• Operating humidity: 0-90% (non-condensing)
• Non-operating temperature: -40°C to 85°C
• Non-operating humidity: 0%-95% (non-condensing)

Packing Content

• Single Box size: 221 x 178 x 65 (mm)
• Single Box weight: Approx. 0.8kg

Including:

• IO Shield x 1 (P/N: 12AIO-MQ47EA-10R)
• SATA power Cable x 1 (P/N: 25CRI-300B01-K1R)

Order Information

• 9MQ670AIMR-SI (Box packing)

Optional Kit (Not Included and Sold Separately)

• CPU Cooler : 25ST0-037820-Y0R
• CPU Cooler Backplate : 12KRH-0A1700-00R
• TPM 2.0 module: 9CTM010NR-00
