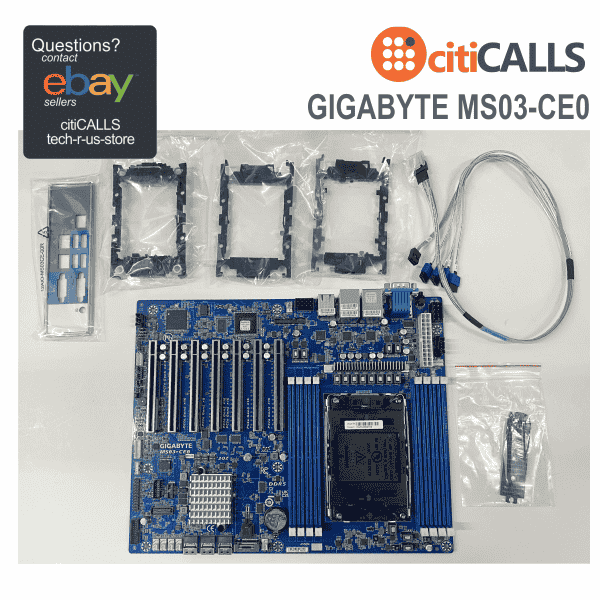

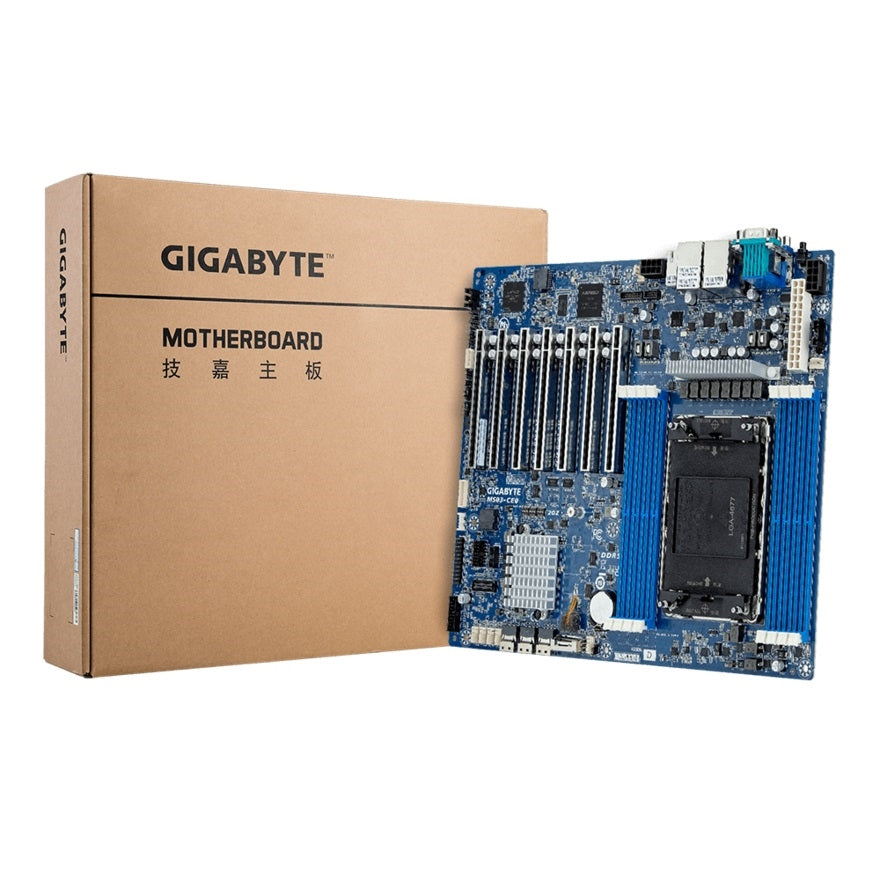

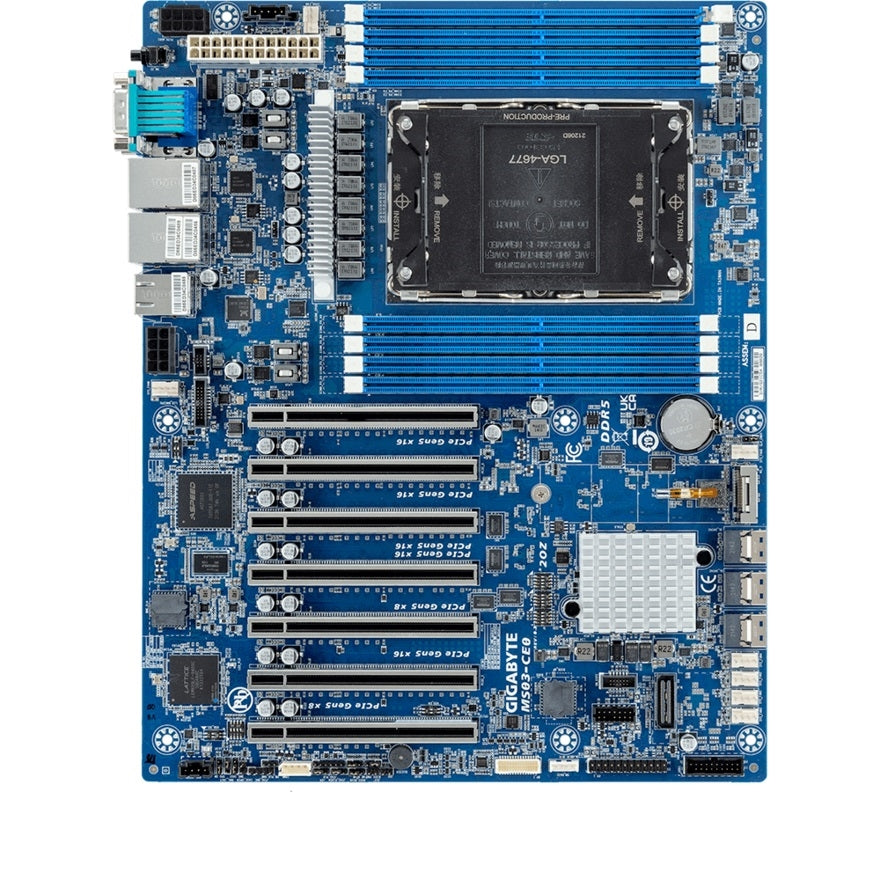

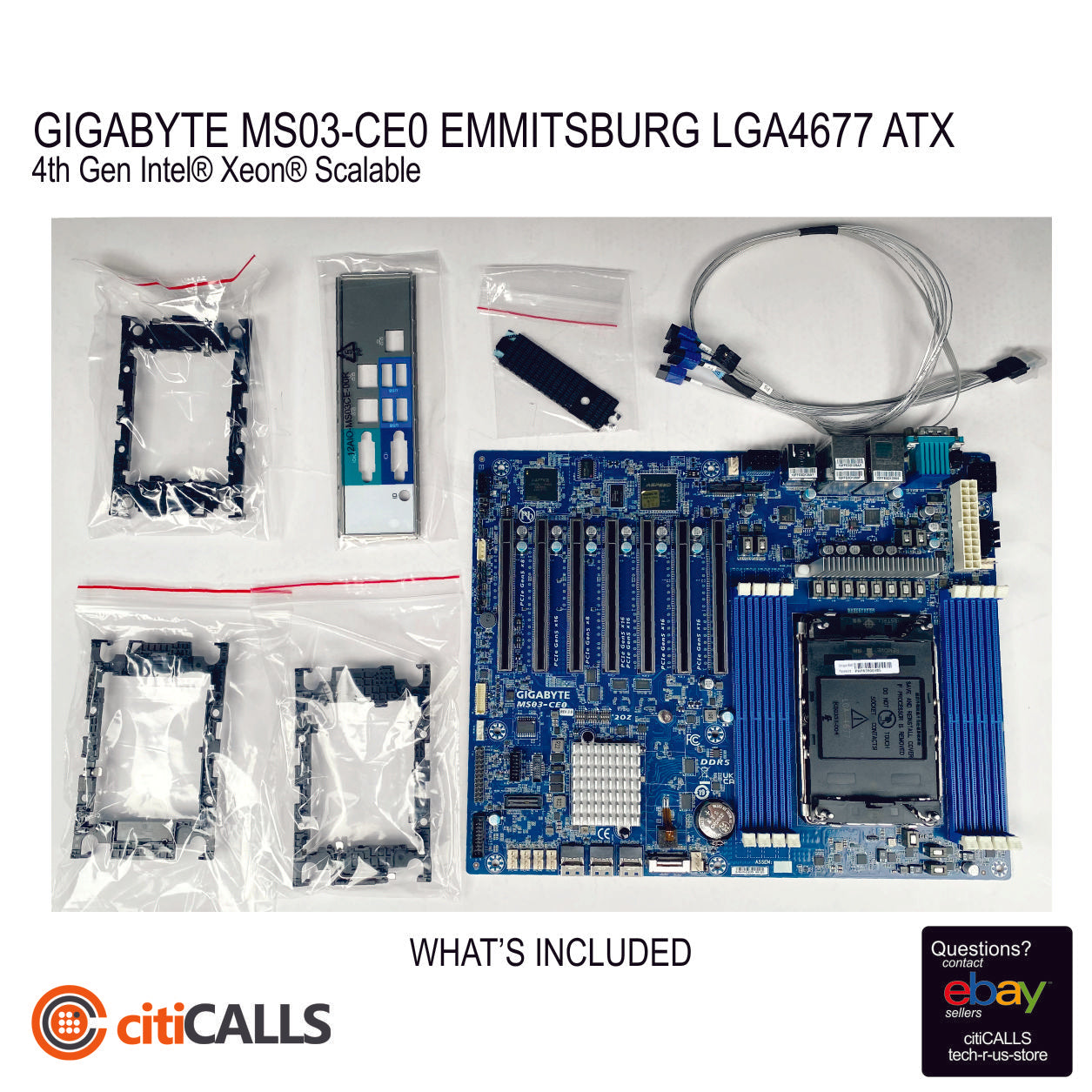

Gigabyte MS03-CE0 Motherboard Emmitsburg Xeon LGA4677 DDR5 ATX Brown Box

SKU: 272462
MPN: MS03-CE0

Detail Specifications:
Form Factor
ATX
304.8W x 244D mm

CPU

• 4th Generation Intel Xeon Scalable Processors
• Intel Xeon CPU Max Series
• Intel Xeon Platinum Processor, Intel Xeon Gold Processor, Intel Xeon Silver Processor
• Single processor, CPU TDP up to 350W

Socket
1 x LGA 4677
Socket E

Chipset
Intel C741 Chipset

Memory

• 8 x DIMM slots DDR5 memory supported only
• 8-Channel memory architecture
• RDIMM modules up to 96GB supported
• 3DS RDIMM modules up to 256GB supported
• Memory speed: Up to 4800 MHz

LAN

• 2 x 1Gb/s LAN ports (Intel I210-AT)
• NCSI function supported
• 1 x 10/100/1000 management LAN

Video NCSI function supported
Integrated in Aspeed AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200 at 60Hz 32bpp, DDR4 SDRAM

Audio NCSI function supported
N/A

SAS
N/A

SATA
3 x SlimSAS with 12 x SATA 6Gb/s ports

RAID
Intel SATA RAID 0/1/10/5

Expansion Slots

• Slot_7: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU
• Slot_6: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU
• Slot_5: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU
• Slot_4: 1 x PCIe x16 (Gen5 x16 or x8 bus) slot, from CPU, shared with Slot_3
• Slot_3: 1 x PCIe x16 (Gen5 x8 bus) slot, from CPU
• Slot_2: 1 x PCIe x16 (Gen5 x16 or x8 bus) slot, from CPU, shared with Slot_1
• Slot_1: 1 x PCIe x16 (Gen5 x8 bus) slot, from CPU

1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from PCH
- Supports 2280 cards
Internal I/O

• 1 x 24-pin ATX main power connector
• 2 x 8-pin ATX 12V power connectors
• 1 x M.2 slot
• 1 x CPU fan header
• 5 x System fan headers
• 1 x USB 3.2 Gen1 header
• 1 x TPM header
• 1 x VROC connector
• 1 x Front panel header
• 1 x HDD backplane board header
• 1 x PMBus connector
• 1 x IPMB connector
• 1 x Clear CMOS jumper
• 1 x BIOS recovery jumper
• 1 x Buzzer

Rear I/O

• 4 x USB 3.2 Gen1
• 1 x VGA
• 1 x COM
• 2 x RJ45
• 1 x MLAN
• 1 x ID button with LED

TPM

• 1 x TPM header with SPI interface

Optional TPM2.0 kit: CTM010

OS Supported
Please refer to OS compatibility table in support page

Board Management
Aspeed AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X)
web interface

• Dashboard
• HTML5 KVM
• Sensor Monitor (Voltage, RPM, Temperature, CPU Status etc.)
• Sensor Reading History Data
• FRU Information
• SEL Log in Linear Storage / Circular Storage Policy
• Hardware Inventory
• Fan Profile
• System Firewall
• Power Consumption
• Power Control
• LDAP / AD / RADIUS Support
• Backup and Restore Configuration
• Remote BIOS/BMC/CPLD Update
• Event Log Filter
• User Management
• Media Redirection Settings
• PAM Order Settings
• SSL Settings
• SMTP Settings

PSU Connectors

• 1 x 24-pin ATX main power connector
• 2 x 8-pin ATX 12V power connectors

Operating Properties

• Operating temperature: 10oC to 40oC
• Operating humidity: 8-80% (non-condensing)
• Non-operating temperature: -40oC to 60oC
• Non-operating humidity: 20%-95% (non-condensing)

Warranty Information
3 Years from Gigabyte
